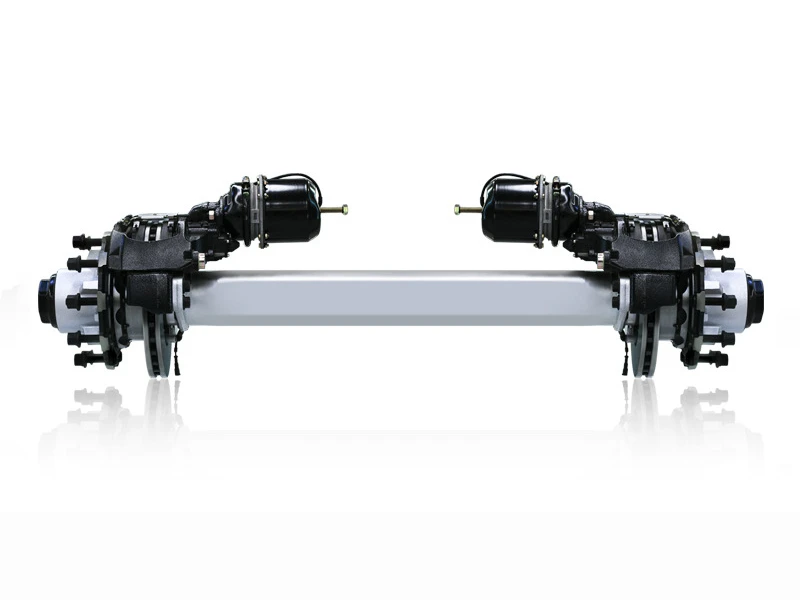

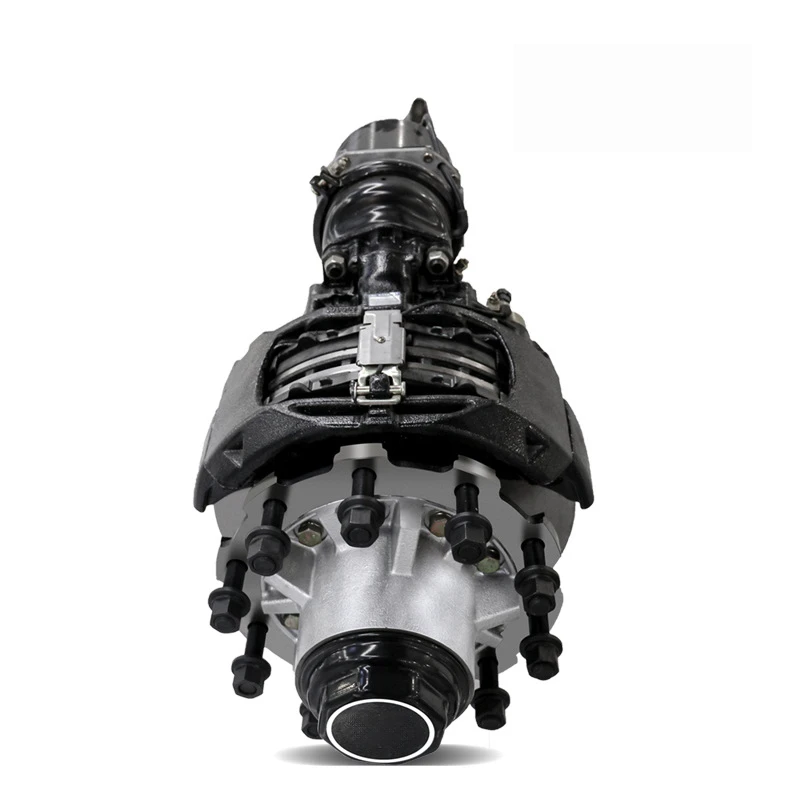

13T American Disc Trailer Axle
13T American disc trailer axle for reefers, tankers, and highway semi-trailers that need cleaner heat control, stable braking, and quote on request range pricing.
Reference priceUSD 790 – USD 980In stock · Available to orderFinal quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
Part TypeReplacement part
Axle LoadMatched to equipment requirement
SupplyFactory source and export packing
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
13T American disc trailer axle: this Kales semi-trailer axle family is built for buyers who need cleaner heat control, more stable road-speed braking, and easier visual disc inspection than a drum setup can usually provide. The family is centered on the 13 ton single-wheel disc axle while covering neighboring 9T and 11T variants in the same American-type disc family for buyers comparing offset, wheel-end fit, and route profile.
Engineering guidance from the Kales Vehicle parts team for buyers comparing a 13T American disc trailer axle with a 13T external drum axle, a heavier 20 ton drum axle, and German-style rear axle options for different trailer duty cycles.
Technical Snapshot
| Product type | American-type disc brake semi-trailer rear axle family |
|---|---|
| Headline configuration | KATA13 single-wheel disc axle |
| Rated capacity | 13 tons |
| Brake size | 430 x 45 mm alloy disc brake |
| Offset | 0 mm |
| Wheel track | 1840 mm |
| Ring gear teeth | 90 mm family standard |
| Stud pattern | 10 x M22 x 1.5 |
| PCD | 335 mm |
| Center hole | 280 mm |
| Recommended wheel | 20 inch or 22.5 inch |
| Approximate axle weight | 660 lb / 330 kg |
| Variant range | 9T, 11T, and 13T American-type disc axle family in single-wheel and twin-tyre layouts |
| Brake system note | Brake chambers are not included and should be matched to the trailer brake package |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |

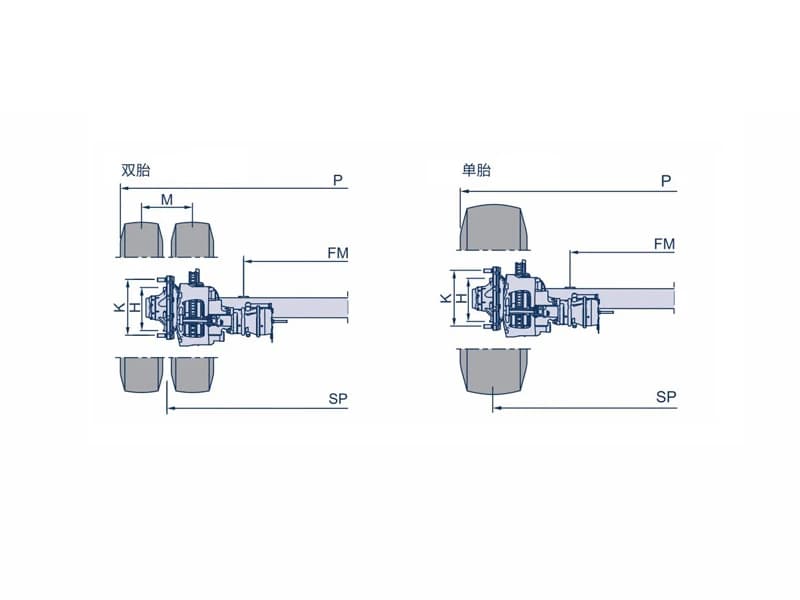

Family variant table
| Model | Capacity (T) | Offset (mm) | Wheel track (mm) | Brake (mm) | Studs | PCD (mm) | Center hole (mm) | Recommended wheel |
|---|---|---|---|---|---|---|---|---|
| KATA09A single wheel | 9 | 120 | 1840 | 377 x 45 | 10 x M22 x 1.5 | 335 | 280 | 19.5 / 20 / 22.5 |
| KATA09B single wheel | 9 | 0 | 1840 | 377 x 45 | 8 x M22 x 1.5 | 275 | 220 | 19.5 |
| KATA09C twin tyre | 9 | 0 | 1840 | 377 x 45 | 8 x M22 x 1.5 | 275 | 220 | 19.5 |
| KATA09D single wheel | 9 | 120 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
| KATA09E single wheel | 9 | 0 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
| KATA09F twin tyre | 9 | 0 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
| KATA11A single wheel | 11 | 0 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
| KATA11B twin tyre | 11 | 0 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
| KATA11C twin tyre | 11 | 0 | 1840 | 377 x 45 | 8 x M22 x 1.5 | 275 | 220 | 19.5 |
| KATA13 single wheel | 13 | 0 | 1840 | 430 x 45 | 10 x M22 x 1.5 | 335 | 280 | 20 / 22.5 |
Best Fit Operating Profile
This axle family is best suited to fleets that spend most of their time on paved corridors, longer-distance logistics lanes, and controlled-speed regional highways where disc heat control and braking consistency matter. It works especially well for reefer semi-trailers, fuel and chemical tankers, and other road-focused trailer programs where cargo protection and thermal braking stability outweigh the field-service simplicity of drum hardware.
Best for
- Highway reefer and cold-chain trailer fleets
- Fuel, chemical, and road tanker fleets that want more stable braking
- Road-focused operators that value easier disc inspection and cleaner heat control
- Export buyers standardizing an American-type disc axle package for asphalt-heavy routes
Not ideal for
- Rough-route fleets that prioritize the workshop simplicity of an external drum axle
- Heavy bulk trailers that genuinely require a 20 ton drum axle platform
- Fleets standardized around German-style axle geometry and parts matching
Why Buyers Choose This 13T American Disc Axle Family
- Cleaner heat control: the alloy disc layout suits buyers who need more stable braking temperature on longer highway runs.
- Road-speed braking stability: a disc package is attractive when reefers and tankers spend more time at steady logistics speeds.
- Easier visual inspection: the disc layout makes it simpler to check wear condition and service status without the same drum-access limitations.
- Lighter package: the 13T disc axle suits operators who care about payload efficiency as well as braking quality.
- Advanced brake-system compatibility: ABS, EBD, and retarder-oriented trailer programs align more naturally with this road-focused disc setup.
- Family coverage: buyers can stay within one American-type disc family while selecting 9T, 11T, or 13T according to trailer duty.
Specification-backed advantages
- Rated capacity: 13 tons. This defines the working band to validate against the cargo, route, and local legal limits.
- Brake size: 430 x 45 mm alloy disc brake. This gives the buyer a specific braking or safety package to verify for the intended route.
- Headline configuration: KATA13 single-wheel disc axle. This makes destination-market parts support and workshop planning easier to confirm before production.
How This American Disc Axle Should Be Evaluated
The correct way to assess a 13T American disc trailer axle is not only by capacity and price headline. Buyers should confirm route profile, brake temperature demand, wheel-end fit, offset, PCD, center-hole diameter, brake-chamber strategy, and whether the destination workshop already supports disc-service routines. Those details determine whether the disc package creates real value instead of avoidable service friction.
| Buyer situation | Best-fit Kales option | Why |
|---|---|---|
| 13T American-type axle for highway reefer and tanker service | This 13T American disc axle family | It prioritizes thermal braking stability, easier disc inspection, and road-speed braking consistency |
| 13T American-type axle for simpler workshop service on rough regional roads | 13T external drum trailer axle | Better fit when repair simplicity and drum-brake familiarity matter more than disc refinement |
| Heavier-load drum service above the 13T class | 20 ton American type drum trailer axle | Better fit when payload severity requires a larger drum axle platform |
| Fleet standardized on German-style running gear | 16 ton German style trailer axle | Better fit when geometry and replacement parts need to stay in the German-style system |
Engineering and Serviceability Details
Disc heat control is the real reason to choose this axle
The main reason fleets move from a drum package to a disc package is not fashion. It is braking temperature behavior. On longer highway runs with repeated braking events, a disc axle gives cleaner heat dissipation and more predictable braking response than many fleets get from a mainstream drum setup.
Brake-chamber planning must be explicit
This axle family does not include brake chambers by default. Buyers should match the disc axle with the intended trailer brake package before order confirmation. Skipping that step is one of the easiest ways to create avoidable fitment and commissioning delays after arrival.

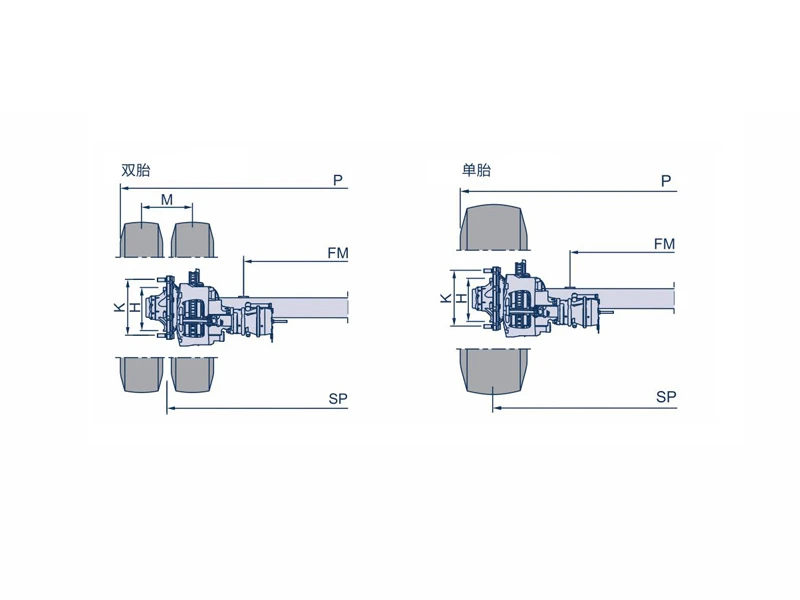

Offset and wheel-end fit matter more than the headline spec
This family includes different offsets, stud counts, and center-hole combinations. That matters because a disc axle that looks correct on paper can still create workshop problems if the hub, wheel, or mounting logic does not match the trailer already in service.
Disc is not automatically the best answer for every route
If the trailer spends most of its time on broken regional roads with limited workshop capability, an external drum axle can still be the better economic choice. This disc axle is strongest when the route is road-focused enough to benefit from thermal control, cleaner inspection, and more stable high-speed braking behavior.
Quotation and Procurement Guidance
The price is shown as a range because the family spans several disc layouts under one American-type platform. Buyers should compare the price range only after confirming capacity, offset, wheel-end standard, center-hole fit, wheel choice, and the brake package that will be installed with the axle.
Kales can match the disc axle to the trailer application before order confirmation, including wheel-end geometry and brake-system logic. For serious buyers, the goal is to order the exact road-use disc variant that fits the trailer program instead of paying for the wrong hardware simply because the headline capacity looks close enough.

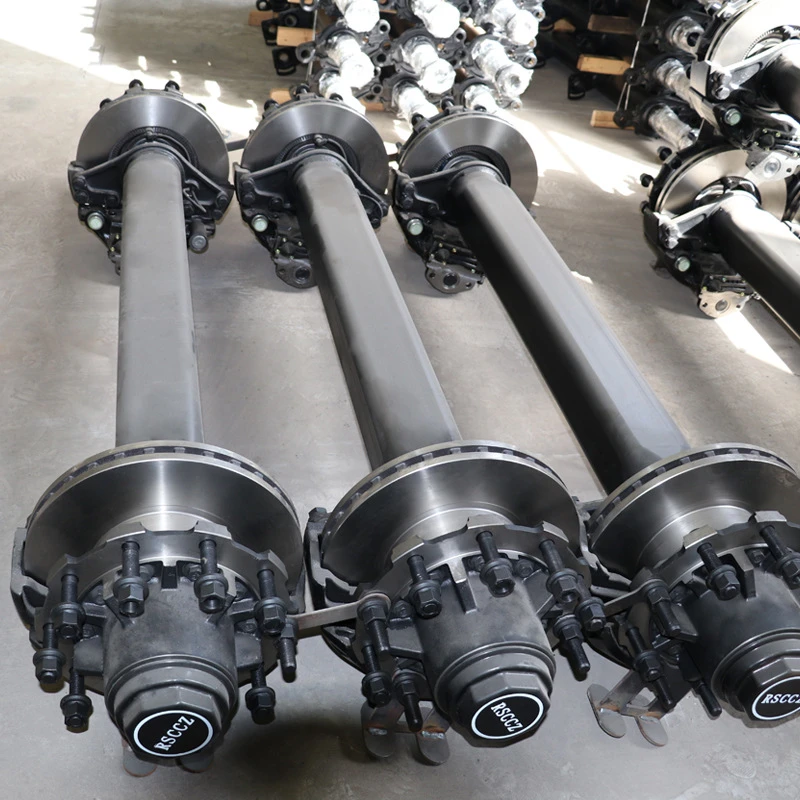

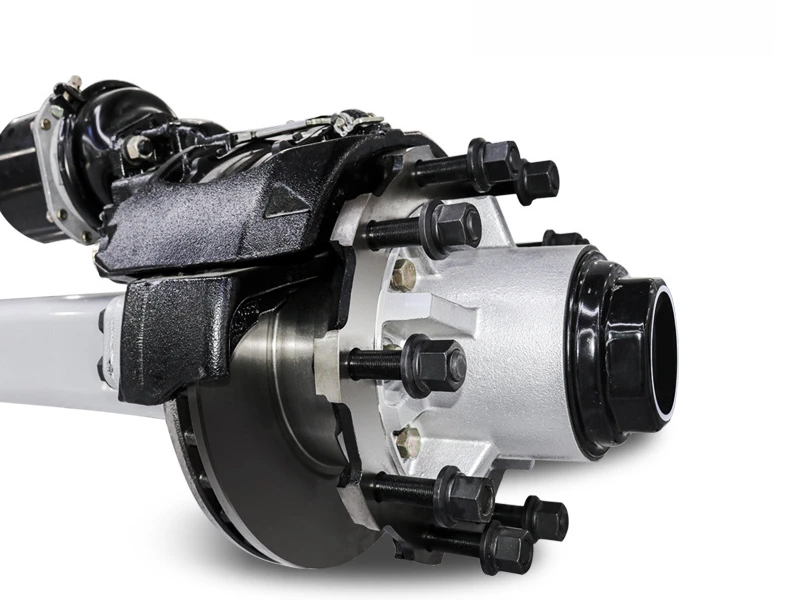

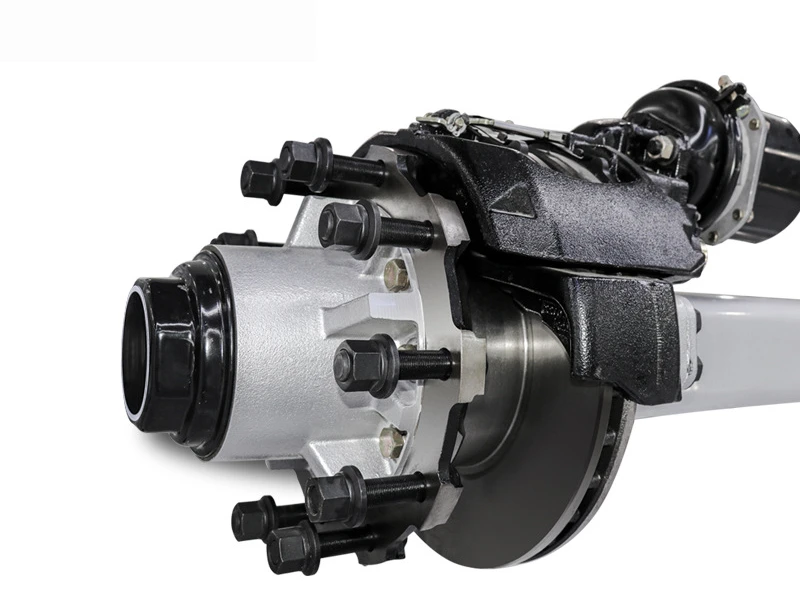

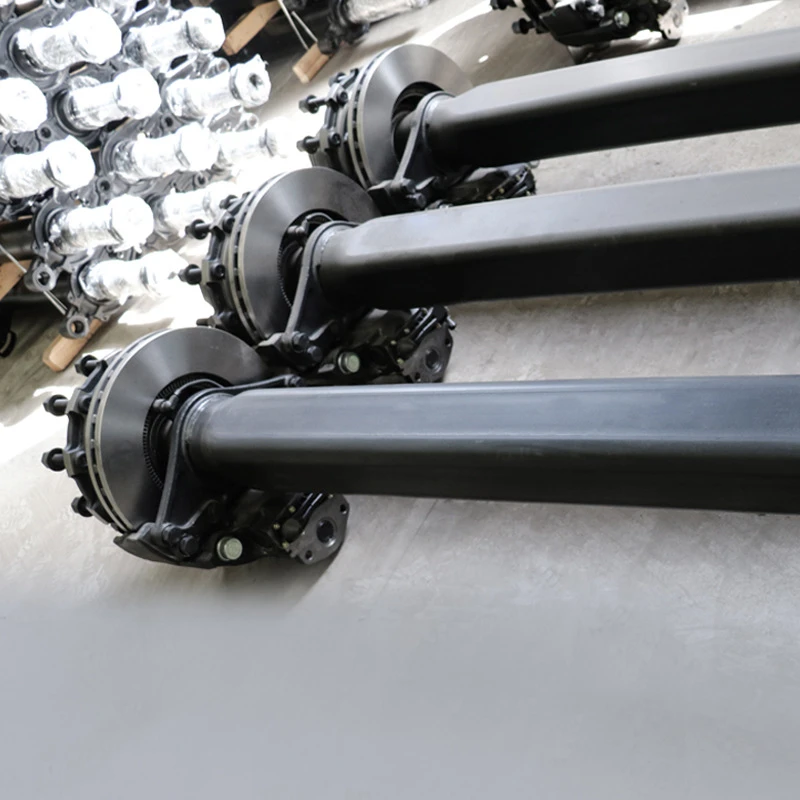

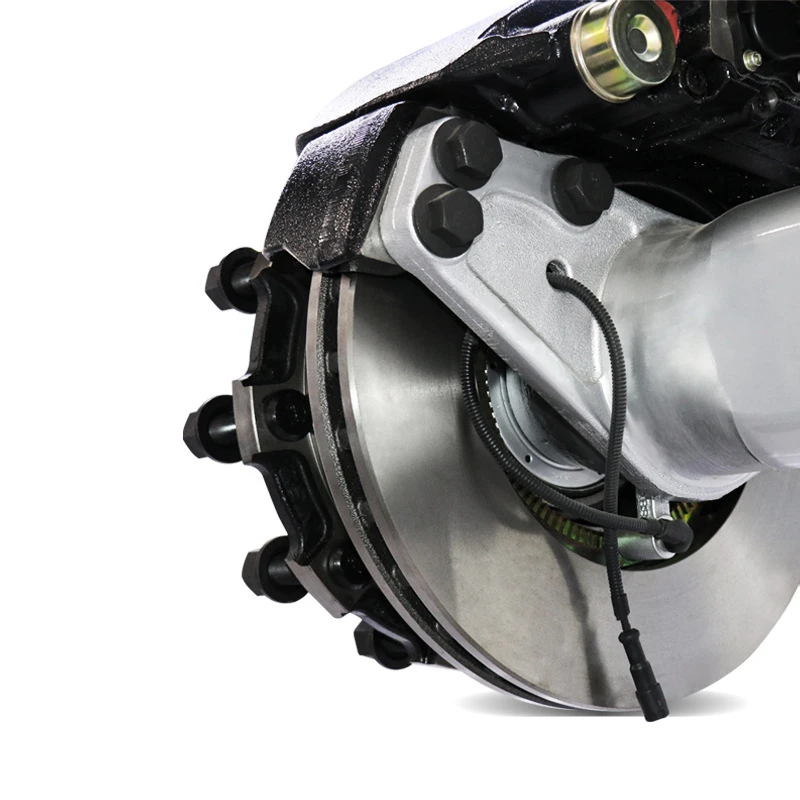

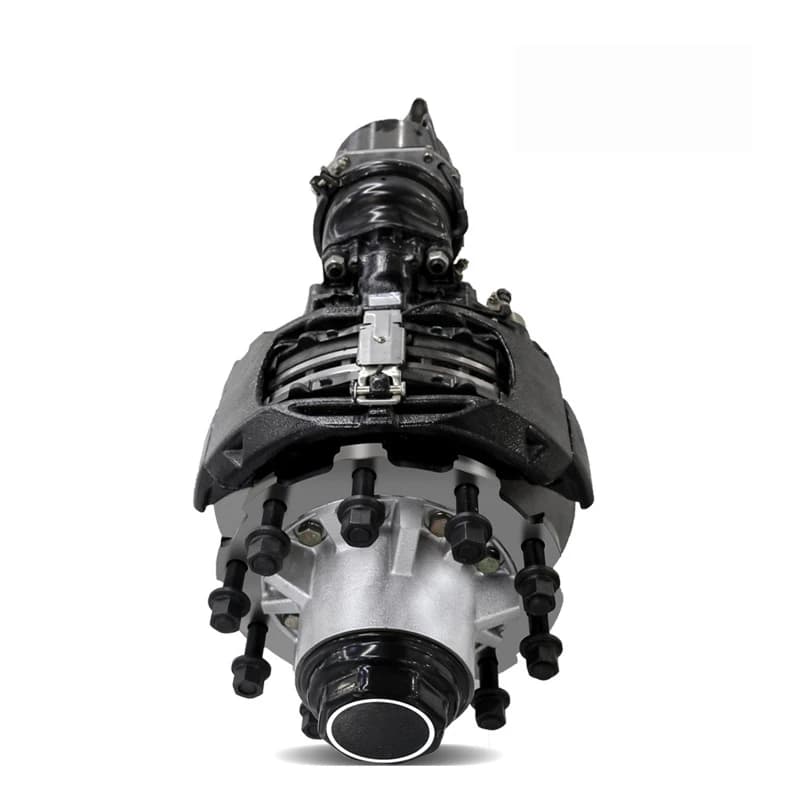

Inspection Views
Built for your market
- Confirm part specification, matching model, and quantity before shipment to reduce installation risk.
- Arrange branded packaging, part marking, or bundled wear-part kits for dealer or workshop orders.
- Combine urgent replacement parts with regular stock replenishment in one export plan when needed.
- Request batch packing, palletizing, or carton labeling based on destination handling requirements.
Export shipping made practical
- Urgent parts can be sent by express courier, while heavier or larger orders can move by air, sea, or combined shipments.
- We help match packing and shipment mode to delivery urgency, budget, and destination customs practice.
- Trade terms, invoice support, and export packing lists are prepared according to the order arrangement.
- When helpful, we can recommend adding wearing parts to vehicle orders to reduce future downtime and logistics cost.
Quality checks and after-sales
- Parts are checked before dispatch for visible quality, quantity, and packing accuracy.
- Batch orders can be packed for easier warehouse receipt, stock control, and dealer distribution.
- Ongoing supply and remote support are available if you need help with replacement planning or matching confirmation.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
How do I confirm this part matches my trailer or truck?+
Send us the part photo, dimensions, model information, or vehicle details. We can help confirm the right specification before shipment.
Can you supply parts in bulk for dealers or workshops?+
Yes. We support both urgent single-item orders and larger batch orders for dealers, maintenance teams, or fleet stock planning.
What shipment methods do you use for spare parts?+
Urgent items can move by courier or air, while regular replenishment orders can be shipped by sea or combined with vehicle shipments when practical.
Do you provide support after the first order?+
Yes. We can continue supplying replacement parts and help with follow-up matching or replenishment needs as your fleet or business grows.
Request Disc Axle Matching and Quote
If you are comparing a 13T American disc trailer axle for reefer, tanker, or road-focused semi-trailer replacement, send your required capacity, route profile, brake package, offset, PCD, center-hole, and wheel standard. Kales can then match the correct disc axle variant and quote the right wheel-end configuration instead of a generic parts offer.
