13T External Drum Trailer Axle
13T external drum trailer axle with easier brake service, practical drum durability, and quote on request range pricing for rough-route semi-trailer axle replacement.
Reference priceUSD 315 – USD 550In stock · Available to orderFinal quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
Part TypeReplacement part
Axle LoadMatched to equipment requirement
SupplyFactory source and export packing
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
13T external drum trailer axle: this Kales American-type rear axle family is built for buyers who need a 13 ton semi-trailer axle with simpler roadside maintenance, faster brake access, and a practical price range for routine fleet replacement. The page is centered on the 13T external drum layout while covering adjacent variants in the same hardware family for buyers comparing wheel-end fit, axle tube, and service logic.
Engineering guidance from the Kales Vehicle parts team for buyers comparing a 13T external drum trailer axle with American-type disc axles, heavier 20T drum axles, and other export rear axle replacement options for different route profiles.
Technical Snapshot
| Product type | American-type external drum brake semi-trailer rear axle family |
|---|---|
| Headline configuration | KAED13 external drum rear axle |
| Rated capacity | 13 tons |
| Brake size | 420 x 180 mm external drum brake |
| Total length | 2180 mm |
| Wheel track | 1840 mm |
| Axle tube options | 127 x 127 x 12/14 mm or 150 x 150 x 11 mm |
| Stud pattern | 10 x M22 x 1.5 |
| PCD options | 285.75 mm or 335 mm |
| Center hole options | 221 mm or 281 mm |
| Recommended wheel | 7.5V-20 or above |
| Variant range | 10T, 13T, 14T, 15T, and 16T external drum family |
| Optional equipment | ABS brake support and air brake chamber matching available |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |
Family variant table
| Model | Capacity (T) | Total length (mm) | Brake (mm) | Axle tube | PCD (mm) | Center hole (mm) |
|---|---|---|---|---|---|---|
| KAED10TA | 10 | 2180 | 420 x 180 | 127 x 16 round | 285.75 | 221 |
| KAED10TB | 10 | 2180 | 420 x 180 | 127 x 16 round | 335 | 281 |
| KAED13TA | 13 | 2180 | 420 x 180 | 127 x 127 x 12/14 | 285.75 | 221 |
| KAED13TB | 13 | 2180 | 420 x 180 | 150 x 150 x 11 | 285.75 | 221 |
| KAED13TC | 13 | 2180 | 420 x 180 | 127 x 127 x 12/14 | 335 | 281 |
| KAED13TD | 13 | 2180 | 420 x 180 | 150 x 150 x 11 | 335 | 281 |
| KAED14T | 14 | 2180 | 420 x 200 | 150 x 150 x 11 | 335 | 281 |
| KAED15T | 15 | 2200 | 420 x 180 | 150 x 150 x 14 | 335 | 281 |
| KAED16T | 16 | 2200 | 420 x 220 | 150 x 150 x 14 | 335 | 281 |
Best Fit Operating Profile
This axle family is best suited to fleets and workshops that want faster brake maintenance, easier spare-parts matching, and dependable service on regional freight routes. It works well for general cargo, bulk support, regional distribution, and trailer rebuild programs where maintenance practicality matters more than disc-brake highway refinement or 20T-class load reserve.
Best for
- American-type semi-trailer rear axle replacement with simpler service access
- Fleets working on mixed paved and rough regional roads
- Workshops that value faster brake inspection and pad replacement
- Export buyers who need a 13T class axle with practical price and repair logic
Not ideal for
- High-speed highway fleets that specifically want disc-brake thermal stability
- Heavier-load bulk trailers that really need a 20T drum axle family
- Fleets standardized on German-style running gear instead of American-type wheel-end geometry
Why Buyers Choose This 13T External Drum Axle Family
- External drum service access: brake inspection and pad replacement are easier than on many enclosed or more complex layouts.
- Practical 13T position: it covers mainstream trailer axle replacement without forcing buyers into a heavier 20T-class cost structure.
- Strong rough-route fit: drum-brake hardware remains popular where workshop familiarity and simple repair matter more than highway disc refinement.
- Multiple wheel-end combinations: PCD, center-hole, and axle-tube combinations help buyers match existing fleet hardware more accurately.
- Optional ABS and air chamber matching: useful when the destination trailer program needs closer brake-system alignment.
- configuration-based structure: practical for distributors and fleet workshops buying according to exact configuration instead of one rigid part number.
Specification-backed advantages
- Rated capacity: 13 tons. This defines the working band to validate against the cargo, route, and local legal limits.
- Brake size: 420 x 180 mm external drum brake. This gives the buyer a specific braking or safety package to verify for the intended route.
- Headline configuration: KAED13 external drum rear axle. This makes destination-market parts support and workshop planning easier to confirm before production.
How This External Drum Brake Axle Should Be Evaluated
The correct way to assess a 13T external drum trailer axle is not just by price or capacity headline. Buyers should confirm axle tube format, PCD, center-hole fit, brake size, stud pattern, and the service environment after delivery. Those details decide whether the axle actually matches the trailer and the workshop parts ecosystem.
| Buyer situation | Best-fit Kales option | Why |
|---|---|---|
| American-type 13T rear axle with simpler brake service logic | This 13T external drum axle family | It prioritizes easier maintenance, mainstream drum hardware, and practical replacement cost |
| American-type 13T axle for stronger highway thermal braking | 13T American type disc brake trailer axle | Better fit when the route profile favors disc-brake response and heat stability |
| Heavier-load drum service above standard 13T class | 20 ton American type drum trailer axle | Better fit when payload severity justifies a larger drum axle platform |
| Fleet standardized on German-style running gear | 16 ton German style trailer axle | Better fit when geometry and wheel-end compatibility need to stay within the German-style system |
Engineering and Serviceability Details
Why external drum matters in workshop practice
The external drum layout is attractive because brake access is simpler. Buyers operating in Africa and Latin America often care less about brochure language and more about how quickly a mechanic can inspect, service, and return the trailer to work.
Wheel-end matching is the real buying risk
This family uses multiple PCD and center-hole combinations. That matters because many axle purchase mistakes happen after the order, when the workshop discovers the wheel-end does not match hub, rim, or existing parts stock. Confirming PCD, center hole, and axle tube before order approval is more important than chasing the lowest quote.
Route profile and brake logic
On rough regional routes, drum-brake familiarity often outweighs disc-brake refinement. Many buyers choose this family because local mechanics already understand drum service and can repair the axle faster with less parts sensitivity than a disc setup.
How is the final quotation confirmed?
KALES confirms the quotation after reviewing the required specification, quantity, destination, and delivery terms. Send the operating requirements for an accurate proposal.
Quotation and Procurement Guidance
Buyers should compare this product against other axle families only after confirming wheel-end standard and route environment. A lower headline price becomes expensive if the axle does not match the trailer hardware or creates brake-service complications after arrival.
Kales can match axle tube, brake size, PCD, center-hole, ABS requirement, and air chamber logic before order confirmation. For serious buyers, the main goal is to order an axle that fits the real trailer program instead of a generic axle that only looks similar on paper.

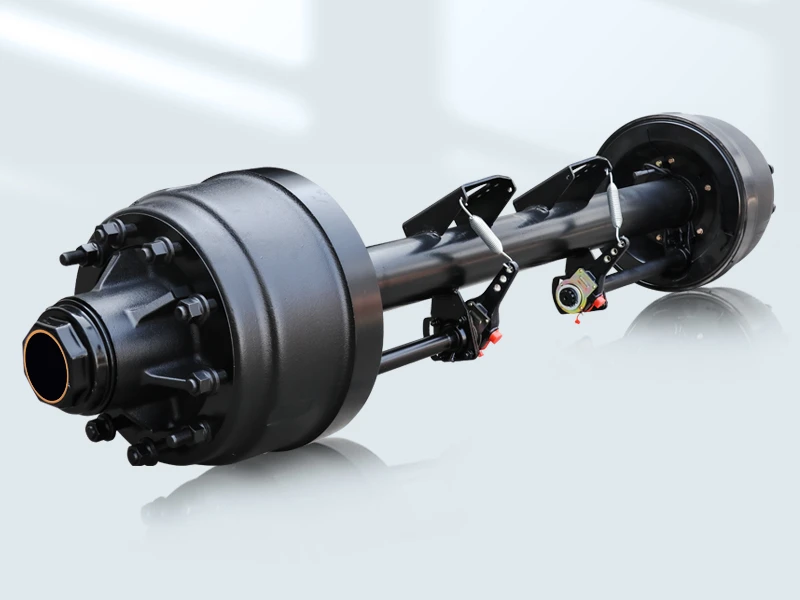

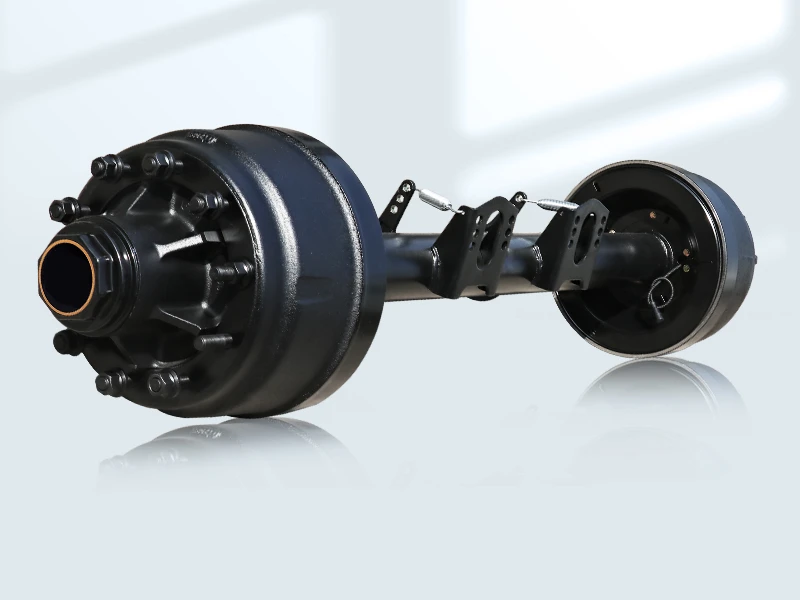

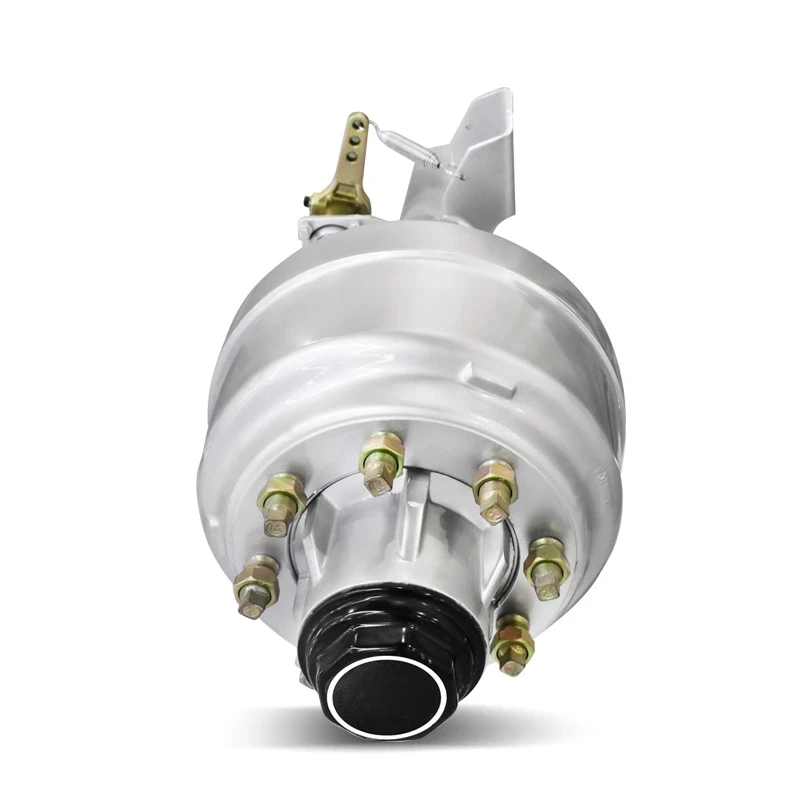

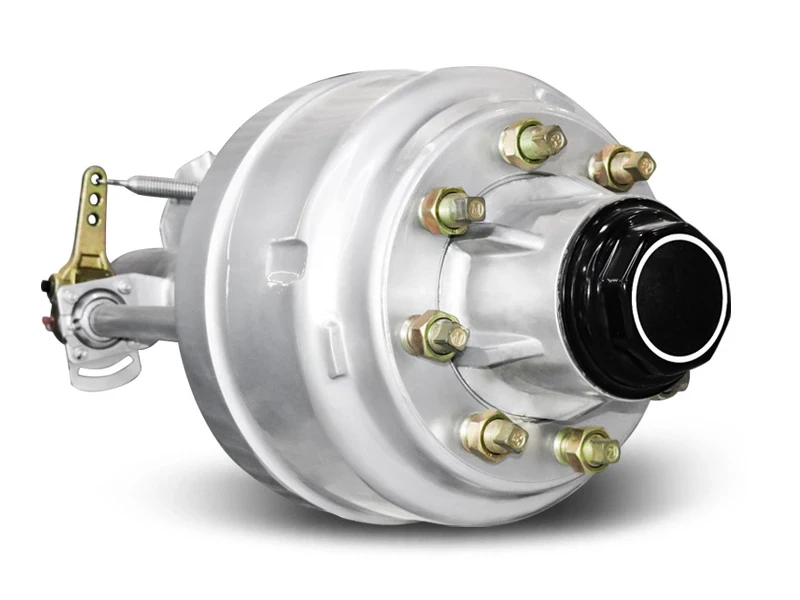

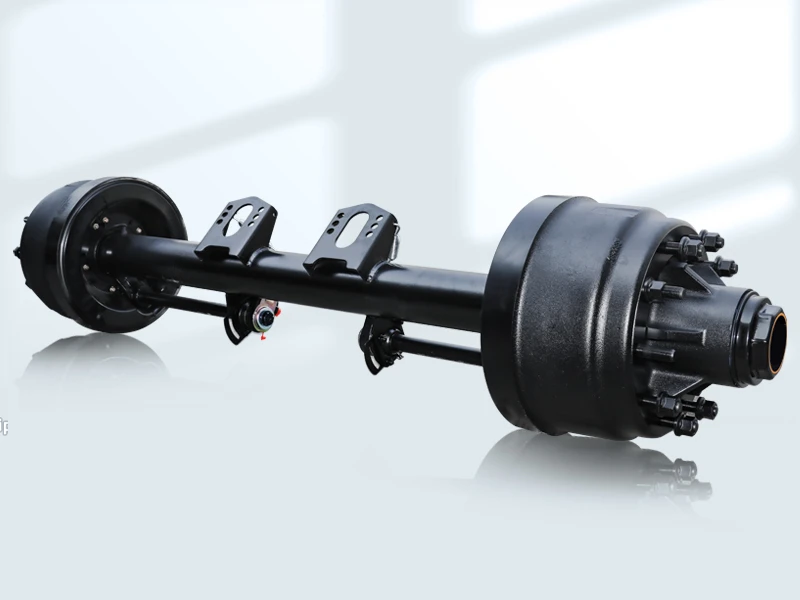

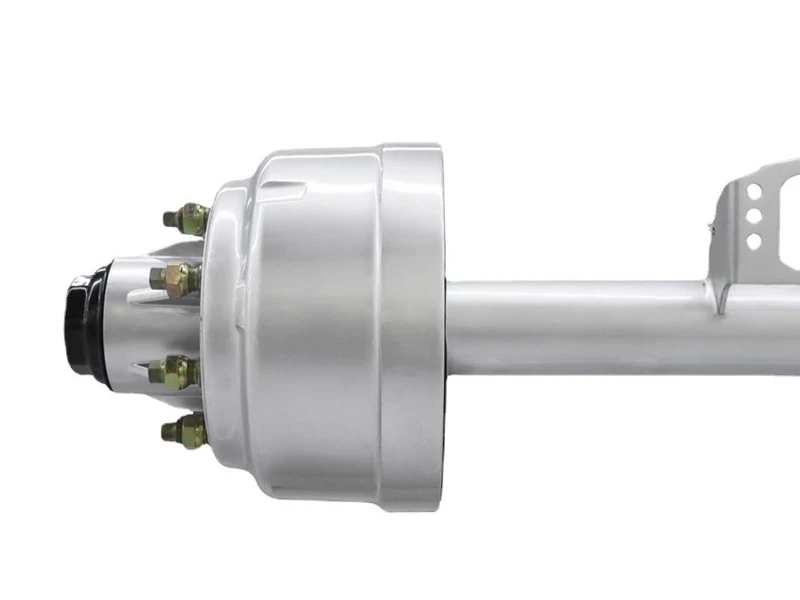

Inspection Views
Built for your market
- Confirm part specification, matching model, and quantity before shipment to reduce installation risk.
- Arrange branded packaging, part marking, or bundled wear-part kits for dealer or workshop orders.
- Combine urgent replacement parts with regular stock replenishment in one export plan when needed.
- Request batch packing, palletizing, or carton labeling based on destination handling requirements.
Export shipping made practical
- Urgent parts can be sent by express courier, while heavier or larger orders can move by air, sea, or combined shipments.
- We help match packing and shipment mode to delivery urgency, budget, and destination customs practice.
- Trade terms, invoice support, and export packing lists are prepared according to the order arrangement.
- When helpful, we can recommend adding wearing parts to vehicle orders to reduce future downtime and logistics cost.
Quality checks and after-sales
- Parts are checked before dispatch for visible quality, quantity, and packing accuracy.
- Batch orders can be packed for easier warehouse receipt, stock control, and dealer distribution.
- Ongoing supply and remote support are available if you need help with replacement planning or matching confirmation.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
How do I confirm this part matches my trailer or truck?+
Send us the part photo, dimensions, model information, or vehicle details. We can help confirm the right specification before shipment.
Can you supply parts in bulk for dealers or workshops?+
Yes. We support both urgent single-item orders and larger batch orders for dealers, maintenance teams, or fleet stock planning.
What shipment methods do you use for spare parts?+
Urgent items can move by courier or air, while regular replenishment orders can be shipped by sea or combined with vehicle shipments when practical.
Do you provide support after the first order?+
Yes. We can continue supplying replacement parts and help with follow-up matching or replenishment needs as your fleet or business grows.
Request Axle Matching and Quote
If you are comparing a 13T external drum trailer axle for fleet replacement or trailer rebuild, send your required capacity, brake size, axle tube format, PCD, center-hole, and trailer application. Kales can then match the correct wheel-end combination and quote the right hardware package instead of a generic axle offer.
