The semi-trailer axle is the critical load-bearing backbone connecting the wheels, braking system, and suspension. Beyond determining a trailer’s payload capacity, the right axle selection directly impacts braking safety, tire wear, maintenance intervals, and Total Cost of Ownership (TCO).
In the global commercial trailer market, BPW, SAF-HOLLAND, and FUWA stand out as the three most widely specified axle manufacturers. However, fleet operators and procurement managers sourcing container skeletal trailers, curtainsider trailers, lowbed trailers, or tipper semi-trailers frequently ask our engineering team the same questions: Which axle is better: BPW, SAF, or FUWA? Are German trailer axles always more durable than Chinese axles? Should I choose a 13-ton or 16-ton drum brake axle for heavy-duty off-road transport?
The right choice cannot be made by brand prestige alone. Based on official technical manuals from all three manufacturers and KALES VEHICLE’s field data from thousands of exported semi-trailers across Africa, Southeast Asia, South America, Australia, and the Middle East, this guide compares wheel-end bearings, braking architectures, axle load ratings, and real-world maintenance costs.
Quick Selection Guide (TL;DR for Fleet Buyers)
Choose BPW if: You have a higher initial budget, prioritize maximum fleet uptime and high resale value, or operate in harsh mining/off-road regions (Africa, Latin America) where clients specifically require German-engineered 13T–16T heavy-duty drum axles or modular ECO Plus hubs.
Choose SAF-HOLLAND if: You run highway linehaul, cold-chain, or hazardous material fleets (Europe, Australia, Middle East) and want lightweight integrated air suspension (INTRADISC) with sealed, pre-set Compact Wheel Bearings.
Choose FUWA if: You want the best Return on Investment (ROI), rapid spare parts availability at local roadside workshops, and proven 13T/16T/20T square-beam heavy-duty axles (or K-Hitch series for Australia) at roughly 45%–60% of the initial cost of European brands.
Executive Comparison: BPW vs. SAF vs. FUWA at a Glance
- Initial Procurement & Capital Allocation: FUWA serves as the global price-performance benchmark ($1.0× cost index). BPW ($1.7×–2.2×) and SAF-HOLLAND ($1.6×–2.1×) represent premium investments justified by tare weight reduction or high-utilization linehaul duty cycles.
- Wheel-End Bearing Architecture: BPW utilizes serviceable stepped DIN ISO tapered bearings paired with an integrated torque-limiting central nut. SAF uses factory-greased, sealed cartridge bearing units that eliminate bearing adjustment errors. FUWA utilizes symmetrical parallel spindles or stepped bearings with universal parts interchangeability.
- Braking Configurations: Air disc brakes (SAF INTRADISC, BPW ECO Disc, FUWA KF23) deliver superior thermal fade control on paved highways; enclosed drum brakes (FUWA 13T/16T, BPW ECO Drum, SAF INTRADRUM) protect friction surfaces from rocks, mud, and dust on mining haul roads.
- Chassis & Axle Alignment: Precision mounting is essential. KALES subjects every chassis to laser axle alignment calibration within ±1mm parallelism tolerances to prevent premature tire scrubbing and excess diesel consumption.
Key Decision Takeaways for Commercial Fleet Operators
- Operating Terrain Determines Brake Type: Specify enclosed drum brakes with $420 \times 180\text{ mm}$ or $420 \times 220\text{ mm}$ shoes for unpaved mining roads to prevent debris jamming. Select air disc brakes for high-speed highway corridors requiring EBS integration.
- Bearing Maintenance Protocols: If operating remote routes far from authorized dealerships, BPW’s standard DIN bearings or FUWA’s universal bearings allow immediate roadside overhaul. SAF’s sealed cartridges require unitized replacement hubs.
- Overload Safety Factors: European highway 9-ton axles prioritize lightweight tare. For African and Latin American corridors with severe dynamic impacts, 13-ton or 16-ton square-beam axles ($150 \times 150\text{ mm}$, 14–16mm wall thickness) prevent catastrophic spindle sagging.
- Integrated Running Gear Synergy: Maximize axle longevity by specifying authentic WABCO or Haldex braking valves and heavy-duty mechanical leaf or air suspension matched to payload requirements.
1. BPW, SAF, and FUWA: Understanding the Three Brands
1.1 BPW: German Engineering & Modular Running Gear Systems
BPW Bergische Achsen KG is a premier German manufacturer of commercial vehicle running gear, offering trailer axles, air suspensions, mechanical leaf-spring suspensions, and braking systems.

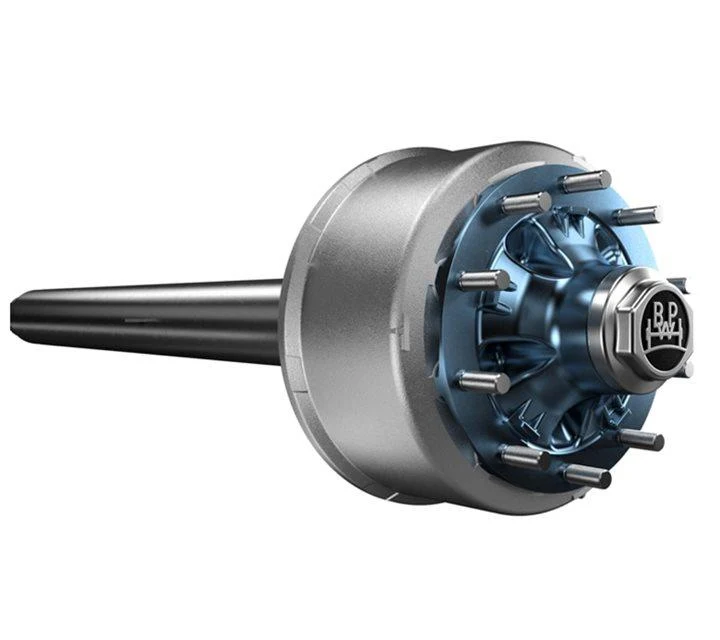

- Signature Highway Tech (ECO Plus & ECO Air): BPW’s ECO Plus wheel-end system uses standardized DIN ISO tapered roller bearings paired with a central axle nut featuring an integrated torque limiter. This allows technicians to dismount the wheel hub and set correct bearing play rapidly without complex measuring tools.
- Heavy-Duty Export Workhorses (12T–20T Series): While ECO Air dominates European highways, BPW (including its global manufacturing bases) also produces heavy-duty 13-ton, 14-ton, and 16-ton square-beam drum brake axles paired with reinforced mechanical or single-point suspensions—widely used in extreme mining and construction haulage.
1.2 SAF-HOLLAND: Integrated Suspension & Compact Wheel-End Technology
SAF is the flagship trailer axle brand under the SAF-HOLLAND Group, renowned for combining lightweight engineering with low-maintenance wheel ends.

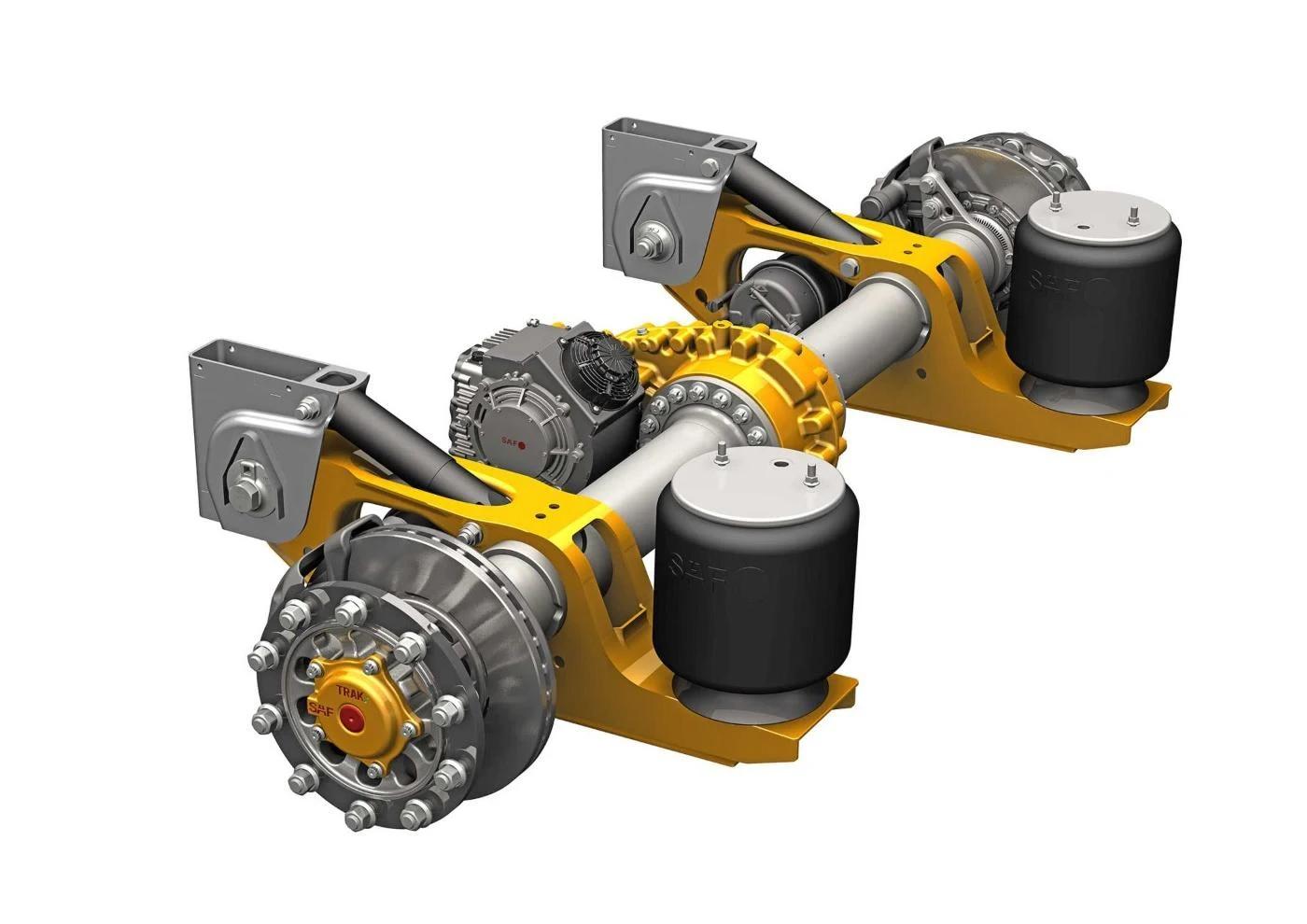

- Functional Integration (SAF INTRA Series): Products like the SAF INTRADISC plus INTEGRAL (disc brake) and SAF INTRADRUM (drum brake) integrate the suspension functional arm and axle beam into a unified structure, eliminating U-bolts on standard air suspension setups.
- Compact Wheel Bearing: SAF utilizes two identical-sized tapered roller bearings pre-assembled into a sealed, life-lubricated cartridge unit to minimize grease contamination.
- Bi-Metallic Disc Design: The INTRADISC plus INTEGRAL features a two-piece composite brake disc engineered to reduce thermal stress and prevent radial cracking during long downhill braking.
- Off-Road Capability: Beyond highway logistics, SAF offers the INTRA CD (Custom Design) and heavy-duty mechanical series specifically reinforced for rough roads.
1.3 FUWA: Versatile Global Volume Leader from China
Founded in 1997, FUWA (Guangdong Fuwa Engineering Group) is the world’s largest commercial trailer axle manufacturer by volume, supplying axles, landing gear, kingpins, and suspensions globally.
A common misconception is that FUWA only manufactures basic “American-type straight-spindle drum axles.” In reality, FUWA’s portfolio covers two major global tracks:

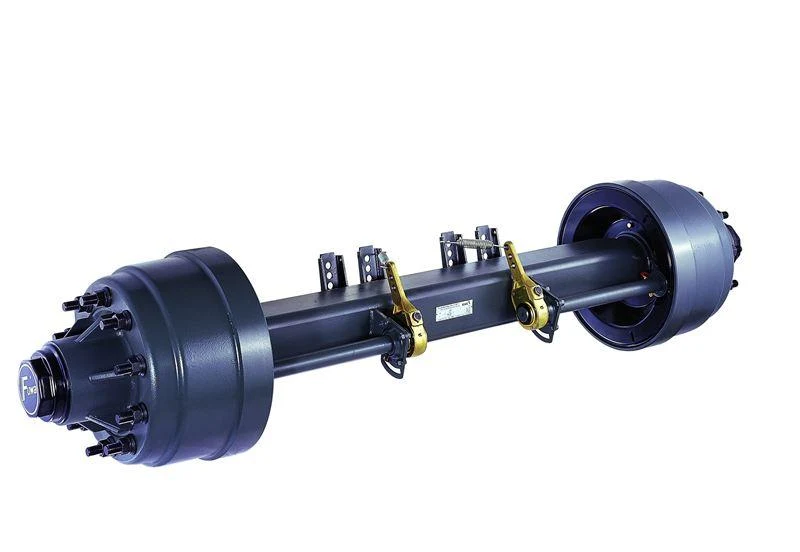

- Standard Heavy-Duty Export Series (13T / 16T / 20T): Featuring one-piece heat-treated alloy steel square beams ($150 \times 150\text{ mm}$, $14\text{–}16\text{ mm}$ wall thickness) with $420 \times 180\text{ mm}$ or $420 \times 220\text{ mm}$ heavy-duty brake shoes. Available in both American-type and German-type wheel-end configurations.
- Regional Certified Series (e.g., FUWA K-Hitch in Australia):
- KF21: 11.5-ton drum brake axle with parallel spindle.
- KF22: 11.5-ton drum brake axle offering tapered, parallel, or unitized hub options.
- KF23 & KF36: 11.5-ton and 13-ton disc brake axles compliant with strict ADR braking regulations.
2. BPW vs. SAF vs. FUWA: Technical Specifications & Cost Comparison
To avoid misleading “apples-to-oranges” comparisons between a 9-ton European highway axle and a 16-ton African mining axle, KALES engineers categorize comparisons into Standard Highway Linehaul and Heavy-Duty Export / Off-Road configurations.
Table 2.1: Technical & Commercial Comparison Matrix
| Comparison Parameter | BPW (Germany / Global) | SAF-HOLLAND (Germany / Global) | FUWA / K-Hitch (China / Global) |
|---|---|---|---|
| Highway Representative Series | BPW ECO Air / ECO Plus (9T–12T) | SAF INTRADISC plus INTEGRAL (9T–11T) | FUWA K-Hitch KF21 / KF22 / KF23 (11.5T–13T) |
| Heavy-Duty Export Mainstay | BPW 13T / 16T / 20T Square Beam Drum | SAF INTRADRUM / Heavy-Duty Off-Road (11T–16T) | FUWA 13T / 16T / 20T ($150\times150\text{ mm}$ Beam) |
| Wheel-End Bearing Design | Stepped DIN ISO tapered roller bearings (outer smaller, inner larger) with central torque-limiting nut | Compact Wheel Bearing: Pre-set sealed cartridge with two identical-sized bearings | Model-dependent: Symmetrical parallel spindle, tapered spindle, or unitized bearing |
| Braking Options | ECO Disc (Disc) / ECO Drum (Drum) | INTRADISC (Disc) / INTRADRUM (Drum) | Heavy-duty Drum ($420\times180/220$) & Air Disc |
| Suspension Matching | Air suspension, leaf-spring, single-point bogie | Integrated air suspension, mechanical suspension | Mechanical leaf-spring, heavy bogie, air suspension |
| Maintenance Philosophy | Fast hub puller disassembly; standard replaceable DIN bearings | Sealed-for-life bearing unit; minimal routine greasing; replaced as cartridge | Conventional grease maintenance; universal roadside serviceability |
| Initial Procurement Cost Index* | $1.7\times \text{ – } 2.2\times$ (Premium tier) | $1.6\times \text{ – } 2.1\times$ (Premium tier) | $1.0\times$ (Baseline reference) |
| Spare Parts Availability | High in Europe, Africa, Middle East & South America | Very High in Europe, Oceania & North America | Extremely High across Asia, Africa, LATAM, CIS & Oceania |
*Note on Cost Index: The relative procurement index compares equivalent 13T drum-brake running gear packages supplied on a new KALES semi-trailer. Actual pricing depends on origin (German import vs. regional joint-venture plant), brake spec, and order volume.
3. Core Engineering Differences Explained
3.1 Wheel-End Architecture & The “German vs. American Axle” Debate
In international semi-trailer trade, buyers often ask for “German-type axles” versus “American-type axles.” Structurally, this refers to the spindle, hub, and brake drum geometry:
- BPW ECO Plus & German-Type Design (Focus on Serviceability & Heat Dissipation):
- Uses stepped DIN ISO tapered roller bearings (a larger inner bearing and smaller outer bearing to distribute radial and axial cornering loads).
- Features an outboard-mounted brake drum (on drum models) that allows brake shoe servicing without disturbing the wheel bearings, or a central torque-limiting axle nut on ECO Plus hubs that acts as an integrated hub puller.
- Fact Check: Claims that “BPW bearings cannot be serviced and require replacing the entire axle” are false. Standard DIN ISO bearings in ECO Plus hubs are individually inspectable and replaceable.
- SAF Compact Wheel Bearing (Focus on Sealed Integration):
- Uses two identical-sized bearings sealed inside a factory-greased cartridge.
- Eliminates manual bearing preload adjustment errors during maintenance, though repairs typically involve swapping the complete hub/bearing cartridge per SAF service manuals.
- FUWA Wheel Ends (Adaptable by Series):
- Standard FUWA 13T/16T American-type axles often use symmetrical inner/outer bearings (such as HM518445/10 on parallel spindles) for maximum parts interchangeability in developing markets.
- However, FUWA also manufactures German-type stepped-bearing axles and K-Hitch unitized hubs. Always verify the exact axle serial number before ordering replacement bearings.
For fleet operators seeking alternative high-spec running gear engineered to these exact standards, explore our KALES 13T external drum brake axle and the heavy-duty KALES 16-ton German style trailer axle, both engineered with precision heat-treated spindles and reinforced hubs.
3.2 Disc Brakes vs. Drum Brakes
Choosing between disc and drum brakes impacts operating safety far more than the logo on the axle cap.
- Air Disc Brakes (e.g., SAF INTRADISC, BPW ECO Disc, FUWA KF23, and KALES 13T German disc brake axle):
- Pros: Superior thermal fade resistance on long mountain descents, linear braking response, faster pad replacement, and effortless visual inspection.
- Best For: High-speed highway transport, hazardous chemical tankers, refrigerated reefers, and regions mandating EBS/disc regulations.
- Drum Brakes (e.g., FUWA 13T/16T, BPW ECO Drum, SAF INTRADRUM, and KALES 20-ton American type drum axle):
- Pros: Enclosed drum structure shields friction linings from mud, gravel, and abrasive mining dust; lower initial procurement cost; universal field serviceability where any roadside mechanic can reline $420\text{ mm}$ brake shoes without specialized caliper diagnostic tools.
- Best For: Tipper trailers, heavy lowbeds, logging trailers, and unpaved haul roads in Africa, Southeast Asia, and South America.
3.3 Rated Axle Load vs. Legal Payload Capacity
An axle’s technical rating does not equal legal road payload.
- European highway axles (BPW ECO Air / SAF INTRADISC) are typically rated at 9 tons per axle to match EU legal axle group limits (24T–27T per tridem group).
- Export heavy-duty axles (FUWA 13T/16T, BPW 13T/16T, or KALES commercial trailer axles) feature thicker square beams ($150\times150\text{ mm}$) engineered to survive dynamic shock loads on potholed roads and overloaded mining sites.
- Engineering Warning: Installing three 13-ton axles on a trailer does not automatically mean you can legally haul 39 tons on public highways. Actual payload is governed by local road regulations, tire load indices (e.g., 12R22.5 vs. 315/80R22.5), kingpin capacity, and main beam steel grade.
4. Total Cost of Ownership (TCO): Which Axle is Most Economical?
Upfront purchase price accounts for only 30%–40% of an axle’s lifecycle cost. Fleet managers must evaluate:
- Consumable Parts Cost: Brake pads/linings, drums/rotors, oil seals, and bearings.
- Downtime Cost: How many days a loaded trailer sits idle waiting for a proprietary seal or caliper kit.
- Resale Value: Trailers equipped with genuine BPW or SAF axles often command a higher second-hand resale value in certain markets.
Field Reality by Brand:
- FUWA’s TCO Advantage: In Africa, Southeast Asia, Central Asia, and South America, FUWA 13T/16T parts are stocked in virtually every truck parts market. Low parts pricing and zero waiting time make FUWA the lowest-TCO choice for rough-road bulk haulage.
- BPW’s Lifecycle Balance: While initial outlay is higher, BPW’s metallurgy, brake drum wear life, and standardized DIN bearings deliver exceptional longevity over 500,000+ km, offsetting the initial premium for high-utilization fleets.
- SAF’s Labor Savings: In high-labor-cost markets (Europe, Australia), SAF’s maintenance-free compact bearings and long-life integral brake discs significantly cut workshop labor hours.
5. Application Scenarios: KALES Field-Tested Recommendations
Based on KALES VEHICLE’s export production data, here is how experienced fleet buyers match axles to operating environments:
Scenario 1: Long-Haul Cross-Border Highway Logistics
- Applicable Trailers: Curtainsider Semi-Trailers, Refrigerated Reefers, and Skeletal Container Chassis.
- Recommended Setup: SAF INTRADISC plus INTEGRAL (9T–11T) or BPW ECO Air with air suspension and EBS; or FUWA K-Hitch (KF22/KF23) for Australian ADR-compliant routes.
- Why: Minimizes tare weight to maximize legal payload, reduces tire wear via air suspension, and ensures compliance with strict braking regulations.
Scenario 2: Unpaved Roads, Mining & Heavy Construction (Africa, LATAM, CIS, SE Asia)
- Applicable Trailers: Dump / Tipper Semi-Trailers, 13.5m Side Tipper Trailers, Sidewall Cargo Trailers, and Flatbed Semi-Trailers.
- Recommended Setup: FUWA 13T / 16T Heavy-Duty Drum Axle or BPW 13T / 16T Heavy-Duty Square-Beam Drum Axle, paired with reinforced mechanical leaf-spring suspension ($90\text{ mm}$ or $100\text{ mm}$ wide springs) or single-point bogie suspension.
- KALES Field Insight: Over 78% of KALES heavy-duty flatbed and tipper buyers in East/West Africa and South America select 13T/16T FUWA or BPW drum axles. Enclosed drum brakes prevent stone-jamming common with exposed disc calipers on gravel roads.
Scenario 3: Lowbed Trailers & Oversized Machinery Transport
- Applicable Trailers: 3-Axle / 4-Axle Lowbed Trailers (60T–100T), 5-Axle Extendable Lowbed Trailers, and Multi-Axle Heavy Haulers.
- Recommended Setup: FUWA, BPW, or KALES Heavy-Duty 13T / 16T / 20T Axles with high-overload safety factors, paired with twin all-steel radial tires and WABCO relay emergency brake valves.
- Why: Loading excavators or crushers creates extreme concentrated dynamic loads on the rear axle group during ramp climbing. Beam bending resistance and hub bearing static load ratings are paramount.
6. How KALES Ensures Precision Axle Matching & Alignment
At KALES VEHICLE, selecting the right brand is only step one. Even a premium German BPW axle will suffer severe tire scrubbing (“tire eating”) and high fuel consumption if installed on a poorly welded chassis.
To guarantee maximum axle performance across our trailer running gear configurations, KALES enforces strict OEM manufacturing standards:
- Laser Axle Alignment Calibration: Every KALES semi-trailer undergoes precision laser wheel-alignment testing before delivery, controlling kingpin-to-axle parallelism tolerances within $\pm 1\text{ mm}$.
- Genuine Brake System Integration: We match axles with authentic WABCO or Haldex ABS/EBS modulator valves, dual-diaphragm spring brake chambers, and heavy-duty slack adjusters to ensure balanced braking across all axles.
- Customized Track Width & Wheel Hub Matching: Whether your tractor fleet runs standard 1,840 mm track width or wide-track 1,968.5 mm (77.5″) axles (common in South American emulsion tankers and mining trailers), we configure exact hub offsets for twin tires or super-single tires.
Frequently Asked Questions (FAQ)
- Q1: Is BPW always better than FUWA?
- No. Neither brand is universally “better” across all scenarios. BPW excels in ultra-long-haul durability, modular wheel-end engineering, and high residual value. FUWA offers unmatched cost-efficiency, rugged 13T–16T square-beam overload tolerance, and immediate spare parts availability in developing markets. The right choice depends on your TCO calculation and local service network.
- Q2: Which is better for long-haul highway transport: SAF or BPW?
- Both are industry leaders for highway linehaul. Choose SAF INTRADISC if your fleet prioritizes lightweight integrated air suspension and sealed, maintenance-free cartridge bearings. Choose BPW ECO Plus if your in-house workshop prefers standardized DIN tapered bearings that can be rapidly disassembled, inspected, and re-greased using a central torque-limiting nut.
- Q3: Does FUWA only manufacture American-type drum brake axles?
- No. While FUWA’s 13T and 16T American-type drum axles are global bestsellers, FUWA also manufactures German-type axles, air disc brake axles (such as the K-Hitch KF23/KF36 series), lowbed drop-center axles, and heavy-duty mining axles up to 25 tons.
- Q4: Is a 13-ton trailer axle always more durable than a 9-ton axle?
- It depends on the road conditions. On smooth European or Australian highways with strict 9-ton legal axle limits, a 9-ton disc-brake air-suspension axle reduces deadweight and absorbs high-frequency vibrations better, extending chassis life. However, on corrugated roads, potholes, or overloaded routes in Africa and South America, a 13-ton or 16-ton axle with a thicker square beam and larger bearings is essential to prevent spindle bending or bearing failure.
- Q5: Should I choose disc brakes or drum brakes for my semi-trailer?
- Choose disc brakes for high-speed paved highways, mountainous paved routes, and hazardous liquid tankers where anti-fade thermal performance is critical. Choose drum brakes for tipper trailers, lowbeds, and off-road gravel/mud environments where exposed brake discs risk rock damage and rapid pad wear.
8. Conclusion: Match the Axle to Your Mission, Not Just the Badge
BPW, SAF-HOLLAND, and FUWA each represent proven engineering philosophies:
- BPW delivers modular maintainability and legendary heavy-duty longevity.
- SAF-HOLLAND leads in lightweight suspension integration and sealed wheel-end convenience.
- FUWA dominates in versatile payload ratings, rugged simplicity, and unbeatable spare parts accessibility.
If you are sourcing Lowbed Semi-Trailers, Tanker Semi-Trailers, Skeletal Container Trailers, or Dump Semi-Trailers, contact KALES VEHICLE today. Share your cargo type, target payload, and operating country—our chassis engineers will configure the optimal axle, suspension, and braking package tailored to your fleet’s profitability.
