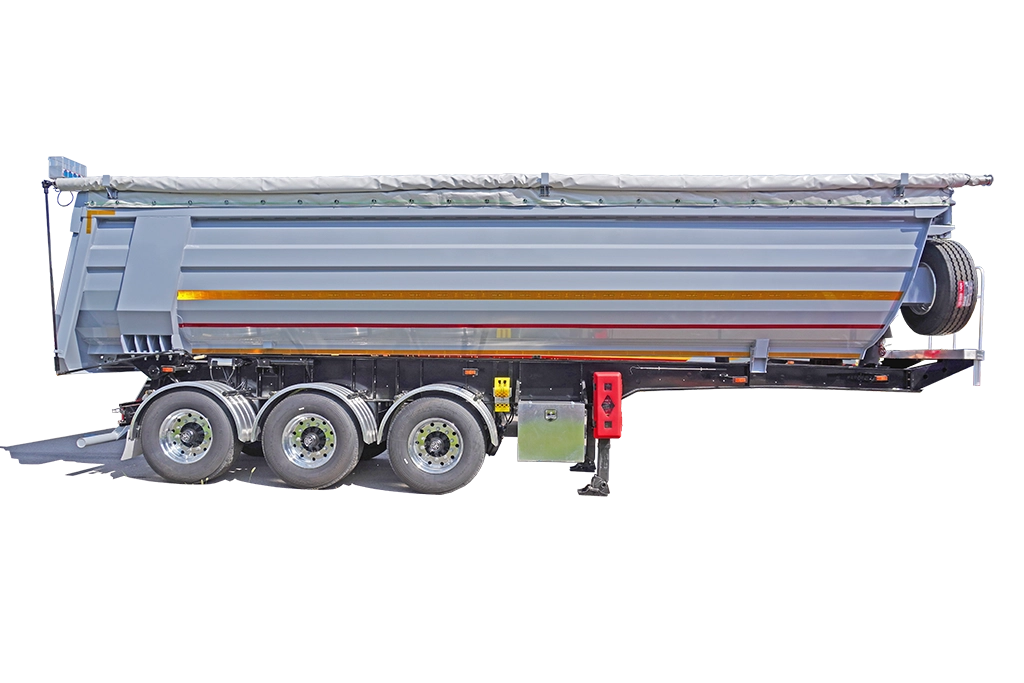

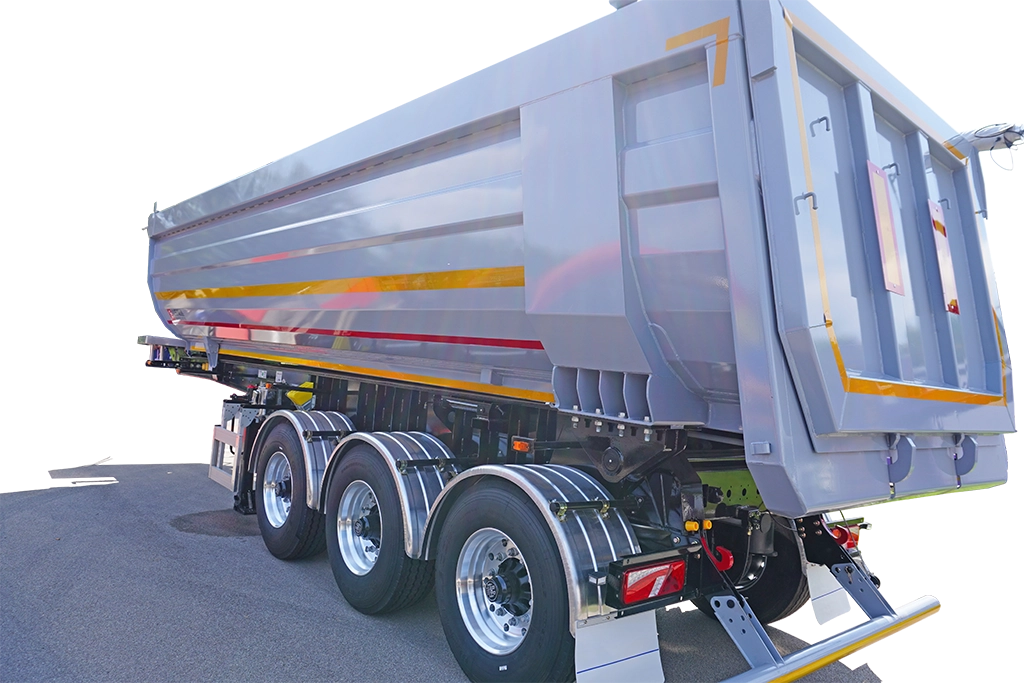

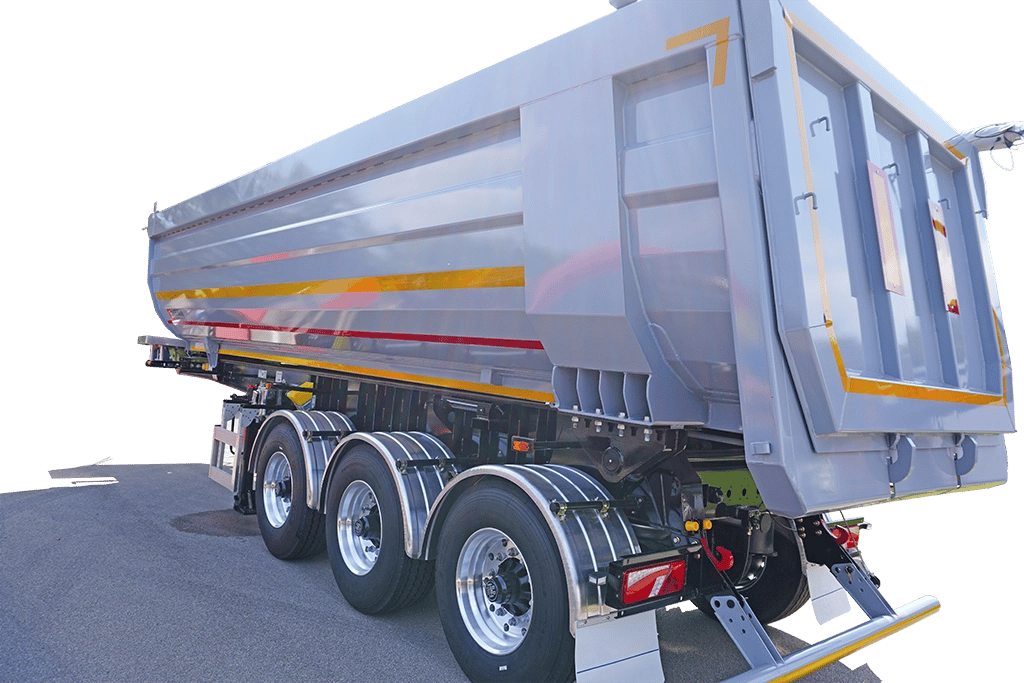

3 Axle U-Shape Rear Dump Trailer
3-axle U-shape rear dump tipper trailer with 35CBM body, air suspension, front axle lift, and single-wide tyres for quarry aggregates, sand, coal, and mineral routes.
Reference priceUSD 14,000In stock · Available to orderFinal quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
CategoryTipper Trailer
Axles3
Payload / Volume55 t · 35 m³
DimensionsConfigured to order
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
3 axle U-shape rear dump trailer: this Kales rear tipper is built for buyers who want a more material-flow-efficient dump body than a standard flat-wall rear tipper, while staying below the cost and duty class of a heavier 60 ton mining U-shape trailer. The represented build combines a 35 cubic meter U-shape body, air suspension, single-wide tyres, front axle lift logic, and a lighter tare structure for quarry and mineral shuttle work.
Engineering guidance from the Kales Vehicle trailer team for fleets comparing standard 35CBM dump bodies, 40 ton mechanical tippers, and heavier mining-spec U-shape rear dump trailers.
Technical Snapshot
| Product type | 3 axle U-shape rear dump semi-trailer |
|---|---|
| Body reference size | 10600 × 2550 × 3580 mm |
| Effective volume | 35 cubic meters |
| Tare weight | 11.2 tons |
| Payload class | Up to 55 tons depending on cargo density, road condition, and local compliance |
| Body material | 6 mm floor and 6 mm side-wall plate on the represented stock build |
| Axles | BPW, Fuwa, or Kales matching, 3 axles |
| Suspension | 3 axle air suspension with full-vehicle height adjustment and front axle lift |
| Tyres and wheels | 385/65R22.5 single tyres with aluminum alloy wheels |
| Hydraulic system | Jiaheng cylinder model 200-6500 |
| Brake system | Dual-line braking with automatic air chambers and WABCO ABS |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |
Best Fit Operating Profile
This product is strongest for fleets hauling quarry aggregates, washed sand, coal, screened stone, and similar mineral bulk on shorter or medium-distance routes where unloading speed and cleaner discharge matter. It is a better match than a standard box-type tipper when sticky material release and body clean-out efficiency matter, but it is not automatically the best answer for the roughest mine roads or the heaviest mining payload class.
Best for
- Quarry and aggregate fleets that want smoother discharge from a U-shape body
- Sand, coal, gravel, and mineral bulk on more controlled site-to-plant or plant-to-yard routes
- Buyers who value front axle lift, lighter tare, and single-tyre efficiency on return runs
- Operations where air suspension support is serviceable and route quality is not purely off-road abuse
Not ideal for
- Remote mining routes where mechanical suspension and thicker plate are the safer long-term answer
- Jobs that already require a heavier 60 ton mining-spec U-shape tipper from day one
- Buyers who simply need the most standard low-complexity rear dump trailer and do not benefit from the U-shape discharge logic
Why Buyers Choose This U-Shape Rear Dump Trailer
- U-shape unloading logic: the body is built to improve material flow and reduce residue compared with a flatter box-type rear dump body.
- Lighter running package: air suspension, single-wide tyres, and aluminum wheels support fuel and wear efficiency on suitable routes.
- Front axle lift: the empty-return logic helps reduce tyre drag and unnecessary wear.
- Practical middle step: it sits between the broader 35CBM dump family and the heavier 60 ton mining U-shape tipper.
- Quarry-focused stock logic: the represented configuration is more specific than a generic dump trailer listing and easier to evaluate commercially.
How this trailer differs from other Kales tippers
| Product path | Best when | Move away when |
|---|---|---|
| 35CBM rear dump family | You need a broader rear-dump platform with standard and reinforced variants | You specifically want a U-shape quarry body with air suspension and single-wide tyre logic |
| 40 ton mechanical tipper | You want a simpler mainstream rear-dump trailer with easier rough-route maintenance | You want the cleaner discharge and lighter-route logic of this U-shape air-suspension build |
| This 3 axle U-shape rear dumper | You want quarry-focused U-shape discharge, 35CBM volume, and a lighter air-suspension package | You need either a more generic low-cost tipper or a heavier mining-duty trailer |
| 60 ton mining U-shape tipper | You need thicker structure and a heavier mining payload class | Your route and payload do not justify the heavier acquisition and service burden |
Specification-backed advantages
- Body reference size: 10600 × 2550 × 3580 mm. This provides a concrete durability and load-control basis for the stated duty cycle.
- Effective volume: 35 cubic meters. This defines the working band to validate against the cargo, route, and local legal limits.
- Brake system: Dual-line braking with automatic air chambers and WABCO ABS. This gives the buyer a specific braking or safety package to verify for the intended route.
Engineering and Serviceability Details
Why the U-shape body matters
On sticky or dense bulk materials, a U-shape dump body can release material more cleanly than a flatter rectangular box. That matters when the fleet is cycling quickly through quarry or mineral routes and cannot afford slow clean-out or half-stuck loads during tipping.
Air suspension, single tyres, and route discipline

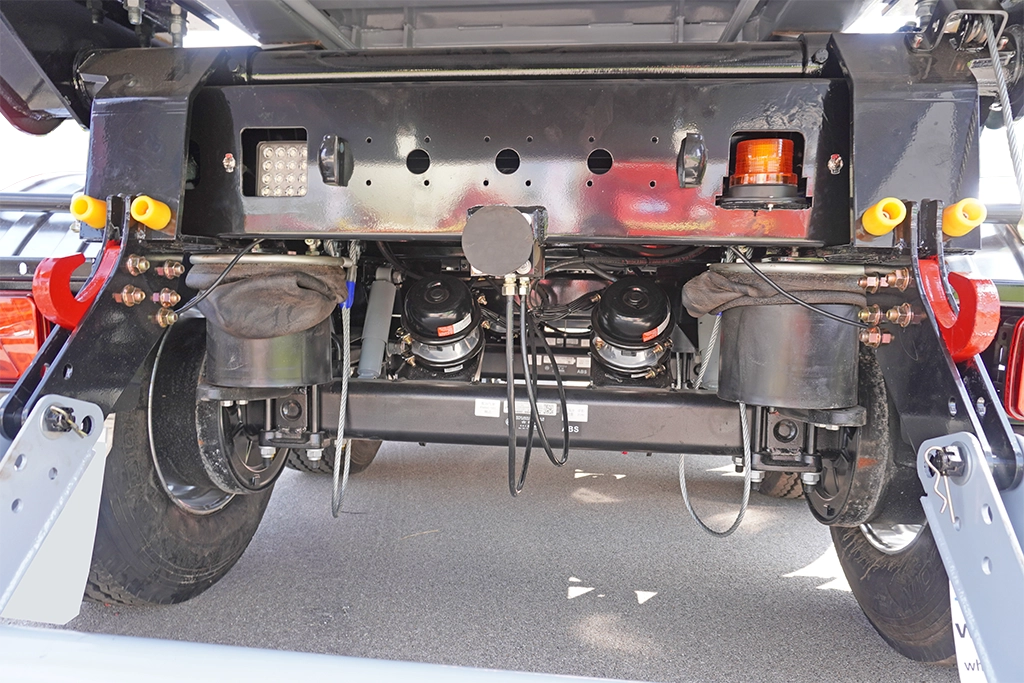

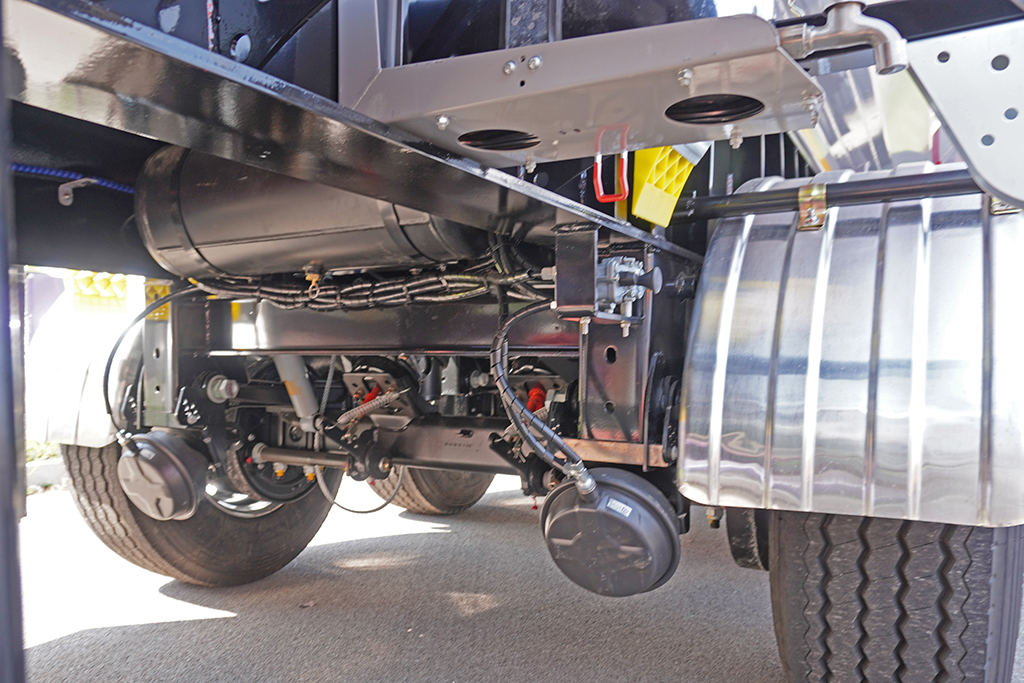

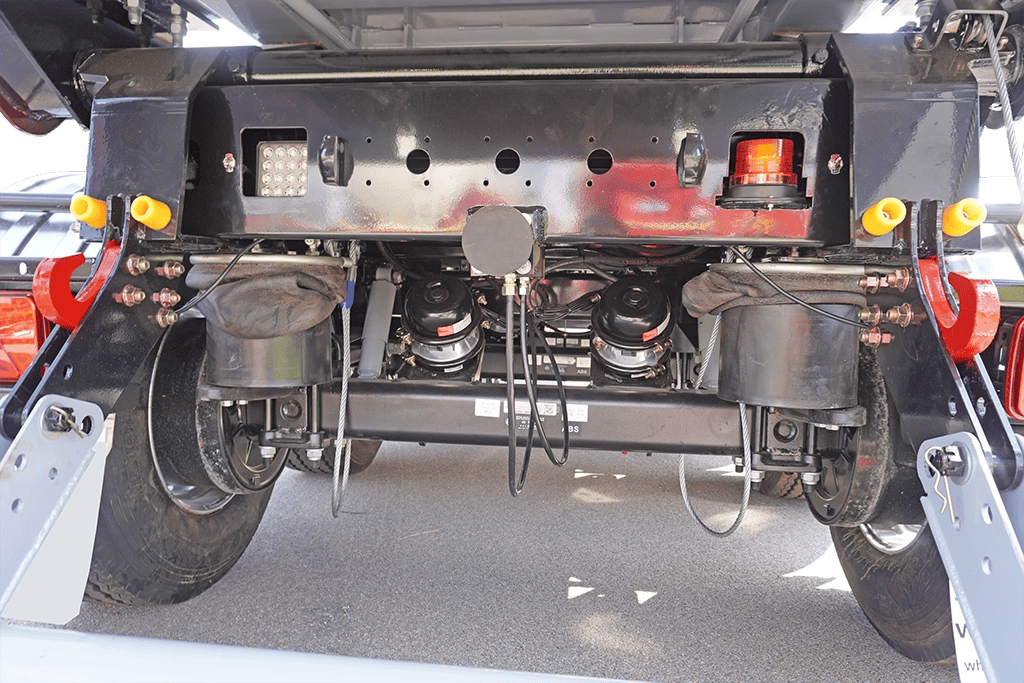

The represented stock uses 3 axle air suspension, full vehicle height adjustment, front axle lift, and 385/65R22.5 single tyres. That package can save wear and improve running efficiency, but it also assumes the buyer is not sending the trailer into the roughest abuse conditions without maintenance support. Buyers who already know the route is extremely harsh should compare the mechanical-suspension 40 ton tipper or the heavier 60 ton mining tipper before locking the order.
Hydraulics, safety, and support hardware

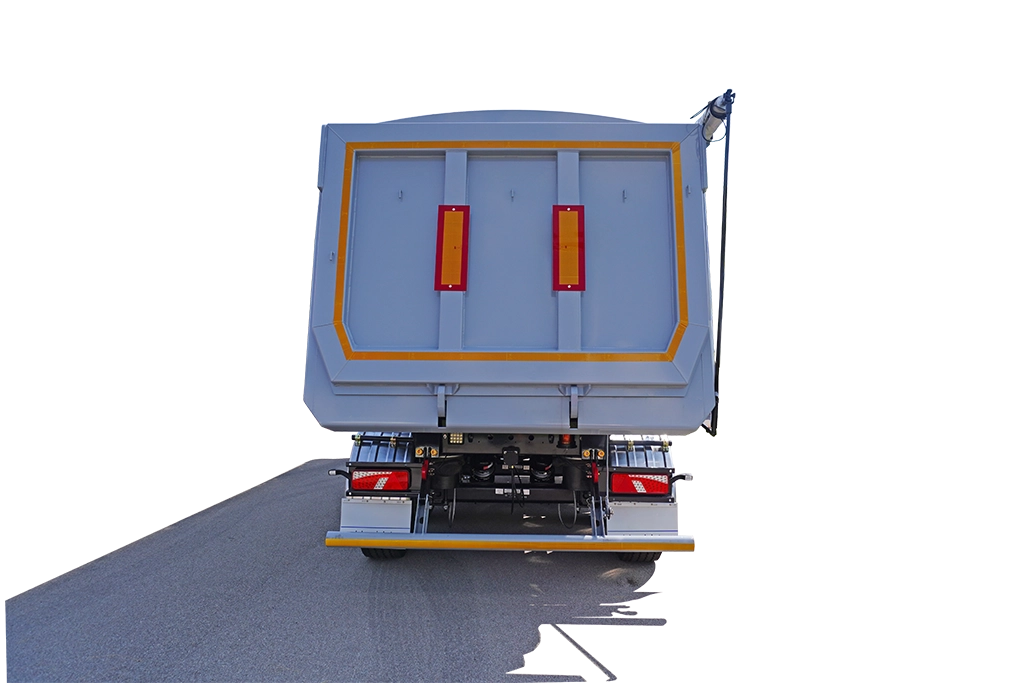

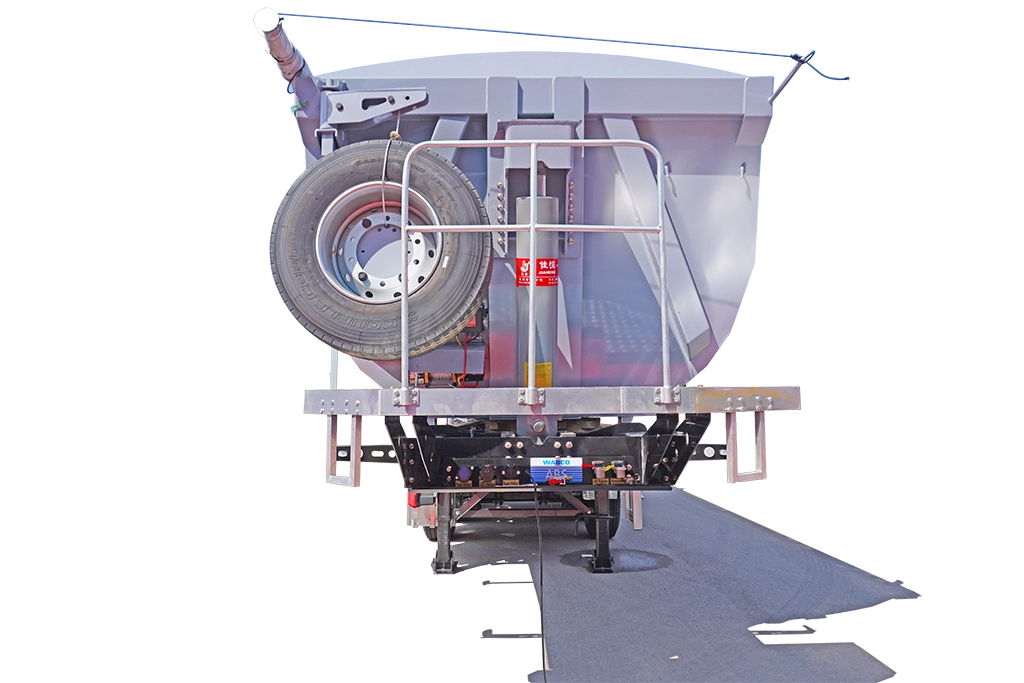

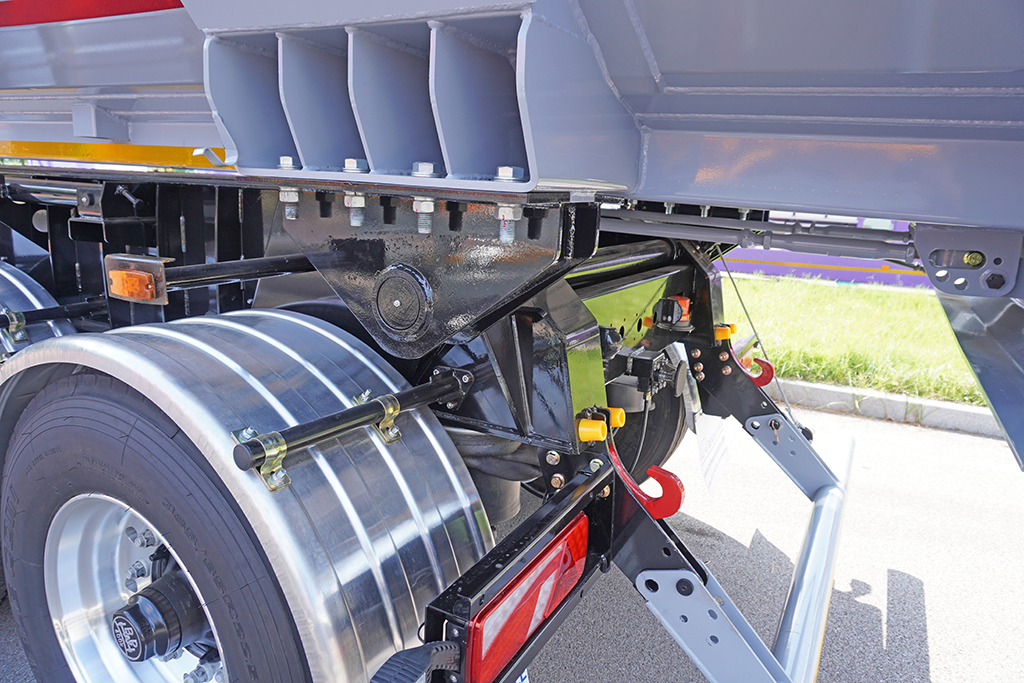

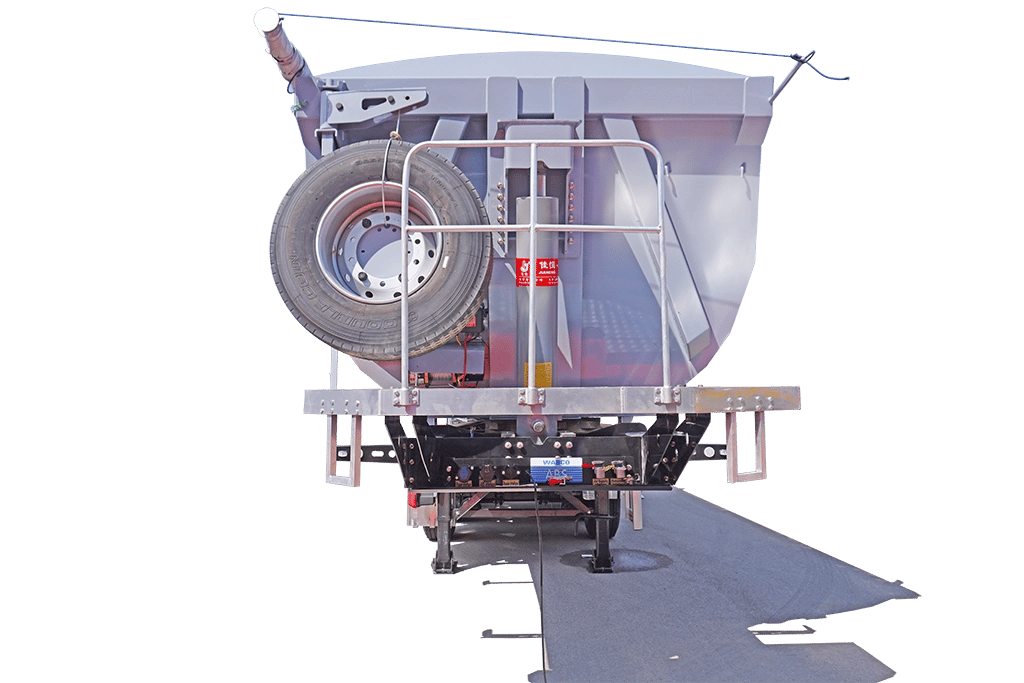

The stock-type build references a Jiaheng 200-6500 hydraulic cylinder, WABCO ABS, JOST landing legs, pneumatic reverse rear protection, and an electric spare tyre carrier. Those details help distinguish this product from a generic dump listing because they show a more specific operating package rather than only a body size and axle count.
How is the final quotation confirmed?
KALES confirms the quotation after reviewing the required specification, quantity, destination, and delivery terms. Send the operating requirements for an accurate proposal.

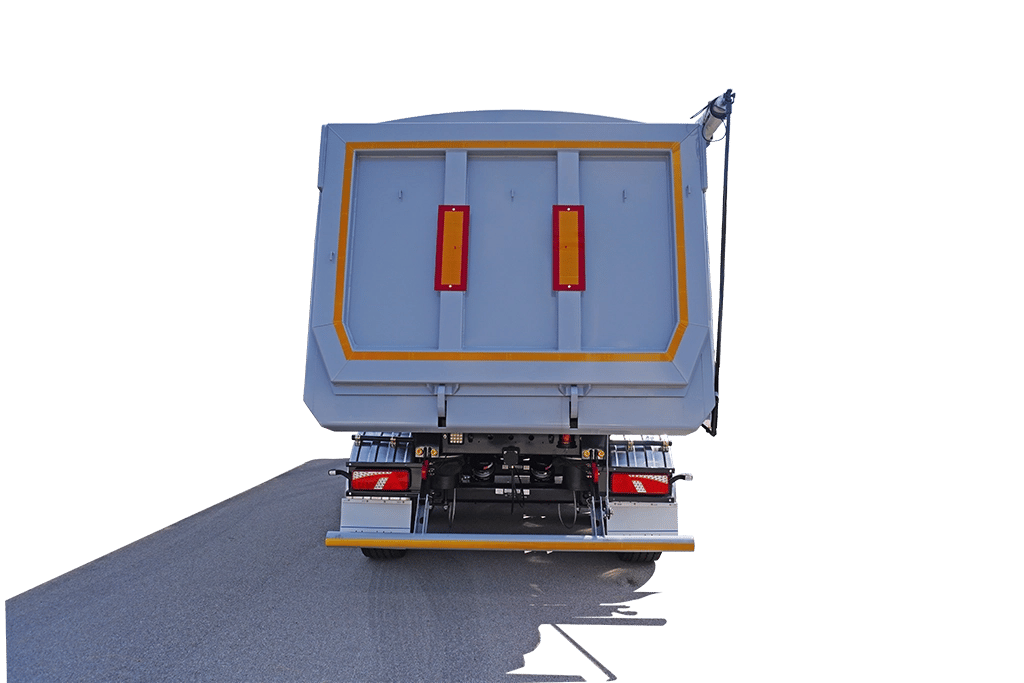

Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as 6 mm floor and 6 mm side-wall plate on the represented stock build based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- Warranty scope and duration for the product and order are confirmed in the quotation or contract. Ask for the applicable terms before ordering; technical guidance and parts support are coordinated separately.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
Who should choose this trailer instead of the 40 ton mechanical dump trailer?+
Buyers who specifically want a U-shape discharge body, air suspension, front axle lift, and single-wide tyre logic should start here. Buyers who need simpler rough-route serviceability should compare the 40 ton mechanical tipper first.
Is this a better option than the 60 ton U-shape mining trailer?+
It is better only when the job does not need the heavier mining payload class. If the route and material already demand thicker structure and heavier mining-duty support, move to the 60 ton U-shape tipper.
What cargoes fit this trailer best?+
It is strongest on sand, gravel, coal, screened stone, and similar quarry or mineral bulk that benefits from cleaner rear discharge.
Why are single-wide tyres used on this build?+
They support lower tare and reduced rolling resistance on suitable routes, especially when paired with front axle lift and a lighter-duty return cycle.
What should I confirm before requesting a quote?+
Confirm cargo density, route condition, tipping frequency, maintenance capability for air suspension, tractor saddle height, and whether the operation should stay in this quarry-focused class or move into a heavier mining tipper.
Request Drawing and Quote
If you are comparing a 3 axle U-shape rear dump trailer, send your material type, route condition, target body volume, maintenance capability for air suspension, and tractor specification. Kales can then confirm whether this quarry-focused U-shape stock type or a different tipper class is the better fit.
