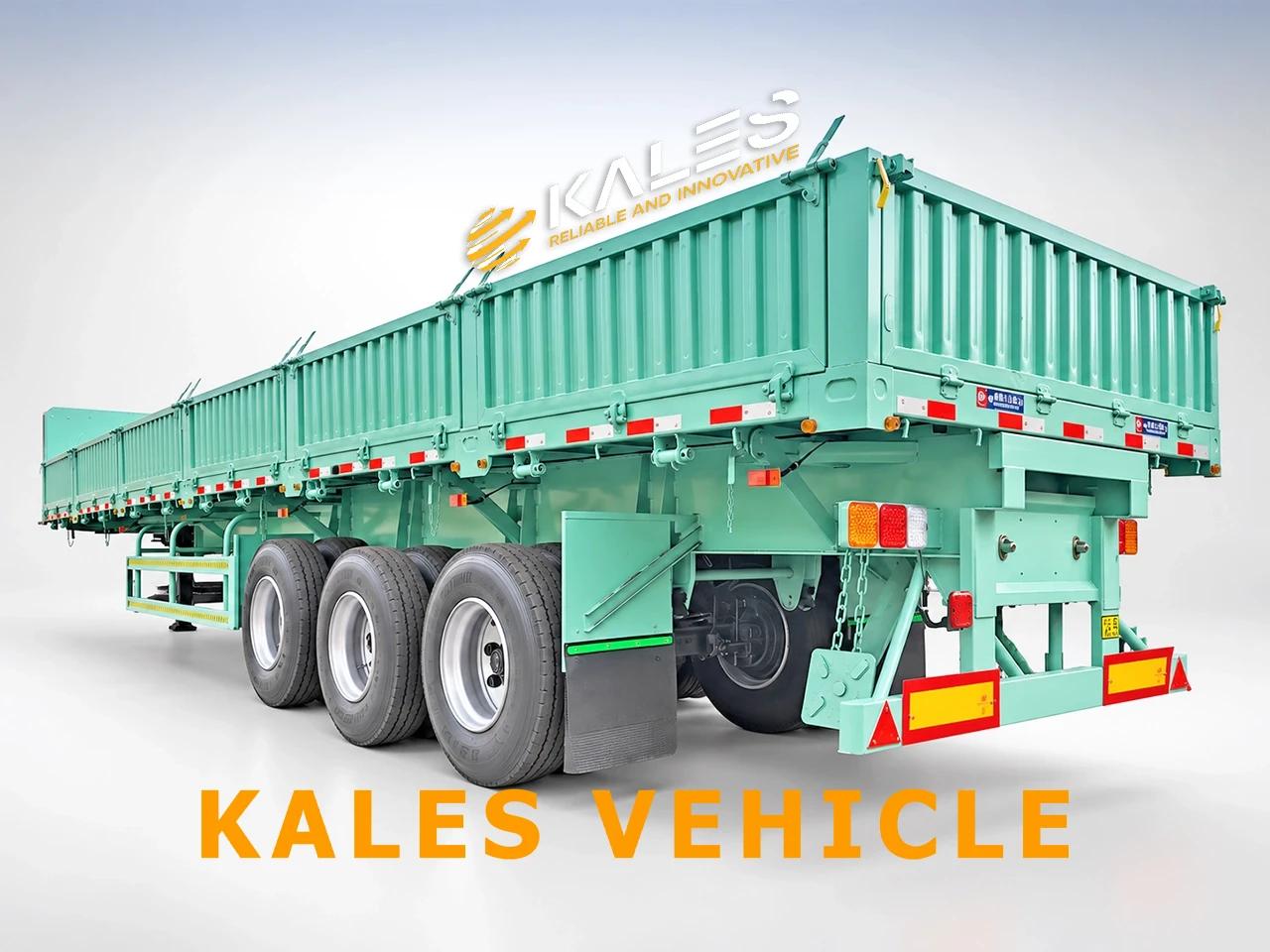

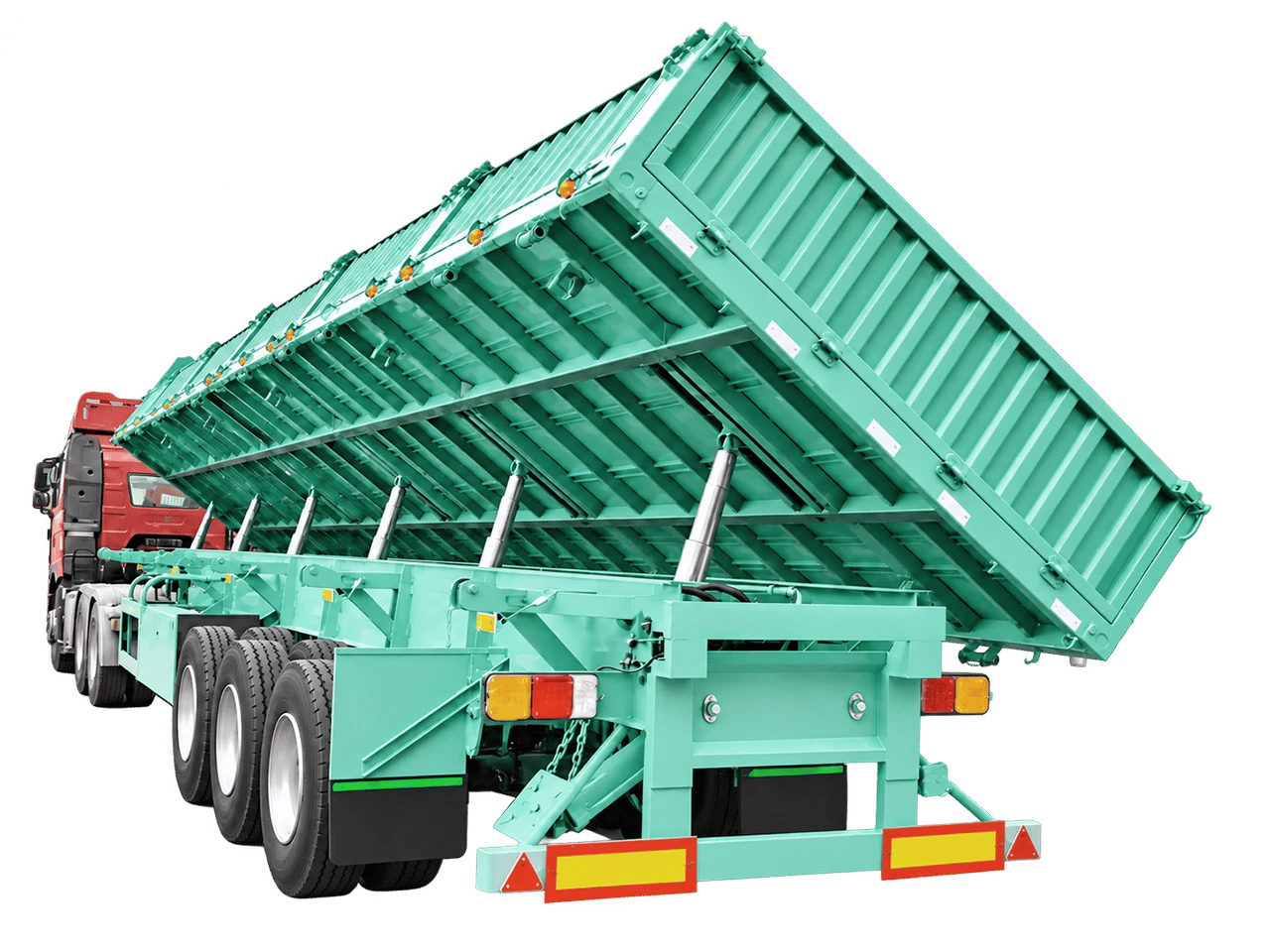

13.5m 3-Axle Dropside Tipper Semi-Trailer: General Cargo Versatility with Hydraulic Side-Dumping Speed
7,000 kg Low Tare Weight (T700 Steel) | 6+1 Lateral Shift Hydraulic Hoists | Co-Axial Anti-Rollover Pivot Saddles | Auto-Release Lower Dropsides | 33–50 Ton Rated Payload
In bulk logistics operations across Africa, Southeast Asia, Central Asia, and Latin America, standard dropside trailers require manual labor or external wheel loaders to unload aggregate, grain, coal, and minerals—wasting hours at congested discharge yards. This 13.5-meter multi-purpose side tipper resolves that operational bottleneck. It operates with the low center of gravity and high highway stability of a standard dropside trailer during transit, then transitions into a high-speed hydraulic side dumper at the drop site. Built on a high-tensile T700 steel chassis, it delivers a class-leading 7,000 kg tare weight, allowing fleet operators to legally maximize payload on every trip while slashing unloading times from hours to under three minutes.
Technical Specifications
| Parameter | Standard Specification | Heavy-Duty / Mining Option |
|---|---|---|

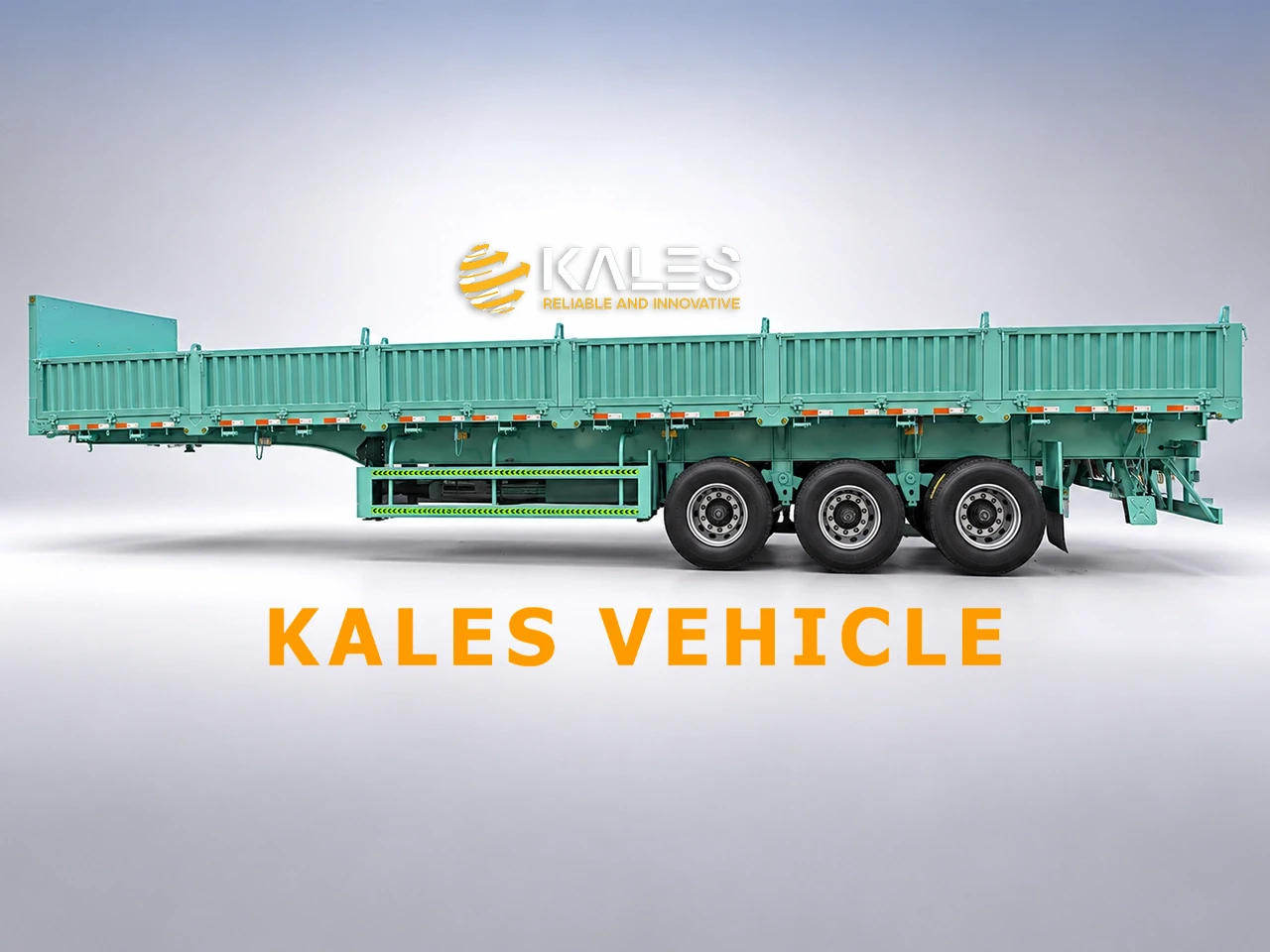

| External Dimensions (L×W×H) | 13,500 × 2,550 × 2,500 mm | Customizable according to road route |
| Internal Body Dimensions | 13,400 × 2,480 × 600 mm (Approx. 20 m³) | Wall height options: 800 mm / 1,000 mm / 1,200 mm |
| Tare Weight | 7,000 kg (±3%) | 7,600–8,200 kg (Reinforced mining spec) |
| Gross Vehicle Weight (GVW) | 40,000 kg | Up to 60,000 kg (Off-highway mining) |
| Rated Design Payload | 33,000 kg | 40,000–50,000 kg |
| Chassis Main Beam | Height: 500 mm; Flange: Top 8 mm / Bottom 10 mm; Web: 5 mm (T700) | Flange: Top 10 mm / Bottom 12 mm; Web: 6 mm (T700) |

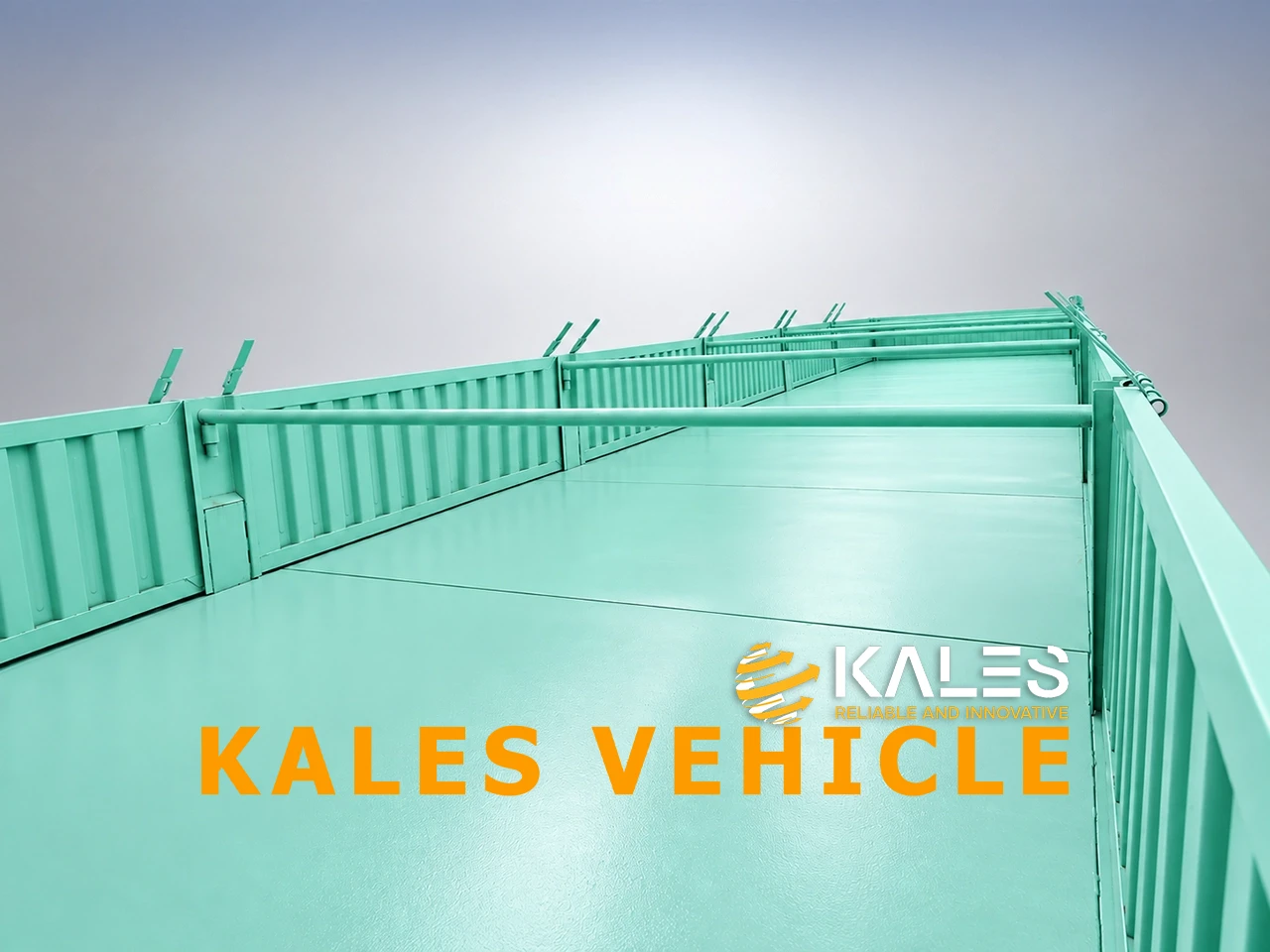

| Floor Plate Material & Thickness | 3.0 mm T700 high-strength steel plate | 4.0 mm / 6.0 mm NM450 wear-resistant steel plate |
| Drop Sides / Sideboards | 1.5 mm corrugated or square-tube T700 | 2.0 mm / 2.5 mm reinforced corrugated steel |
| Tipping System | 6 multi-stage lifting hoists + 1 lateral shift cylinder | Hyva tipping gear / custom heavy-bore cylinders |
| Axles | 3 × 13-Ton Kales / Fuwa heavy-duty axles | 3 × 16-Ton BPW / SAF / Kales mining axles |

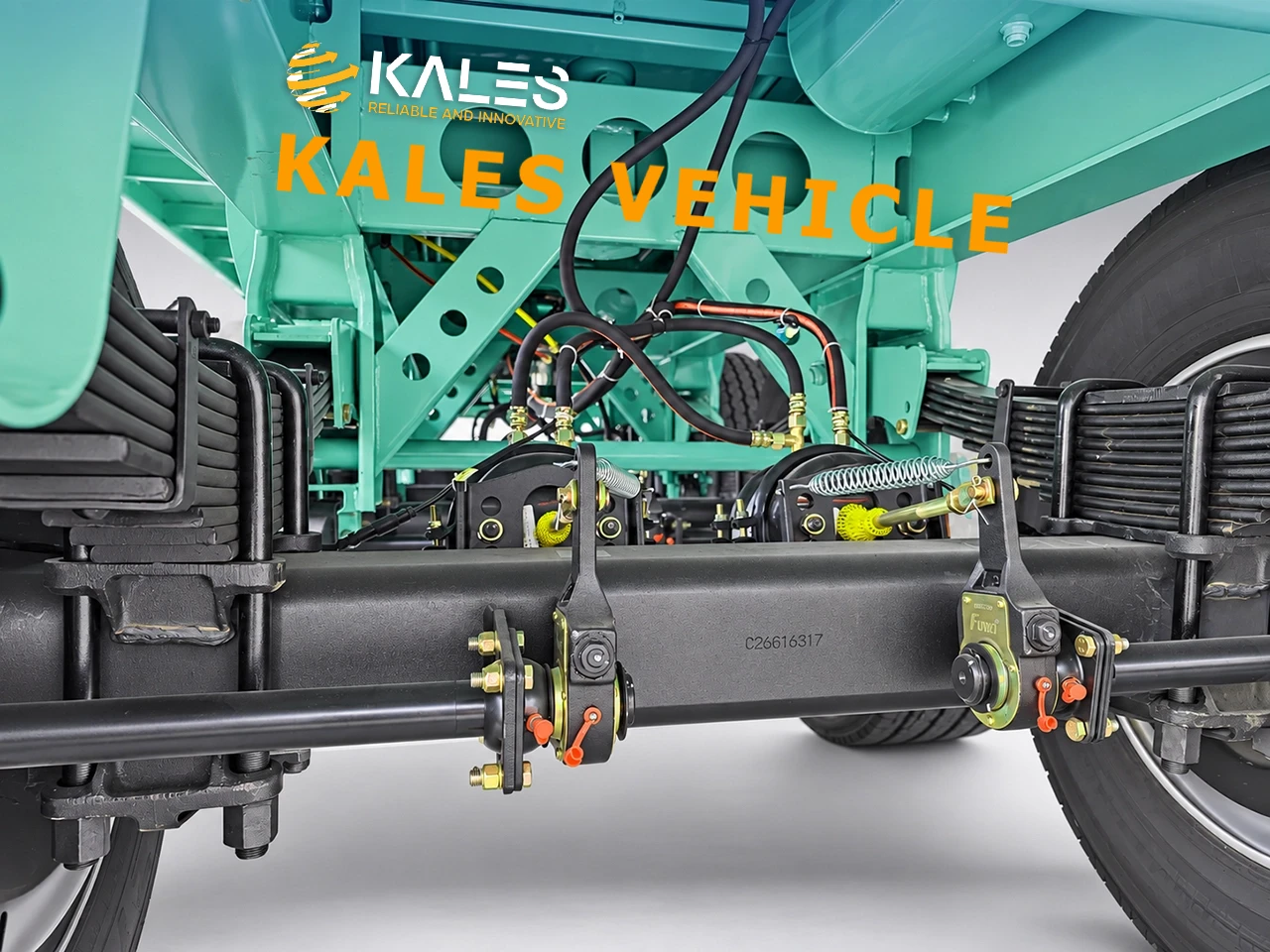

| Suspension System | Heavy-duty mechanical leaf spring (8 to 10 leaves) | Heavy-duty 16-leaf suspension / Air suspension |
| Tires & Rims | 12 × 12R22.5 tubeless tires / 9.00-22.5 steel rims | 12 × 11.00R20 / 12.00R20 mining tube tires |
| Braking Safety | WABCO ABS system (Dual-line air brake system) | WABCO EBS with Roll Stability Support (RSS) |

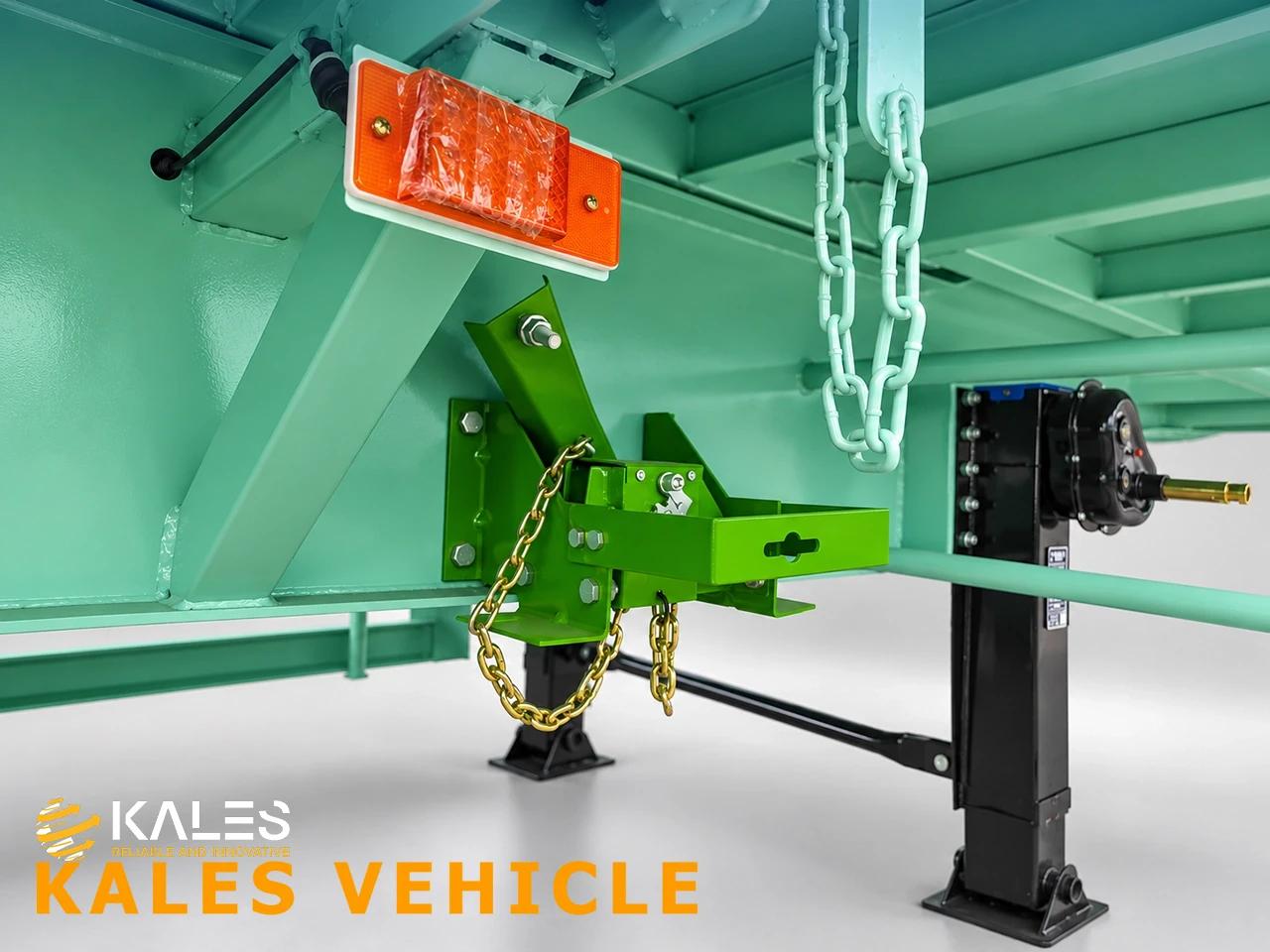

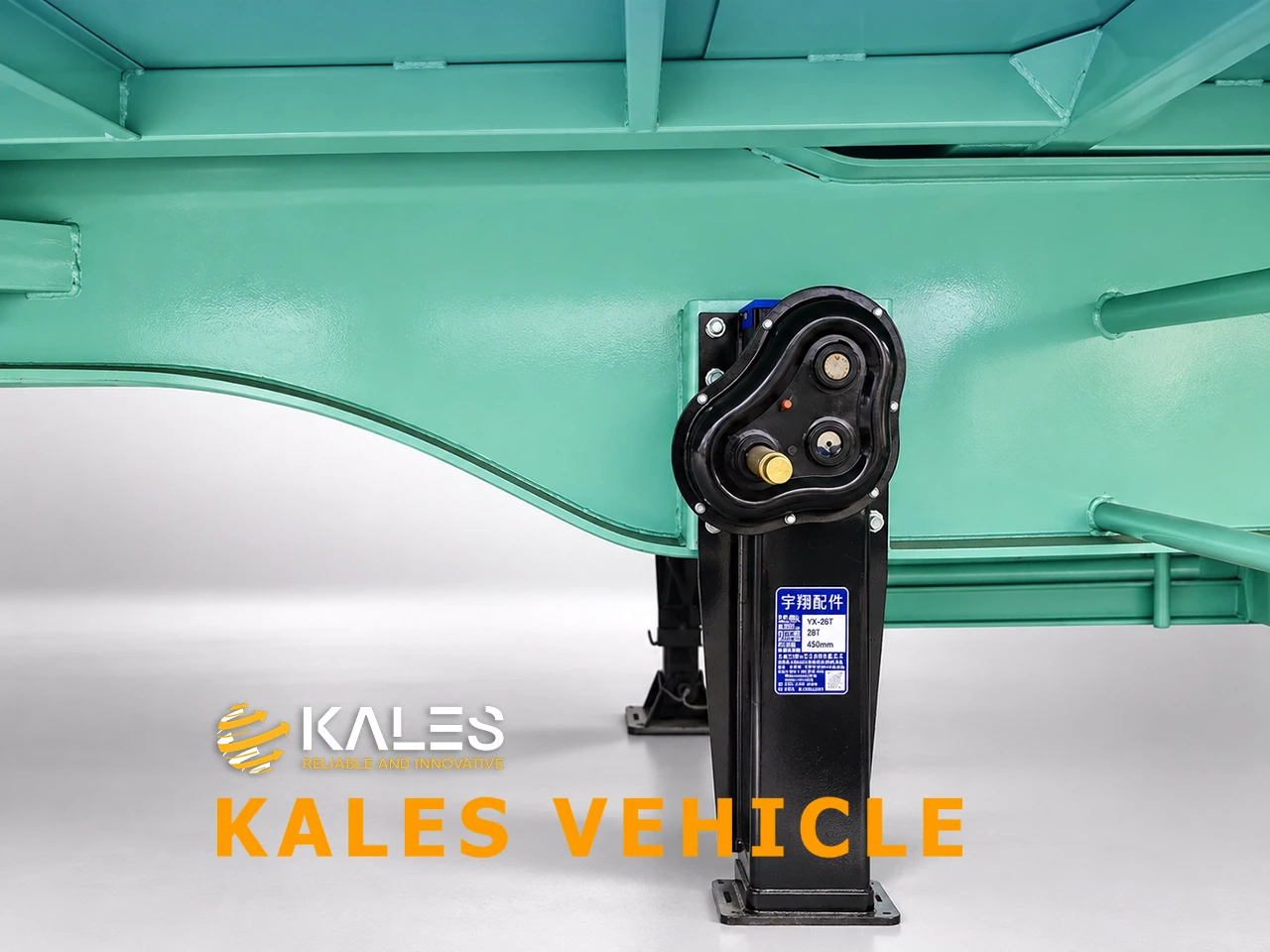

| Landing Gear | Kales 28-ton two-speed external landing legs | JOST A400 / Fuwa 28T heavy-duty legs |
| Tipping Direction | Single side (Left or Right designated) | Dual-side tipping mechanism available |
Configuration Matrix by Industry & Operating Environment
The 13.5m side tipper is custom configured for regional operating challenges, matching cargo density, road harshness, and offloading infrastructure.
| Target Region | Primary Haulage Cargo | Recommended Specification Package |
|---|---|---|
| West & East Africa | River sand, gravel, laterite, construction aggregate | 6,280 mm wheelbase + 4.0 mm NM450 wear floor + 16-leaf suspension + 12.00R20 tires + mechanical auto gate locks |
| Southeast Asia | Palm kernel shell, wet coal, rice husk, cassava | 800 mm sideboards + 3.0 mm T700 floor + Hyva 4TG-E130 hoists + hot-dip galvanized sideboards |
| Central Asia / CIS | Wheat, bulk barley, chemical fertilizer, copper ore | 1,000 mm sideboards + WABCO EBS with RSS + JOST 28T landing gear + low-temperature cold-weather seal kits (rated to -40°C) |
| South America | Lithium brine salts, crushed quarry stone, iron ore | 6.0 mm NM450 high-impact floor + reinforced box-section subframe + 16-ton heavy-duty drive axles |
Optimal Operating Fit
- High-frequency aggregate, sand, gravel, and crushed stone shuttle operations from quarries to concrete batch plants
- Agricultural grain, wheat, barley, soy, and fertilizer transport during harvest seasons
- Thermal coal, lignite, mineral concentrates, and laterite ores moving to processing plants and railheads
- Fleets requiring two-way revenue haulage: discharging bulk commodities outbound, then forklift-loading palletized goods for return runs
Operating Economics: Short-Haul Fleet ROI Analysis
Model based on short-haul aggregate or grain transport (<30 km round-trip haulage):
| Operating Metric | Standard Dropside Trailer | Side Tipper Semi-Trailer | Fleet Efficiency Impact |
|---|---|---|---|
| Discharge Method | Manual shoveling or excavator bucket | Automated hydraulic tipping | Fully automated one-man operation |
| Average Unloading Duration | 90–120 minutes | Under 3 minutes | 97% reduction in terminal downtime |
| Labor Cost Per Offload | $25 – $40 (Unloading crew) | $0.00 | 100% direct labor elimination |
| Trips Per 10-Hour Shift | 3–4 trips | 6–8 trips | Up to 2× daily transport volume |
| Estimated Annual Fuel/Labor Savings | Baseline | $12,000 – $18,000 per trailer | Direct capital payback within 8–11 months |
Why Kales Outperforms Standard Dropside & End-Dump Trailers in Heavy Bulk Logistics
Combining the cargo adaptability of a dropside trailer with rapid hydraulic dumping requires specialized pivot alignment, coordinated lateral shift, and high-tensile metallurgy.
| Engineering Feature | Standard Dropside / End Dump ❌ | Kales 13.5m Side Tipper Standard ✅ | Direct Fleet Benefit |
|---|---|---|---|
| Discharge Velocity & Labor | Manual shoveling (90–120 min) or hazardous high-angle end dumping | Automated lateral hydraulic dumping under 3 minutes | Reduces terminal dwell time by 97%; eliminates unloading crews and enables 2× daily trip cycles on short hauls. |
| Chassis Torsional Stress | Offset cylinder brackets induce structural twisting under load | Co-axial bored pivot saddles aligned with subframe neutral axis | Directly converts lifting force into radial rotation, preventing long-term frame distortion and weld fatigue. |
| Tire & Suspension Safety | Material discharges directly onto tires and suspension hangers | Integrated 6+1 hoists with 80–120 mm lateral outward shift | Pushes the cargo box outward before upward tipping, clearing tires and suspension from burial and abrasive stone damage. |
| Rollover Prevention | Cargo hang-up shifts vehicle center of gravity laterally | Automatic mechanical linkage releases gates at 5° tilt angle | Guarantees prompt discharge flow as tipping commences; dual over-tip limit valves cut oil flow automatically at 45°. |
| Tare Weight & Payload | Conventional Q345B steel weighs 8,200–8,500 kg | Optimized 7,000 kg tare weight in thermo-mechanically rolled T700 | Adds 1,200–1,500 kg of legal paying payload per haul, generating immediate freight revenue gains. |
| Backhaul Freight Versatility | Deep U-shape tippers return empty, halving revenue mileage | Flat floor with fully folding sideboards accepts palletized freight | Enables forklift side loading of pallets, bagged cement, or crated equipment on return runs. |
Core Engineering & Structural Safety Systems

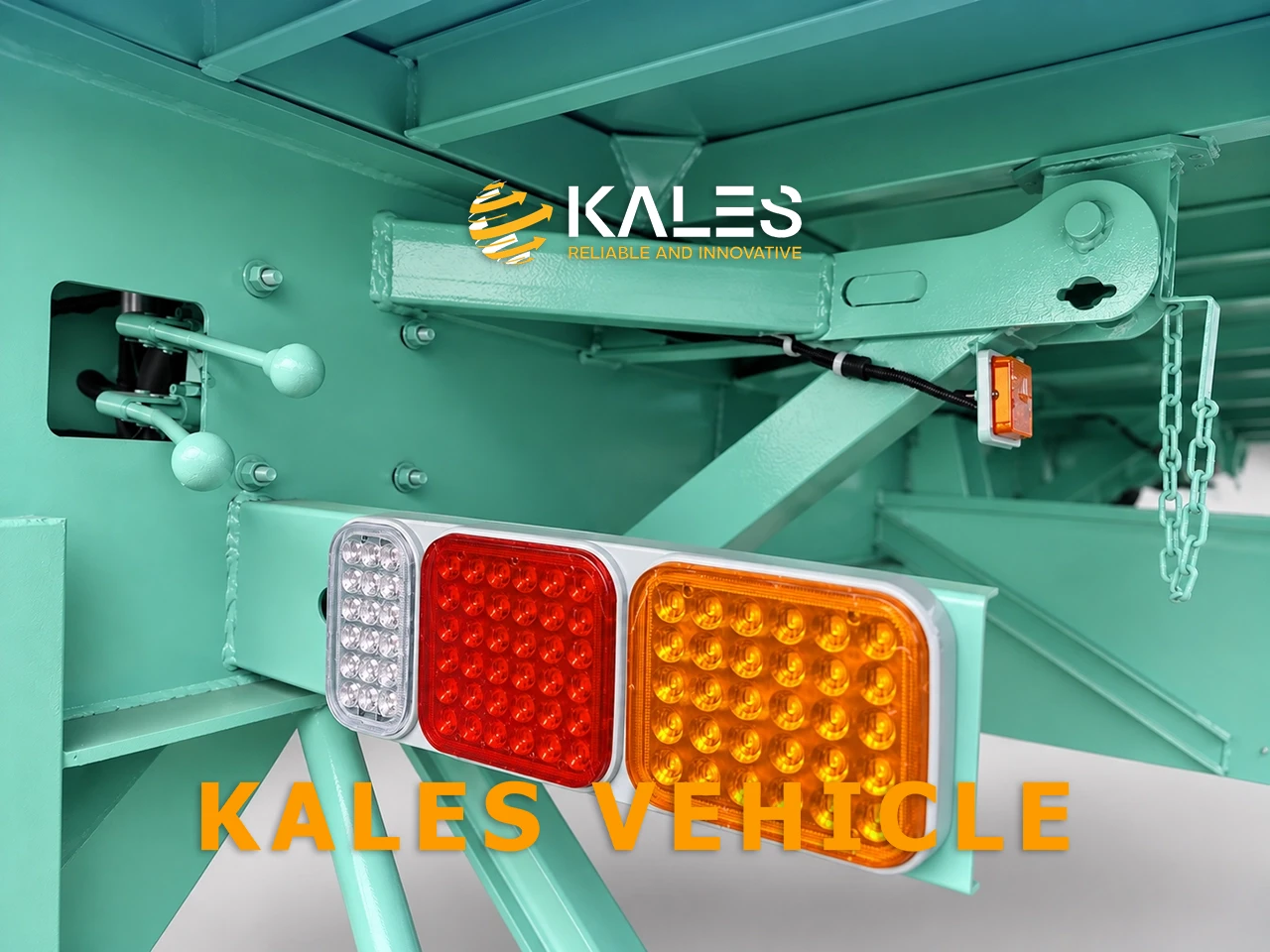

1. Co-Axial Pivot Saddles & Anti-Rollover Safety Linkage
Elimination of Torsional Stress: Rather than relying on offset cylinder mountings that twist chassis rails under load, our chassis features precision co-axial bored pivot saddles aligned directly with the neutral axis of the subframe. Hydraulic lifting vectors transfer directly into radial rotation, preventing long-term frame warpage.
Automatic Mechanical Door-Release Mechanism: Uneven material discharge is the primary cause of side-dumper rollovers. This trailer incorporates an automatic mechanical linkage that unlocks the lower drop sides when the body reaches a 5° tilt angle. This guarantees immediate material evacuation, preventing cargo hang-up and lateral vehicle tipping.
Over-Tip Limit & Safety Check Valves: Dual-direction limit valves cut hydraulic oil supply automatically once the maximum tipping angle (45°) is achieved, while pilot-operated check valves prevent sudden body drops in the event of line pressure drop.

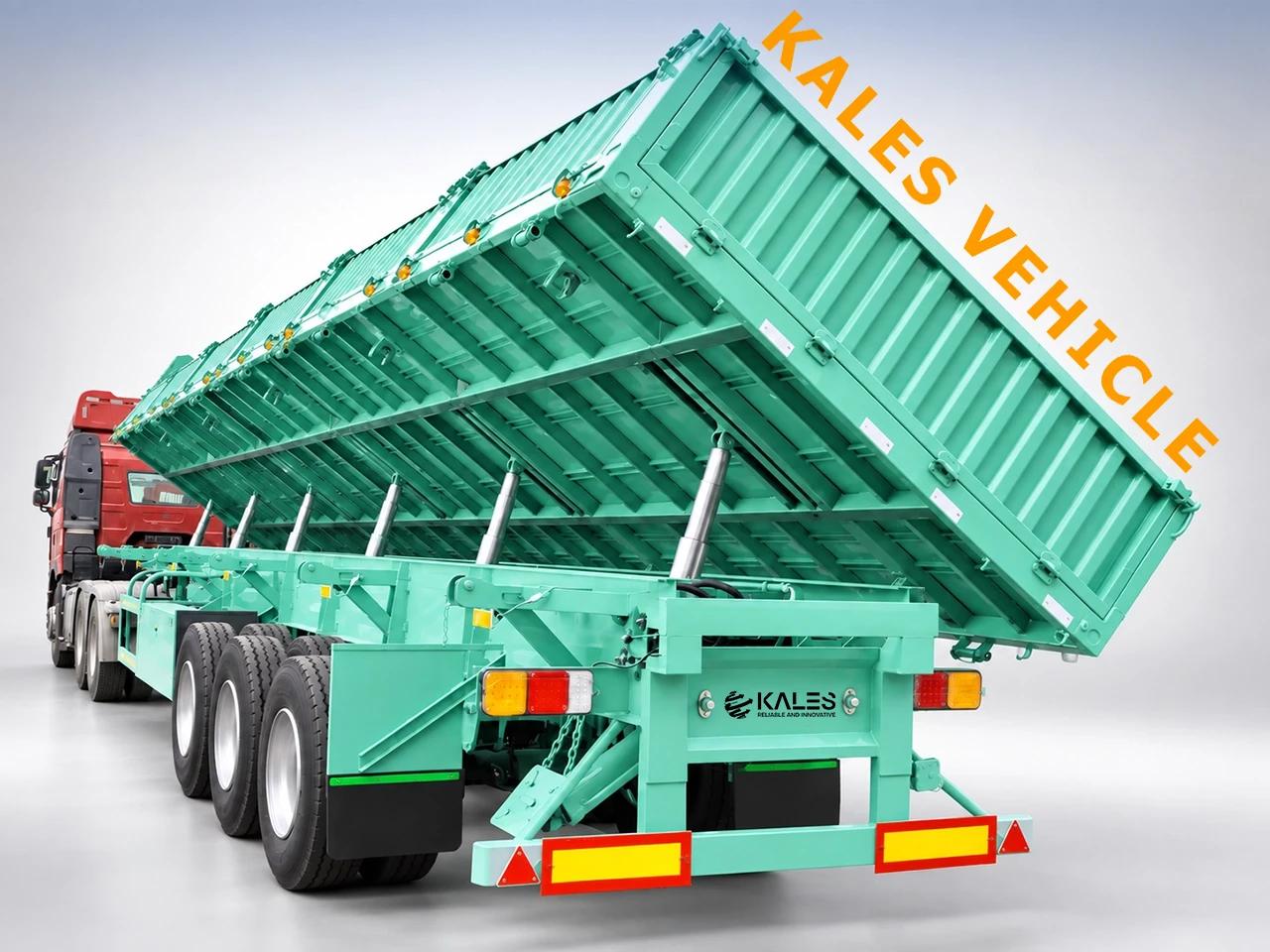

2. Premium 6+1 Hydraulic Hoist Configuration

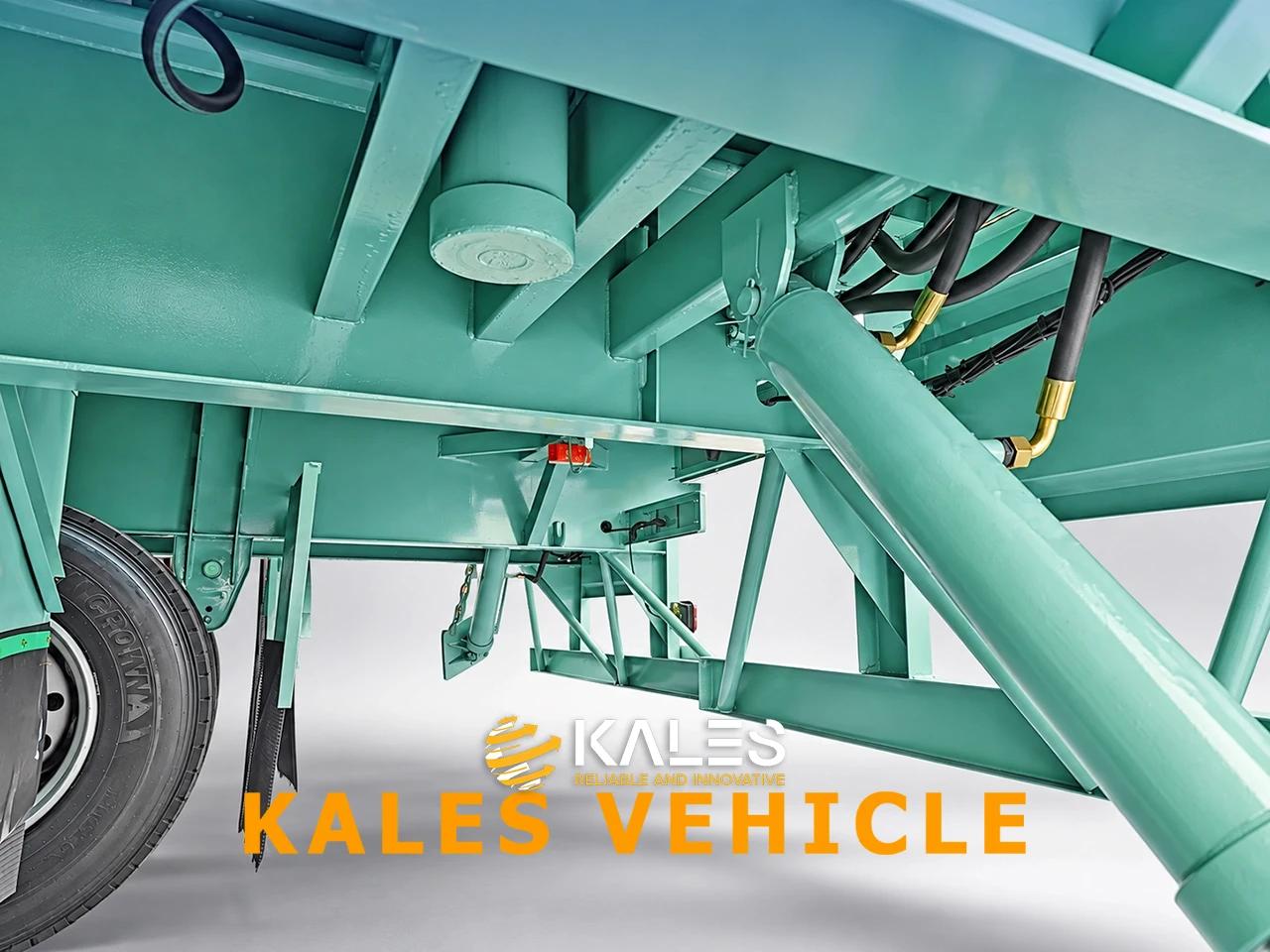

Integrated Lateral Displacement: Outfitted with 6 multi-stage tipping hoists and 1 lateral shift cylinder. Prior to upward tipping, the lateral shift cylinder pushes the cargo box outward by 80–120 mm. This shifts the discharge stream away from suspension hangers, air bags, and tire sidewalls, preventing tire burial and stone damage.
Synchronized Lifting: High-precision flow-divider valving prevents uneven “one-side-high” elevation, ensuring smooth, parallel lifting even when cargo density is unevenly distributed throughout the 13.4m tub.
3. T700 High-Strength Steel & Optimized 7T Tare Weight
Advanced Steel Metallurgy: The chassis and structural crossmembers are constructed from thermo-mechanically rolled T700 high-strength steel (yield strength ≥ 700 MPa), delivering double the tensile strength of conventional Q345B steel at a significantly reduced gauge.
Engineered Weight Savings: At 7,000 kg tare weight, the trailer is approximately 1,200–1,500 kg lighter than traditional side-tipping trailers, directly increasing legal paying cargo capacity.
Automated Submerged-Arc Welded Main Beams: 500 mm deep main beams with an 8 mm top flange, 10 mm bottom flange, and 5 mm web provide optimal load bearing without excess dead weight.
4. E-Coat + Powder Coating: Multi-Year Corrosion Defense
Automotive-Grade Cathodic Electrodeposition (E-Coat): The entire bare-metal chassis undergoes shot-blasting to Sa 2.5 standards followed by full submersion in an electrophoretic bath. The primer coats internal box sections, weld seams, and hollow profiles.
Electrostatic Powder Topcoat: High-temperature baked polyester powder provides extreme surface hardness, resisting stone chipping, UV degradation, and chemical exposure from fertilizer or wet coal transport.
Global Serviceability & Fleet Integration
- Zero Proprietary Component Lock-In: Hubs, bearings, brake linings, and air valves use standard ISO/DIN footprints. Replacement wear items match off-the-shelf Fuwa, BPW, JOST, and WABCO catalog parts available in major transit hubs.

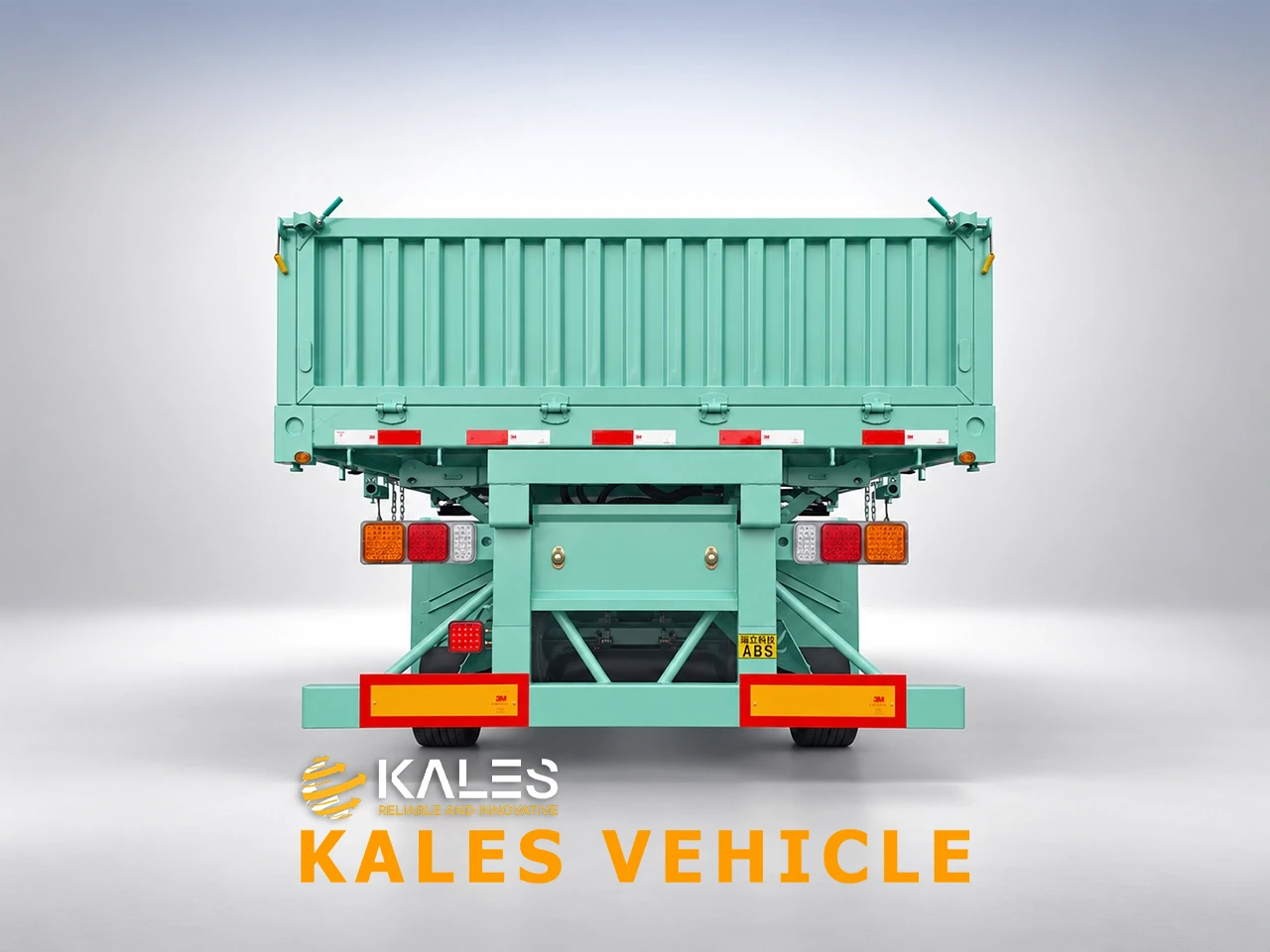

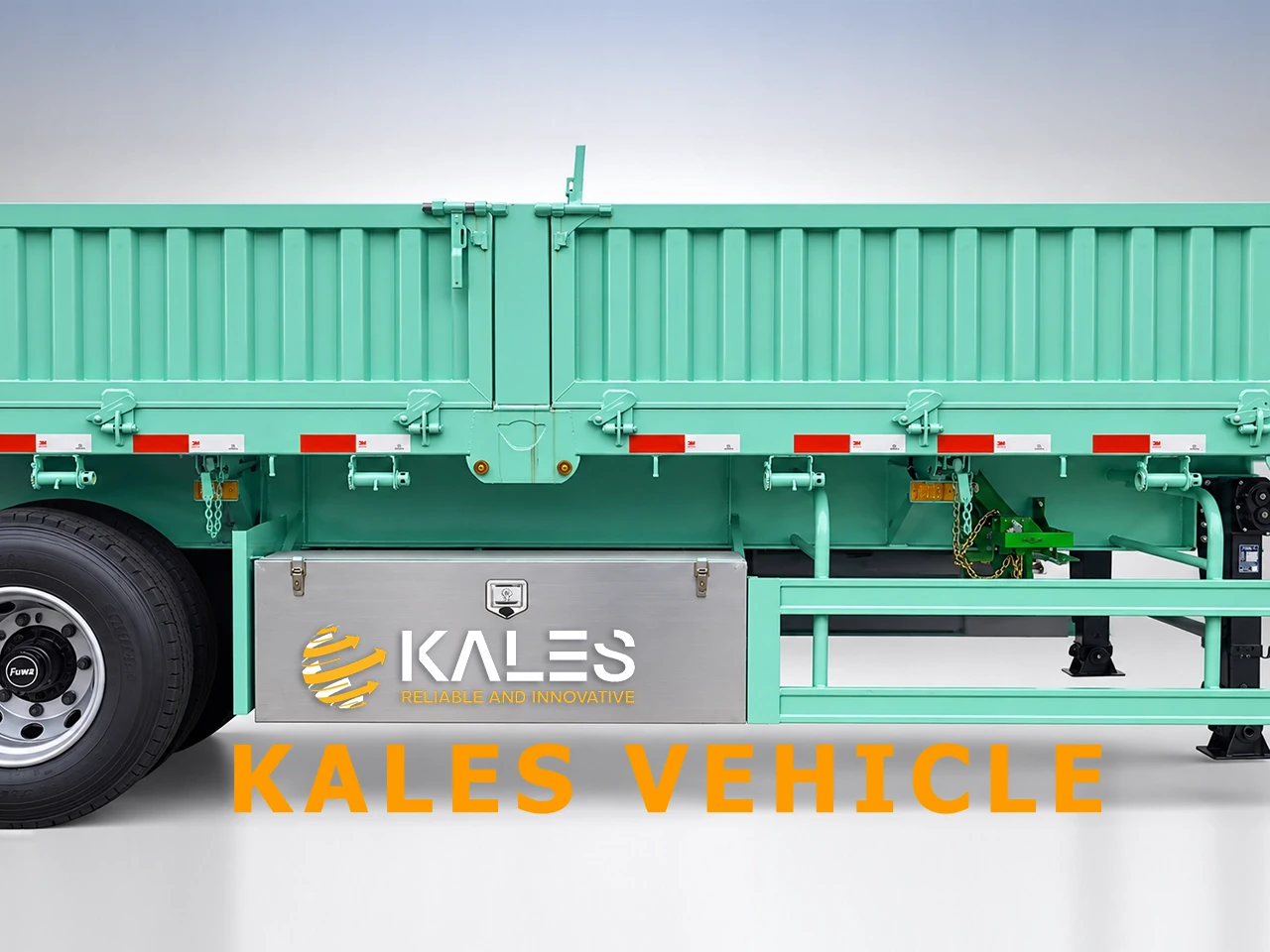

- Bolt-On Protective Guards: Lateral underrun bumpers, mudguards, and rear light bars use bolt-on chassis mountings, enabling fast roadside replacement without on-site cutting or welding.
- Standard ISO Quick Couplers: Hydraulic pressure and return hoses utilize standard 3/4″ or 1″ ISO 7241-A quick-release couplings for plug-and-play connection to your existing tractor PTO pumps.

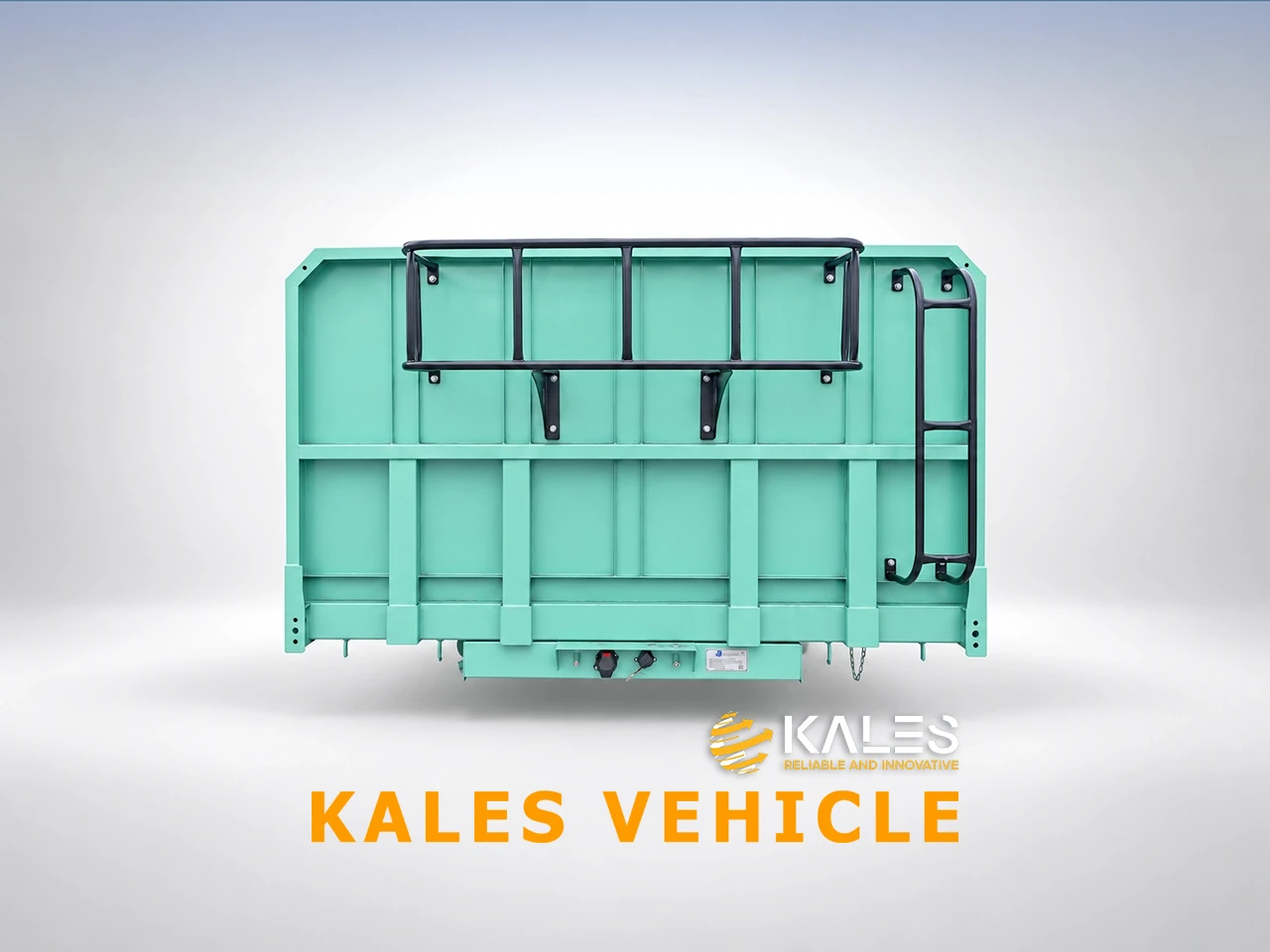

Detailed Node & Subassembly Inspection
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
How does this trailer prevent rollover accidents on uneven ground?+
Side-tipping units rely on level ground for safe operation. Our engineering addresses rollover through three dedicated systems: First, the automatic door-release linkage opens the sideboards at a 5° angle so material exits immediately rather than hanging up high in the tub. Second, the lateral shift cylinder pushes the body outwards before lifting to keep the falling material center of gravity clear of the chassis. Third, drivers should only operate the tipper on stable terrain with a lateral inclination of less than 5°.
Is a 7,000 kg tare weight strong enough for continuous quarry operations?+
The 7-ton tare weight is achieved through material upgrade (T700 high-strength steel instead of mild Q235/Q345) rather than structural compromise. For hauling agricultural crops, coal, and clean sand, the 3.0 mm T700 body provides exceptional structural life. For heavy, abrasive mining rocks or excavator drop-loading, we recommend our Mining Package, which adds a 4.0 mm or 6.0 mm NM450 wear plate (increasing tare weight to approximately 7,800 kg).
Can this trailer carry palletized freight on return trips?+
Yes. Because the internal floor is unobstructed and the lower sideboards open completely, forklifts can load standard wooden pallets, packaged goods, or bagged cement from both sides. This eliminates empty return trips and maximizes round-trip profitability.
What hydraulic PTO requirements must my tractor truck have?+
Your tractor unit requires a transmission-mounted Power Take-Off (PTO) with a hydraulic gear or piston pump providing a working pressure of 16–20 MPa (160–200 bar) and a flow rate of 80–120 L/min. The trailer includes hydraulic line connections and an overpressure relief circuit.
What certifications are supplied for international export?+
We supply complete documentation packages tailored to the destination market, including ECE/e-Mark compliance components, ADR certifications, SASO, SONCAP, and EAC/GOST declarations for customs clearance.
Upgrade Your Fleet Turnaround Speed with Factory-Direct Pricing
Stop losing revenue to slow discharge operations. Get equipment built specifically for your payload weights, road regulations, and loading methods.
Engineering Support: Full CAD layout drawings, hydraulic schematic diagrams, and axle load distribution sheets delivered within 24 hours.
Factory Direct Pricing: Volume discounts available for mining concessions, logistics cooperatives, and government infrastructure projects.
