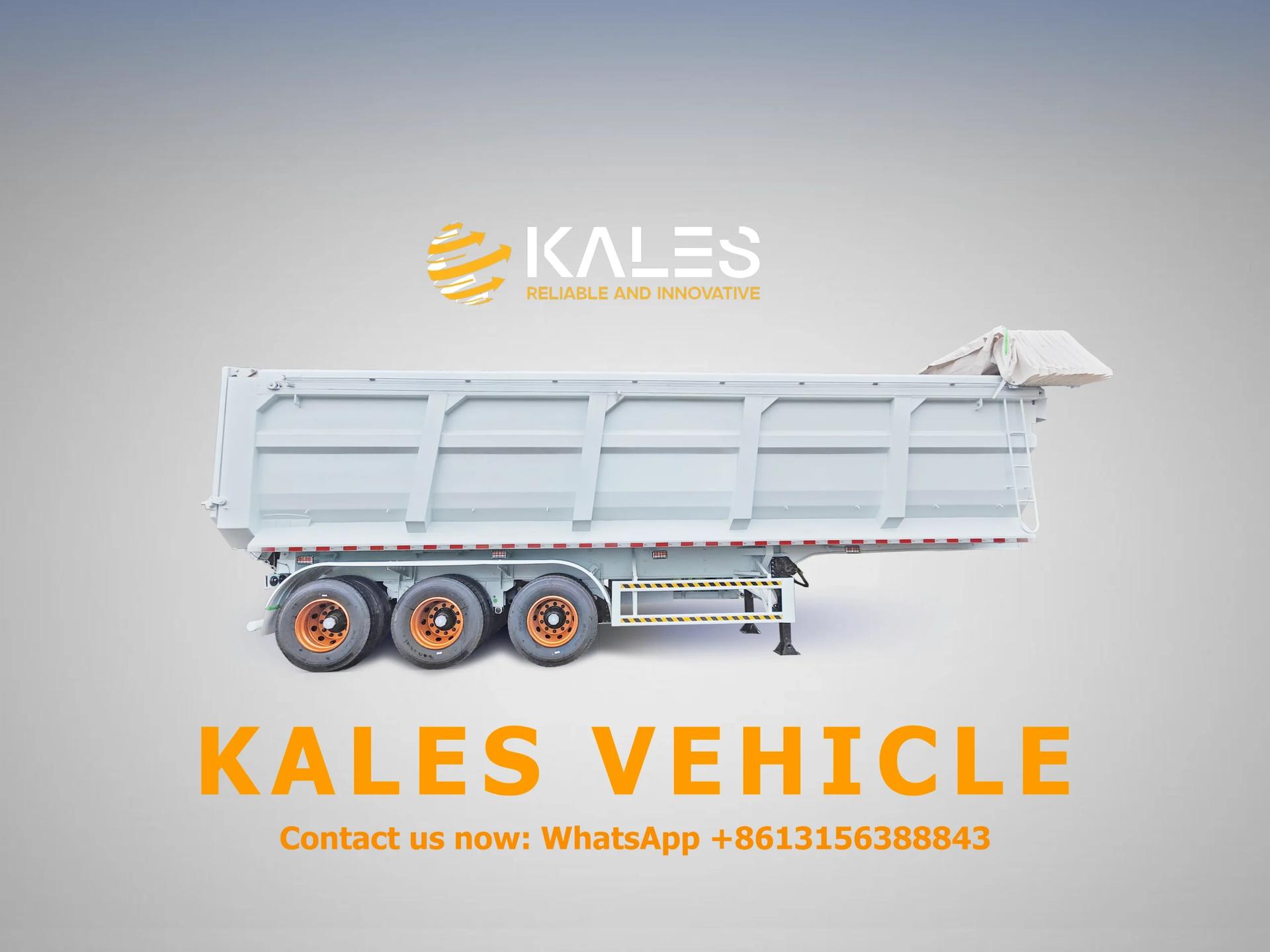

80 Ton Tipper Trailer with Electric Tarp
80 ton U-shape tipper semi trailer with electric tarp for dust control, weather protection, and heavy aggregate, coal, and mining spoil transport.
Reference priceUSD 14,000Final quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
CategoryTipper Trailer
Axles3
Payload / Volume80 t · 35 m³
Dimensions9,000 × 2,500 × 3,950 mm
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
80 ton tipper trailer with electric tarp: a Kales 80 ton U-shape rear dump trailer for buyers whose real buying problem is not only payload. It is for routes that move between quarry, mine, transfer yard, highway, and city approach roads where dust escape, rain ingress, falling material, and manual tarp handling create avoidable operating risk.
Engineering guidance from the Kales Vehicle trailer team for fleets comparing a generic 80 ton rear dump trailer with a covered heavy-duty tipper that improves site compliance and covering safety.
Technical Snapshot
| Product type | 80 ton U-shape rear dump semi trailer with electric tarp system |
|---|---|
| Reference body program | 35 cubic meter U-shape body, with 24 m3, 30 m3, and 45 m3 body programs available on request |
| Overall dimensions | 9,000 x 2,500 x 3,950 mm on the represented stock type, customizable to route and local compliance |
| Payload class | 80 ton heavy-duty tipper class, subject to final axle package, route condition, cargo density, and local legal limits |
| Main beam | T700 high-strength steel with heavy-duty double-plate beam logic |
| Hydraulic system | 196-series heavy-duty hydraulic cylinder for stronger lift force and tipping stability |
| Body and rear structure | Reinforced lattice body, 4 flip-bracket rear hinge support, and U-shape unloading geometry |
| Axles | 3 heavy-duty axles in 13T, 16T, or 20T selection from FUWA, BPW, or Kales matching |
| Suspension | Hybrid package with front air-suspension lift function and rear heavy-duty mechanical suspension |

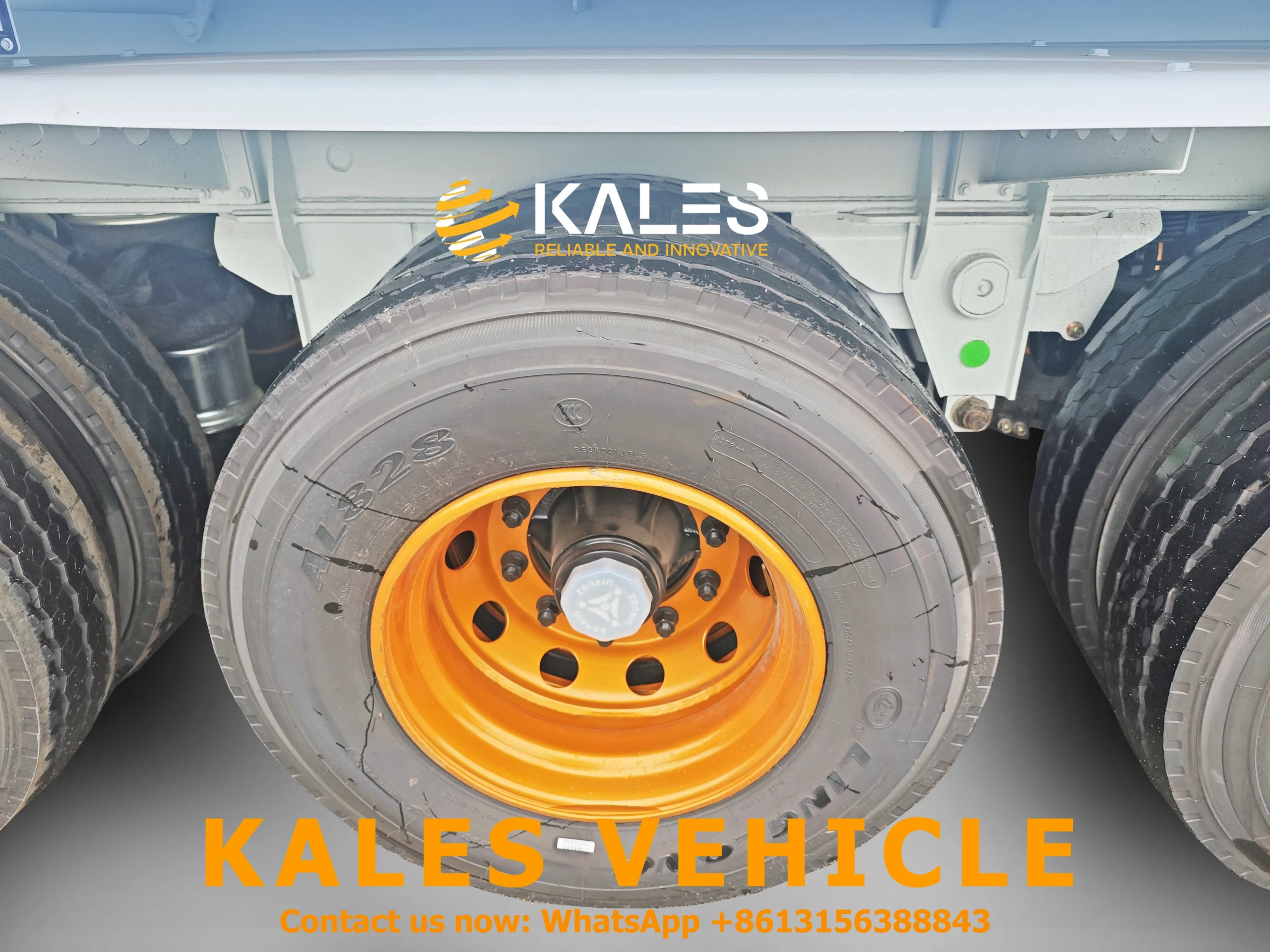

| Tires | 12R22.5 or 315/80R22.5 in 12-tire heavy-haul layout |
| Braking and electrics | WABCO emergency valve with ABS, 24V waterproof lighting, and electric tarp drive system |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |
Best Fit Operating Profile
This trailer is strongest for fleets hauling coal, quarry aggregate, crusher stone, wet sand, overburden, and construction spoil where the trailer leaves controlled loading yards and enters roads, checkpoints, transfer corridors, or municipal sites that expect covered loads. It is the right fit when the trailer must still work as a true heavy-duty U-shape tipper, but the tarp system materially improves operating discipline.
Best for
- Heavy dump fleets that move from quarry or mine zones onto public roads
- Construction spoil and aggregate routes where dust control and falling-material risk matter
- Rain-season or long-haul bulk movements that benefit from covered loads
- Operators trying to reduce unsafe manual tarp handling and speed up turnaround at dispatch
Not ideal for
- Pure pit-only or closed-site work where tarp discipline adds little operating value
- Buyers who only need a lower-cost 40 ton or 35CBM tipper for mainstream bulk routes
- Missions where the main requirement is simply a generic 80 ton mining trailer and the tarp system will not be used consistently
Why Buyers Choose This Electric-Tarp 80 Ton Tipper
- Safer covering workflow: the electric tarp reduces ladder climbing and manual sheet handling compared with a conventional rope or hand-pulled cover.
- Dust and spill control: it is better suited to public-road aggregate, coal, and spoil routes where uncovered loads create fines, complaints, or site-entry rejection.
- Weather protection: the tarp helps reduce rain contamination on moisture-sensitive bulk and keeps the load contained during long transfer legs.
- Heavy-duty U-shape dump logic: the curved body still supports cleaner unloading and less residue than a flatter rectangular dump body.
- Built for covered-load work: for fleets whose commercial risk sits in compliance, containment, and covering speed rather than in tonnage alone.
Specification-backed advantages
- Reference body program: 35 cubic meter U-shape body, with 24 m3, 30 m3, and 45 m3 body programs available on request. This provides a concrete durability and load-control basis for the stated duty cycle.
- Payload class: 80 ton heavy-duty tipper class, subject to final axle package, route condition, cargo density, and local legal limits. This defines the working band to validate against the cargo, route, and local legal limits.
- Hydraulic system: 196-series heavy-duty hydraulic cylinder for stronger lift force and tipping stability. This directly supports the loading, unloading, or handling workflow described for this product.
Engineering and Serviceability Details
Why the electric tarp is the main buying reason here
On many heavy-dump programs, the trailer itself is not the only problem. The daily risk comes from uncovered material, driver exposure during manual covering, and inconsistent tarp discipline at weighbridges, city approaches, or site gates. The electric tarp changes the workflow from a manual task into a faster repeated operating step, which is exactly what separates this trailer from the standard 80 ton rear dump.
How the heavy-duty dump structure supports covered 80 ton work

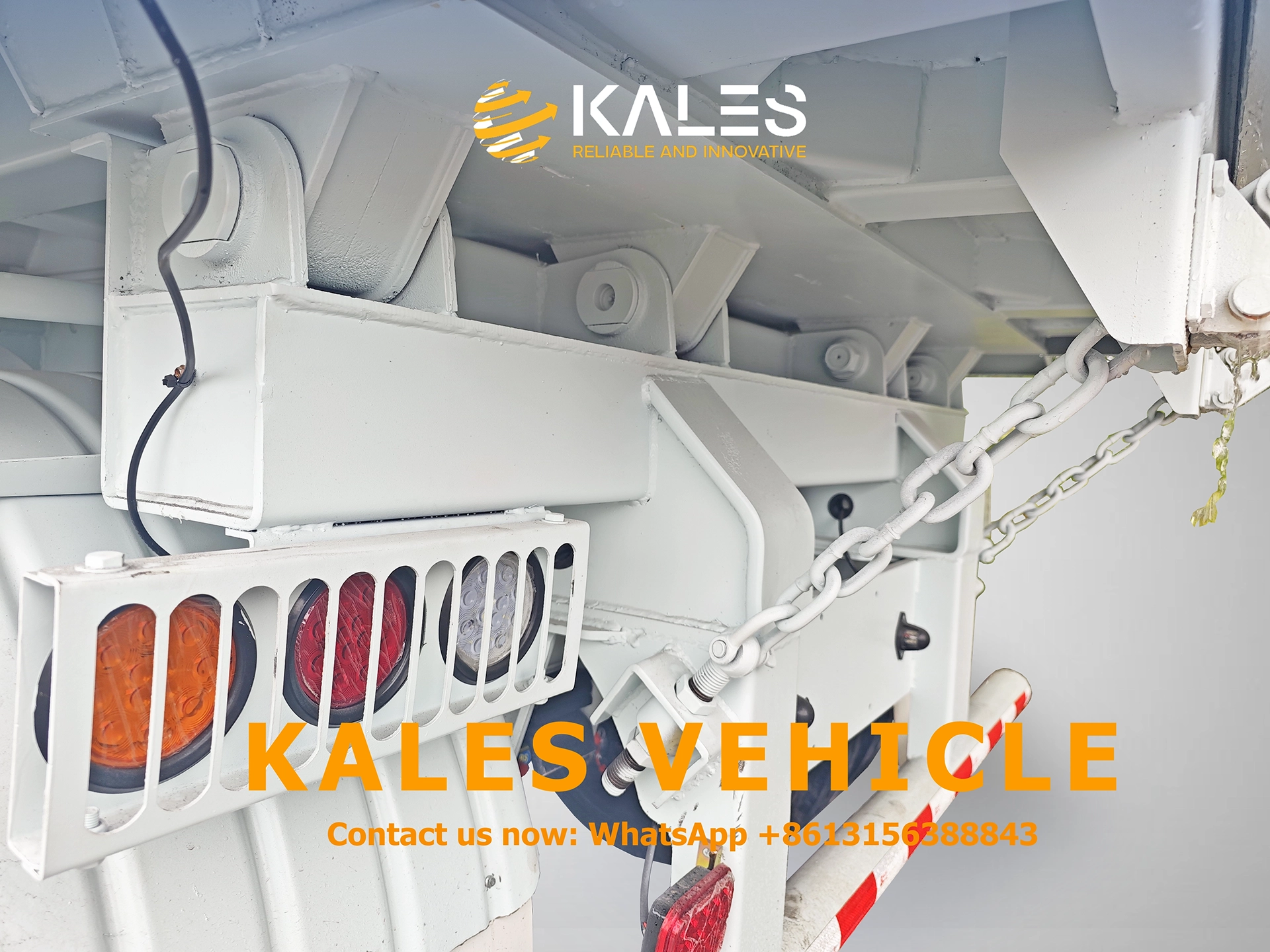

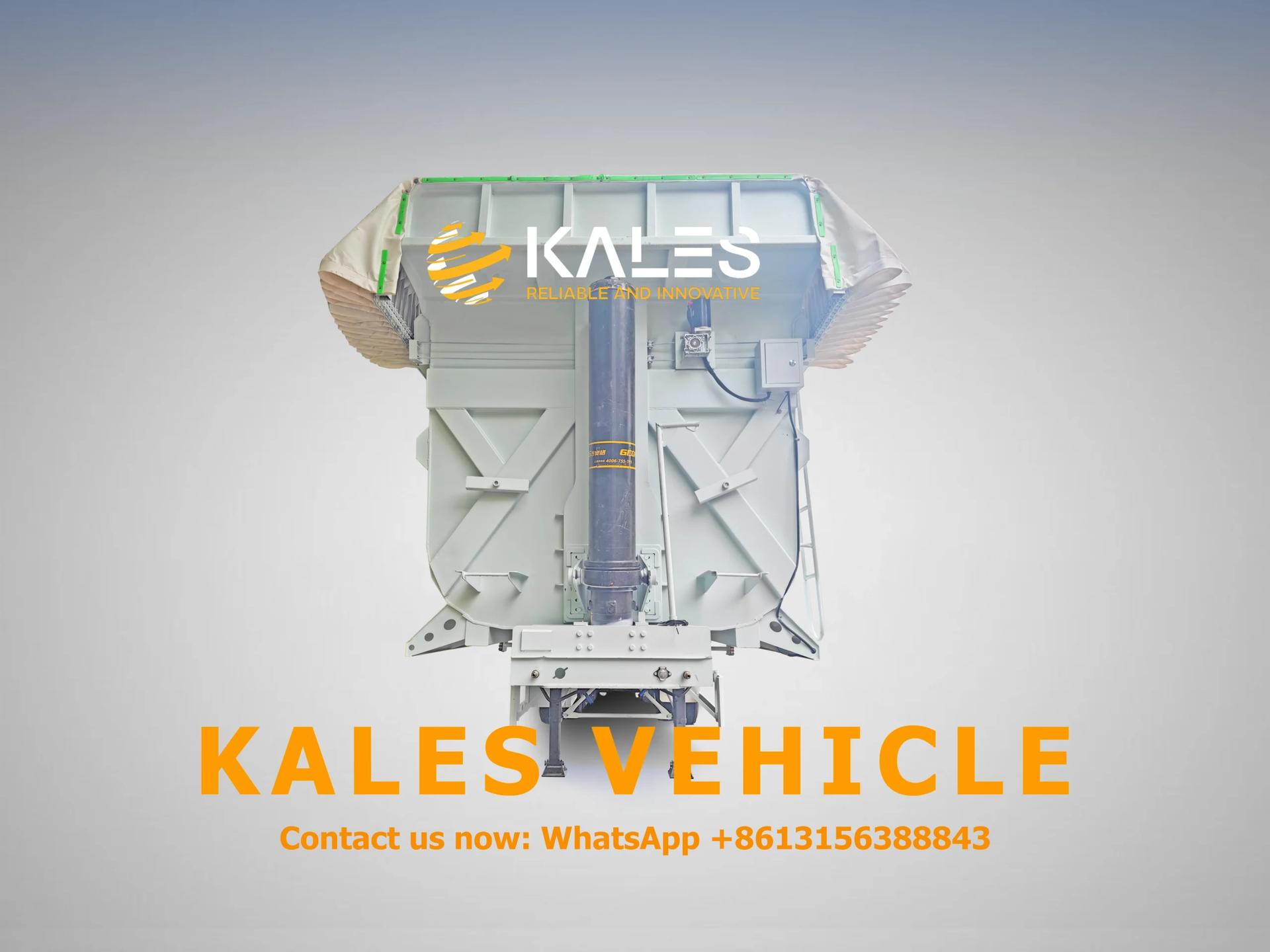

The represented build still uses a genuine U-shape heavy tipper structure: T700 beam material, a wider 196-series cylinder, reinforced lattice side structure, and 4 flip brackets at the rear hinge point. The tarp is not a cosmetic add-on. It sits on top of a trailer that is already engineered for hard aggregate, coal, and mining-support duty.
Suspension and route logic
The hybrid suspension package combines front air-lift function with rear mechanical heavy-duty support. That matters because this trailer is built for mixed-duty routes: rough loading points still demand rugged rear support, while the front lift logic helps tire wear and maneuver efficiency when the trailer cycles empty between sites.
How this trailer differs from the standard 80 ton rear dump
| Buyer question | Best-fit direction | Why |
|---|---|---|
| I need a straightforward heavy 80 ton rear dump trailer for mining or aggregate duty | Generic 80 ton U-shape rear dump trailer | The main decision is payload class and mining-duty structure, not covered-load workflow |
| I need 80 ton rear-dump capacity plus faster, safer, more consistent load covering | This 80 ton tipper with electric tarp | The tarp system is part of the operating method, not just an accessory |

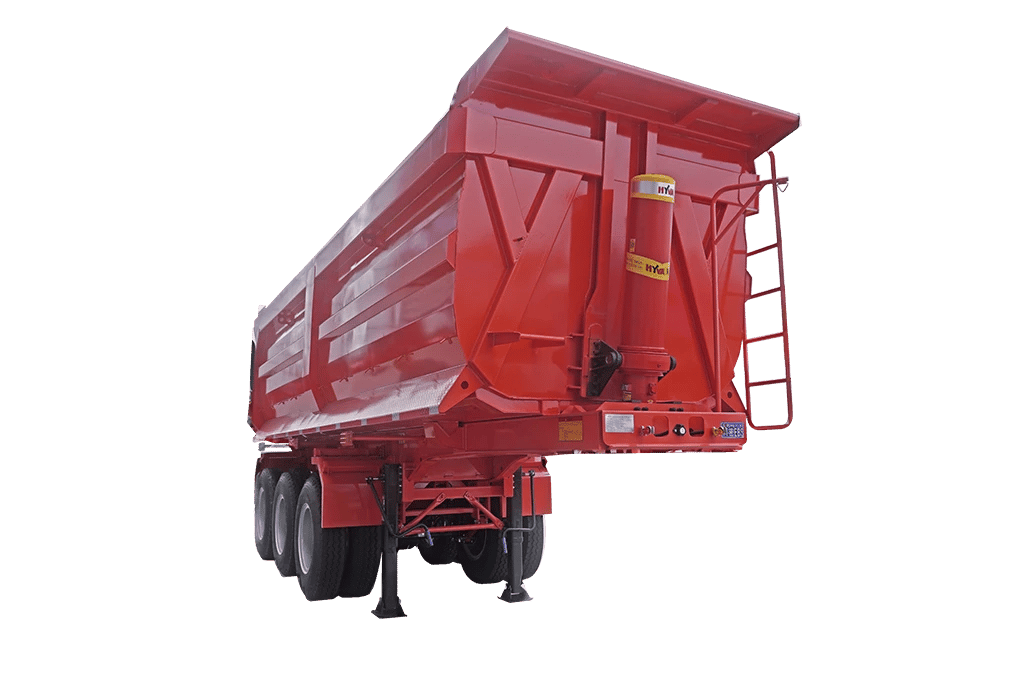

| I only need a mainstream dense-bulk tipper with simpler service logic | 40 ton rear dump trailer | Lower class, lower complexity, and better fit when 80 ton duty is unnecessary |

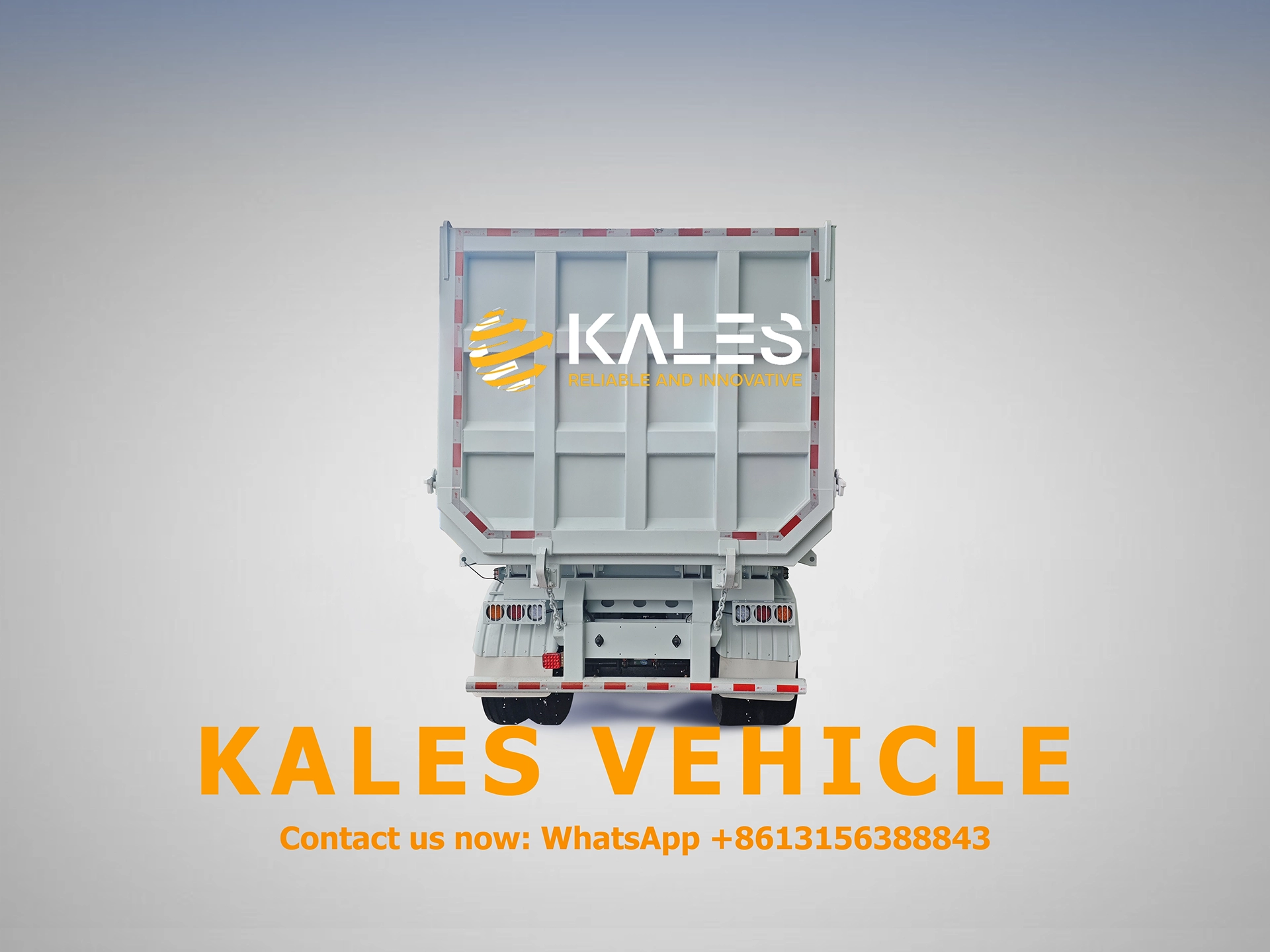

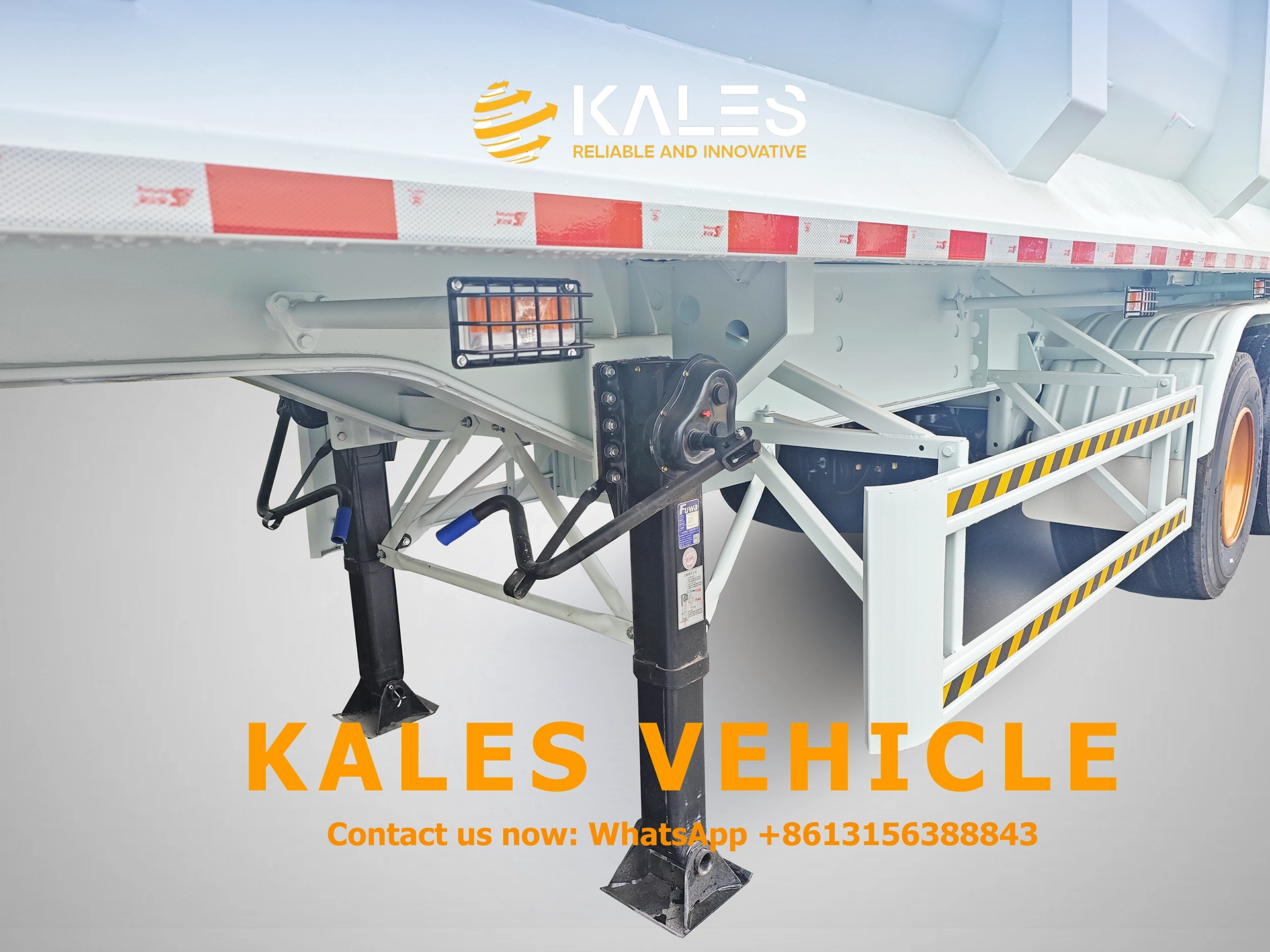

Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- Warranty scope and duration for the product and order are confirmed in the quotation or contract. Ask for the applicable terms before ordering; technical guidance and parts support are coordinated separately.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
Why should I choose this trailer instead of a standard 80 ton rear dump trailer?+
Choose this trailer when load covering is a daily operating requirement, not an afterthought. If the fleet needs safer tarp handling, better dust control, and more consistent weather protection, it is the better fit than an open-body 80 ton tipper.
Does the electric tarp matter only for city work?+
No. It also matters on highway transfer legs, rainy-season bulk haulage, weighbridge checks, and contractor routes where covered loads reduce dust escape, spillage complaints, and moisture exposure.
Is this still a true heavy-duty mining-support tipper?+
Yes. The represented build still uses heavy-duty beam, cylinder, rear hinge, axle, and suspension logic. The electric tarp adds operating control; it does not replace the need for a proper 80 ton structure.
Can the body volume and axle package be customized?+
Yes. Kales can adjust body volume, axle rating, suspension mix, steel thickness, and tarp specification to match cargo density, route condition, and legal load limits.
What should I confirm before requesting a quote?+
Confirm cargo type, moisture sensitivity, route condition, road-enforcement expectations, target body volume, tractor specification, and whether the tarp must be standard or optional in your operating program.
Request Drawing and Quote
If you are comparing an 80 ton tipper trailer with electric tarp, send your cargo type, target payload, body volume target, route condition, country of operation, and whether dust-control or rain-cover compliance is mandatory. Kales can then confirm whether this covered heavy-duty U-shape tipper or a simpler rear dump class is the better fit.
