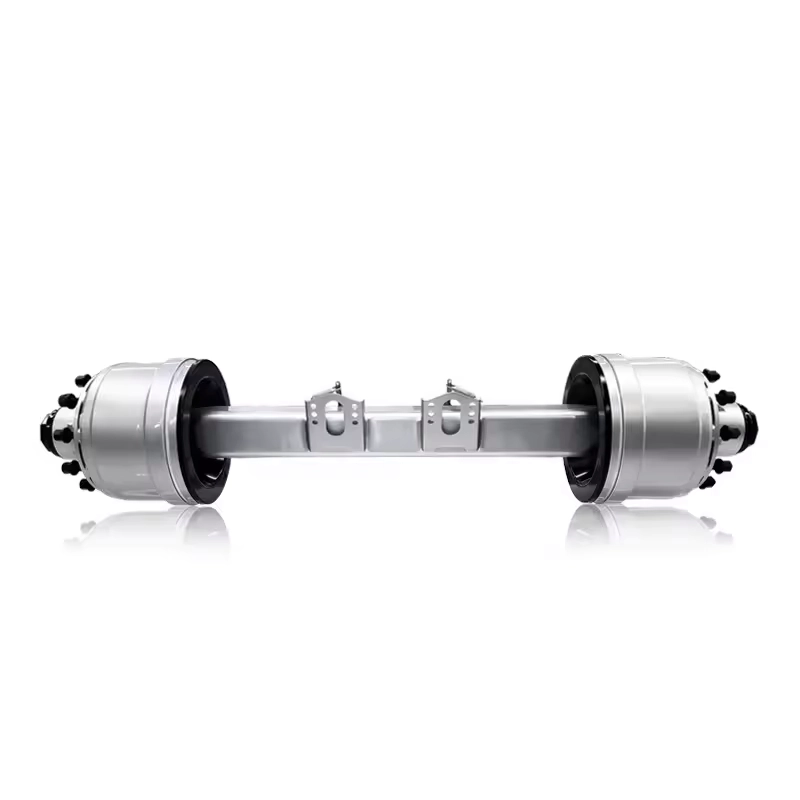

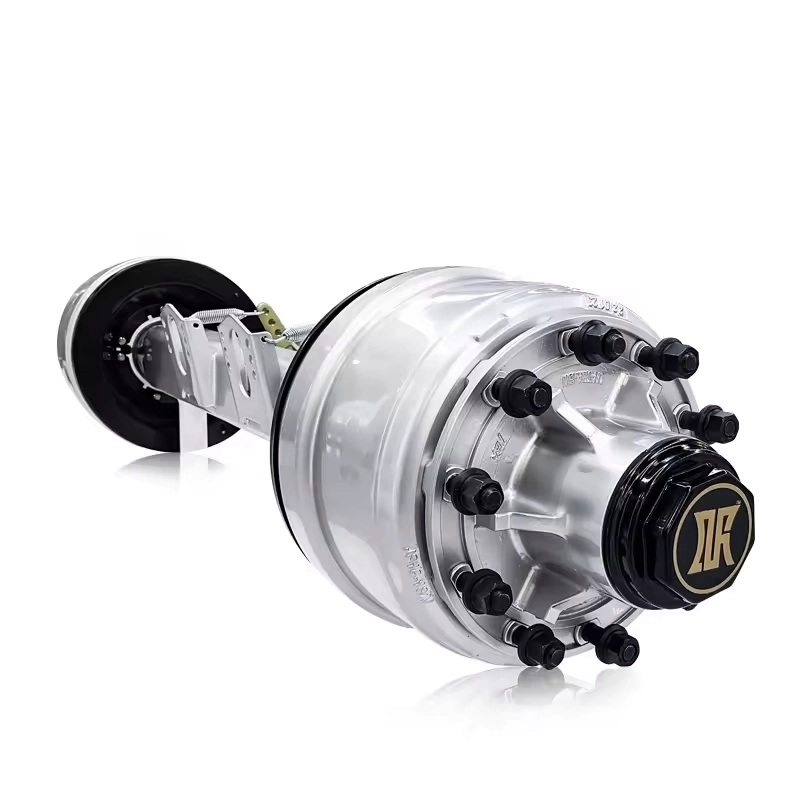

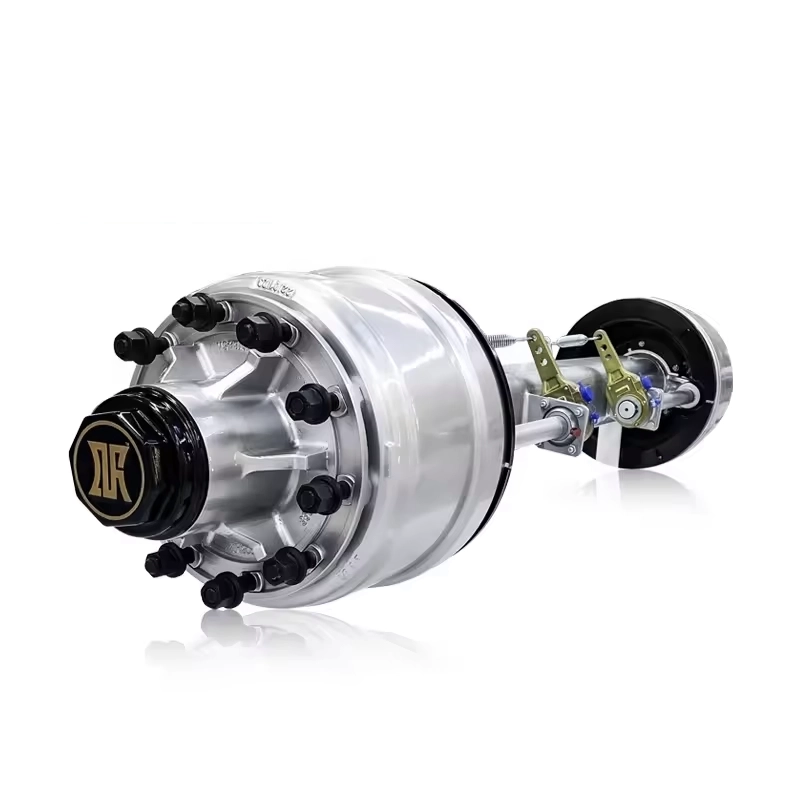

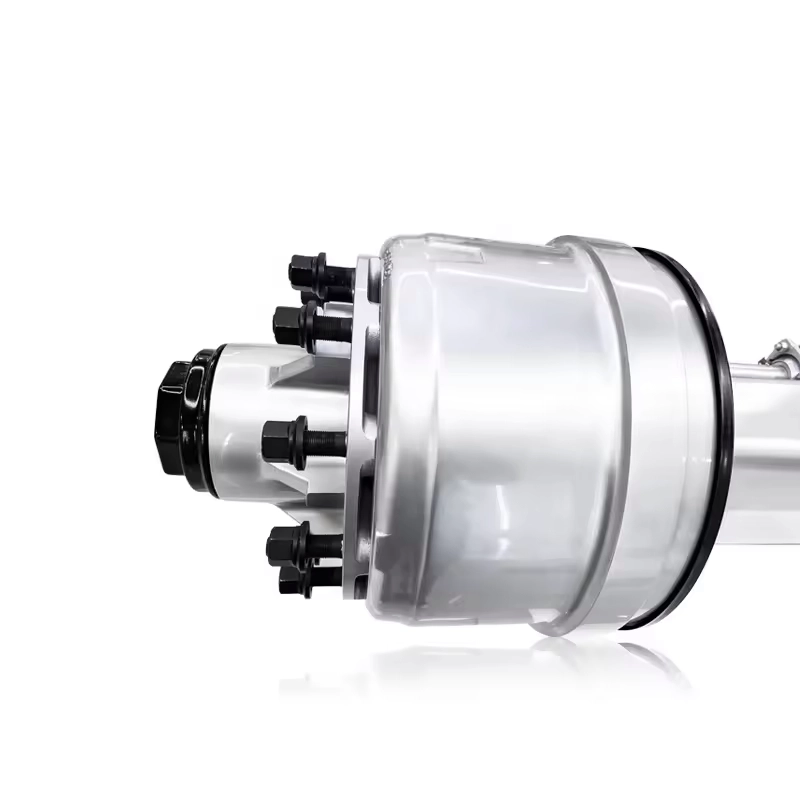

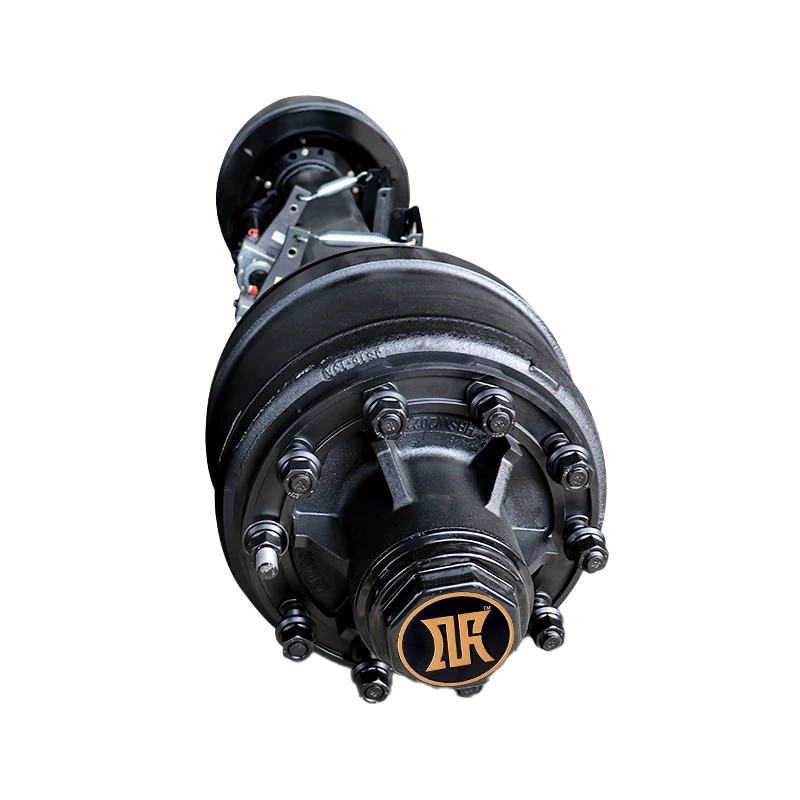

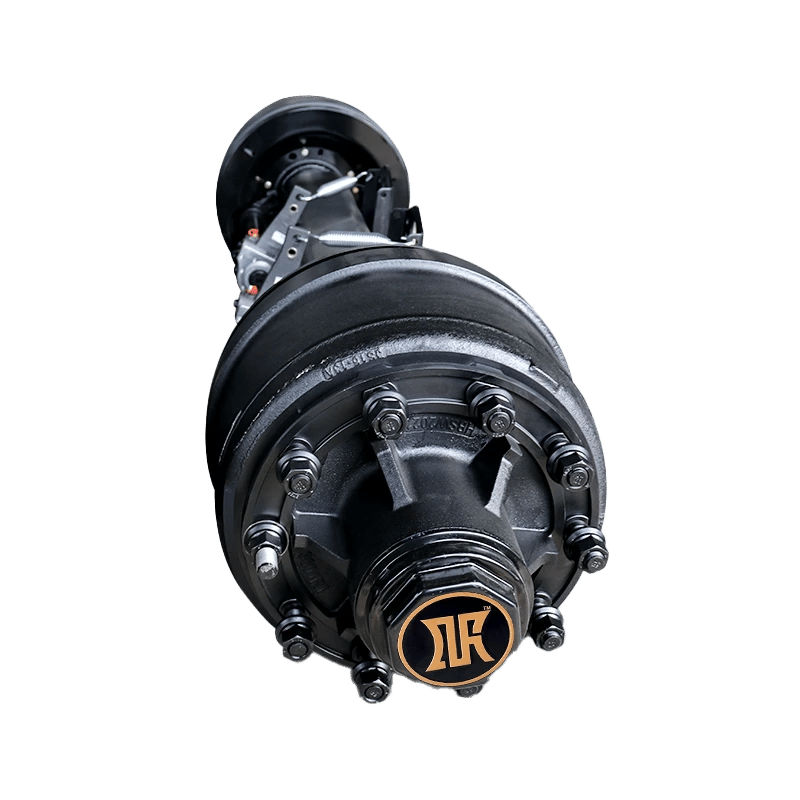

20 Ton American Type Drum Trailer Axle
20 ton American type drum trailer axle with 420 x 220 brake, heavy-load rear axle support, and quote on request family pricing for export fleet replacement.
Reference priceUSD 550 – USD 750In stock · Available to orderFinal quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
Part TypeReplacement part
Axle LoadMatched to equipment requirement
SupplyFactory source and export packing
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
20 ton American type drum trailer axle: this Kales rear axle family is built for buyers who need heavy-load semi-trailer axle replacement with mainstream drum-brake service logic, stronger parts interchangeability, and a price range that still works for fleet maintenance budgets. The family is centered on the 20T top-end axle while covering the broader 10T to 20T American-type drum family available under the same hardware platform.
Engineering guidance from the Kales Vehicle parts team for buyers comparing a 20 ton drum trailer axle with lighter drum axles, German-style axles, and disc-brake alternatives for different route profiles.
Technical Snapshot
| Product type | American-type drum brake semi-trailer rear axle family |
|---|---|
| Headline configuration | KTGA20 heavy-load rear axle |
| Rated capacity | 20 tons |
| Brake size | 420 x 220 mm drum brake |
| Axle tube | 150 x 150 mm square tube |
| Total length | Approximately 2270 mm |
| Wheel track | 1850 mm |
| Stud pattern | 10 x M24 x 1.5 |
| PCD | 335 mm |
| Center hole | 281 mm |
| Recommended wheel | 8.5V-20 |
| Variant range | 10T, 10.5T, 12T, 13T, 14T, 15T, 16T, 18T, and 20T |
| Seal concept | Multilayer sealing sleeve to isolate contamination and retain grease |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |
Family variant table
| Model | Capacity (T) | Brake (mm) | Axle tube | Recommended wheel |
|---|---|---|---|---|
| KTGA10 | 10 | 420 x 125 | 150 x 150 | 7.5V-20 |
| KTGA12 | 12 | 400 x 155 | 150 x 150 | 7.5V-20 |
| KTGA13 | 13 | 420 x 180 | 150 x 150 or O127 | 7.5V-20 |
| KTGA14 | 14 | 420 x 220 | 150 x 150 | 7.5V-20 |
| KTGA15 | 15 | 420 x 180 | O127 or 150 x 150 | 8.0V-20 |
| KTGA16 | 16 | 420 x 220 | O127 or 150 x 150 | 8.0V-20 |
| KTGA18 | 18 | 420 x 220 | 150 x 150 | 8.5V-20 |
| KTGA20 | 20 | 420 x 220 | 150 x 150 | 8.5V-20 |
Best Fit Operating Profile
This axle family is best suited to fleets and workshops that prioritize load support, drum brake durability, and faster roadside or yard maintenance. It works well for bulk cargo trailers, rough-route semi-trailers, mining-support transport, and export rebuild programs where parts availability and practical repair logic matter as much as axle rating.
Best for
- Heavy-load semi-trailer rear axle replacement
- Rough-route bulk cargo and mining-support fleets
- Workshops rebuilding American-type running gear
- Buyers who want a heavier drum-brake alternative within a controlled parts budget
Not ideal for
- High-speed highway reefer fleets that prioritize disc-brake heat stability
- Buyers who need German-style running gear compatibility instead of American-type hardware
- Very low-deck special trailers that need a drop axle rather than a standard rear axle layout
Why Buyers Choose This 20 Ton Drum Axle Family
- Heavy-load rating: the KTGA20 top configuration is built for buyers who need stronger rear axle support than a standard 13T class part.
- Drum brake practicality: simpler service logic, familiar parts handling, and easier repair in many export markets.
- Consistent production process: stronger interchangeability matters when fleets standardize spare-parts inventory.
- Multilayer sealing construction: helps isolate contamination and control grease retention in harsh environments.
- Family coverage from 10T to 20T: one platform can support different fleet positions without switching to unrelated axle architecture.
- configuration-based structure: practical for distributors and workshops that buy by required capacity and hardware combination rather than one fixed spec.
Specification-backed advantages
- Rated capacity: 20 tons. This defines the working band to validate against the cargo, route, and local legal limits.
- Brake size: 420 x 220 mm drum brake. This gives the buyer a specific braking or safety package to verify for the intended route.
- Headline configuration: KTGA20 heavy-load rear axle. This makes destination-market parts support and workshop planning easier to confirm before production.
How This American-Type Drum Axle Should Be Evaluated
The correct way to assess a 20 ton American type drum trailer axle is not only by capacity headline. Buyers should review brake size, axle tube geometry, stud pattern, PCD, center-hole fit, wheel matching, seal construction, and whether the axle needs to live on a rough bulk route or a smoother highway route. Those details decide whether the axle fits the trailer and the service environment.
| Buyer situation | Best-fit Kales option | Why |
|---|---|---|
| Heavier-load drum axle replacement for bulk and rough-route trailers | This 20T American-type drum axle family | It prioritizes load support, drum-brake durability, and simpler workshop maintenance |
| Standard-capacity drum axle with lighter routine service target | 13T external drum trailer axle | Better fit when the fleet does not need 20T-class hardware |
| German-style running gear matching | 16 ton German style trailer axle | Better fit for fleets standardized around German-style axle geometry |
| Higher-speed highway braking priority | 13T American disc trailer axle | Disc-brake layout suits buyers prioritizing more stable thermal braking on road use |
Engineering and Serviceability Details
Load path and brake package
The KTGA20 configuration uses a 420 x 220 mm drum package with a 150 x 150 mm axle tube and heavy M24 stud arrangement. That combination is aimed at buyers who need stronger load support and a brake package sized for harsher working conditions than lighter axle classes.
Interchangeability matters in export fleets
For many workshops in Africa and Latin America, the real value of an axle family comes from repeatability. If tube dimensions, brake sizes, and wheel-end patterns are predictable, fleets can reduce spare-parts complexity and shorten downtime during axle replacement.
Seal design and harsh-route reliability
Multilayer sealing is not a cosmetic detail. On dusty, wet, and overloaded routes, better isolation of contamination helps protect lubrication condition and extend service life at the hub area.
Why drum still wins in many markets
Disc braking has clear highway advantages, but drum axles remain the rational choice in many export markets because service familiarity, lower parts sensitivity, and easier field maintenance often outweigh the refinement benefits of a disc package.
Quotation and Procurement Guidance
Pricing uses a configuration-based structure because the axle family spans multiple ratings and wheel-end combinations. Buyers should not compare the price tag alone. The correct comparison is based on target capacity, brake size, axle tube format, stud pattern, and whether the destination fleet is repairing an existing American-type axle line or changing hardware standard entirely.
Kales can match capacity grade, brake size, wheel-end hardware, and destination-market spare-parts logic before order confirmation. For serious buyers, the main goal is to avoid ordering an axle that looks close on paper but creates fitment or maintenance problems after arrival.

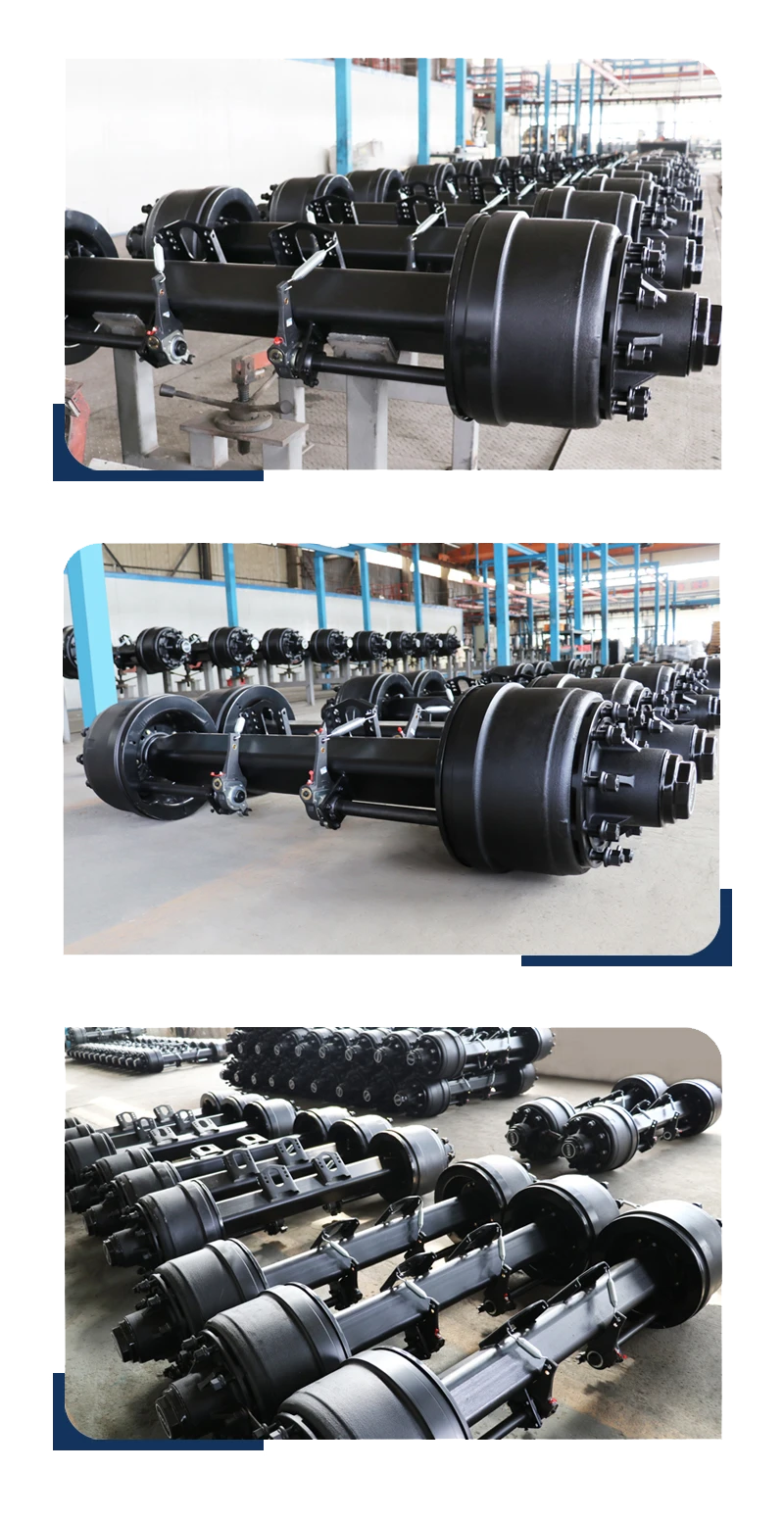

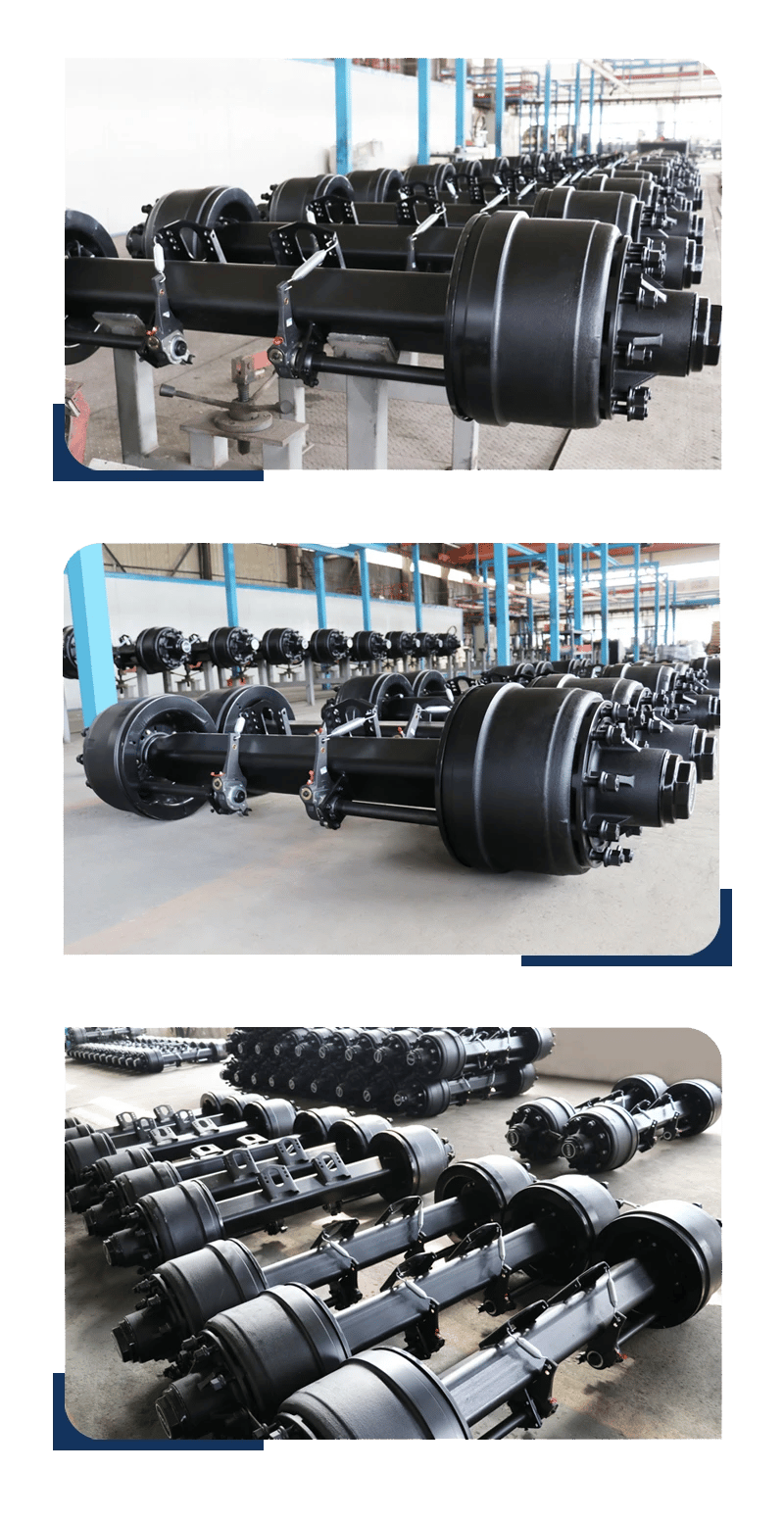

Inspection Views
Built for your market
- Confirm part specification, matching model, and quantity before shipment to reduce installation risk.
- Arrange branded packaging, part marking, or bundled wear-part kits for dealer or workshop orders.
- Combine urgent replacement parts with regular stock replenishment in one export plan when needed.
- Request batch packing, palletizing, or carton labeling based on destination handling requirements.
Export shipping made practical
- Urgent parts can be sent by express courier, while heavier or larger orders can move by air, sea, or combined shipments.
- We help match packing and shipment mode to delivery urgency, budget, and destination customs practice.
- Trade terms, invoice support, and export packing lists are prepared according to the order arrangement.
- When helpful, we can recommend adding wearing parts to vehicle orders to reduce future downtime and logistics cost.
Quality checks and after-sales
- Parts are checked before dispatch for visible quality, quantity, and packing accuracy.
- Batch orders can be packed for easier warehouse receipt, stock control, and dealer distribution.
- Ongoing supply and remote support are available if you need help with replacement planning or matching confirmation.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
How do I confirm this part matches my trailer or truck?+
Send us the part photo, dimensions, model information, or vehicle details. We can help confirm the right specification before shipment.
Can you supply parts in bulk for dealers or workshops?+
Yes. We support both urgent single-item orders and larger batch orders for dealers, maintenance teams, or fleet stock planning.
What shipment methods do you use for spare parts?+
Urgent items can move by courier or air, while regular replenishment orders can be shipped by sea or combined with vehicle shipments when practical.
Do you provide support after the first order?+
Yes. We can continue supplying replacement parts and help with follow-up matching or replenishment needs as your fleet or business grows.
Request Axle Matching and Quote
If you are comparing a 20 ton American type drum trailer axle for fleet replacement or trailer rebuild, send your required capacity, brake size, axle tube format, hub pattern, and trailer application. Kales can then match the correct axle variant and quote the right hardware package instead of a generic parts offer.
