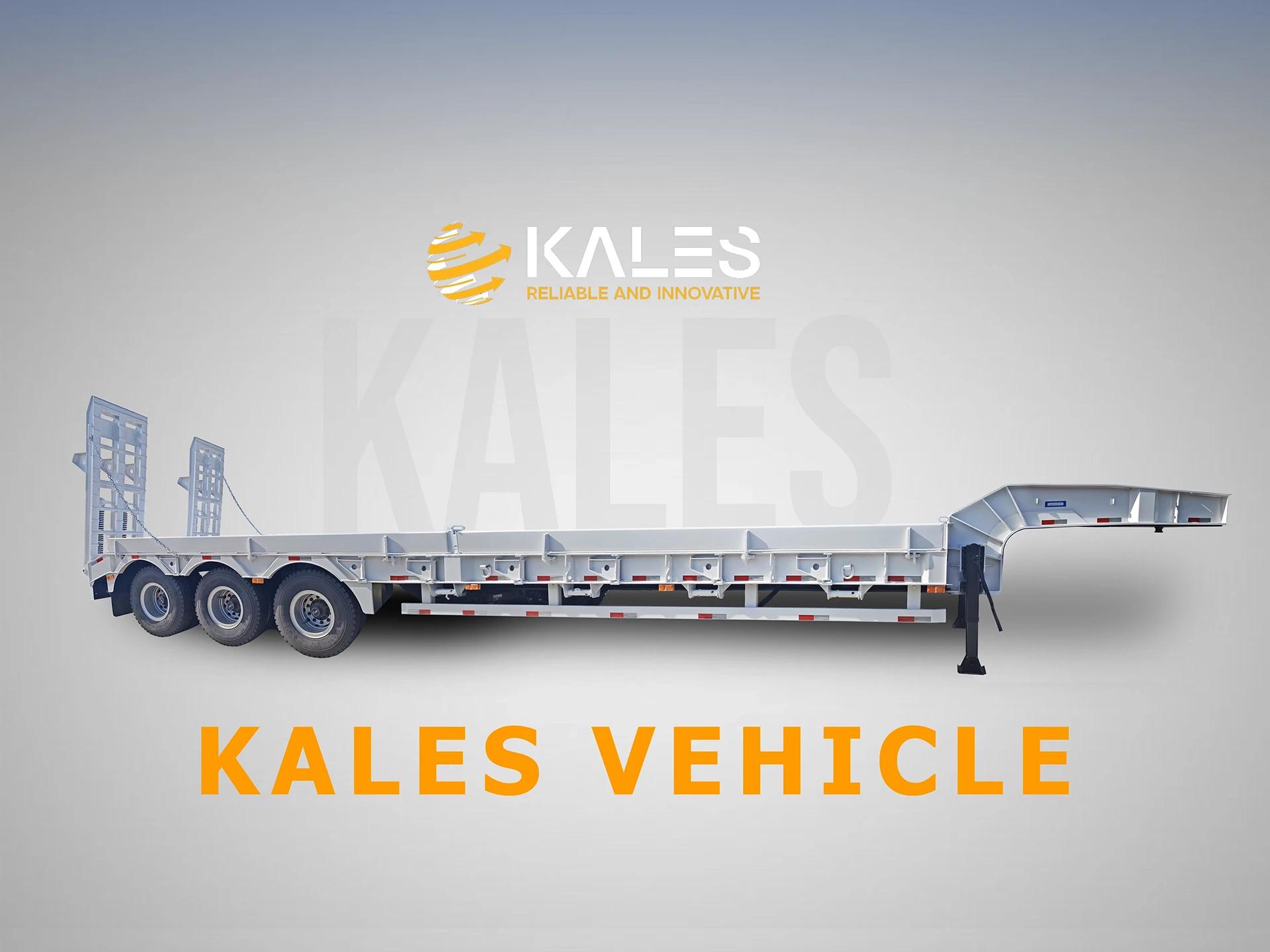

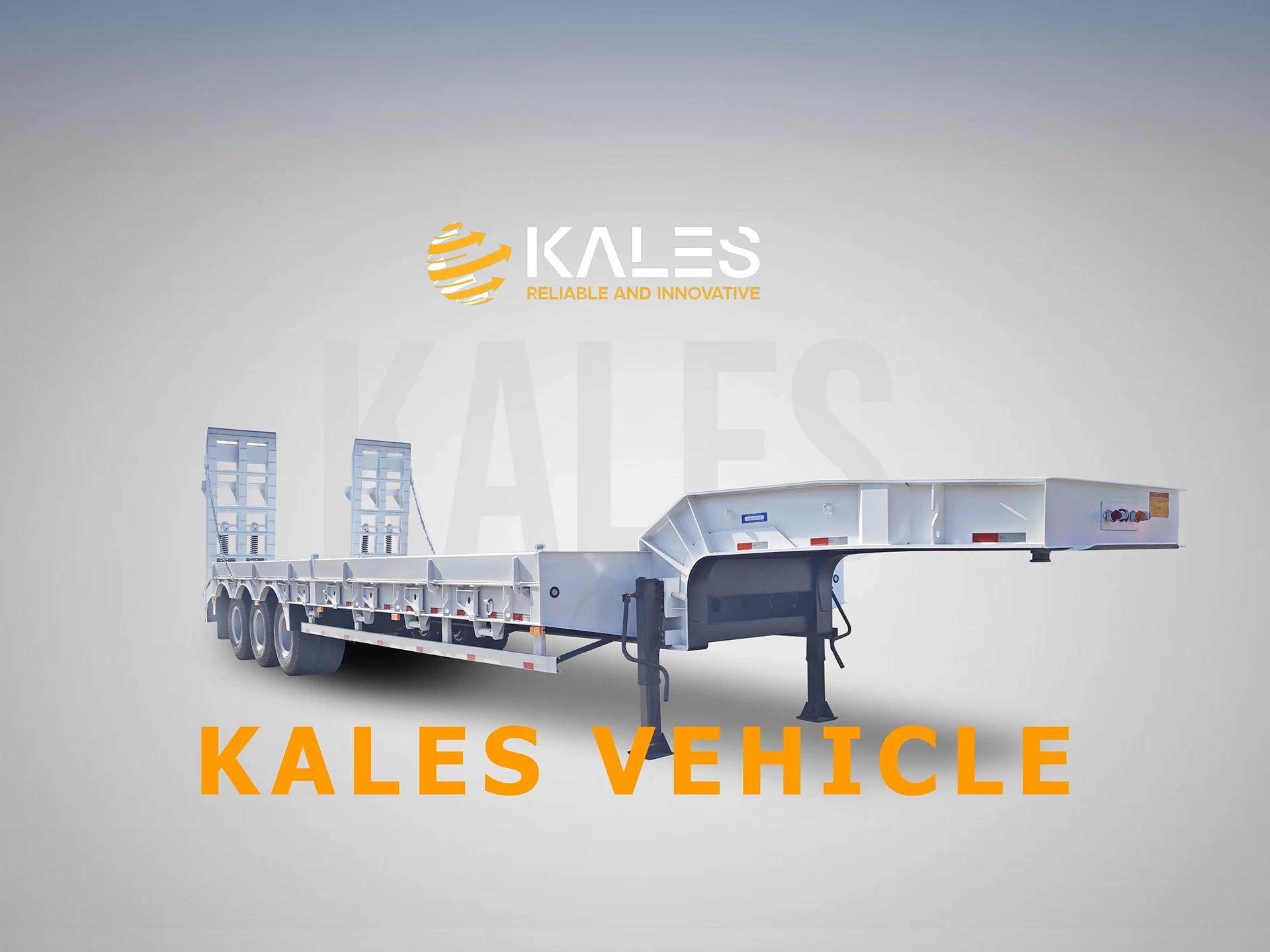

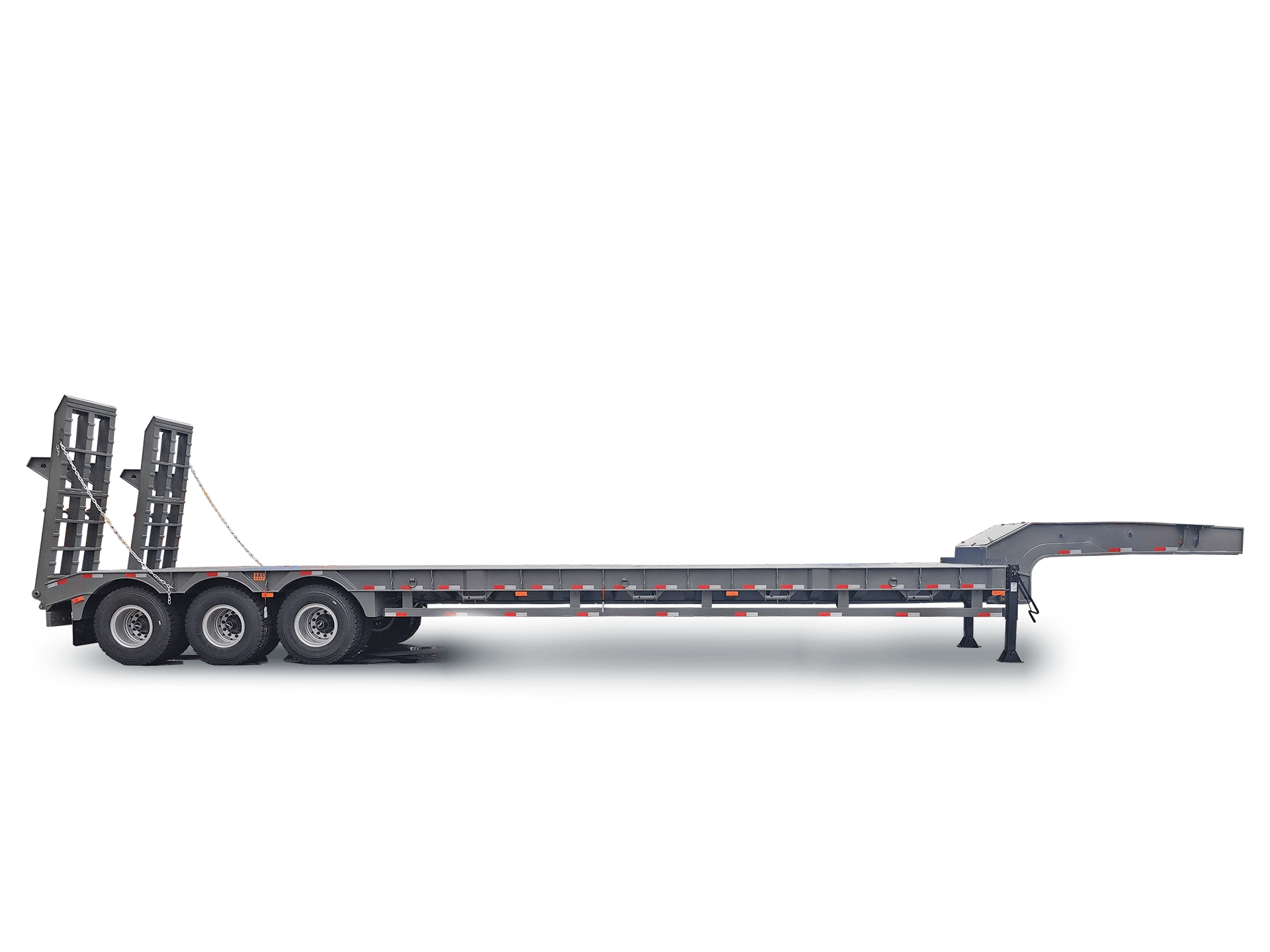

Kales 3-Axle 80 Ton Lowbed Trailer: 1060mm Low Deck with Side Extension
80 ton 3-axle lowbed trailer with side extension, 1060 mm low deck, reinforced side support, and fixed-deck rear-loading logic for wider excavators.
Reference priceUSD 11,500In stock · Available to orderFinal quote depends on configuration, quantity, and destination.
Direct technical consultation from factory engineers · No trader markup
CategoryLowbed Trailer
Axles3
Payload / Volume80 t
Dimensions15,500 × 2,500 × 1,060 mm
Factory Direct Export
Zero trader markup
Heavy-Duty Certified
ISO9001 / CCC / CIQ
Global Sea Freight
Container / Ro-Ro / Bulk
Custom Engineering
Tailored configurations
80 ton 3-axle lowbed trailer with side extension: this Kales flat-deck lowbed is for buyers whose transport problem is cargo width rather than only payload class. It keeps the service logic of a practical 3 axle fixed-deck lowbed, but adds side-extension deck support and a 1060 mm low platform strategy for wider excavators, construction machinery, industrial units, and project cargo that do not sit comfortably on a standard-width lowbed.
Engineering guidance from the Kales Vehicle lowbed team for buyers comparing standard-width Africa lowbeds, broader global 80 ton fixed-deck platforms, side-extension lowbeds, and detachable-gooseneck heavy-haul trailers.
Technical Snapshot
| Product type | 3 axle 80 ton flat-deck lowbed trailer with side extension |
|---|---|
| Payload class | 80 ton class heavy-duty lowbed for wide machinery and oversized-width project cargo, subject to route regulation and final tractor match |
| Platform height | Approx. 1060 mm low deck for lower center of gravity and better height control |
| Reference dimensions | 15,500 x 2,500 x 1,060 mm with side extension support expanding usable width toward 3,000 mm |
| Deck width logic | Standard 2,500 mm deck with 250 mm side-extension support on each side for wider machinery |

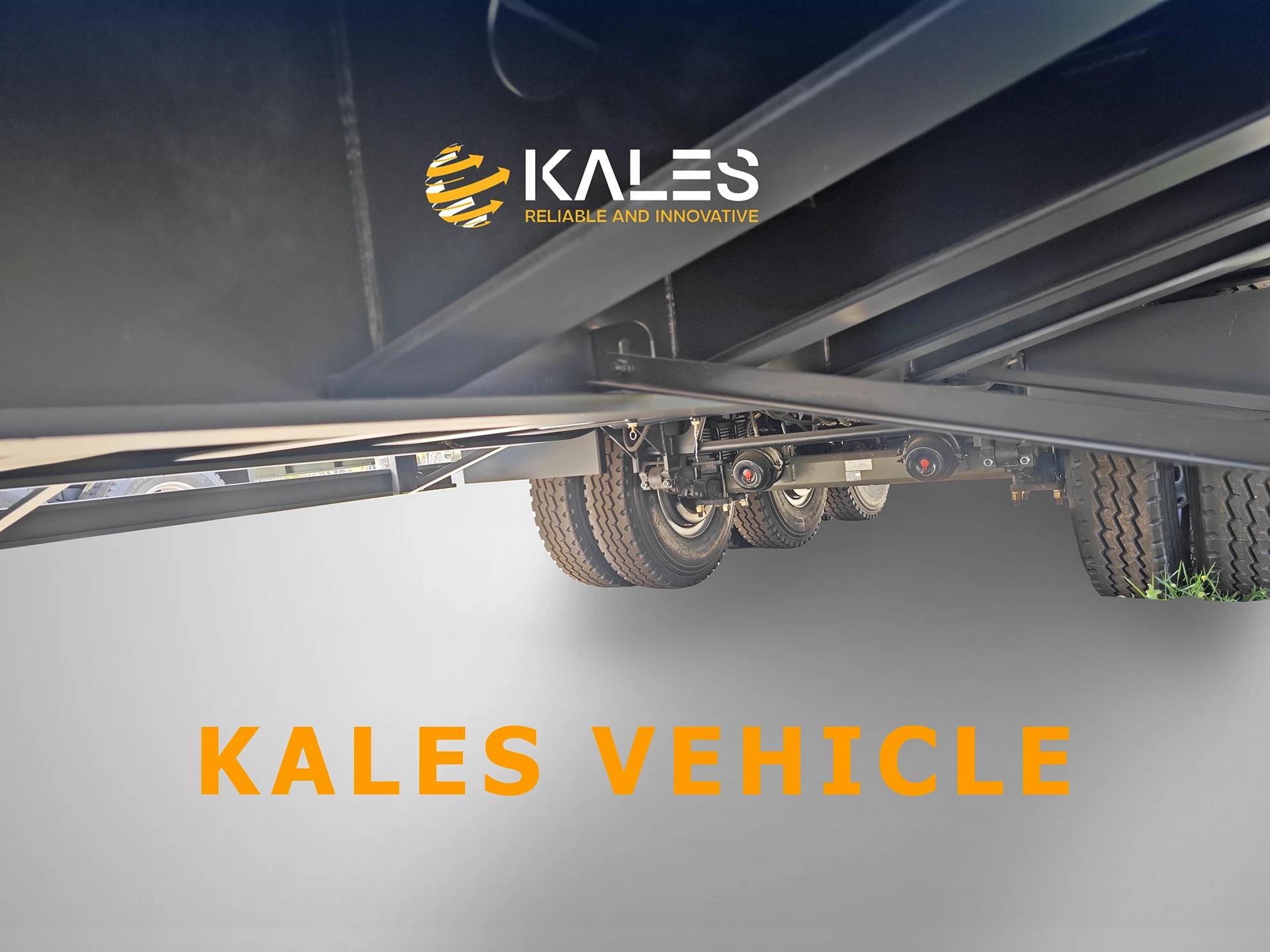

| Main beam | HG60 high-strength steel main beam, approx. 500 mm beam height, designed for concentrated heavy equipment loads |
| Side beam structure | Heavy-duty H-beam side support structure for extension rigidity and anti-deformation performance |

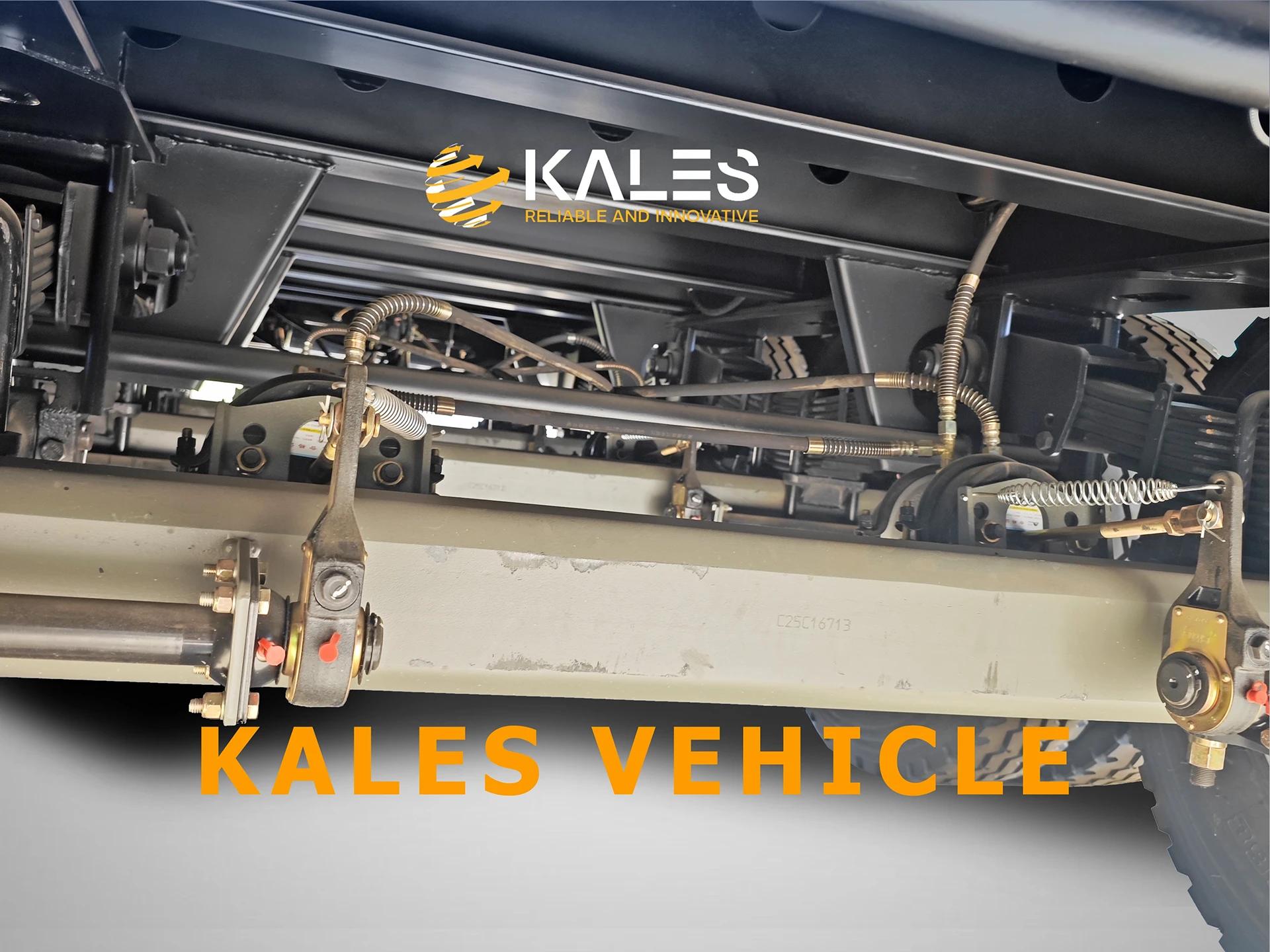

| Axles | 3 axles with BPW, FUWA, or KALES heavy-duty matching depending on procurement scope |

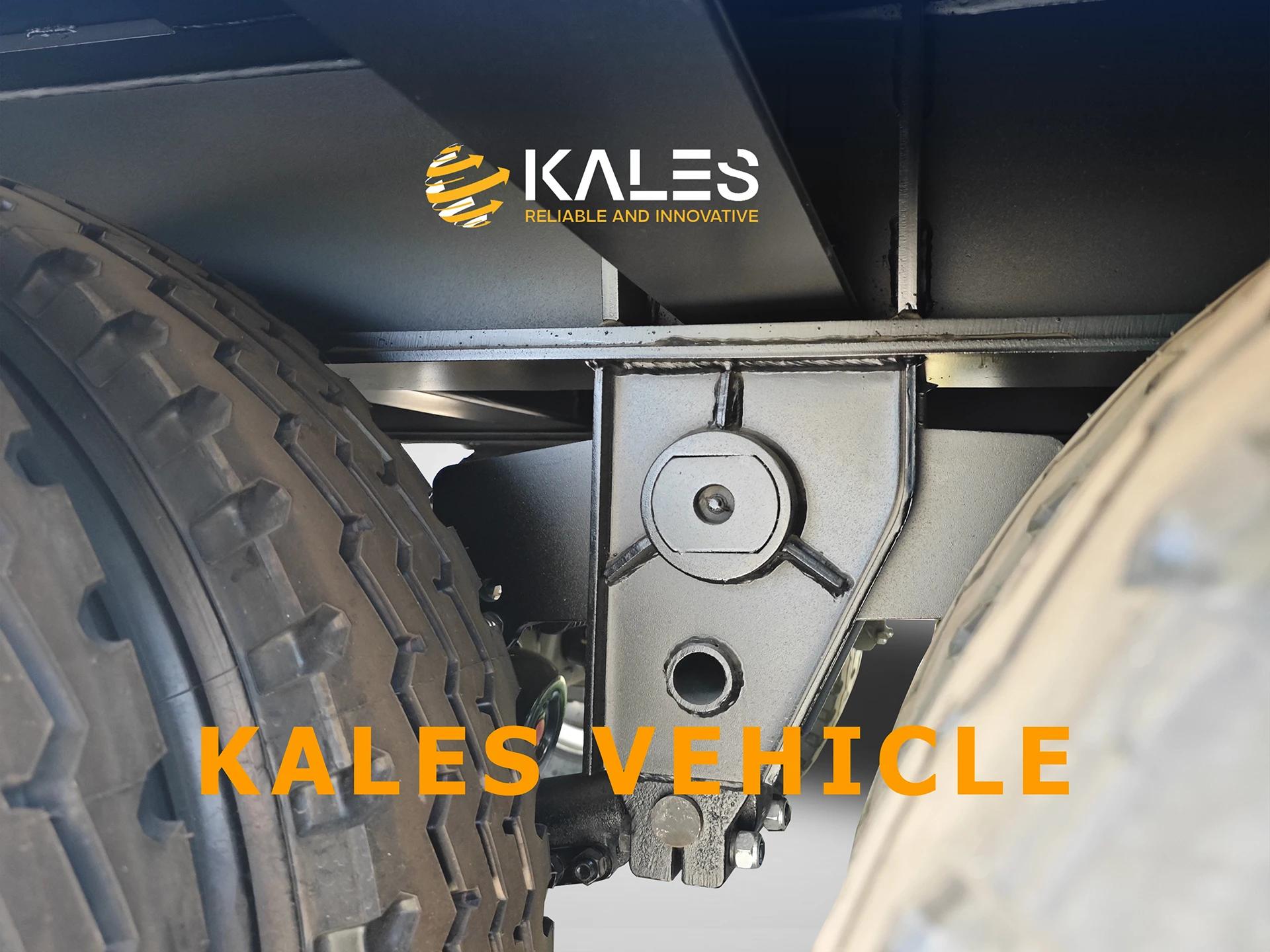

| Suspension | Reinforced mechanical suspension for practical serviceability on mixed routes |
| Tyre logic | All-steel radial twin-tyre setup for wide-load stability and heavy-duty bearing support |
| Ramp strategy | Reinforced mechanical ramps as standard, hydraulic ramp upgrade available |
| Brake system | WABCO valve logic with ABS-ready heavy-duty air-brake layout |
| Landing gear | JOST or KALES 28T heavy-duty landing gear |
| Custom quotation | Contact KALES for a tailored quotation based on the required configuration, order quantity, and destination. |
Best Fit Operating Profile
This trailer is strongest when the cargo still fits the practical 3 axle 80 ton lowbed class, but the equipment footprint is wider than a standard-width platform handles comfortably. It suits contractors, machinery rental fleets, mining-support operators, industrial transporters, and export buyers carrying wide excavators, wheel loaders, rollers, crusher units, agricultural equipment, or broad project components that need more lateral deck support without moving into a longer telescopic chassis or a front-loading RGN.
Best for
- Wide excavators, bulldozers, wheel loaders, rollers, and tracked machinery that need extra deck width support
- Contractors and project fleets that still prefer a simpler fixed-deck rear-loading platform
- Buyers who need a lower 1060 mm deck and wider support surface for mixed-road heavy equipment transport
- Operations where standard-width Africa lowbeds are too narrow, but a detachable-gooseneck trailer would be excessive
Not ideal for
- Buyers whose real requirement is a lower-cost standard-width Africa 3 axle lowbed
- Export buyers who need the broader fixed-deck global 80 ton narrative without side-extension width emphasis
- Front-loading crawler routines that require detachable-gooseneck access
- Extra-long project cargo where telescopic deck extension matters more than side width
Why Buyers Choose This 80 Ton Side-Extension Lowbed
- Built for wide cargo: side extensions add lateral deck support that a standard-width 80 ton lowbed does not provide.
- 1060 mm low platform: lower deck height improves stability and helps control total transport height for taller machinery.
- Side-extension practicality: width expansion toward 3,000 mm gives better deck support for broad machine tracks and body footprints.

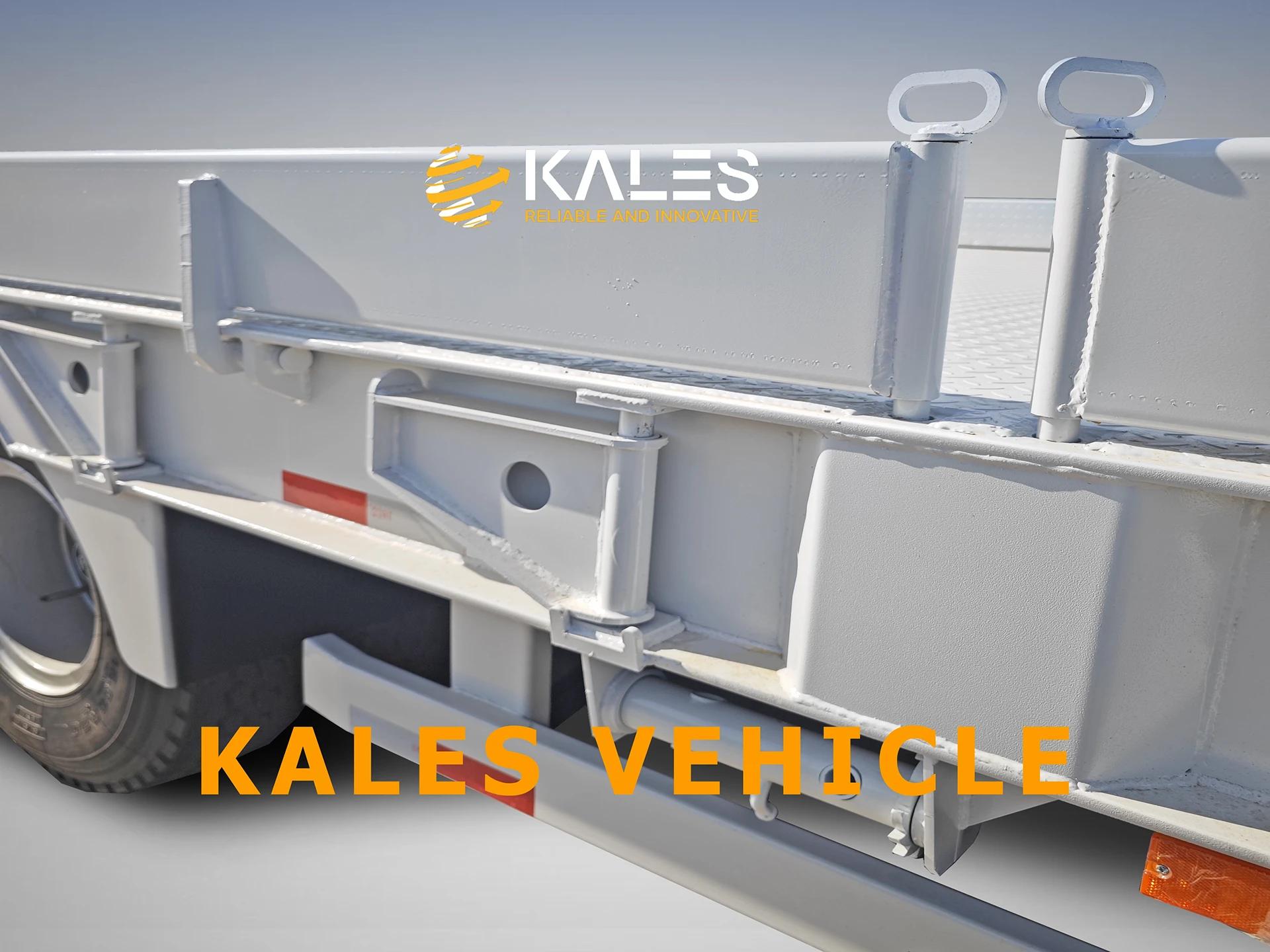

- Heavy side-beam design: H-beam side support improves rigidity and reduces deformation risk when extensions are carrying real load.
- Still serviceable as a 3 axle workhorse: buyers keep simpler mechanics and rear-loading logic instead of jumping too early to a specialized heavy-haul chassis.
- Solves the width problem directly: instead of overhanging tracks or base frames on a standard deck, the extensions support the full machine footprint.
Specification-backed advantages
- Main beam: HG60 high-strength steel main beam, approx. 500 mm beam height, designed for concentrated heavy equipment loads. This provides a concrete durability and load-control basis for the stated duty cycle.
- Payload class: 80 ton class heavy-duty lowbed for wide machinery and oversized-width project cargo, subject to route regulation and final tractor match. This defines the working band to validate against the cargo, route, and local legal limits.
- Brake system: WABCO valve logic with ABS-ready heavy-duty air-brake layout. This gives the buyer a specific braking or safety package to verify for the intended route.
How This Side-Extension Lowbed Compares with Other Kales 80 Ton Lowbeds
| Model | Choose it when | Do not use it when |
|---|---|---|
| 80 Ton Lowbed Trailer for Africa | Your priority is an affordable, standard-width 3 axle lowbed for practical regional mixed-road machinery transport | Your main problem is wider cargo footprint that needs more lateral deck support |
| Global 80 Ton Fixed-Deck Lowbed | You need a configurable export 80 ton fixed-deck platform for general machinery | Your machinery is wider than the standard deck and needs side-extension support |
| This 3 axle side-extension lowbed | You need an 80 ton fixed-deck lowbed whose key differentiator is width expansion from standard deck width toward 3,000 mm | You need front loading, telescopic length, or a more specialized project-haul chassis |
| 80 Ton Telescopic Detachable Gooseneck Trailer | You need front-loading access, detachable-gooseneck workflow, or more specialized oversized project handling | The real requirement is simply a wider rear-loading 3 axle fixed deck |
Engineering and Serviceability Details
Why the 1060 mm low deck matters
Deck height is one of the key technical points on this trailer. A platform around 1060 mm helps lower the center of gravity for wide machines and protects total loaded height for taller equipment. That matters when the machine is already broad and top-heavy, because width alone does not solve transport stability if the deck still sits too high.
Why side extension changes the buying logic
Most 80 ton lowbeds are chosen by payload. This trailer should be evaluated differently: the width-expansion mechanism is the center of the decision. When the standard 2,500 mm deck is not enough, side extensions create a better support surface for tracks, tyres, or base frames that would otherwise overhang too much. That is a different transport problem from simply asking for more tonnage.
Why the side-beam and support structure matter
Once the buyer moves into side-extension territory, the side structure becomes more important than on a standard-width platform. The H-beam side support and reinforced brackets are there to keep the extended deck usable under real load rather than only as a visual sales option. Buyers should review side extension width, support bracket design, and machine contact pattern before locking the build.

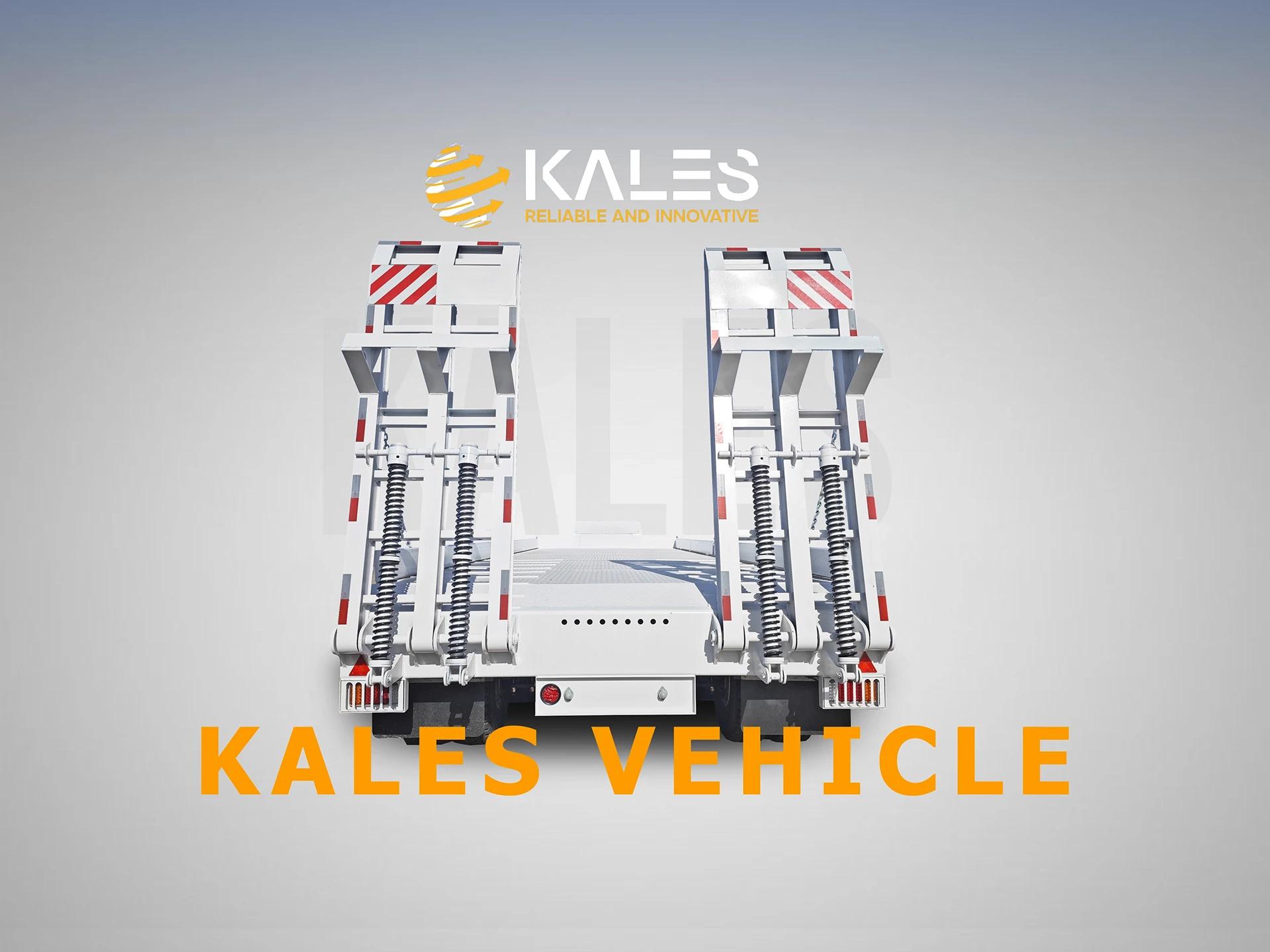

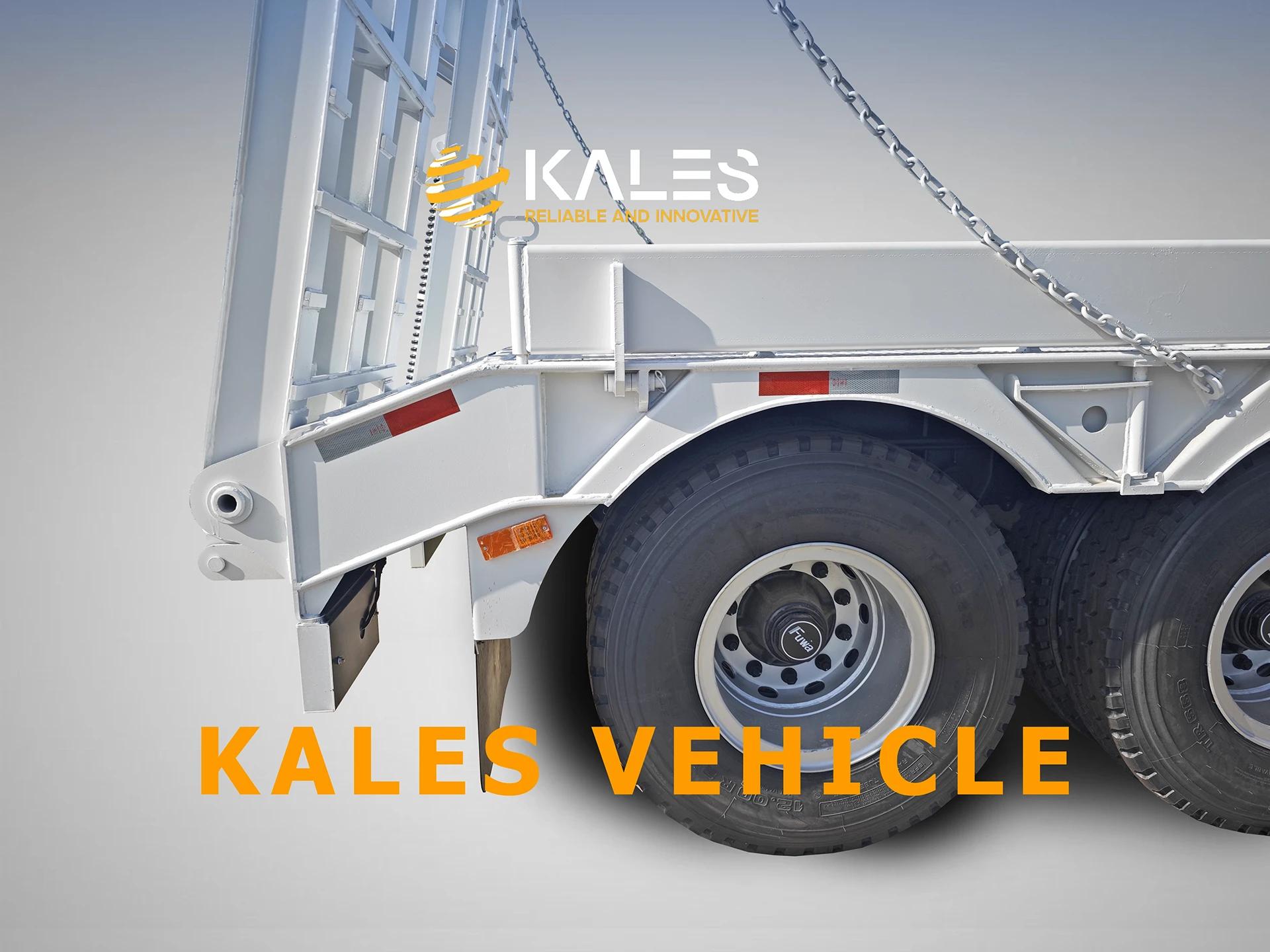

Why mechanical ramps still make sense here
This product remains a practical rear-loading lowbed. Reinforced mechanical ramps are still the right default when the operator wants simpler maintenance and lower acquisition cost. Hydraulic ramps become more attractive only when loading frequency is high, machines are more difficult to handle, or the fleet wants faster and safer loading cycles.
Quotation and Procurement Guidance
Buyers comparing this 80 ton 3-axle lowbed trailer with side extension should confirm the actual machine width, track spacing, total height, total weight, support-point pattern, route country, and loading frequency before requesting a final build. The point is to verify whether side-extension width solves the transport problem or whether the job is actually moving into detachable-gooseneck or telescopic project-haul territory.
Kales builds this trailer as a width-focused fixed-deck lowbed. Before approval, buyers should lock in extension width, beam package, ramp type, axle brand, tyre strategy, and tractor saddle height.
Factory Images and Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- Warranty scope and duration for the product and order are confirmed in the quotation or contract. Ask for the applicable terms before ordering; technical guidance and parts support are coordinated separately.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
What problem does the side extension solve?+
It solves deck-width limitation on a standard fixed-deck lowbed. When the machine footprint is broader than a normal 2,500 mm deck supports comfortably, the side-extension structure gives more usable width and better lateral support.
How is this trailer different from the Africa 80 ton lowbed?+
The Africa 80 ton lowbed is a value-focused standard-width 3 axle trailer. This side-extension lowbed is for machinery whose width needs extra lateral deck support.
Should I choose this side-extension lowbed or the global 80 ton fixed-deck lowbed?+
Choose this trailer when width expansion is the real decision driver. Choose the global 80 ton fixed-deck lowbed when you need a general export machinery platform and cargo width is not the main issue.
When should I move to a detachable-gooseneck trailer instead?+
Move to a detachable-gooseneck trailer when front loading, crawler access, or more specialized oversized project workflows matter more than simply gaining deck width on a fixed rear-loading platform.
What should I confirm before asking for a quote?+
Confirm machine model, operating weight, overall width, contact-point spacing, deck-height limit, route country, tractor saddle height, and whether you need mechanical or hydraulic ramps. Those inputs determine whether this side-extension lowbed is the correct fit.
Request Drawing and Quote
If you need an 80 ton 3-axle lowbed trailer with side extension for wide excavators, rollers, loaders, or oversized machinery, send the machine model, overall width, weight, operating country, and preferred ramp style. Kales can then confirm whether this width-focused fixed-deck lowbed is the right configuration or whether the job needs a broader export platform or a detachable-gooseneck trailer.
