Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Built to Last. Priced to Win
Are you searching for a reliable China Flatbed Trailer Manufacturer that understands the rugged demands of Middle Eastern and African logistics?
The Kales 45ft Container Flatbed Semi-Trailer is engineered for high-capacity performance. Designed as a versatile platform trailer with a 40-ton payload and advanced air suspension, it is the top choice for fleets in Saudi Arabia, Nigeria, Iraq, and Kenya.
1. Multi-Purpose Platform: More Than Just a Container Chassis
Reduce your operating costs by using a single trailer for multiple cargo types. Unlike a standard skeleton trailer, this flatbed serves as a versatile container chassis that can also carry bulk goods.
- Smart Load Securing: The side beams feature integrated high-strength rope tighteners and hooks. Their scientifically calculated layout ensures you can easily secure pallets, bagged cement, or construction materials.
- Versatile Add-ons: Optional removable stake pockets allow you to transport lumber, steel pipes, or solar panel structures securely.
- Flexible Logistics: A true “one-trailer-fits-all” solution that switches effortlessly between port logistics (containers) and construction site delivery (bulk cargo).

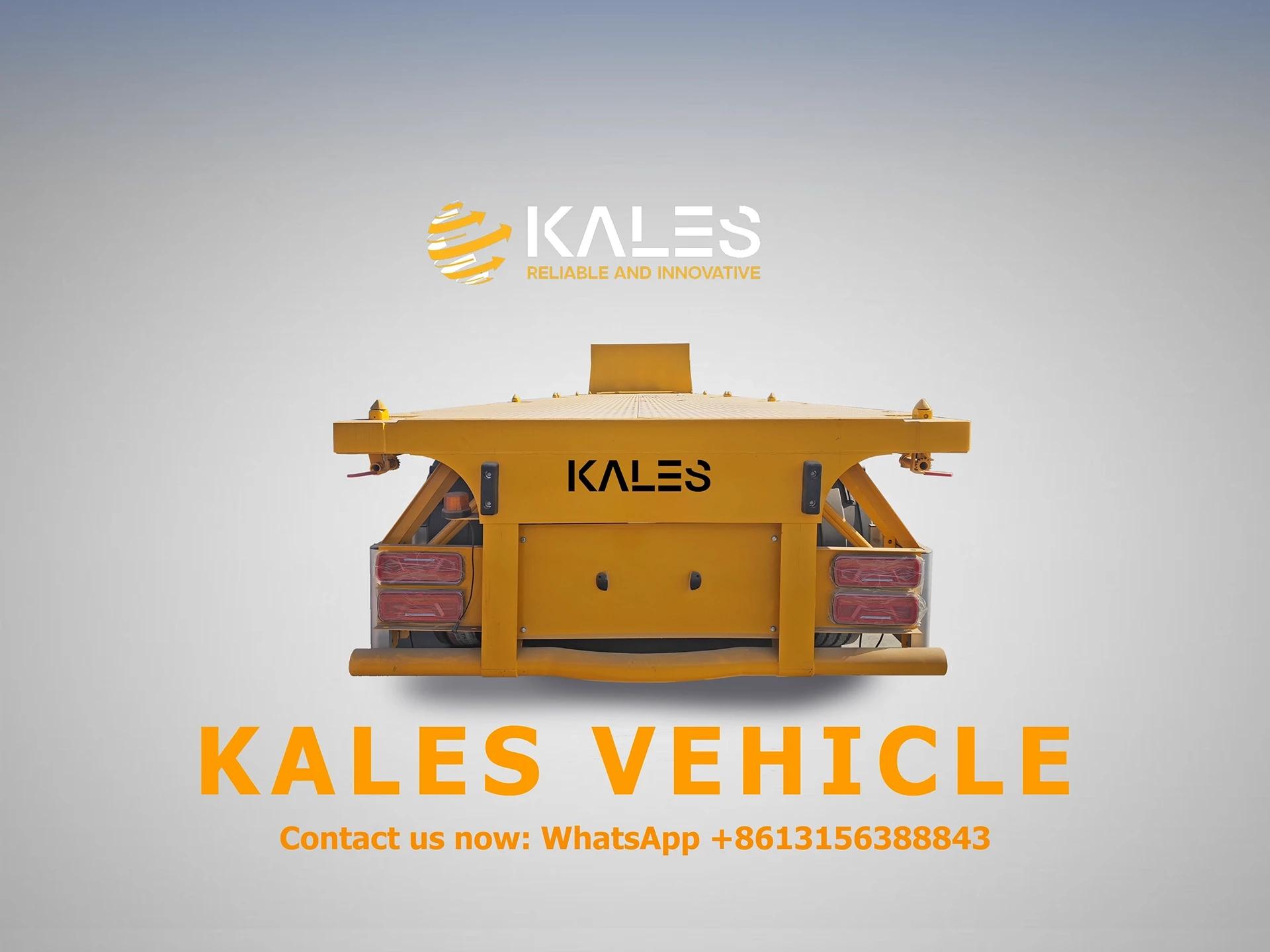

Rear View: Reinforced Bumper & LED Lights

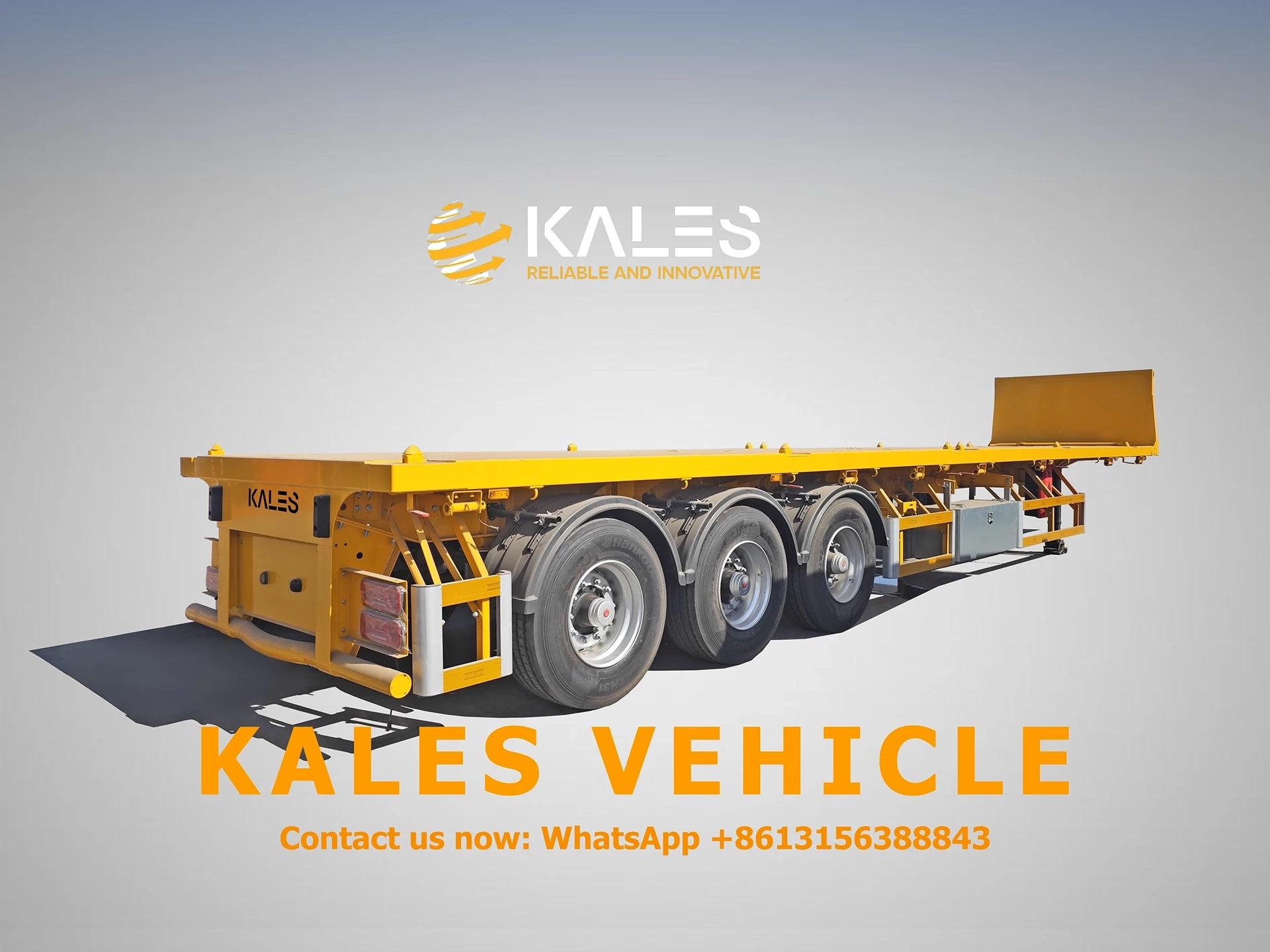

2. Engineered for Durability: T700 High-Strength Chassis

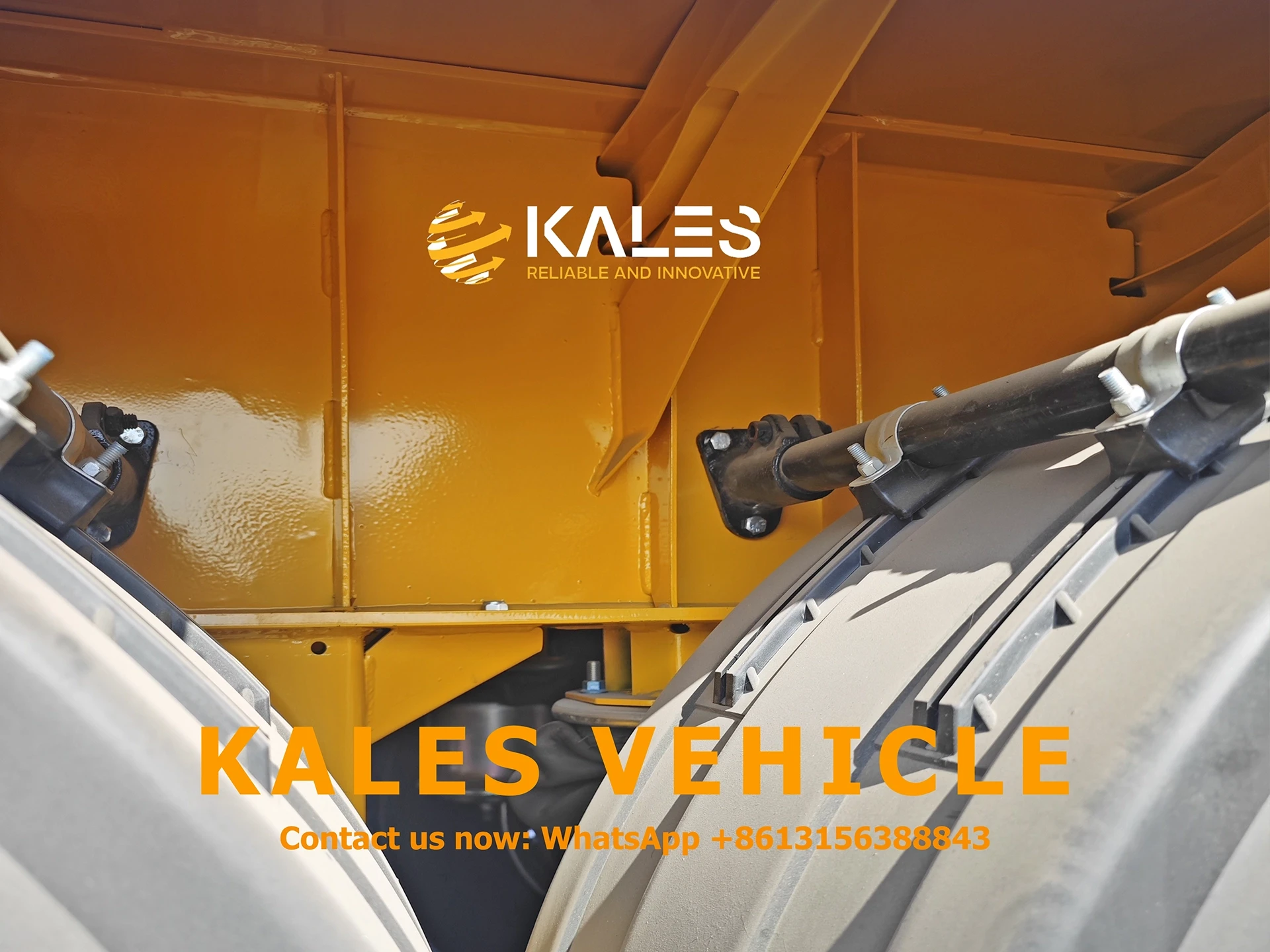

Visual: Double-Plate & Triangular ReinforcementsThe backbone of any flatbed trailer is its main beam. At Kales, we don’t cut corners on steel.
- T700 High-Tensile Steel: Unlike standard Q345 steel, we use T700 for the main beam. It is lighter yet offers 2x the yield strength, allowing for higher payloads (40-60 tons) without beam deformation.
- Automated Welding: Our robotic submerged-arc welding ensures deep penetration seams with zero porosity, delivering a crack-resistant chassis.
- Reinforced Flooring: We use a 3mm Anti-Slip Checkered Steel Plate reinforced by high-density cross beams (spaced every 40-50cm) to prevent floor collapse under concentrated loads.
3. Global Certified Components & Air Suspension
We partner with world-class suppliers to ensure every Kales trailer meets global safety standards (SASO, GCC, ISO). Safety is not optional.

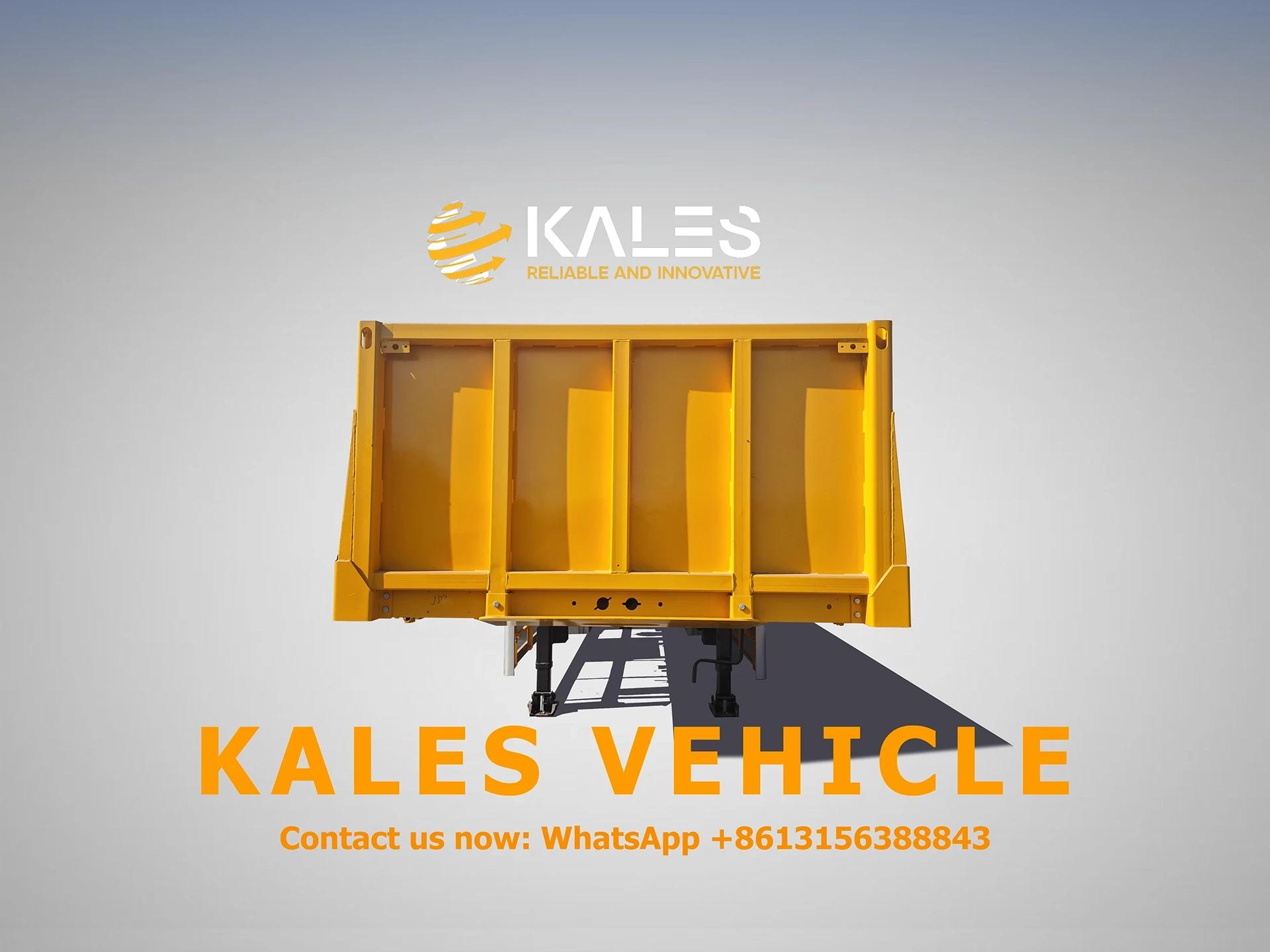

Braking System WABCO Dual-Circuit Air Brakes + EBS. Equipped with an emergency relay valve for faster response times and safer stops on wet or steep roads. Suspension Smart Air Suspension with Front Axle Lift. Allows you to lift the front axle when empty, reducing tire wear by 30% and lowering fuel consumption. Landing Gear Standard SAF Holland 28T (JOST optional). Provides stable support and effortless operation, even under heavy load. Tires Premium Chinese Brand Tires. Available in Super Single (385/65) for SASO compliance or Dual Tires (315/80) for heavy loads. Electrical 24V modular wiring harness with a 7-pin ISO socket. Fully compliant with GB 1185 and international lighting standards. 4. Manufacturing Excellence & Customization
Why Our Trailers Don’t Rust
Operating in coastal areas like Dammam, Lagos, or Dar es Salaam means fighting rust. Kales uses a premium coating process to protect your investment.
- Step 1: Shot Blasting: Before painting, the entire chassis undergoes shot blasting to remove mill scale and impurities, creating a perfect surface for paint adhesion.
- Step 2: Polyurethane Topcoat: We use a two-component high-performance paint that resists fading, chipping, and salt corrosion.
100% Customizable to Your Operation
At Kales, we believe “The best trailer is the one built for you.” We offer full customization:
- Visual Identity: Custom painting to match your corporate VI (Visual Identity) colors.
- Dimensions: Length adjustable for 20ft, 40ft, or 45ft containers (Standard 45ft: 13,950 × 2,500 × 1,530 mm).

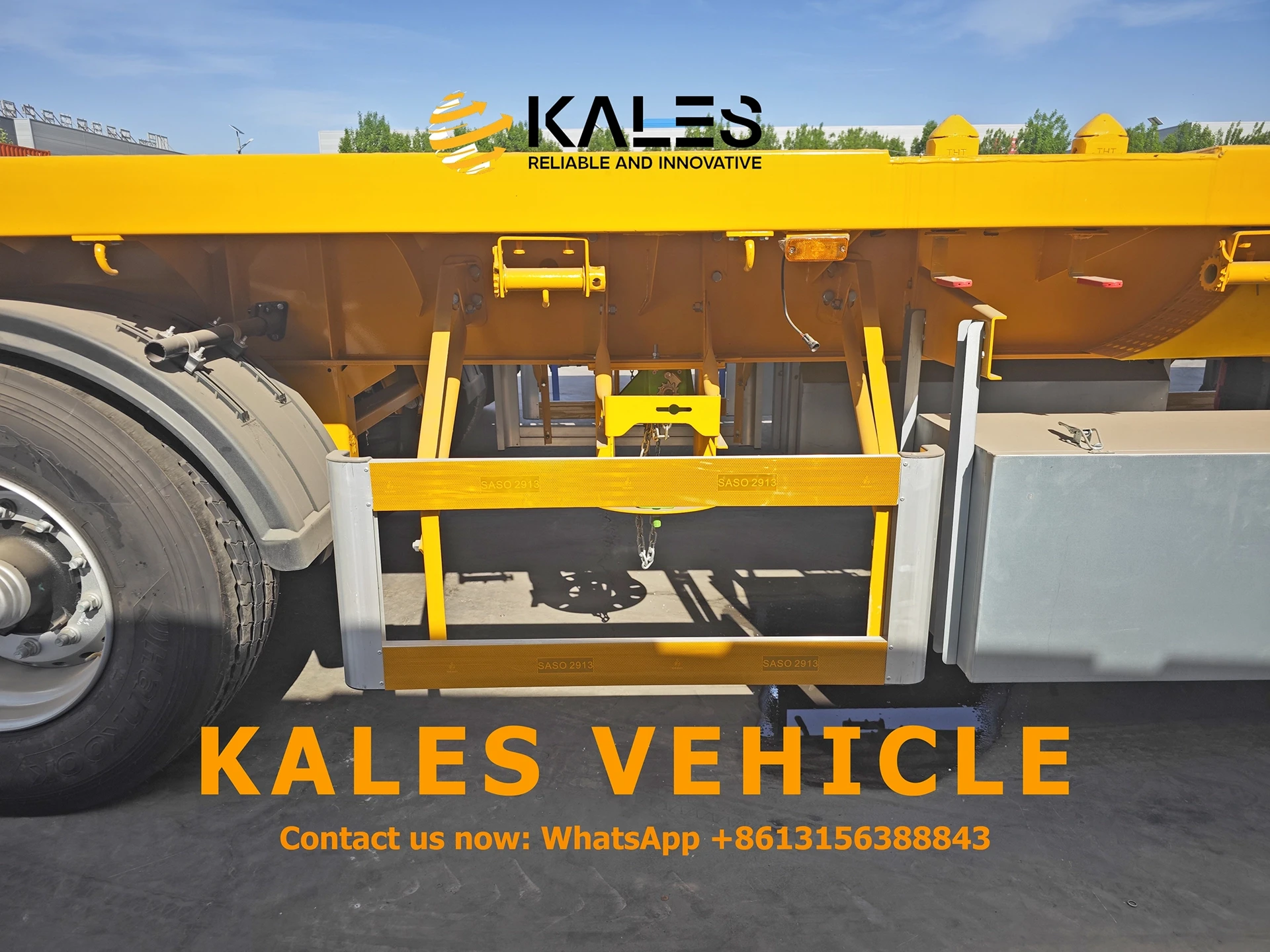

- Functionality: Add LED light bars, GPS tracker mounts, extra lashing points, or reinforced toolboxes (1m standard).
- Heavy-Duty Upgrades: Option to upgrade to a 2-inch high-strength bolt-type kingpin or reinforce the side beams for mining.
5. Cost-Effective Shipping Solutions
We understand that sea freight is a major cost. Kales Vehicle has optimized the packing method to save you money.
📦 The “Stacking” Method: We can stack three (3) flatbed trailers together into a single bundle. This reduces the total volume and significantly lowers the freight cost per unit when shipping via Bulk Cargo Ship or Ro-Ro.
6. Why Do Global Fleets Trust Kales Vehicle?
If you are looking for a premium logistics trailer for sale, Kales provides end-to-end support for your business.
- ✅ Global Reach: We export over 150 units annually to Saudi Arabia, UAE, Nigeria, Ghana, Iraq, and Central Asia.
- ✅ Proven Expertise: 13 years of manufacturing experience with 7 patented technologies in semi-trailer structure and craftsmanship.
- ✅ High Repeat Rate: Our 60% customer repeat rate is proof of our consistent quality and value.
- ✅ Full Lifecycle Support: From technical drawings and SASO/SABER certification assistance to global spare parts supply, Kales is your long-term partner.
Technical Specifications

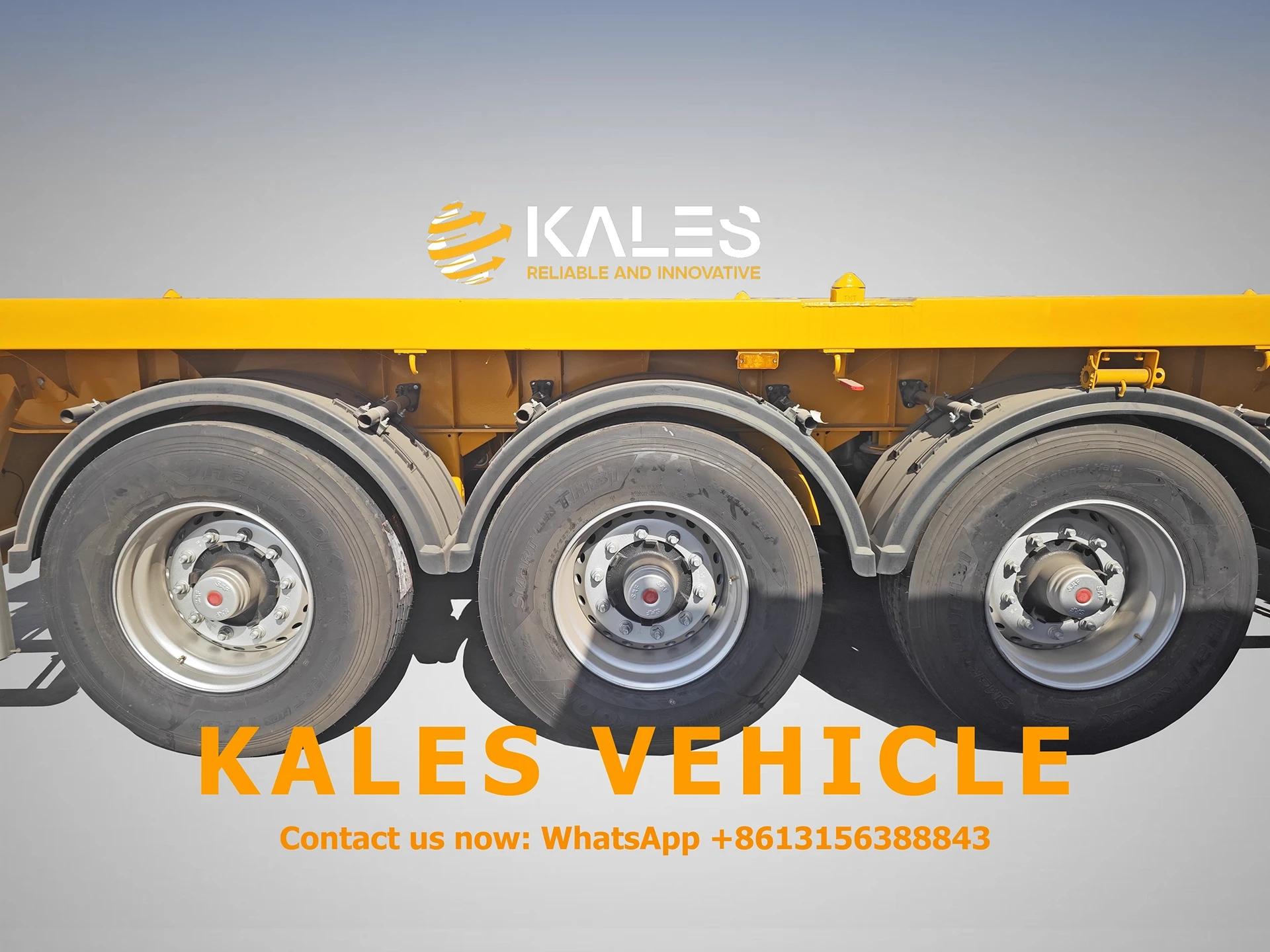

Feature Specification Details Model Kales KL9400TJZ (45ft Container Chassis) Overall Dimensions 13,950 × 2,500 × 1,530 mm (Optimized for 45ft Containers) Loading Deck Dimensions 13,850 × 2,500 × 1,490 mm (Customizable) Payload Capacity 40 Tons (Standard) / Up to 60 Tons (Heavy Duty Option) Main Beam Material T700 High-Strength Steel (Automated Submerged-Arc Welded) Suspension Smart Air Suspension (Ideal for SASO) OR Heavy-Duty Mechanical Suspension Landing Gear SAF Holland 28T / JOST (Optional) Tires (Option A) 6+1 pcs 385/65 R22.5 (Super Single – SASO Standard) Tires (Option B) 12+2 pcs 315/80 R22.5 (Dual Tires – Heavy Duty) Braking System WABCO EBS + Emergency Relay Valve Twist Locks 12 sets (ISO Standard) for 1x45ft, 1x40ft, or 2x20ft Side Beams 16# Channel Steel with Integrated Rope Hooks & Tensioners Accessories 1x Toolbox (1m), 2x Spare Tire Carriers, Fire Extinguisher Holder FAQ: Buying Guide for Kales Flatbed Trailers
1. Which suspension is better: Air or Mechanical?

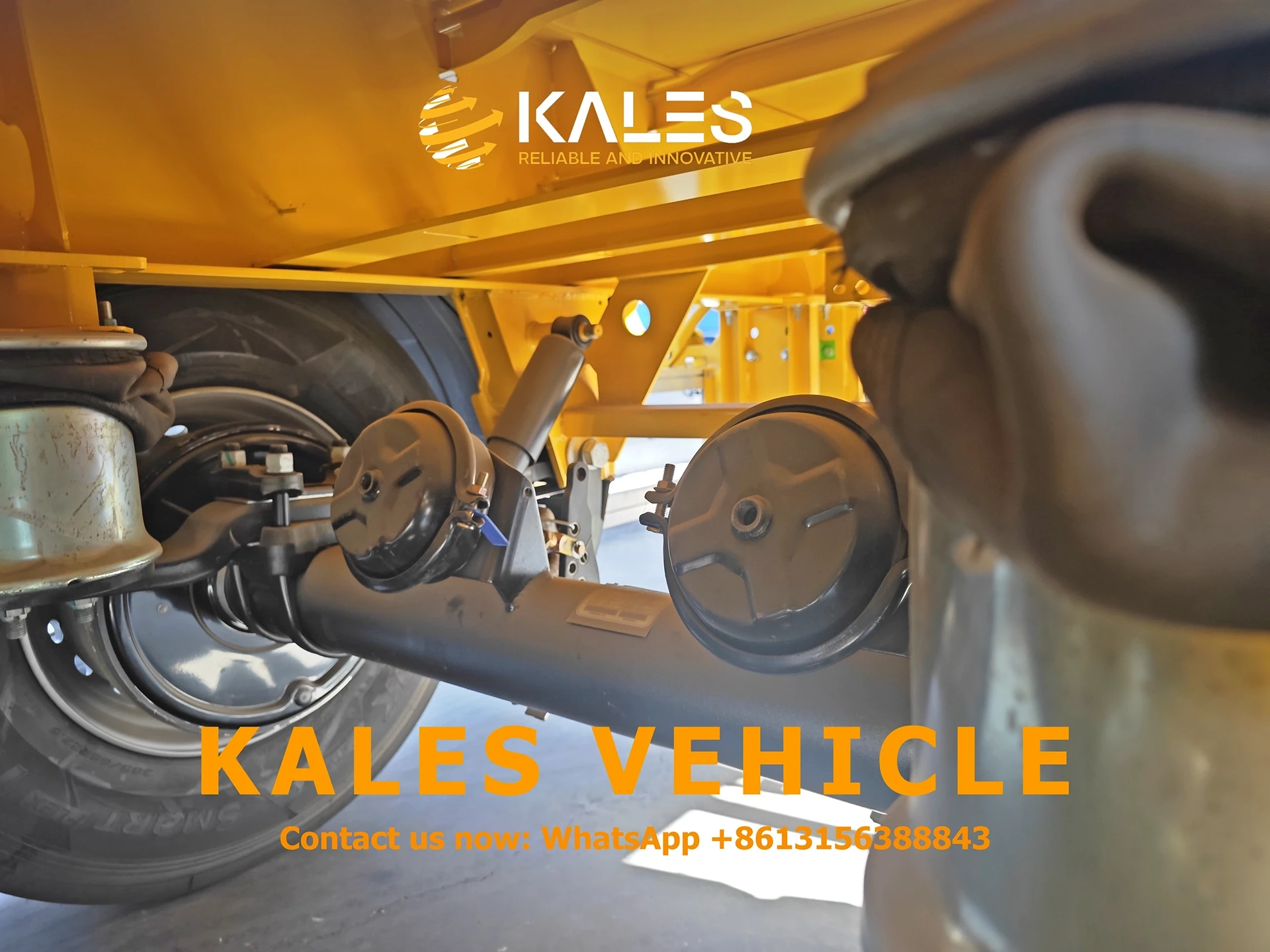

It depends on your road conditions. Air Suspension offers the best shock absorption and protects cargo, making it ideal for highways and fragile goods. However, for extremely rough off-road terrain in some African regions, we recommend the Mechanical Leaf Spring Suspension for its lower cost, higher durability, and easier maintenance.
2. Can I choose the axle brand?
Yes. Our standard configuration uses top-tier FUWA axles (China’s #1 brand), known for reliability. We can also install BPW axles (German brand) upon request, or the cost-effective Kales factory axle to suit your budget.
3. Are spare parts easy to find in my country?
Absolutely. We design our trailers using standardized global components. Parts like WABCO brake valves, ISO twist locks, and standard wheel rims are widely available in local markets across Africa and the Middle East. We also provide a free spare parts kit with every order.
4. What container sizes can this 45ft flatbed carry?
This model is equipped with 12 sets of ISO twist locks. It supports multiple configurations: 1x45ft, 1x40ft, or 2x20ft containers. The deck layout ensures legal weight distribution for all standard container types.
5. Can I load a single heavy 20ft container in the middle?
Yes. Unlike light-duty trailers, the Kales flatbed features extra cross-beam reinforcements in the central section. This allows for safe central loading of a single 20ft heavy container (up to 30 tons) without damaging the chassis beam.
6. How do you handle SASO certification for Saudi Arabia?
We have a dedicated export team. We assist with the Certificate of Conformity (CoC) and work with agencies like Intertek to complete SABER registration, ensuring hassle-free customs clearance.
📩 Ready to Optimize Your Fleet?
Looking for a cost-effective flatbed trailer without checking through a middleman? Kales provides competitive prices directly from our China factory.
Click the button above to chat with our export engineering team (24/7 support)
Shipping available to Jeddah, Dammam, Lagos, Mombasa, and Dar es Salaam.
