Kales 120m³ 4-Axle 17.5m Curtain-Side Semi-Trailer
Key SpecificationsFactory Direct Spec
Trailer Type
dryvan
Axles
4 axles
Payload
40
Road Matching
air suspension
Quick answer: Choose this Kales 120m³ 4-axle 17.5m curtain-side semi-trailer for long-distance Central Asian and Eurasian cross-border corridors where high-cube volume (up to 38 Euro-pallets) and rapid multi-sided loading dictate profitability. Features a center-mounted bogie layout, front two lift axles for empty return trips, Q355 high-tensile steel frame with 40T rated payload, WABCO EBS/ABS with Roll Stability Support, 900-Series cold-resistant curtains, and full TIR customs sealing compliance. Contact KALES for a tailored quotation based on your tractor fifth-wheel height and route requirements.
Get Free Engineering Advice & Quote
✓ Direct technical consultation from factory engineers · Zero trader markup
🏭
Factory Direct Export
Zero trader markup
🛡️
Heavy-Duty Certified
ISO9001 / CCC / CIQ
🚢
Global Sea Freight
Container / Ro-Ro / Bulk
⚙️
Custom Engineering
Tailored configurations

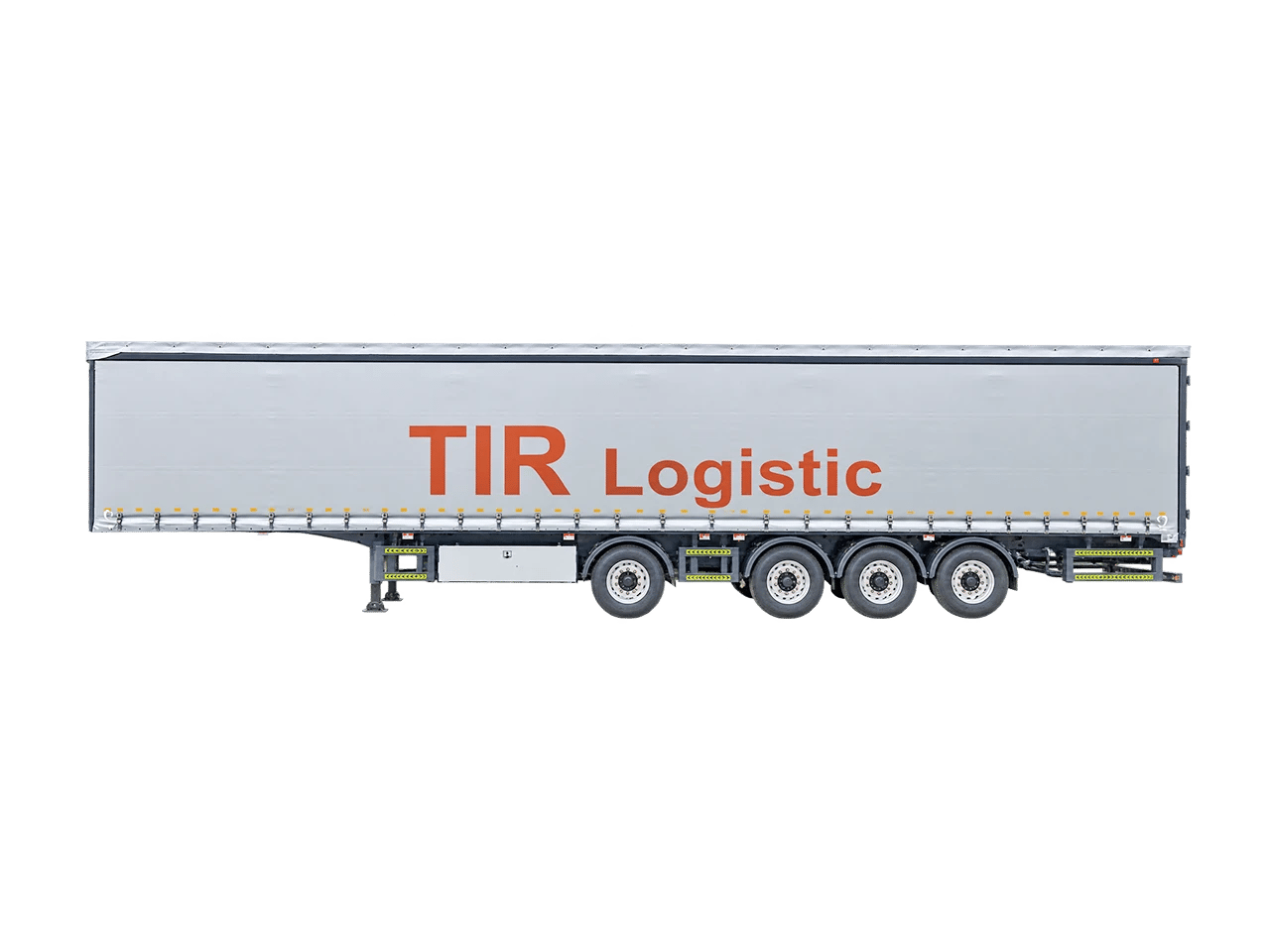

Kales 120m³ 4-Axle 17.5m Curtain-Side Semi-Trailer for Central Asian & Eurasian Cross-Border Transport
120m³ High-Cube Volume | 40-Ton Distributed Payload (Q355 Steel) | Center-Mounted Axles with Front 2 Lift Axles | WABCO EBS / ABS with RSS | TIR-Ready Cargo Body
The Kales 120m³ 4-axle 17.5m curtain-side semi-trailer is engineered primarily for Central Asian fleet operators (Kazakhstan, Uzbekistan, Kyrgyzstan) running intensive cross-border trunk lines from Chinese border ports (Khorgos, Alashankou, Irkeshtam) into Central Asia, Russia, Belarus, and onward European transit corridors. Built on a specialized center-mounted 4-axle air-suspension chassis in Q355 high-strength structural steel, it delivers 120 m³ of cube-maximized, TIR-sealable volume—providing the ultimate road transport platform for appliances, consumer retail, flat-pack furniture, and cross-border e-commerce freight across varied climate zones from +45°C summer heat to -40°C winter cold.
Technical Specifications
| Product type | 120m³ 4-axle 17.5m curtain-side semi-trailer for cross-border transport |
|---|---|
| Model reference | Kales-CS-175M-120CBM-4AXLE |
| Overall dimensions | 17,500 × 2,550 × 4,000 mm |
| Effective cargo volume | Approx. 120 m³ (up to 38 Euro-pallets) |
| Rated payload capacity | 40 Tons (40,000 kg) — Optimized for high-cube, low/medium density freight |
| Main chassis beams | 400 mm Height, Plate Thickness 12/6/14 mm in Q355 High-Strength Steel |
| Side beams | 125# one-piece heavy-duty structural channel profiles |
| Axle system & layout | 4 × Kales 10T Extended Disc-Brake Axles (Center-Mounted Mid-Bogie Configuration) |
| Suspension system | Heavy-duty air suspension with trailer ride-height adjustment stroke |
| Lift axle function | Front two axles pneumatically liftable (Empty return runs only) |
| Braking system | WABCO EBS / ABS System (EBS with RSS recommended for EU/EAC markets) |

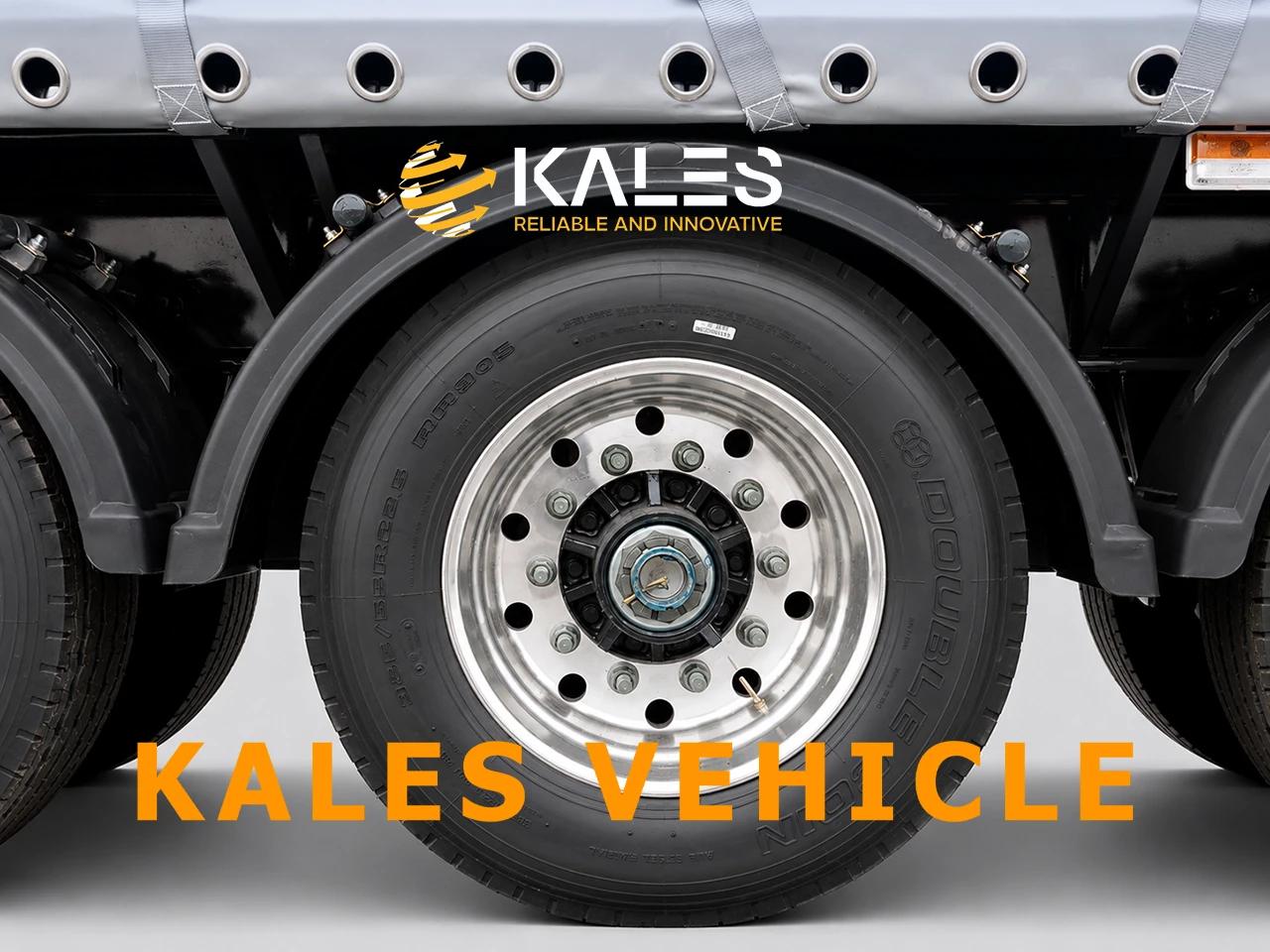

| Tires and rims | 8 × 385/55R22.5 Wide-Base Single Tires on 11.75-22.5 steel or aluminum rims |

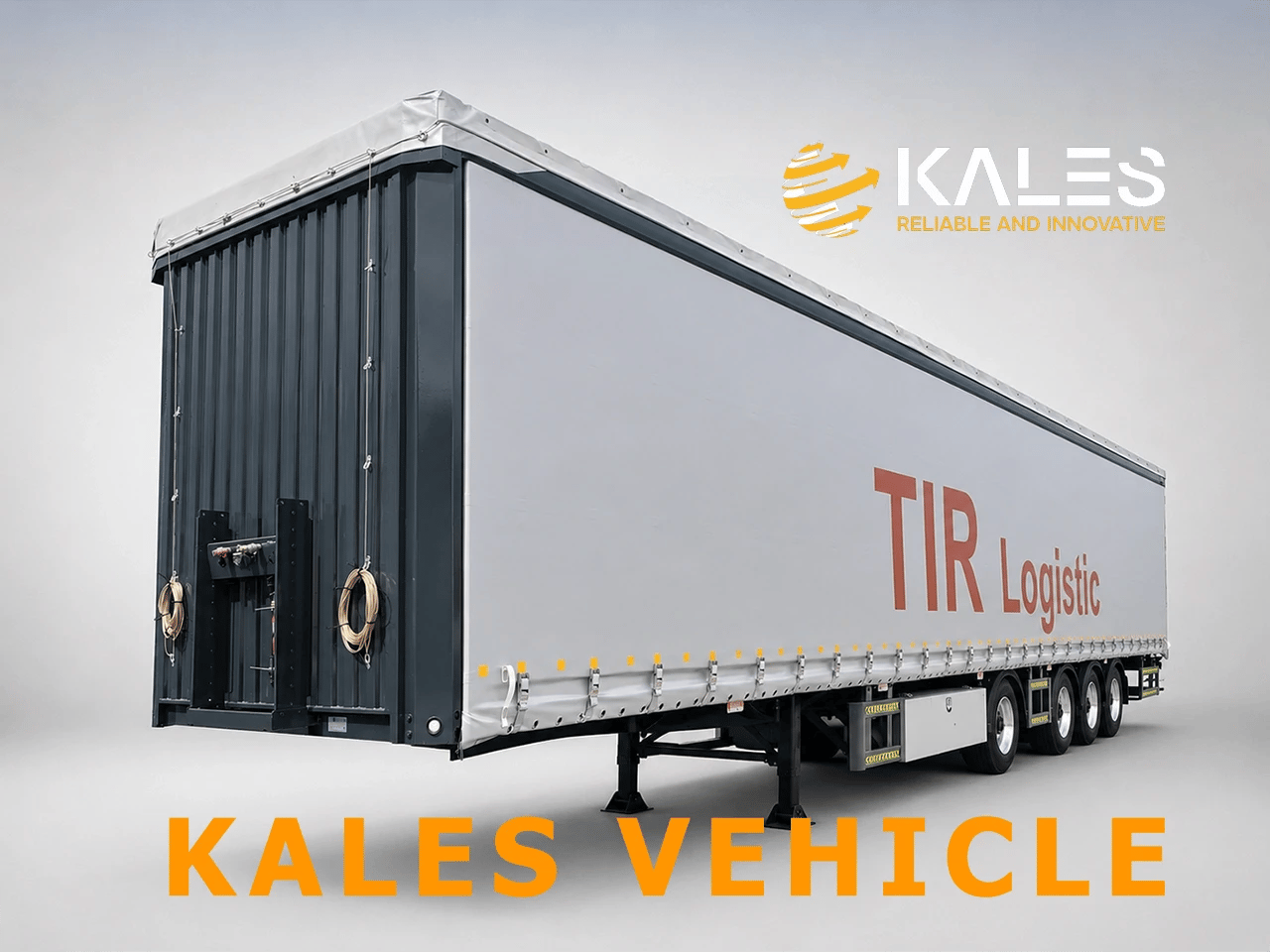

| Curtain material | 900-Series -40°C Cold-Resistant Flame-Retardant PVC Tarpaulin with TIR cable |

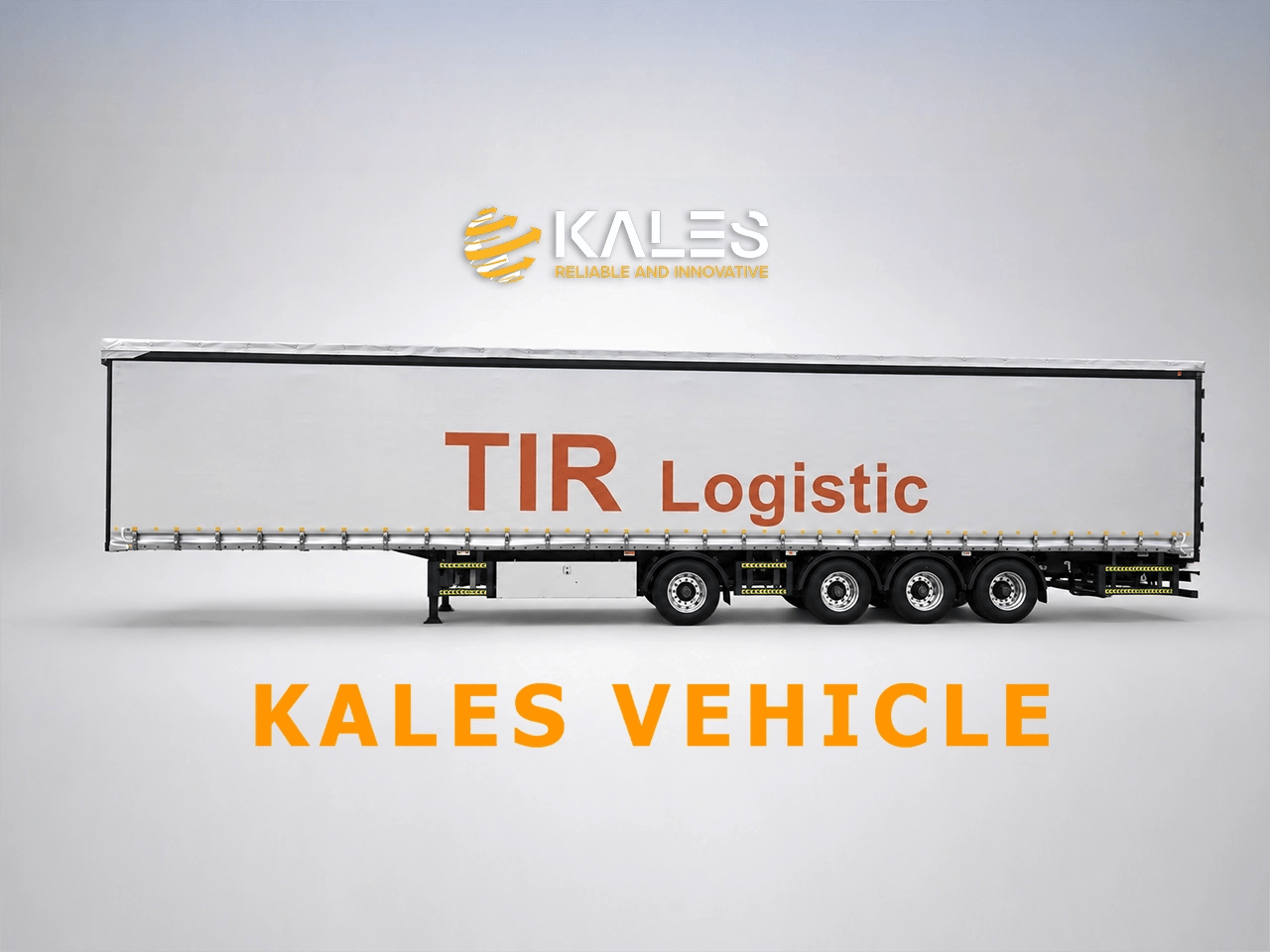

| Sliding posts & crossbars | 5 Sliding steel posts per side (10 total) + 24 Aluminum crossbars per side |
| Lower sideboards | 600 mm High integrated drop-side boards |

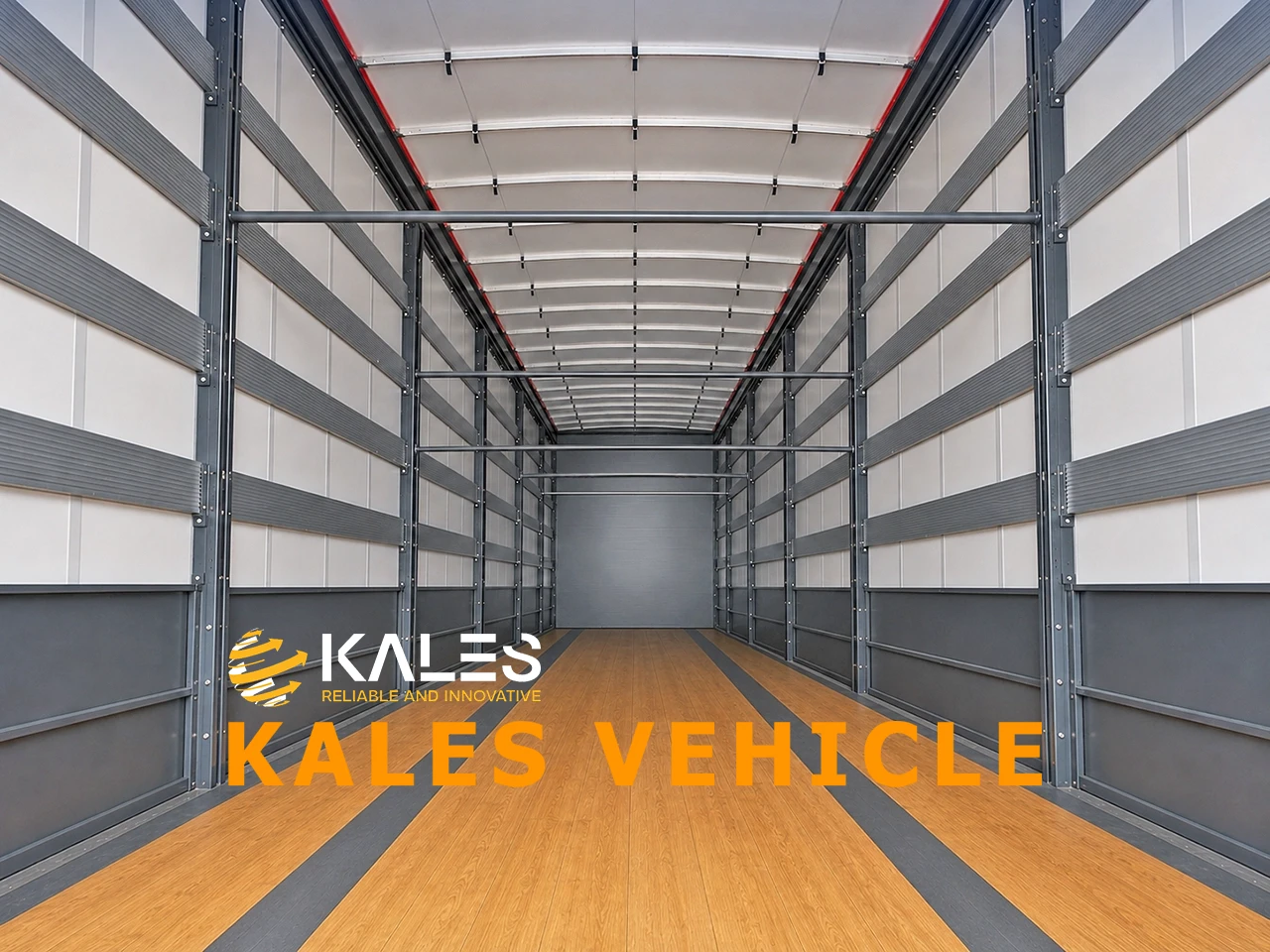

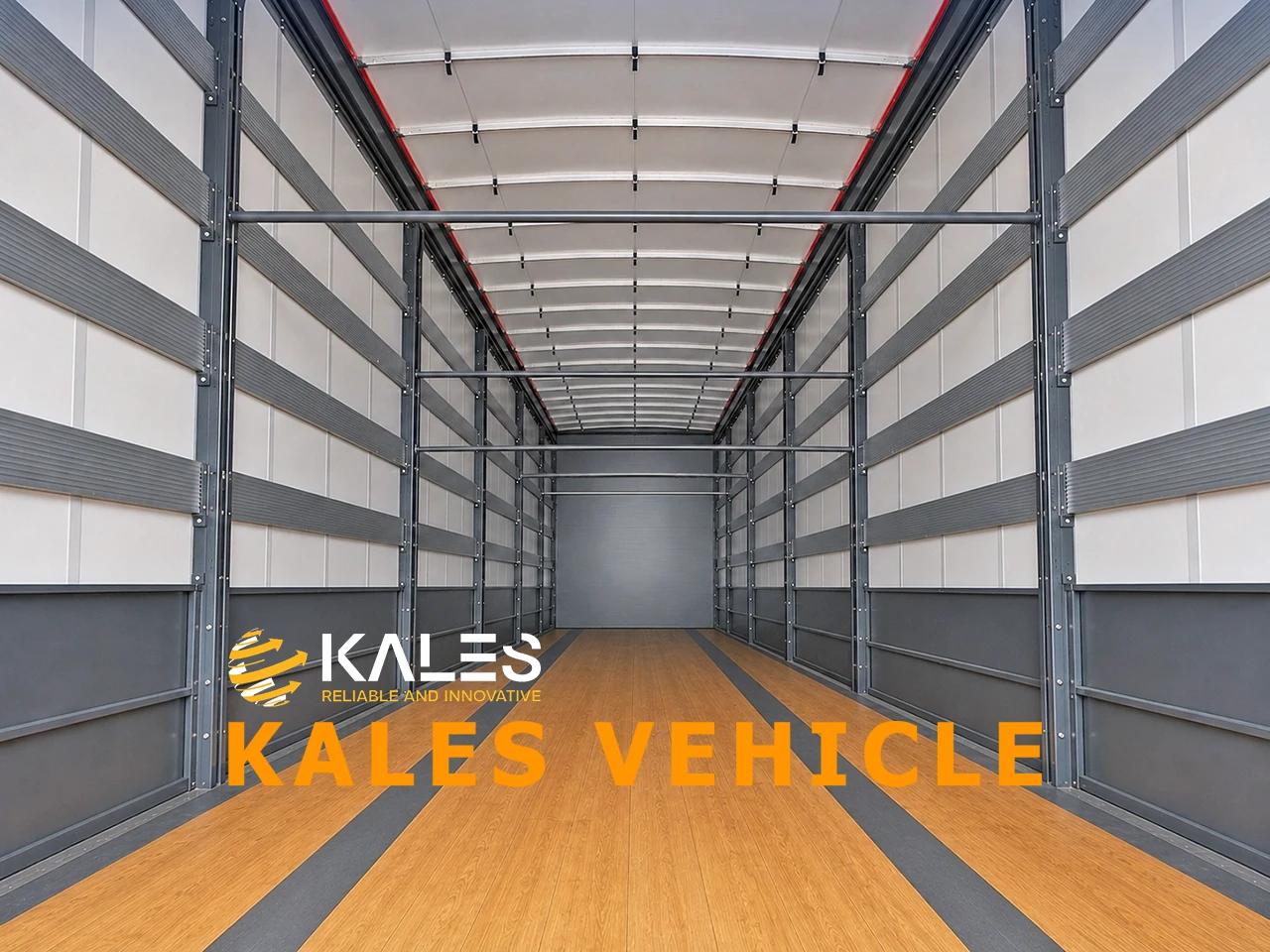

| Cargo deck floor | 28 mm Anti-slip treated heavy-duty industrial timber floor |
| Cargo tie-down points | 34 Recessed heavy-duty lashing rings (17 per side) |

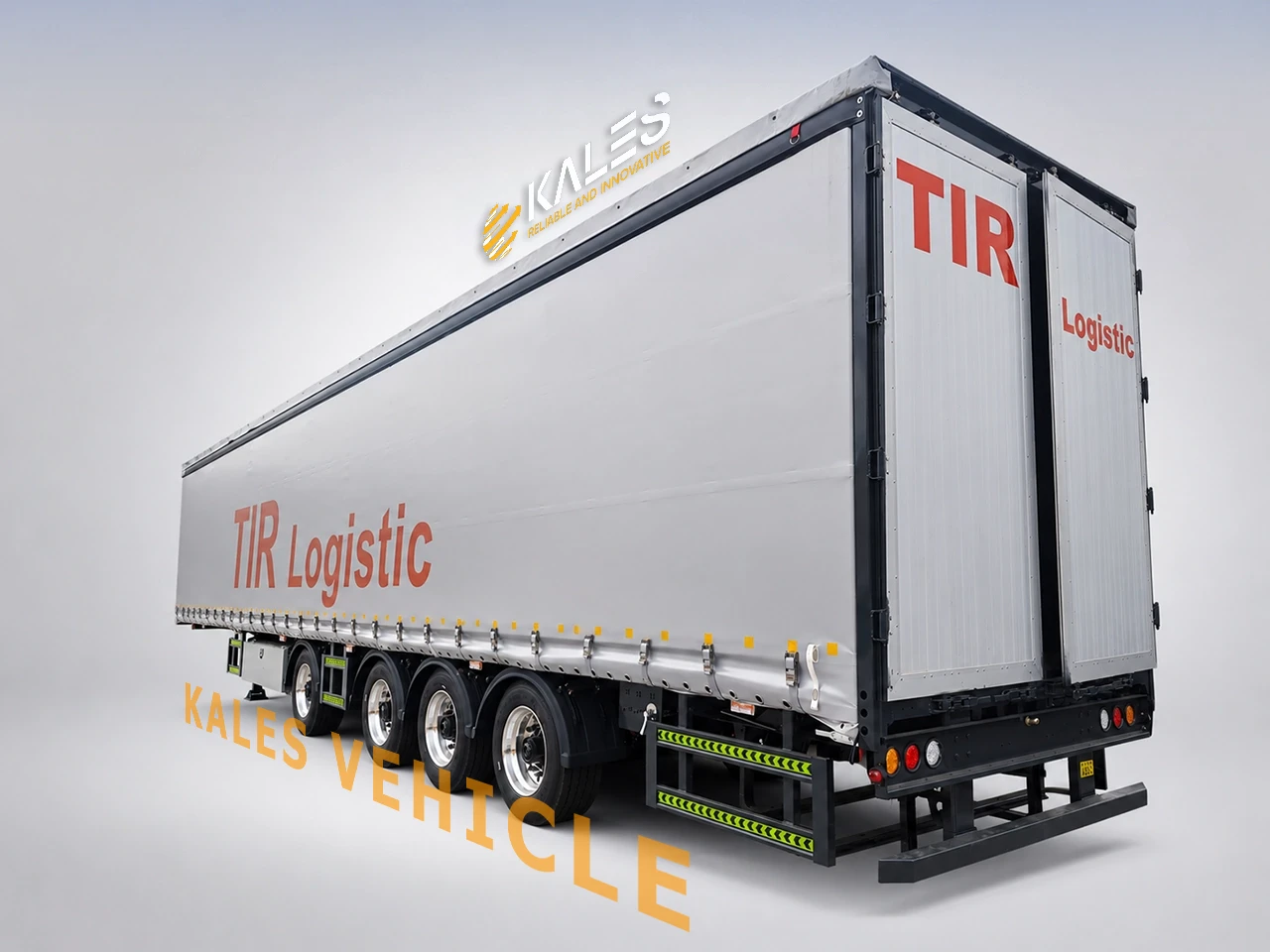

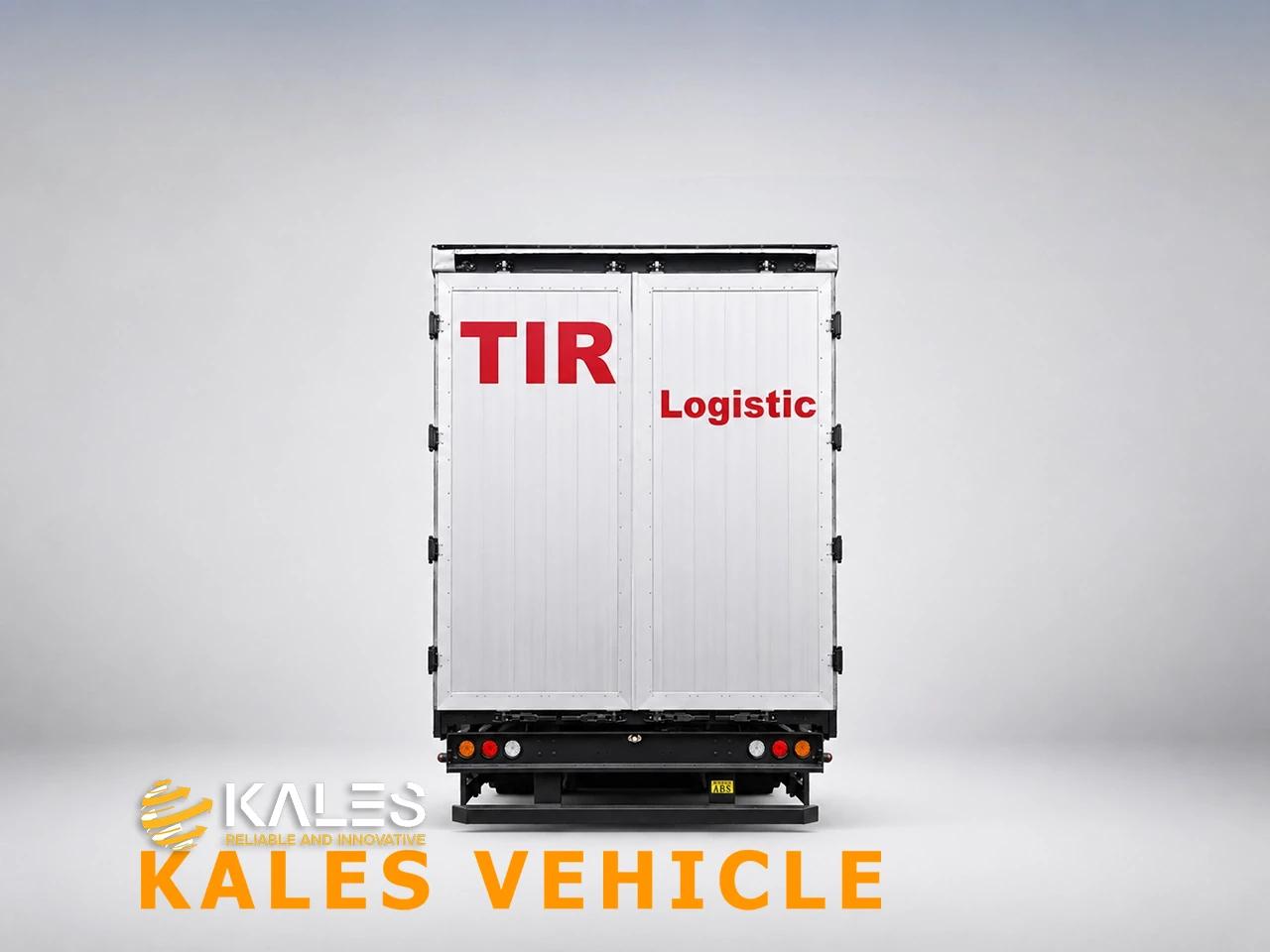

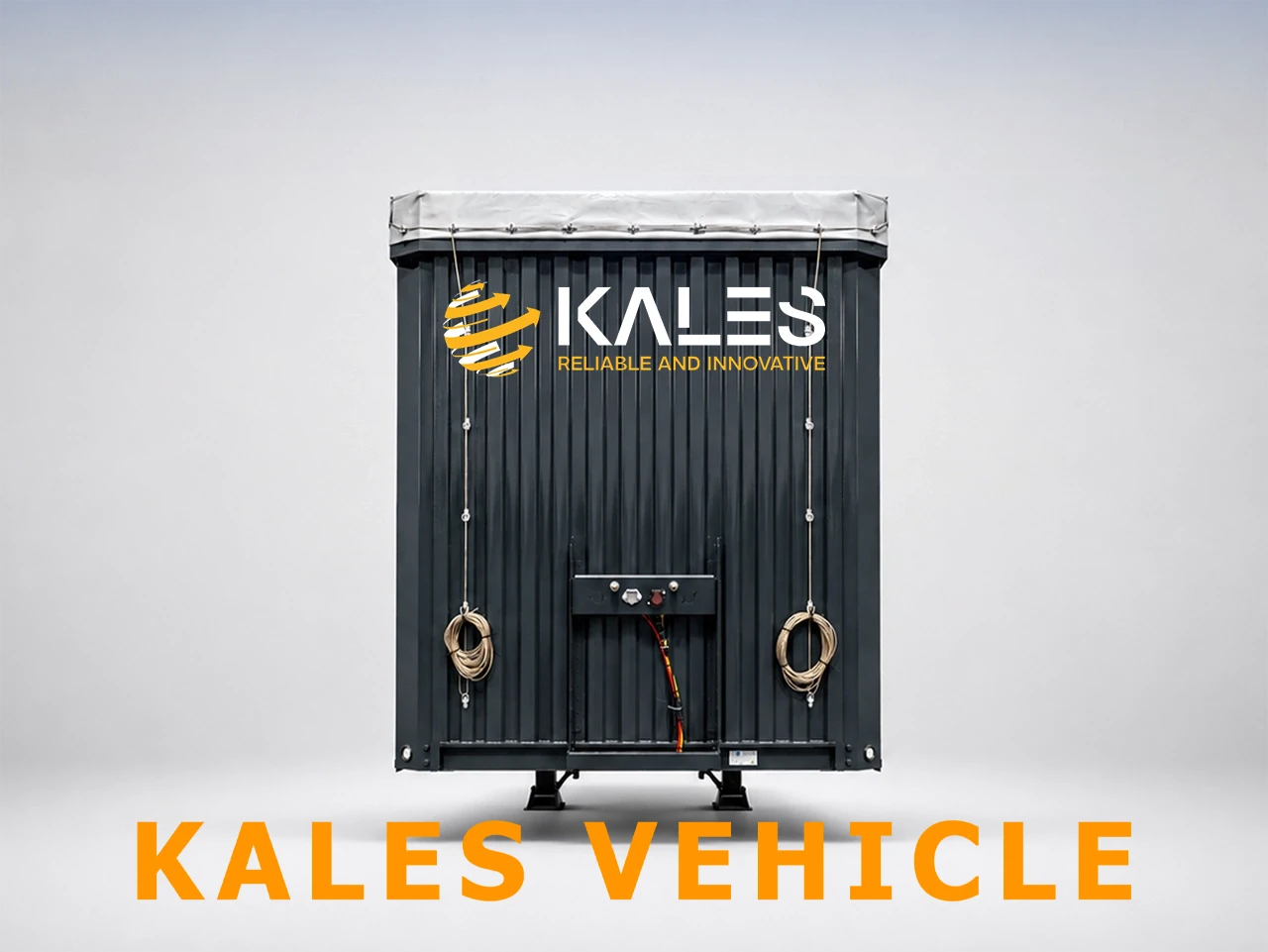

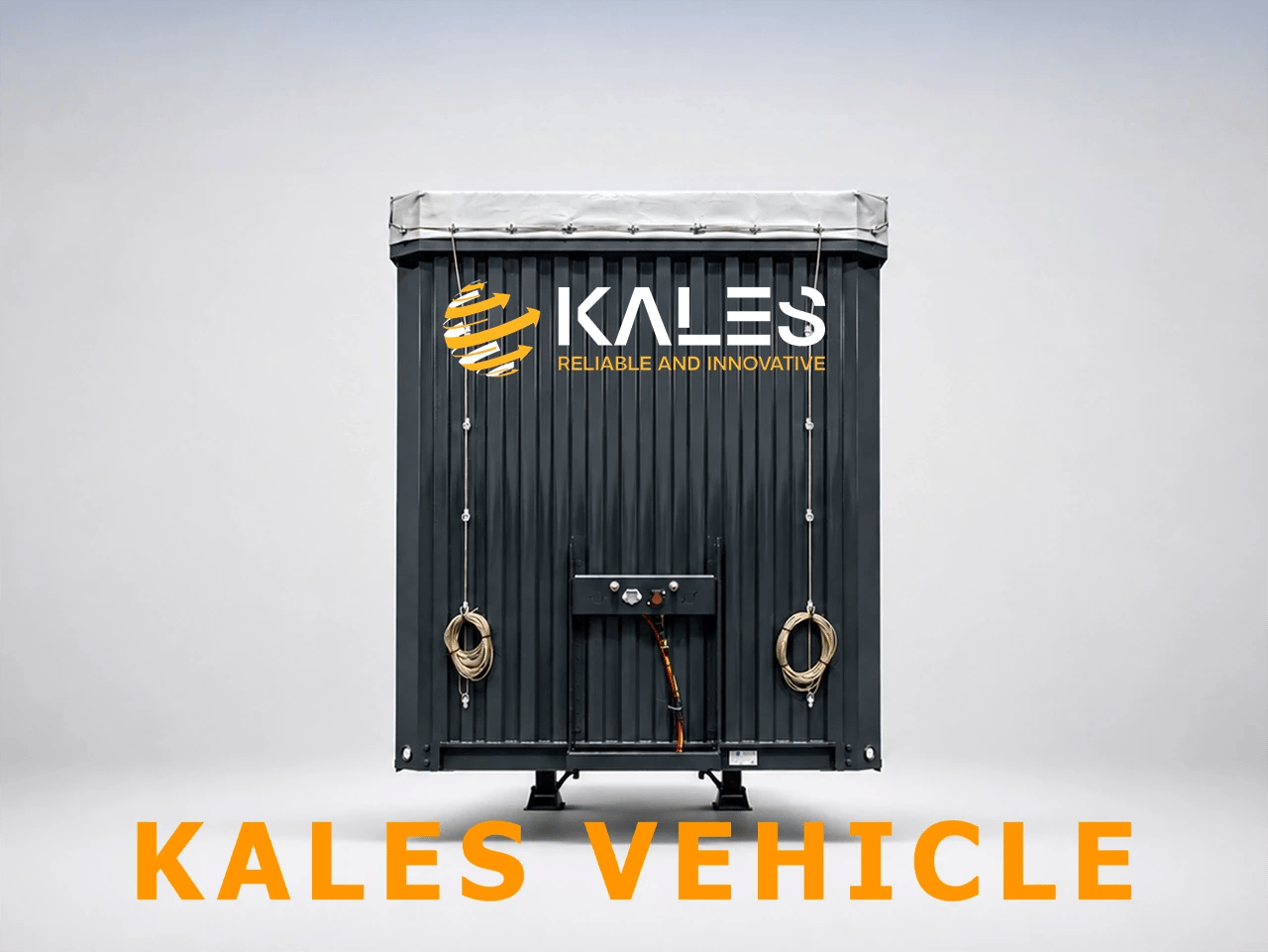

| Front wall & rear doors | Corrugated steel front bulkhead + Modular aluminum-alloy double rear doors |

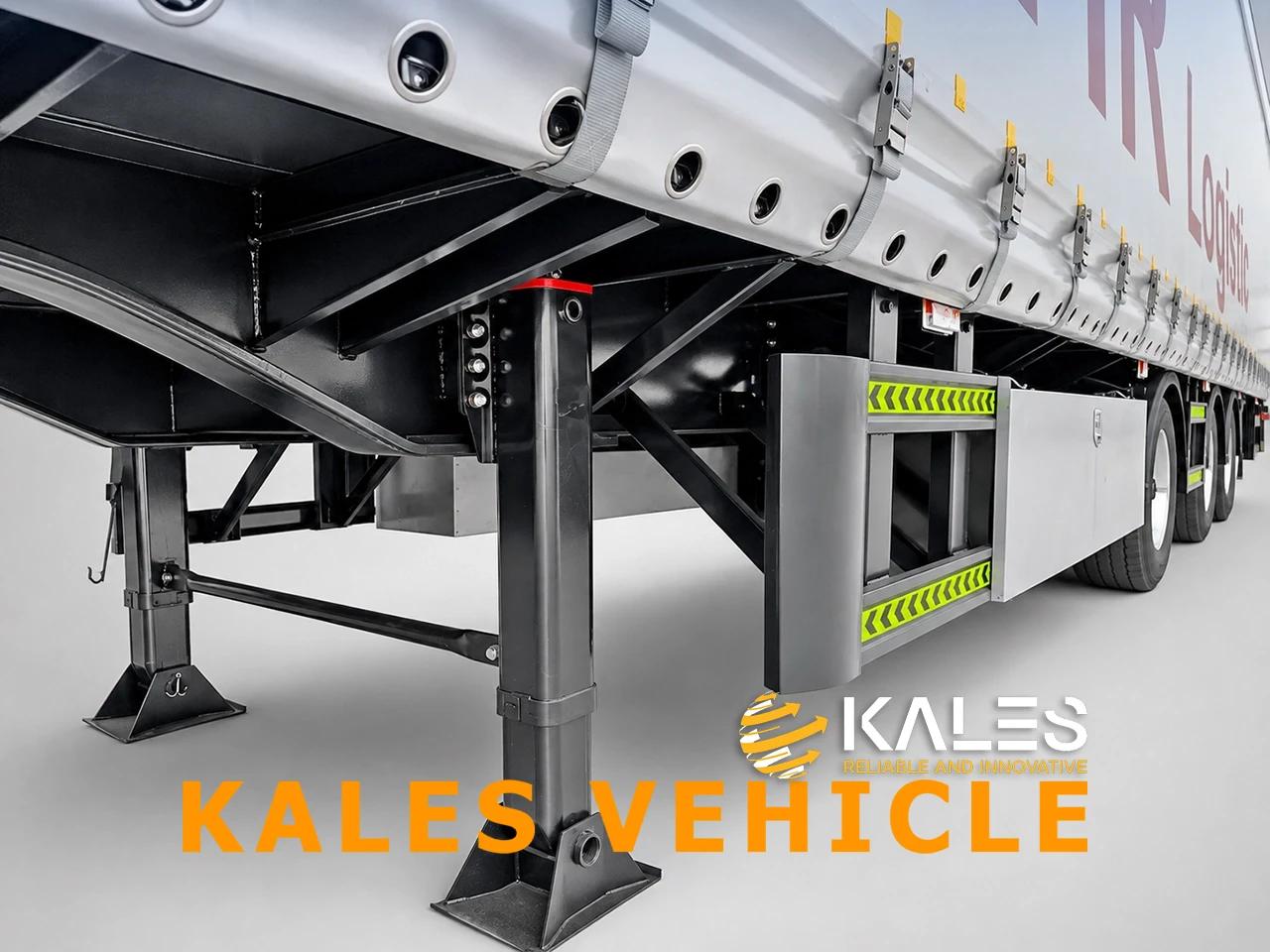

| Landing gear | Kales external 28T-class two-speed heavy-duty landing gear |
| Corrosion protection | Shot-blasting + 2-component polyurethane paint + Underbody marine wax |
Best Fit Operating Profile
This 120m³ 17.5m curtainsider is specifically engineered for transcontinental Eurasian logistics where fleets are paid by cubic volume or load density. It represents the highest freight cube efficiency for cross-border freight moving between China, Central Asian logistics hubs, and Russian/Belarusian distribution networks.
Best for
- Central Asian cross-border carriers operating from Khorgos, Alashankou, or Irkeshtam to Almaty, Tashkent, and Bishkek
- Trans-Eurasian bonded transit routes moving onward into Russia, Belarus, and Eastern European borders under TIR Carnet
- High-cube, volume-dominant freight such as consumer electronics, household appliances, flat-pack furniture, textiles, and e-commerce parcels
- Fleets that benefit from full-length dual-side forklift access to minimize border terminal loading bottleneck delays
- Long-distance routes with empty or light backhauls where lifting the front two axles saves tire wear and highway tolls
Not ideal for
- Heavy concentrated cargo such as raw steel coils, mining boulders, or structural building blocks (lowbed or flatbed recommended)
- Domestic city-center distribution restricted to standard 13.6m trailer lengths
- Off-road mining pits requiring heavy mechanical leaf spring suspension and all-steel dump bodies
Why Kales Outperforms on the China–Central Asia–Russia Transcontinental Corridors
Operating a 17.5-meter trailer across thousands of kilometers of Eurasian steppe, mountainous passes, and rigorous customs weighbridges demands specialized chassis balance, cold-weather resilience, and tire management.
| Engineering Feature | Standard Domestic Semi-Trailer ❌ | Kales Eurasian Cross-Border Standard ✅ | Direct Fleet Benefit |
|---|---|---|---|
| Axle Position & Geometry | Rearmost fixed 4-axle cluster | Center-Mounted (Mid-Bogie) 4-Axle Layout | Dramatically tightens turning swept-path in customs yards and mountain switchbacks; perfectly balances kingpin and bogie load distribution on weighbridges. |
| Lift Axle Operating Logic | Fixed axles or single lift axle | Front Two Axles Pneumatically Liftable (Empty Only) | Front two axles lift during empty backhauls from Russia/Europe to eliminate tire scrub on tight turns and cut rolling resistance by 15%; all 4 stay down under 40T load. |
| Chassis Steel & Cold Toughness | Standard commercial carbon steel (brittle at -20°C) | Certified Q355 Low-Alloy Structural Steel | Engineered with sub-zero impact toughness down to -40°C; absorbs constant chassis flexing across steppe roads without cold-cracking. |
| Winter Brake Management | Generic air valves with manual draining | WABCO EBS / ABS with Heated Air Dryer & RSS | Prevents airline moisture freezing on freezing winter routes; Roll Stability Support (RSS) automatically counters rollover on icy curves. |
| Curtain Tarpaulin & TIR Transit | Standard 650g PVC (stiffens & cracks in freeze) | 900-Series -40°C Cold-Resistant PVC + TIR Cable System | Remains pliable in extreme Siberian/Kazakh freezes; includes tamper-evident customs eyelets and continuous TIR sealing cord for bonded transit. |
Engineering and Serviceability Details
Center-Mounted 4-Axle Geometry and Swept-Path Turning
On an extra-long 17.5-meter trailer operating across Central Asian mountain routes and border gates, placing 4 axles at the extreme rear would result in an unmanageably wide turning radius and destructive tire drag. Centering the axle cluster closer to the middle creates an optimal turning pivot, reduces the swept path on tight corners, and balances weight transfer evenly between the tractor kingpin and trailer bogie.

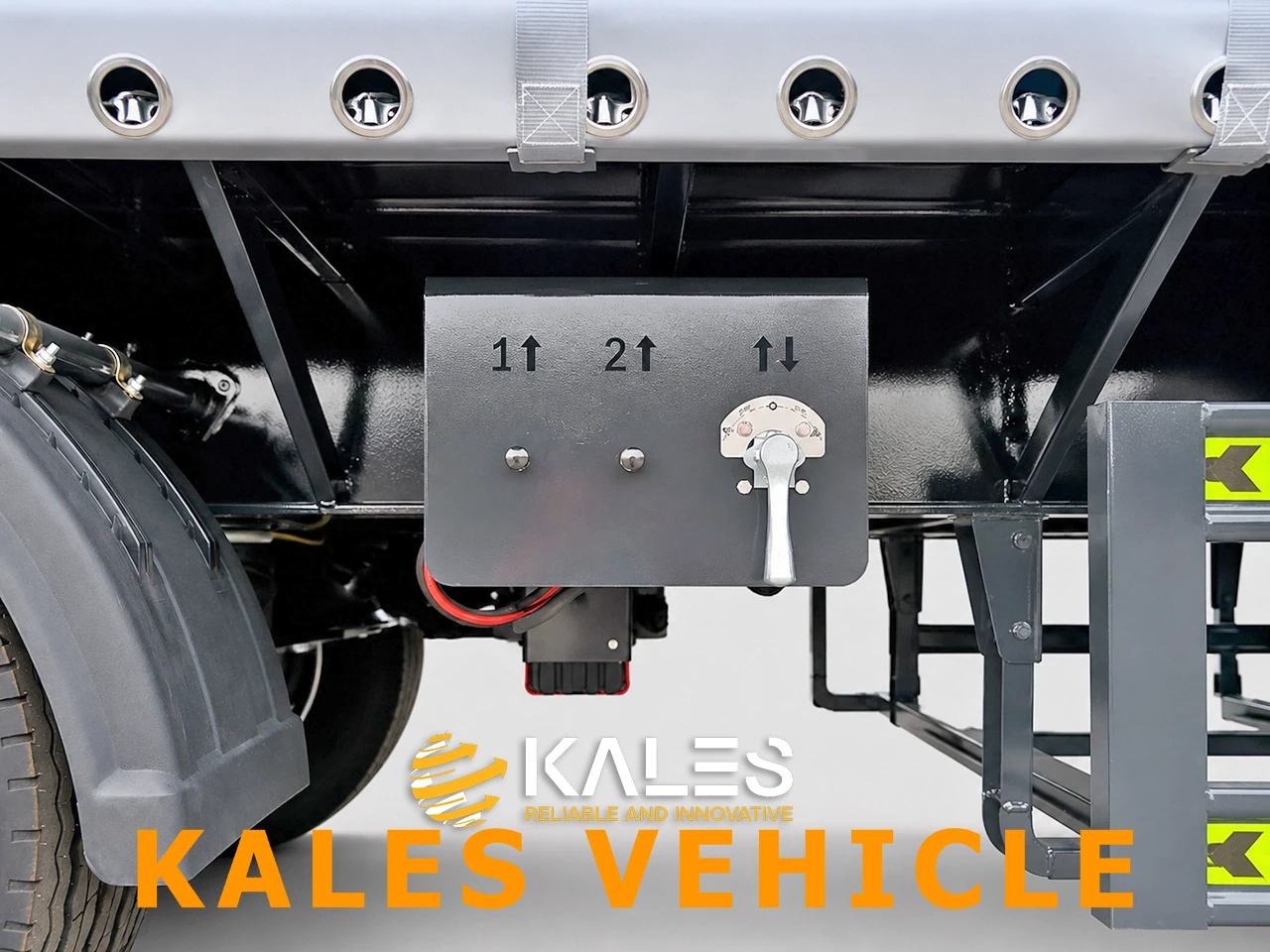

Front Two Lift Axles: Empty-Only Operating Logic
The front two lift axles are engineered strictly for empty return trips. When running empty back from Russia or Europe, lifting the front two axles halves road contact, eliminates tire-scrubbing on tight turns, and reduces rolling resistance by up to 15%. When loaded to the rated 40-ton capacity, all four axles must stay firmly grounded to legally distribute axle weight and protect the Q355 chassis beams.
Q355 High-Strength Steel and 40T Distributed Payload
Q355 is a high-strength low-alloy structural steel offering superior yield strength and sub-zero impact toughness down to -40°C. The 400 mm main beams (12/6/14 mm plate combination) and 125# side channels are specifically calculated to endure the flexing stresses of steppe roads without cold brittleness, safely carrying 40 tons of distributed volume freight.

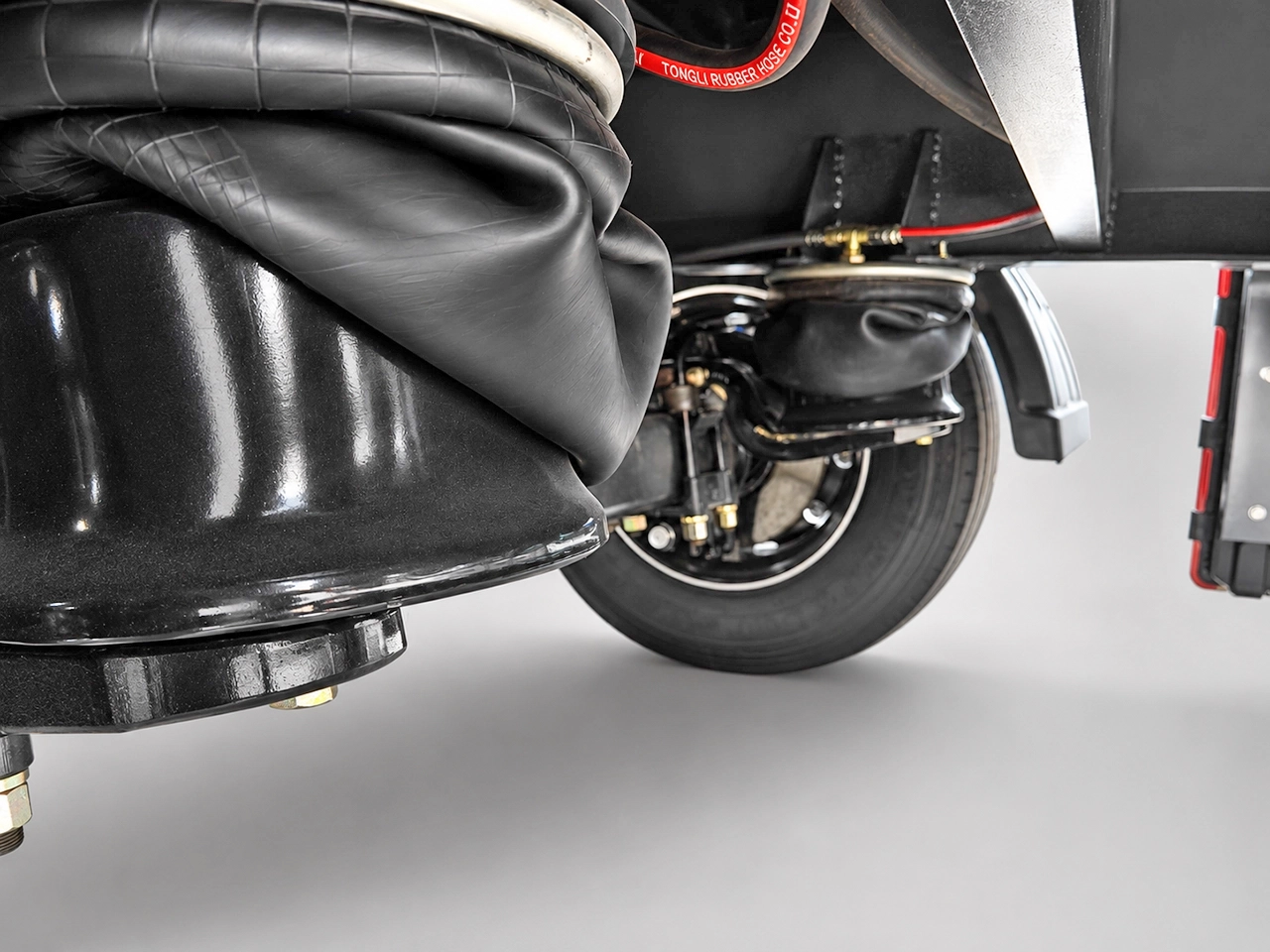

WABCO EBS / ABS System with Roll Stability Support (RSS)
Cross-border routes from Kazakhstan into Russia experience sudden winter blizzards and icy mountain passes. WABCO EBS provides millisecond electronic braking response, while Roll Stability Support (RSS) actively detects rollover risk and intervenes automatically—essential safety technology for a 4.0m high, 17.5m long curtain-side trailer.

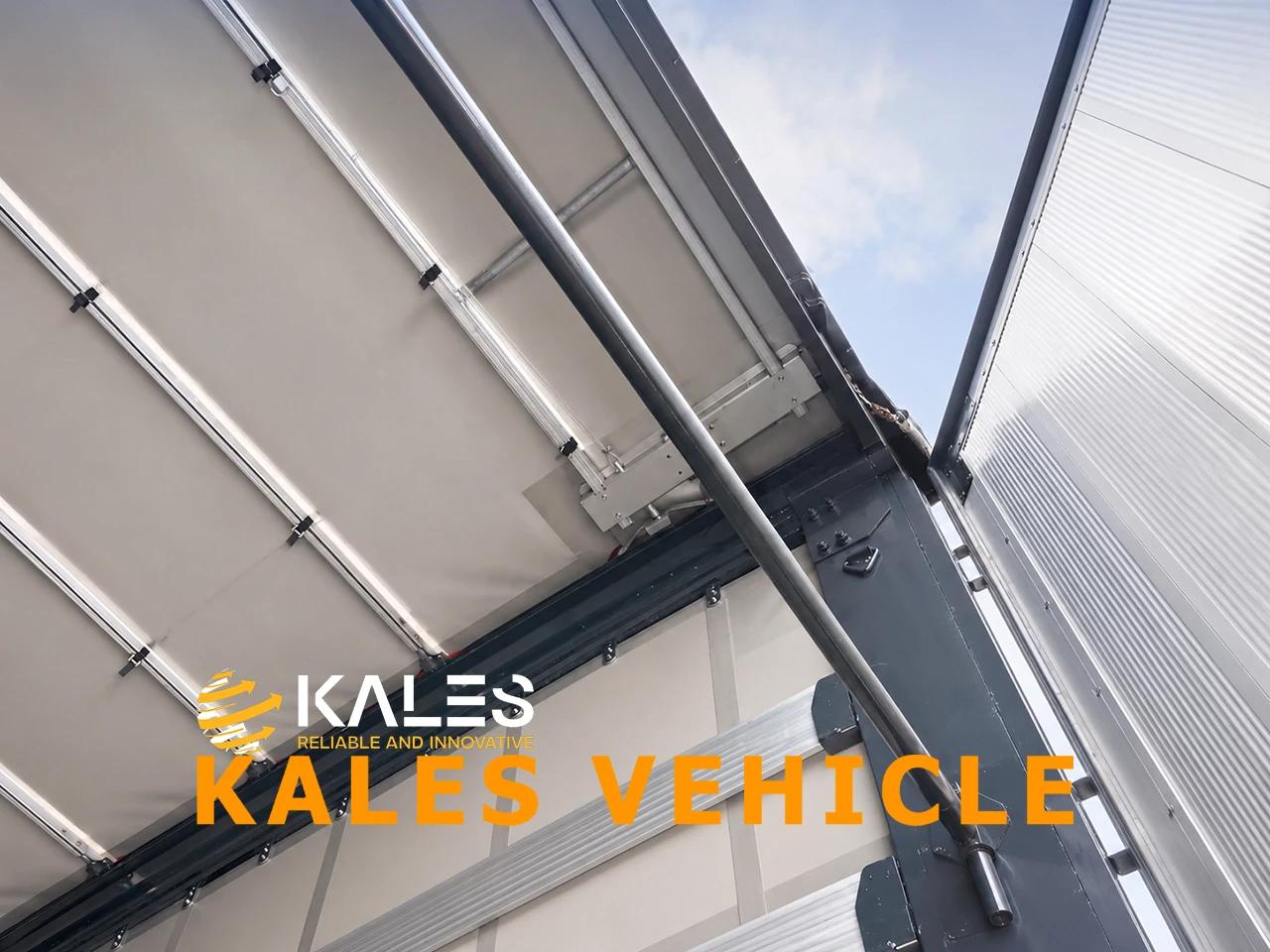

TIR Customs Cable and 900-Series Cold-Resistant Curtain
The Kales 900-Series curtain system features reinforced bottom hem sealing, custom-spaced TIR eyelets, and a continuous steel-core TIR cable that allows customs authorities to seal the entire 120m³ compartment from China through Central Asia into European destination terminals without intermediate cargo inspection.
How is the final quotation confirmed?
KALES confirms the quotation after reviewing the required specification, quantity, destination, and delivery terms. Send the operating requirements for an accurate proposal.
Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
Why is a center-mounted (mid-bogie) axle configuration essential for this 17.5m trailer?+
On an extra-long 17.5-meter trailer operating across Central Asian mountain routes and border gates, placing 4 axles at the extreme rear would result in an unmanageably wide turning radius and destructive tire drag. Centering the axle cluster closer to the middle creates an optimal turning pivot, reduces the swept path on tight corners, and balances weight transfer evenly between the tractor kingpin and trailer bogie.
When should the front two lift axles be raised?+
The front two lift axles are designed for empty return trips only . When running empty back from Russia or Europe, lifting the front two axles cuts rolling friction, saves fuel, and eliminates severe tire scrubbing on sharp turns. When loaded to the rated 40-ton capacity, all four axles must stay firmly grounded to legally distribute axle weight and protect the Q355 chassis beams.
Is Q355 steel suitable for Siberian and Central Asian winter temperatures?+
Yes. Q355 is a high-strength low-alloy structural steel offering superior yield strength and sub-zero impact toughness. The 400 mm main beams (12/6/14 mm) are specifically calculated to endure the flexing stresses of steppe roads at -35°C without cold brittleness. It is purpose-built for 40-ton distributed volume freight like appliances and furniture, though not for concentrated single-point heavy steel loads.
Why is WABCO EBS with RSS strongly recommended for Central Asian and Russian routes?+
Cross-border routes from Kazakhstan into Russia experience sudden winter blizzards and icy mountain passes. WABCO EBS provides millisecond electronic braking response, while Roll Stability Support (RSS) actively detects rollover risk and intervenes automatically—essential safety technology for a 4.0m high, 17.5m long curtain-side trailer.
Can this trailer operate under the TIR Carnet customs transit system?+
Yes. The Kales 900-Series curtain system can be configured to meet full TIR customs transit requirements. It features reinforced bottom hem sealing, custom-spaced TIR eyelets, and a continuous steel-core TIR cable that allows customs authorities to seal the entire 120m³ compartment from China through Central Asia into European destination terminals without intermediate cargo inspection.
How do you handle spare parts across Central Asia and Russia?+
All critical running components—including WABCO valves, 10T disc brake pads, air suspension bellows, and 385/55R22.5 tires—follow universal international standards readily sourced in Almaty, Tashkent, Moscow, and roadside service hubs. Kales also dispatches complete wearing-parts emergency packs (extra air bags, curtain rollers, tensioners) with factory delivery.
Ready to Upgrade Your Eurasian Cross-Border Freight Fleet?
Contact our engineering desk today for direct factory pricing, structural CAD drawings, and custom route-matching specifications.
