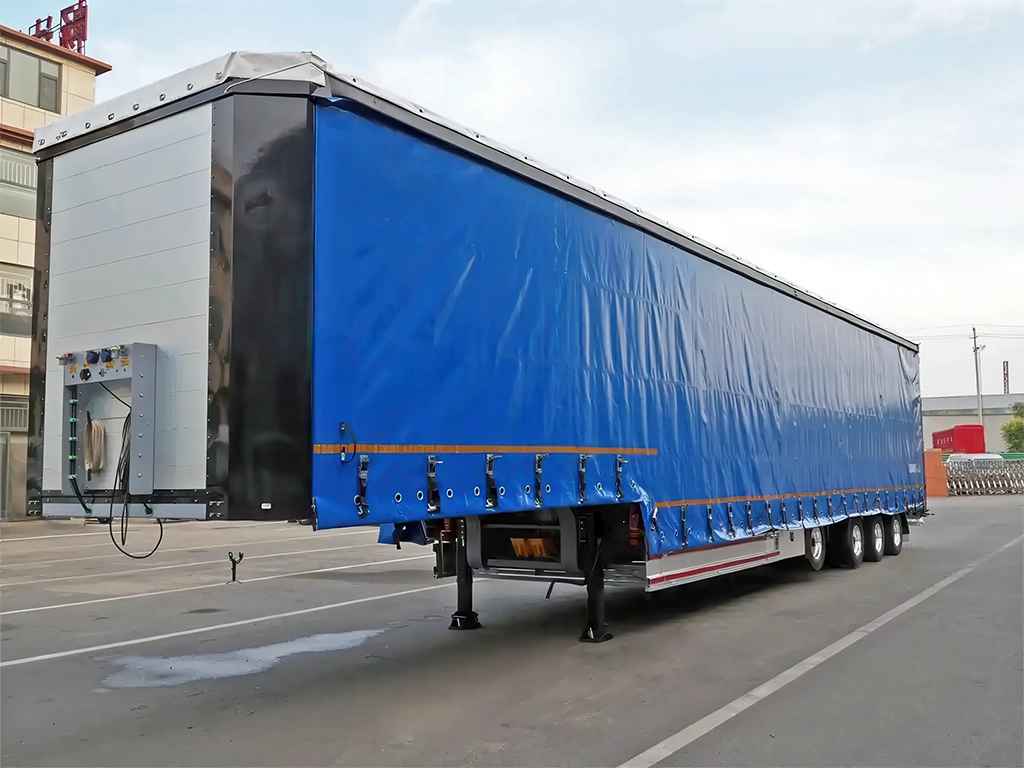

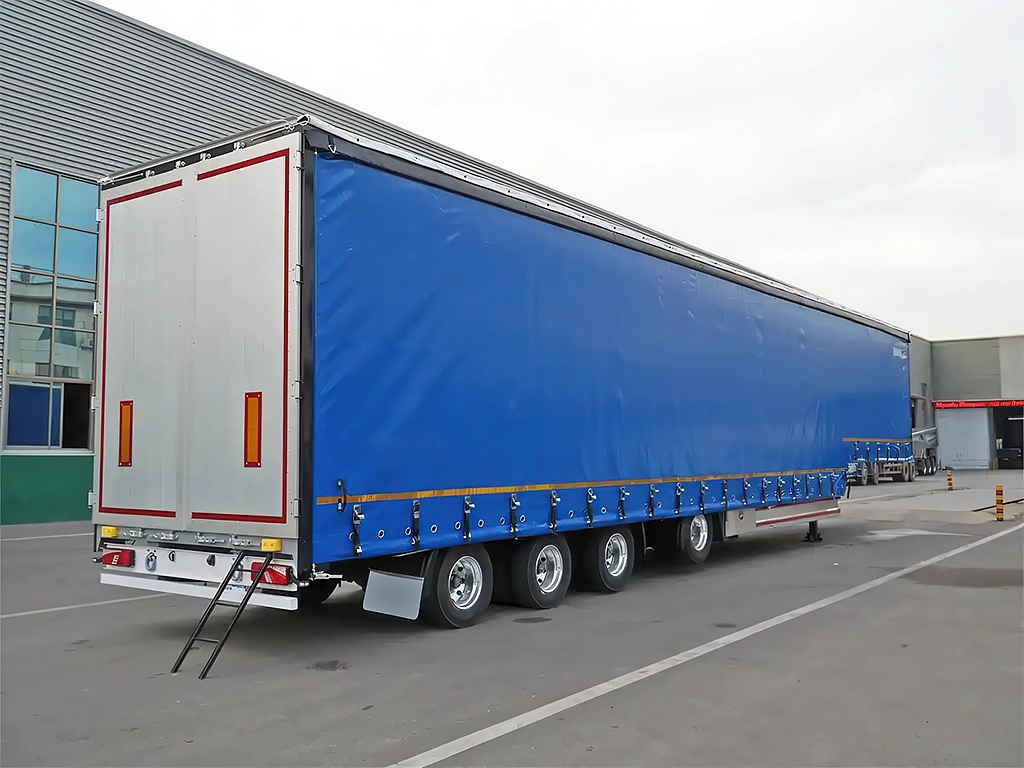

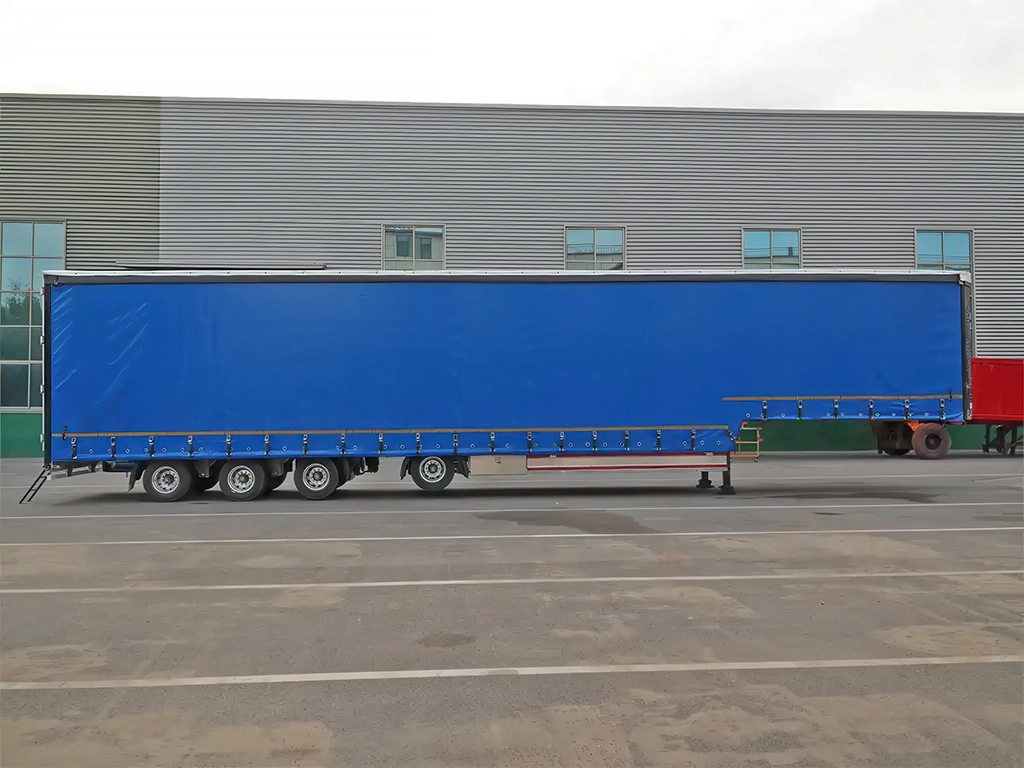

55ft Curtain Side Trailer with Air Suspension
Quick answer: choose this 55ft curtain side trailer with air suspension when your route, legal limits, loading docks, and warehouse system already support a 16 m curtain-side body and you can turn the extra 132m³ into revenue. The represented stock type uses a 16800 × 2750 × 4000 mm body, 40 to 50 ton payload positioning, 4 axles, 235/75R17.5 tyres, manual lift on the 1st and 2nd axles, 900 gsm anti-cut curtain, 28 mm bamboo floor, EU-certified running and safety components, and a current USD 12,500 export offer.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
55ft curtain side trailer with air suspension: this Kales 16 m curtainsider is built for fleets that can actually monetize extra cubic capacity beyond a standard 13 m tautliner. It combines 132 cubic meters of internal volume, 4 axles, 17.5-inch small tyres, a high-low chassis layout, full side curtain loading, and air suspension with lifting-axle logic for long-haul, high-cube dry cargo work.
Engineering guidance from the Kales Vehicle logistics trailer team for buyers comparing a standard 13 m curtainsider with a longer 55ft high-cube curtain-side platform, plus container and flatbed alternatives.
Technical Snapshot
| Product type | 55ft / 16 m curtain side trailer with air suspension |
|---|---|
| Model reference | Kales-CS-55FT-132CBM |
| Internal volume | 132 cubic meters |
| Payload positioning | 40 to 50 tons depending on route compliance, axle match, and cargo program |
| Dimensions | 16800 × 2750 × 4000 mm |
| Front and rear panel | Aluminum alloy |
| Side protection | Aluminum plus iron fence-style side guard structure |
| Axles | 4 axles; BPW, SAF, FUWA, or Kales matching |
| Suspension | Air suspension with manual lifting on the 1st and 2nd axles |

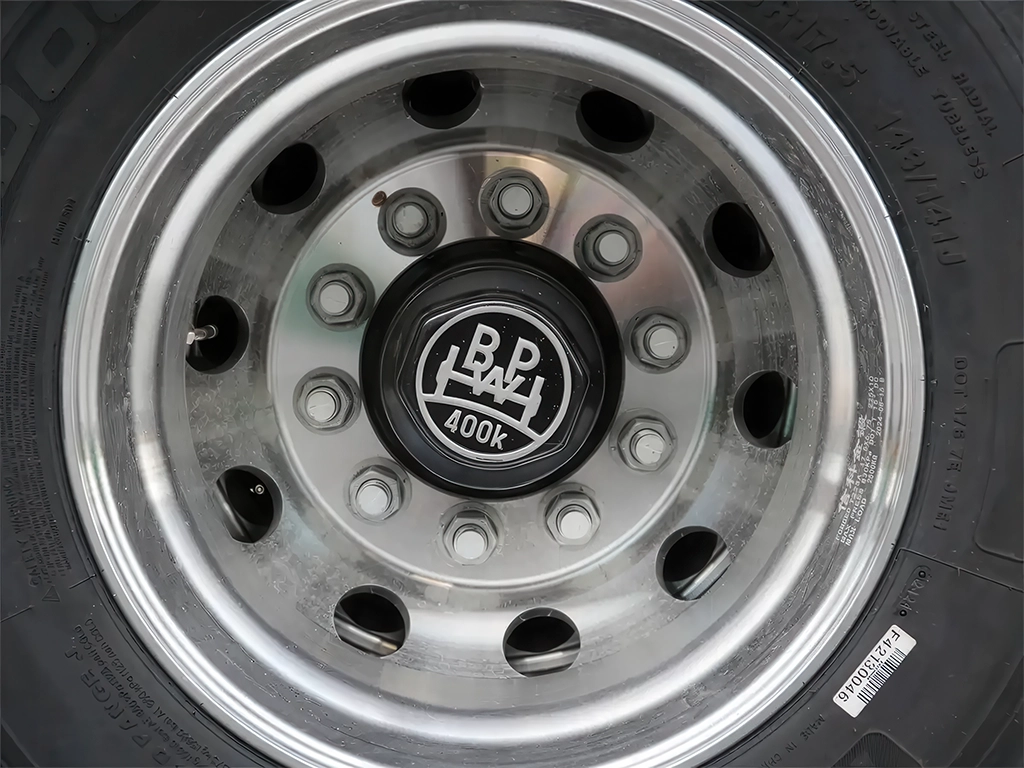

| Tyres and rims | 16 units of 235/75R17.5 with aluminum alloy rims |
| Curtain material | 900 gsm anti-cut PVC tarpaulin |
| Floor | 28 mm anti-slip bamboo composite plywood |
| Accessories | Electric spare tyre carrier and 2 tool boxes |
| Reference export offer | USD 12,500 for the represented stock type |
Best Fit Operating Profile
This 55ft curtainsider is built for highway-dominant logistics networks where the buyer is paid by volume or load density rather than only by mass. It makes the most sense for beverage, FMCG, palletized dry cargo, ecommerce fulfillment freight, packaging, paper products, and other high-cube goods where the extra body length and cube are commercially useful and legally dispatchable.
Best for
- Long-haul highway freight with established support for 16 m curtain-side operation
- High-cube pallet cargo where 132m³ translates directly into better trip economics
- Warehouses and logistics parks that benefit from full side opening and two-sided forklift access
- Fleets that prefer air suspension for cargo protection and highway ride quality
Not ideal for
- Markets where a standard 13 m curtainsider is easier to legalize, dispatch, and dock
- Routes dominated by rough rural road abuse rather than sustained highway logistics
- Buyers moving ISO containers or uncovered general cargo instead of palletized curtain-side freight
Why Buyers Choose This 55ft High-Cube Curtainsider
- 132m³ cargo volume: the 16 m length, small-tyre package, and high-low chassis geometry are built to maximize dry cargo cube within overall height targets.
- Faster dock turns: full side curtain opening lets forklifts work from both sides rather than forcing all loading through rear doors.
- 4 axle air-suspension package: better matched to long-haul high-cube freight than a shorter standard curtainsider using a simpler running set.
- Lifting axle logic: the 1st and 2nd axles can be lifted manually on empty return cycles to reduce tyre wear and rolling drag.
- Practical cargo protection: this page targets buyers who need more weather protection and side access than a flatbed can offer, without moving to a fixed-wall dry van.
Engineering and Serviceability Details
Why the 17.5-inch wheel package matters
The small-tyre package is not a cosmetic choice. It supports the high-cube loading objective by helping keep deck height under control while preserving the overall legal height target. That is part of how the platform reaches 132m³ instead of behaving like a longer trailer with wasted vertical space.

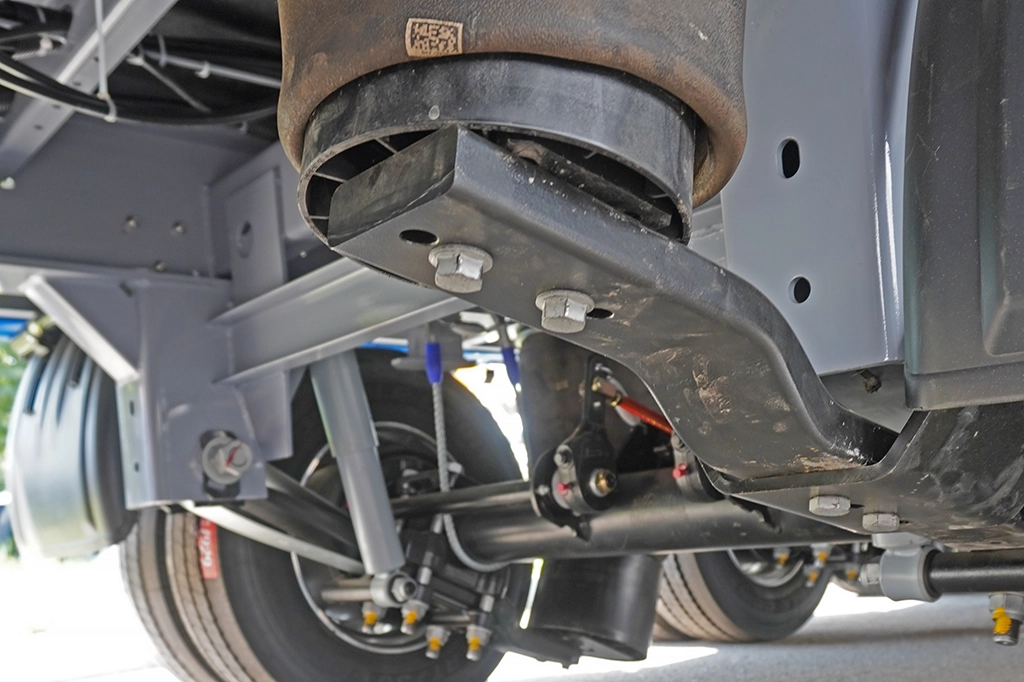

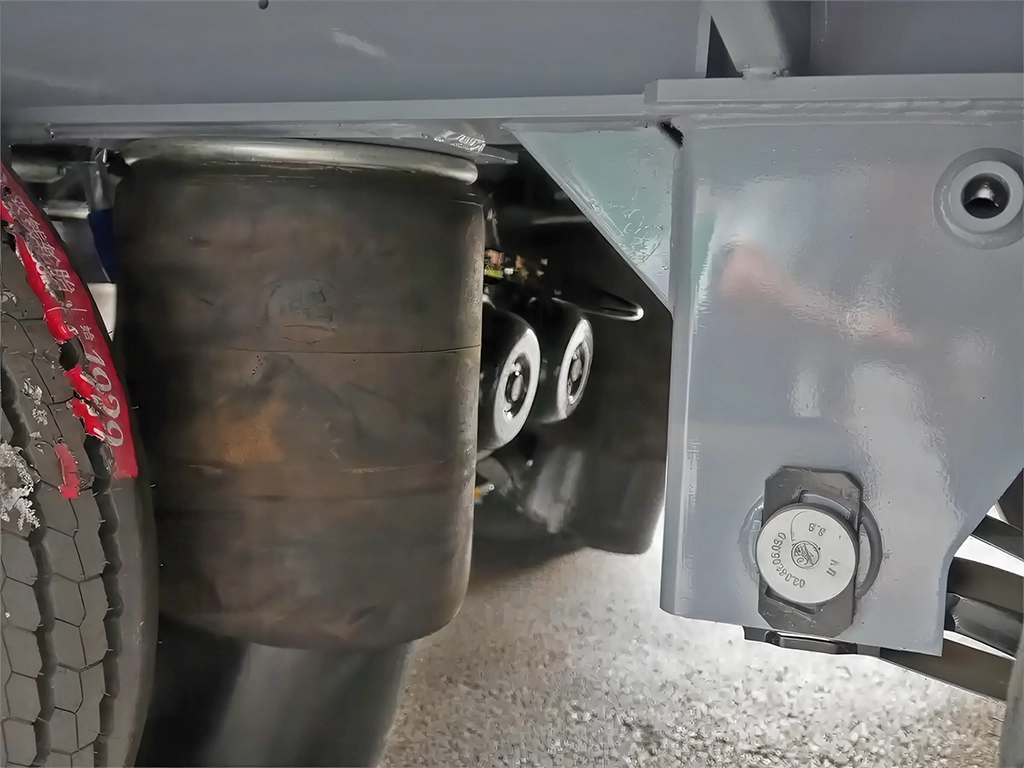

Air suspension and manual lifting axles
This page is correctly positioned around air suspension because the trailer is meant for long-haul highway work and volume-sensitive cargo. Manual lifting of the 1st and 2nd axles helps reduce tyre wear and drag on empty return cycles. Buyers who do not need this kind of running-gear sophistication should compare the standard 13 m curtainsider instead of forcing a 55ft platform into a lower-value route.

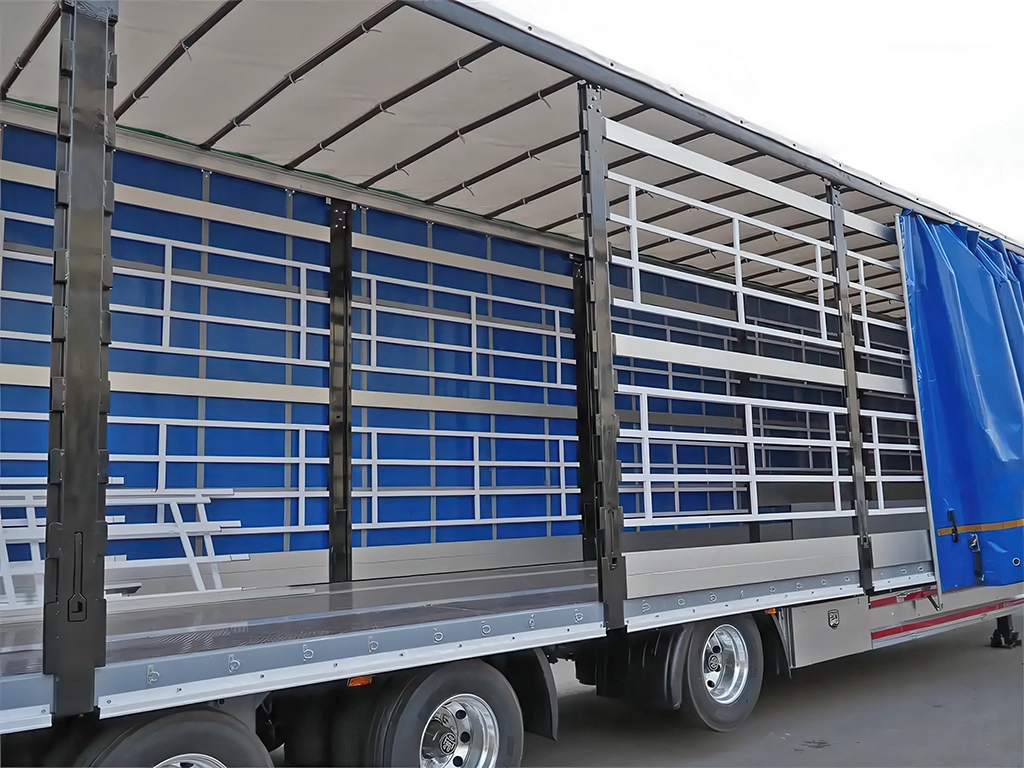

Aluminum, bamboo floor, and component logic

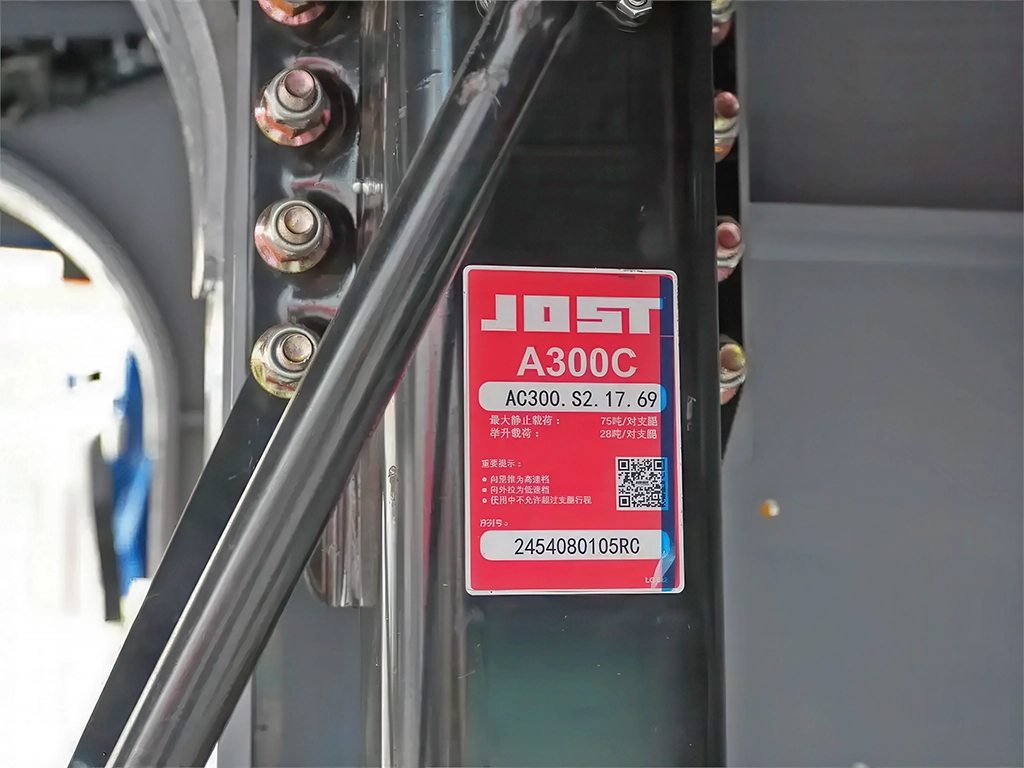

The represented build uses aluminum front and rear panels, fence-style side protection, and a 28 mm bamboo composite floor. This is a practical freight-handling combination: lighter structure where weight control helps, enough toughness for forklift traffic, and easier long-cycle service support through globally common components such as BPW, SAF, FUWA, WABCO, and JOST.
Why this page keeps a fixed Offer instead of AggregateOffer
This product page is aligned to one represented high-cube export stock type with a defined 55ft, 132m³, 4 axle air-suspension specification and a current USD 12,500 export offer. Customization is still possible, but the commercial signal is concrete enough to stay on a fixed Offer structure.
Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
Who should choose this 55ft curtainsider instead of the standard 13m version?+
Choose this page only if your route, legal framework, and loading system already support a 16 m curtain-side trailer and the extra cube will actually be monetized. If not, the standard 13 m curtainsider is usually the more rational choice.
Why does this trailer use 4 axles?+
The extra axle support is part of the long-body high-cube logic. It helps distribute load more appropriately on a 55ft curtain-side structure built for higher cargo volume and highway-duty running.
Is this better than a dry van for pallet freight?+
It is better when side loading speed matters. A dry van offers stronger permanent enclosure, but a curtainsider lets forklifts work from both sides much faster while still keeping weather protection.
Does air suspension really matter on this page?+
Yes. This product is aimed at long-haul highway logistics and higher-value pallet programs where ride quality, axle-lift logic, and running efficiency matter more than the lower initial simplicity of a shorter mechanical-suspension trailer.
What should I confirm before requesting a quote?+
Confirm legal route acceptance for 55ft / 16 m operation, target pallet program, dock dimensions, payload density, and whether your network can consistently monetize 132m³ capacity.
Request Drawing and Quote
If you are comparing a 55ft curtain side trailer with air suspension, send your route country, legal length limit, target pallet count, cargo density, dock setup, and whether your fleet needs BPW, SAF, FUWA, or Kales axle matching. Kales can then confirm whether this 132m³ high-cube platform is the right fit or whether the standard 13 m curtainsider is commercially smarter.
