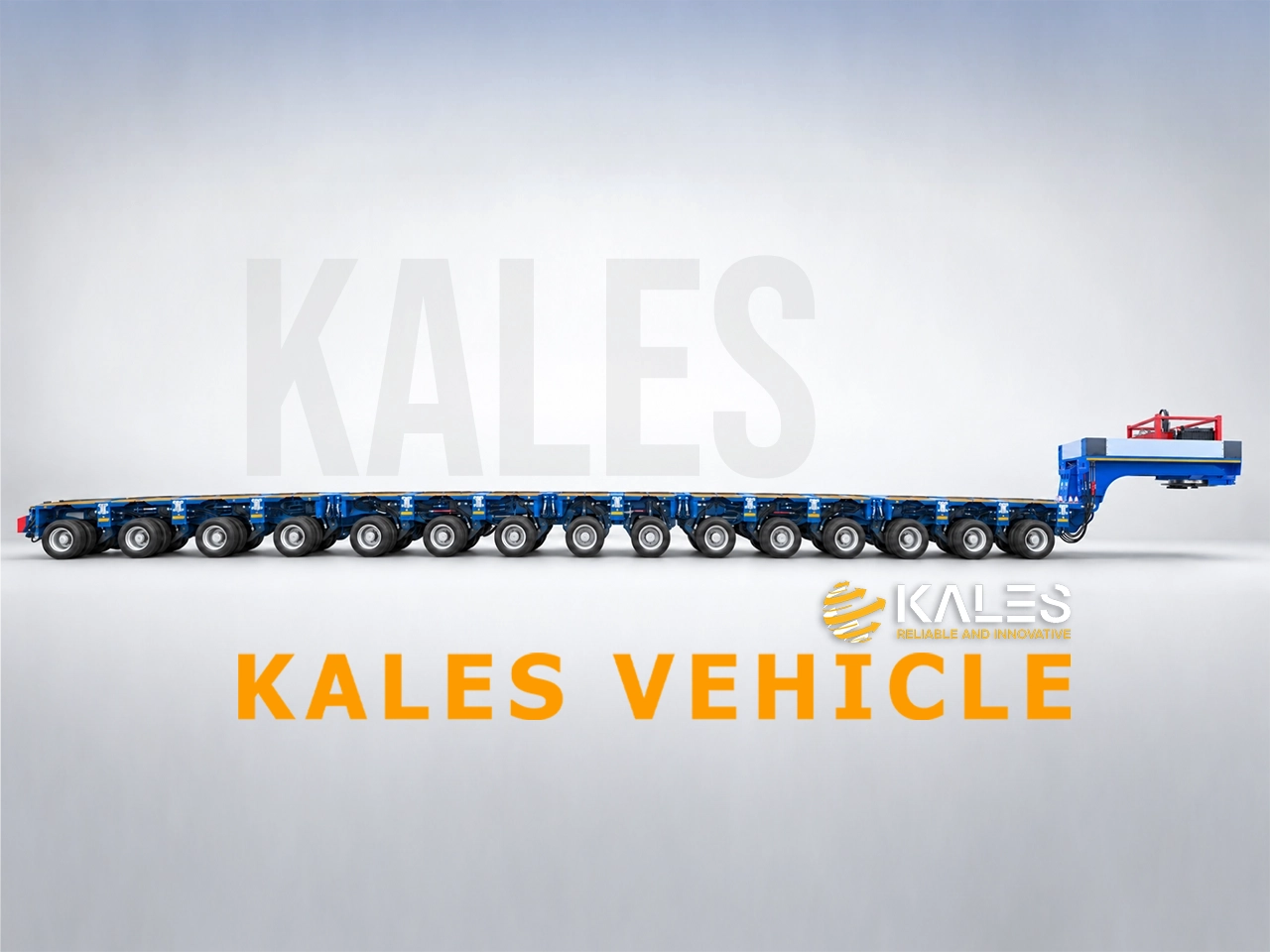

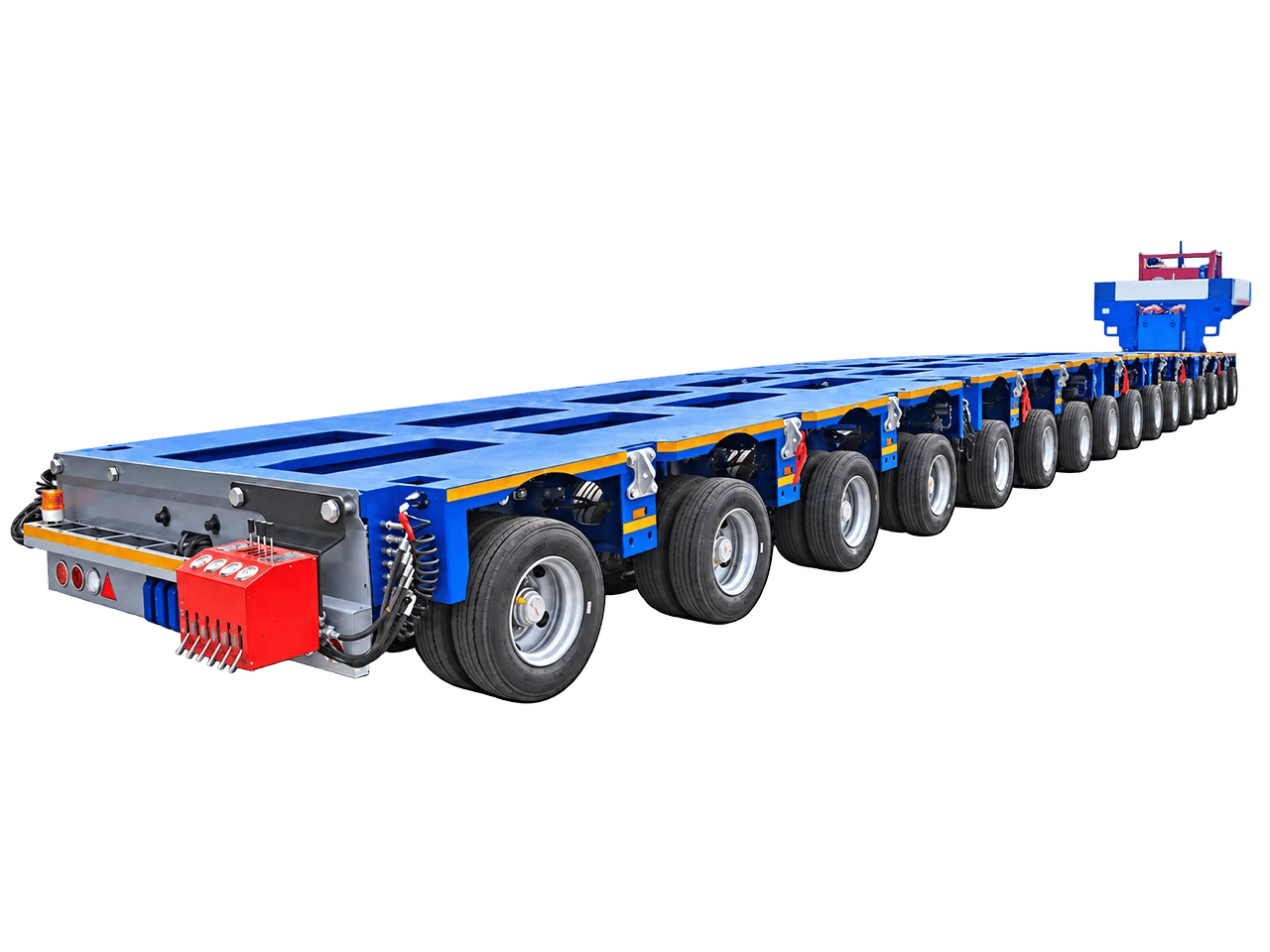

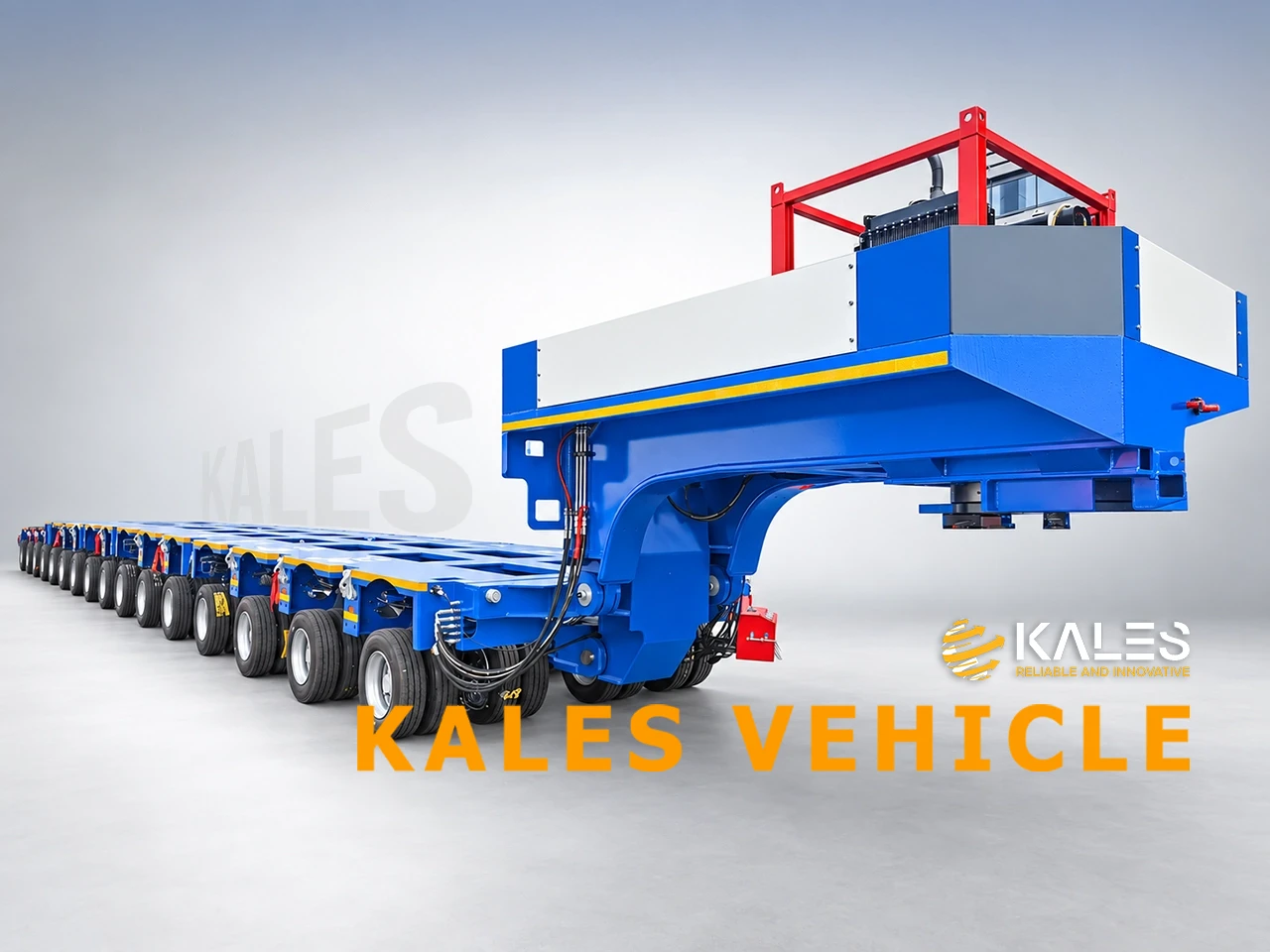

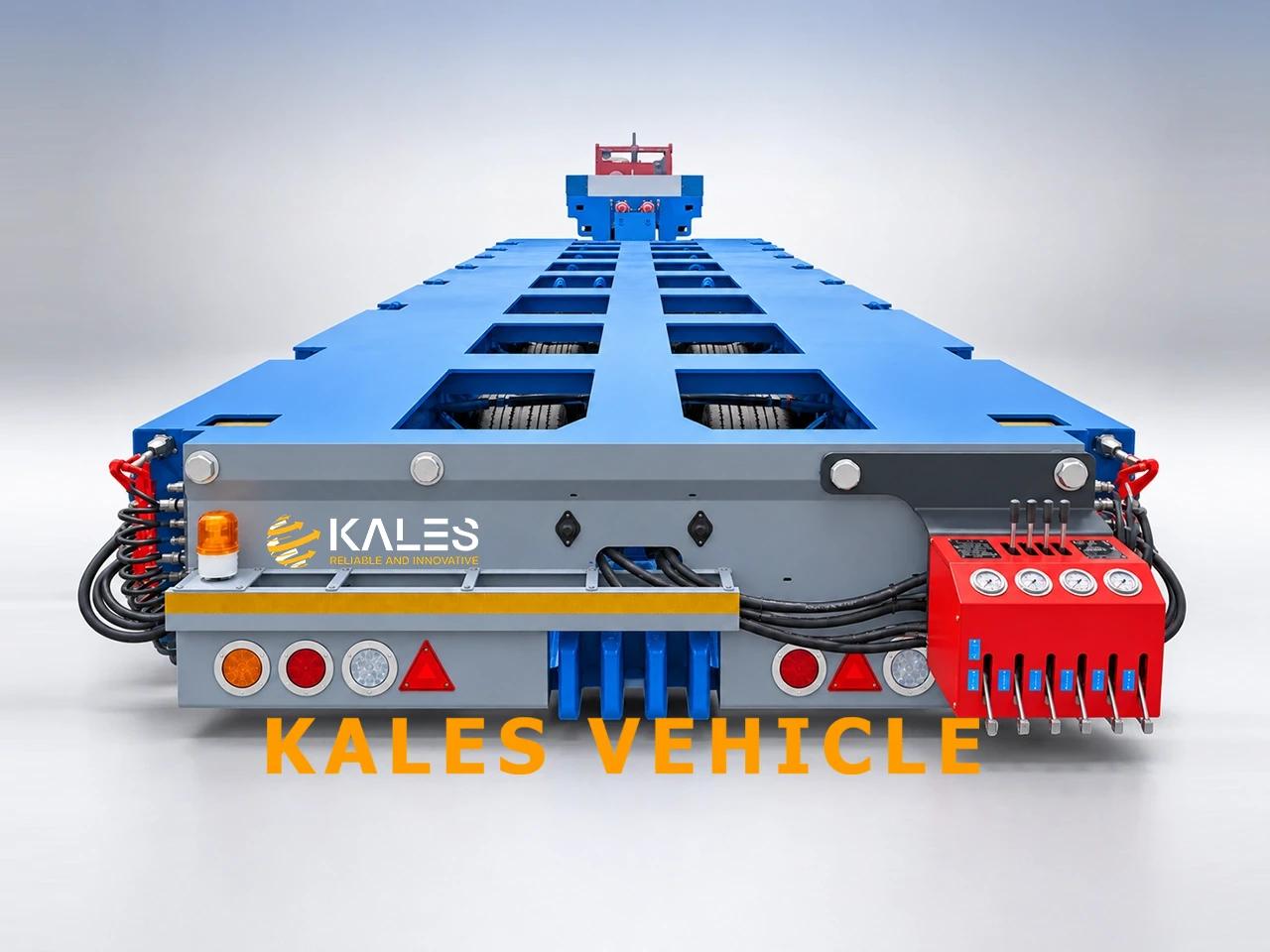

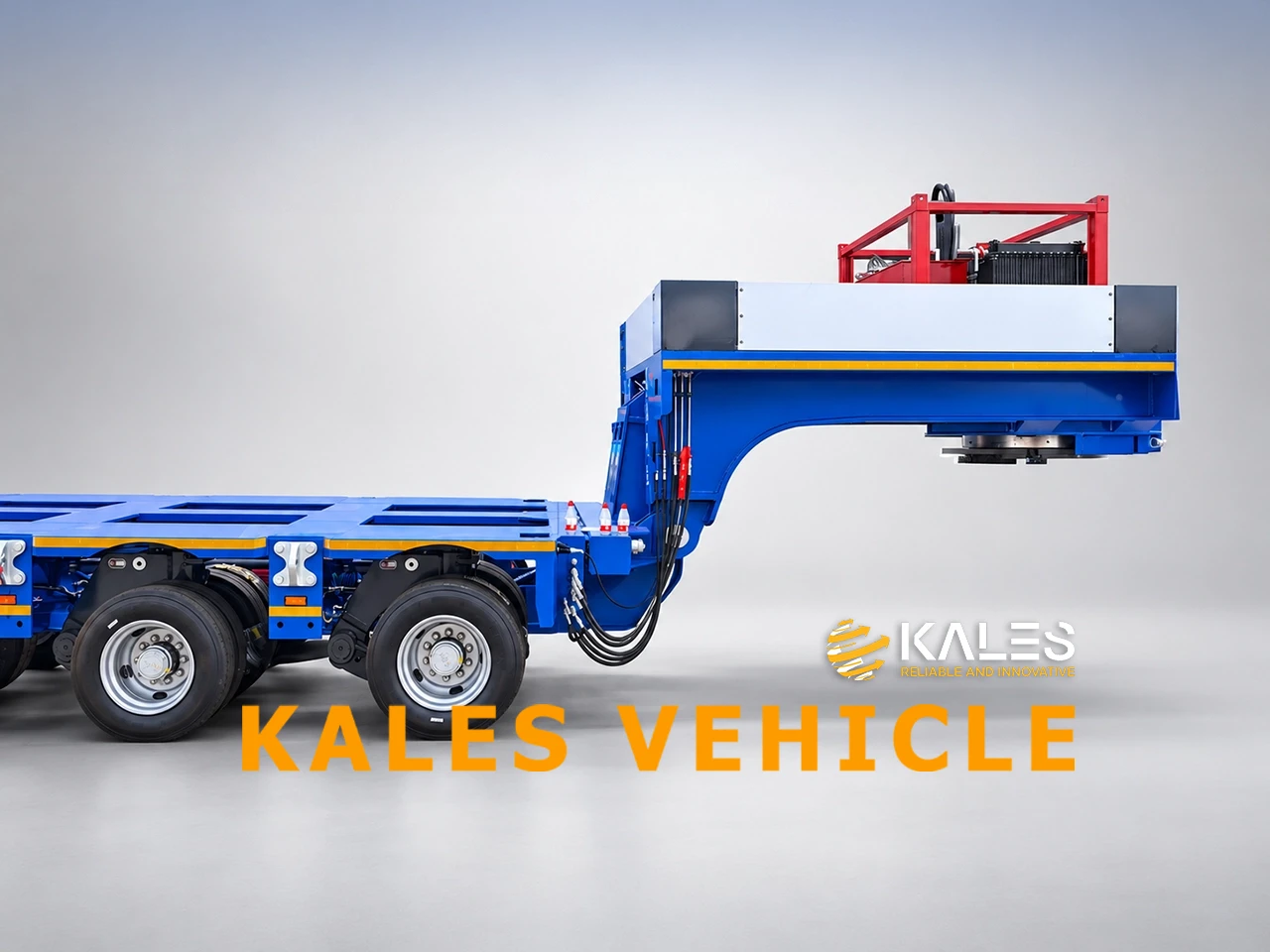

KALES 16-Axle Line (32-Pendular Axle) Hydraulic Modular Trailer

Technical Specifications & Dimension Matrix

Best Fit Operating Profile

The KALES 16-axle line modular trailer is the definitive engineering solution when cargo weight, dimensions, or ground-bearing limitations exceed the legal and structural envelope of multi-axle semi-trailers. It is purpose-built for super-heavy electrical grid transformers, nuclear and chemical pressure vessels, wind turbine nacelles and tower foundations, shipyard module transfers, and infrastructure precast girders.

Best for

• Grid Transformers & Heavy Power Plant Cargo: 350 to 500-ton transformers requiring 3-point isostatic hydraulic support to eliminate chassis twist across uneven terrain.
• Petrochemical & Refining Columns: Long, ultra-heavy distillation vessels supported on dual turntable bolsters across split modular combinations.
• Wind Energy Mega-Components: Large nacelles, wind turbine tower bases, and extra-long 80m+ blades requiring maximum transverse stability and tight-radius steering.
• Bridge Girders & Heavy Civil Works: Precast concrete box girders and tunnel boring machine (TBM) cutterheads demanding side-by-side (4-file) combinations.
• Abnormal-Load Fleet Integration: Heavy-haul contractors seeking complete coupling interoperability with existing Goldhofer THP/SL or Nicolas modular trailers.

Not ideal for

• Standard construction machinery (excavators under 90 tons, bulldozers, or wheel loaders) that can be hauled on a conventional fixed-deck 50-ton or 80-ton lowbed.
• Long but lightweight structural steel or rebar where a telescopic extendable flatbed provides adequate deck length without modular complexity.
• High-speed highway logistics where prime movers cannot accommodate hydraulic goosenecks or heavy drawbar steering towbars.
• Low-budget regional routes lacking bridge permit approvals for multi-axle heavy-haul configurations.

Core Engineering Advantages of the KALES Modular System

• Extreme Concentrated Load Capacity: Central box beam fabricated from Q690 quenched-and-tempered steel withstands bending moments of severe point loads without longitudinal deflection.
• Hydraulic Terrain Equalization: 470 mm vertical lift stroke with switchable 3-point / 4-point hydraulic suspension equalizes tire contact pressure over potholes, crests, and culverts.
• ±48° Synchronized Ackermann Steering: Dual-circuit mechanical-hydraulic steering linkage provides tight turning radius, minimal tire scrub, and manual radio remote override for narrow corners.
• Full Nicolas & Goldhofer Compatibility: Machined coupling flange centerlines and hydraulic quick couplings allow seamless cross-fleet coupling with European modular bogies.
• Substantial Empty-Return Cost Reductions: Modules easily disconnect and stack onto standard 3-axle flatbeds for deadhead legs, slashing highway toll costs by up to 60%.

1. Engineering Architecture & Structural Mechanics

Moving super-heavy, non-divisible project cargo requires a transporter that prevents structural deflection while maintaining millimeter-accurate hydraulic equilibrium. The KALES 16-Axle Line Hydraulic Modular Trailer combines the robust steering geometry of the Nicolas style with the versatile modular interconnection principles of the Goldhofer system.

  +-------------------------------------------------------------------------------+
  |                              3,000 mm Deck Width                              |
  |  [Q690 Top Flange: 50mm] ── Central Box Beam (750mm) ── [Q690 Btm: 60mm]      |
  +-------------------------------------------------------------------------------+
         │                                                           │
   64 Pendular Pivot Units                                     64 Pendular Pivot Units
   (32 Lines × Left/Right)                                     (32 Lines × Left/Right)
         │                                                           │

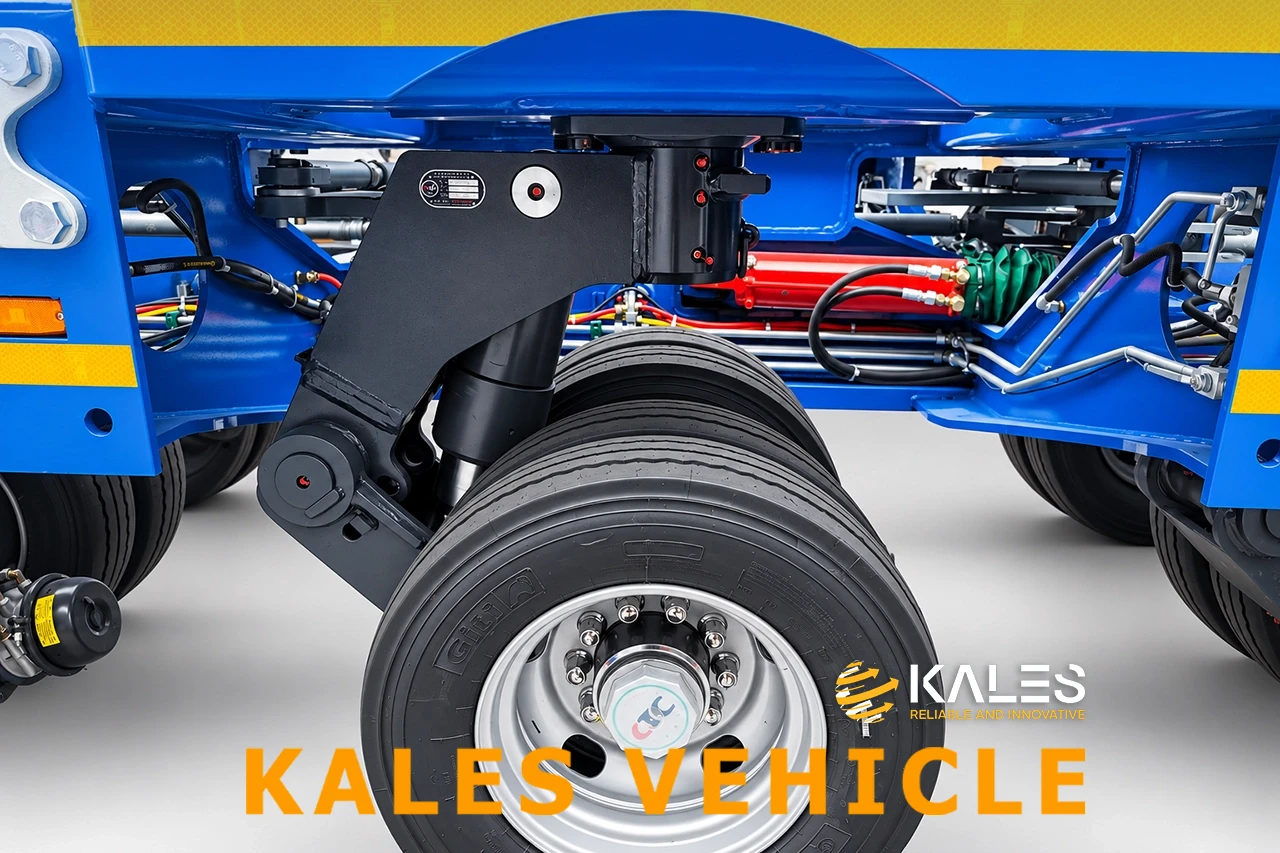

   [215/75R17.5 Quad-Tires]                                    [215/75R17.5 Quad-Tires]

High-Tensile Chassis Engineering (Q690 Steel)

The structural spine is built around a heavy-duty central box beam manufactured from Q690 high-strength quenched and tempered steel.

• Beam Dimensions: Web height of 750 mm, equipped with a 50 mm upper flange plate and a 60 mm lower flange plate.
• Torsional Rigidity: The frame is engineered to resist severe torsional moments induced by concentrated point loads (such as 400-ton electrical transformers placed over a narrow 4-meter footprint).
• Automated Fabrication: Structural plates undergo automated submerged arc welding (SAW) inside continuous welding fixtures. Completed frames pass through multi-point hydraulic straightening machines to eliminate residual welding stresses and ensure perfect longitudinal camber alignment across the entire 29,280 mm platform length.

2. Advanced Hydraulic Suspension, Leveling & Ground-Pressure Distribution

                [ Load Center of Gravity ]
                            │
       ┌────────────────────┴────────────────────┐
       ▼                                         ▼
[ Left Hydraulic Group ]              [ Right Hydraulic Group ]
  32 Cylinders Linked                   32 Cylinders Linked
  Independent Height Control            Independent Height Control
       │                                         │
 64 Contact Points                         64 Contact Points
  (Equalized Ground Reaction)           (Equalized Ground Reaction)

1) 3-Point vs. 4-Point Support Circuits

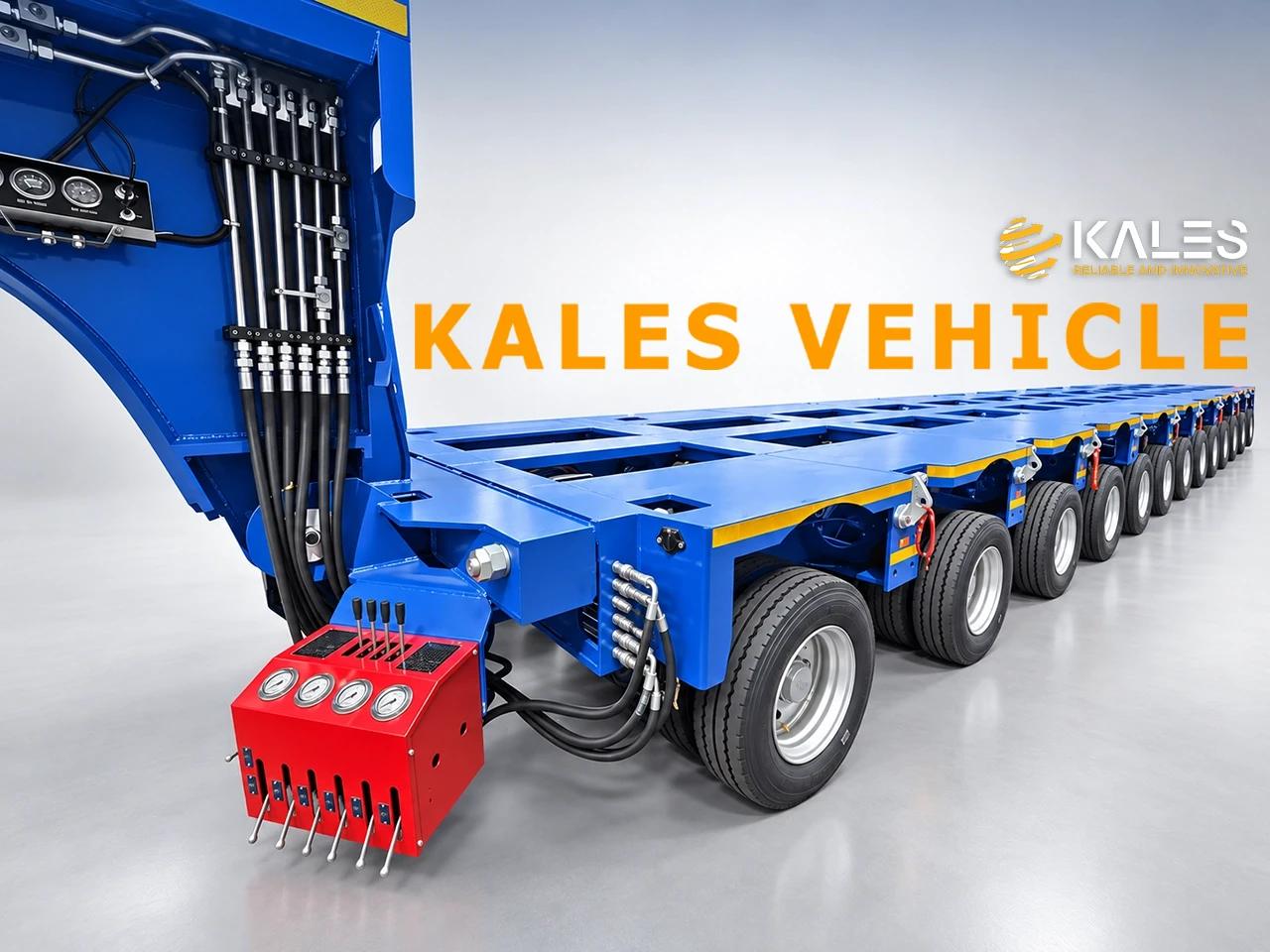

The 16-axle trailer’s suspension can be hydraulically divided into 3-point or 4-point hydraulic support groups via central manifold ball valves:

• 3-Point Support Mode: Standard configuration for long-distance highway hauling. Creates an isostatic balance system where the payload platform self-equalizes over uneven terrain, eliminating frame twist and preventing uneven wheel overloading.
• 4-Point Support Mode: Recommended for extremely tall cargo with elevated centers of gravity (e.g., wind turbine tower sections or petrochemical distillation columns). Provides maximum transverse stability against lateral wind loads, road camber, and super-elevated highway bends.

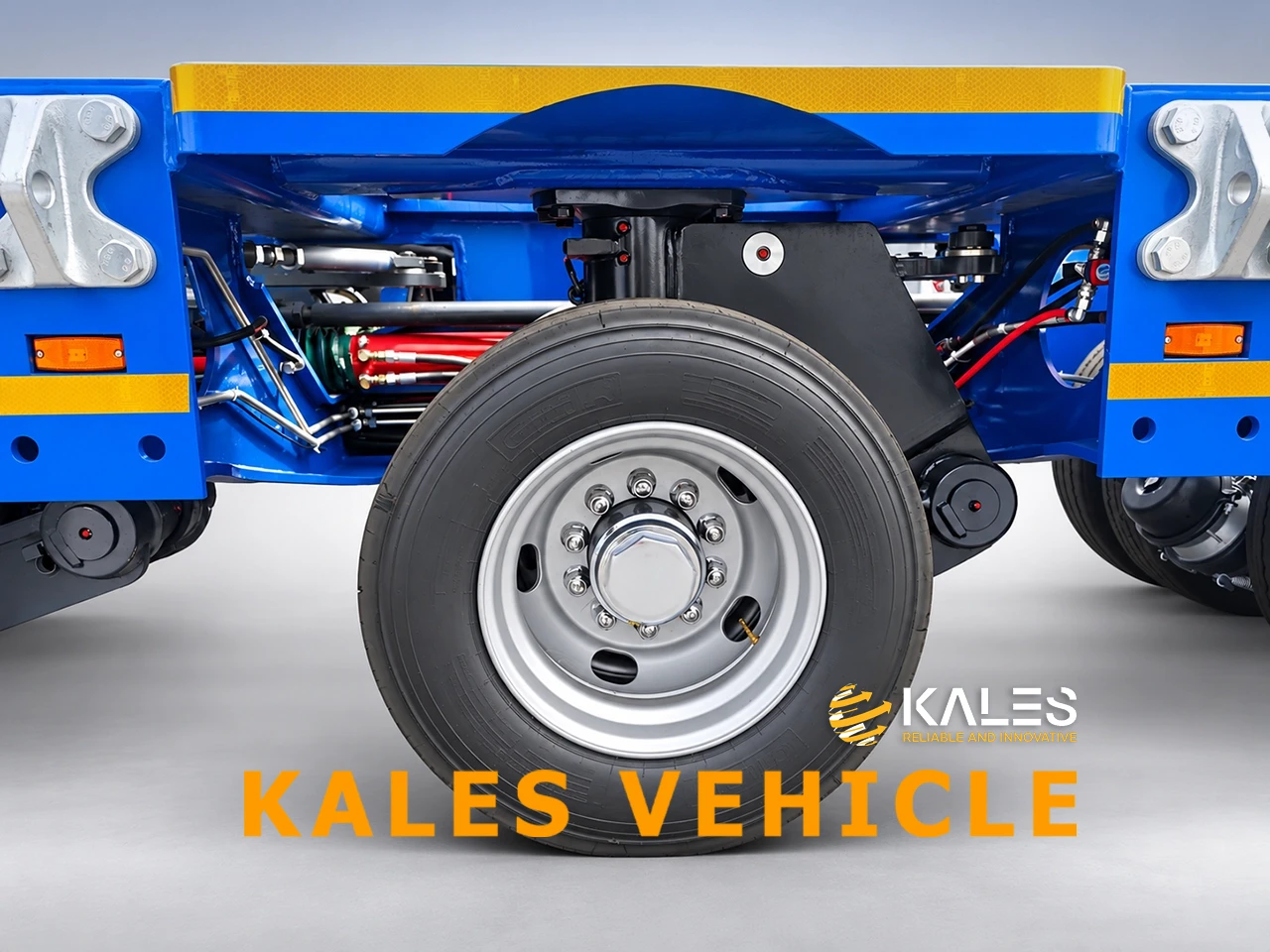

2) Automatic Terrain Compensation & Anti-Rollover

• 470 mm Dynamic Stroke: Cargo platform height adjusts seamlessly between 980 mm and 1,450 mm, facilitating roll-on/roll-off (RoRo) barge loading, low-clearance railway bridge crossings, and crane-free self-unloading onto engineered support stools.
• Dynamic Float Mode: Integrated load-sensing hydraulic cylinders allow wheels to independently float across potholes and crushed-stone surfaces without overloading adjacent axle lines.
• Lateral Leveling Correction: When traversing cross-fall slopes or crowned highways, the operator can independently elevate the downside suspension to keep the cargo deck perfectly level.

3) Road Infrastructure Protection & Permitting

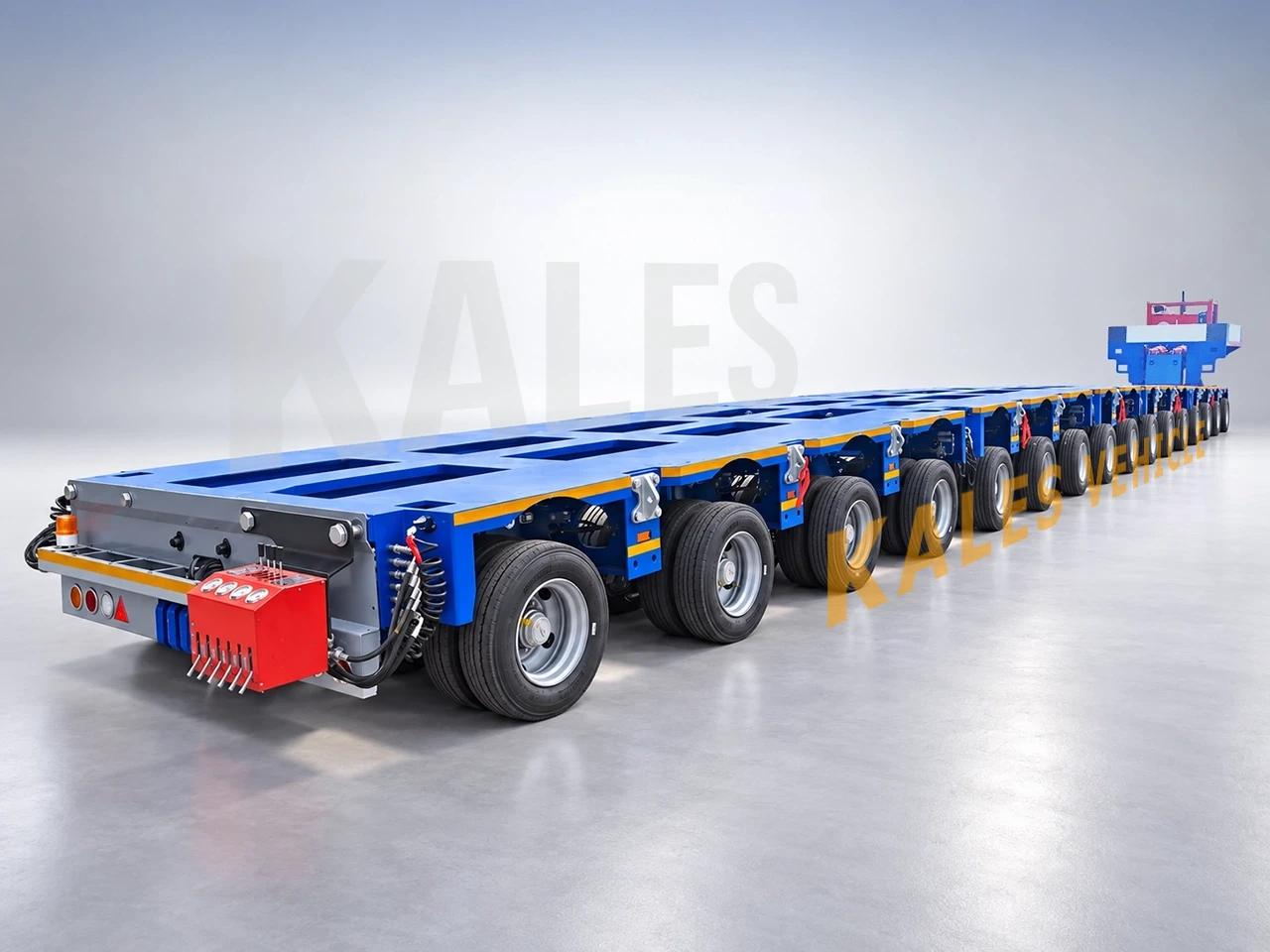

Heavy-haul route permits hinge on strict axle-load compliance. By distributing gross vehicle weight over 128 separate tires (32 pendular axles across 16 lines), the KALES trailer minimizes localized ground contact pressure on asphalt subgrades and concrete bridge decks. Even under a 400-ton gross load, contact pressure remains well within international civil bridge formulas.

3. Dual-Circuit Synchronous Steering & Maneuverability

Negotiating 90-degree urban intersections, port access gates, and switchback mountain roads requires predictable steering geometry and instant steering response.

       [ Steering Drawbar / Remote Console ]
                         │
        ┌───────────────┴────────────────┐
        ▼                                 ▼
[ Primary Hydraulic Loop ]      [ Redundant Hydraulic Loop ]
  Steering Cylinders (Lines 1-8)   Steering Cylinders (Lines 9-16)
        │                                 │
        └───────────────┬─────────────────┘
                        ▼
       [ ±48° Axle Articulation Synchronized ]

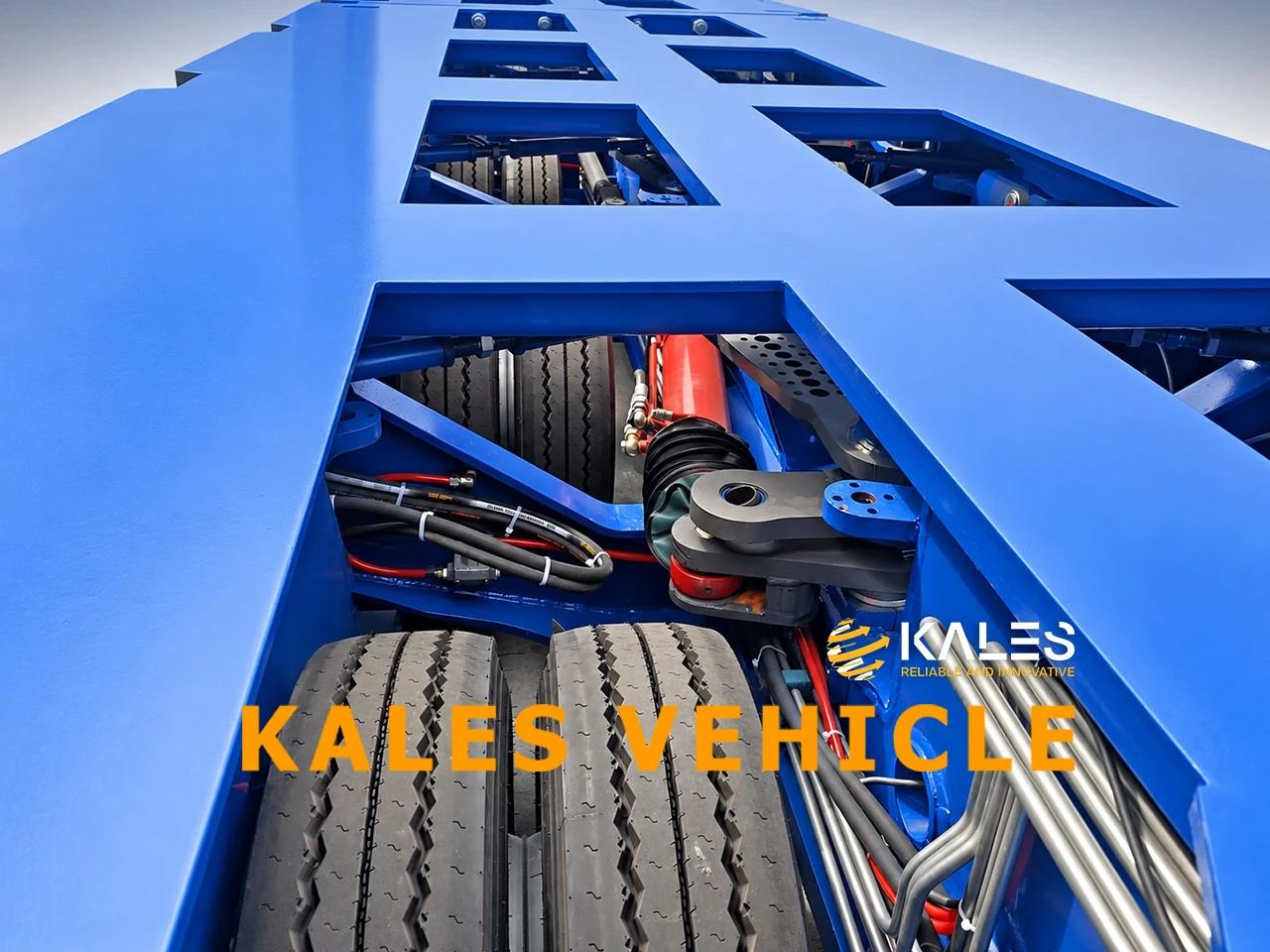

Steering Mechanics

• ±48° Steering Articulation: All 16 axle lines are steered via hydraulic cylinders and mechanical tierods configured to an optimized Ackermann steering geometry, cutting tire scrub, reducing rolling resistance, and eliminating dragging during tight radius turns.
• Dual-Mode Operation:
  1. Drawbar Follow-Up Steering: Mechanical movements from the prime mover towbar are converted into proportional hydraulic pressure that directs the steering linkages.
  2. Hydraulic Override / Manual Remote: An operator walking alongside or trailing in an escort vehicle can override the steering angle via cable pendant or radio remote to maneuver the rear bogie around tight obstacles.
• Redundant Hydraulic Safety: The steering circuit uses a dual-loop hydraulic layout. If one line encounters an unexpected pressure drop, the parallel backup circuit maintains tracking control, preventing jackknifing or runout.

4. Modular Configurations, Split Coupling & Interoperability

The KALES modular platform adapts to variable cargo geometries through standardized coupling interfaces and interchangeable modules.

Longitudinal Configuration (16 Axles in Line):
[Gooseneck] == [8-Axle Module] === (Flange + Lock-Pin) === [8-Axle Module]

Side-by-Side Configuration (Split 4-File Rig):
[8-Axle Module] || Coupling Links || [8-Axle Module]  --> 6,000mm+ Deck Width

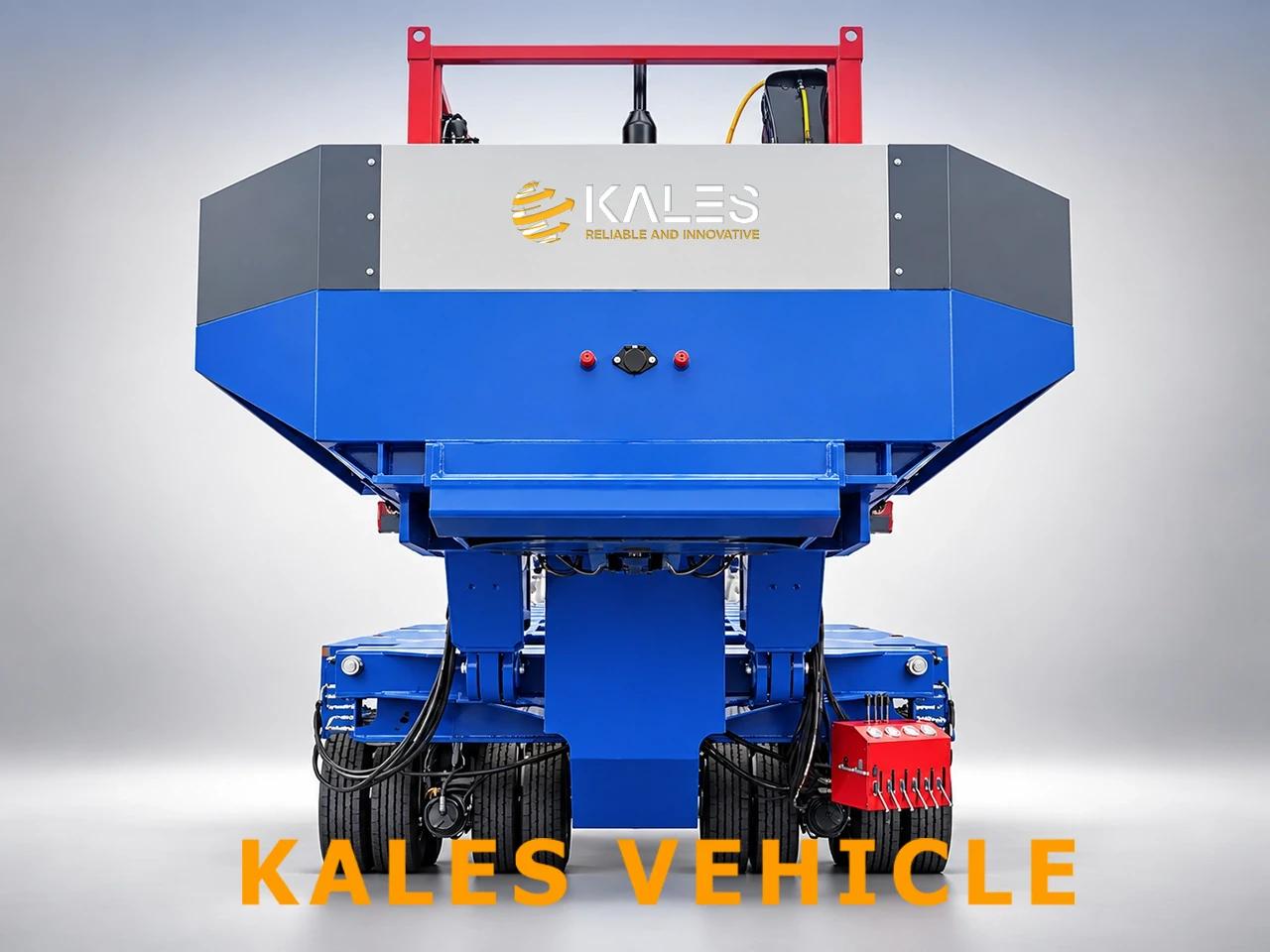

Coupling Mechanisms

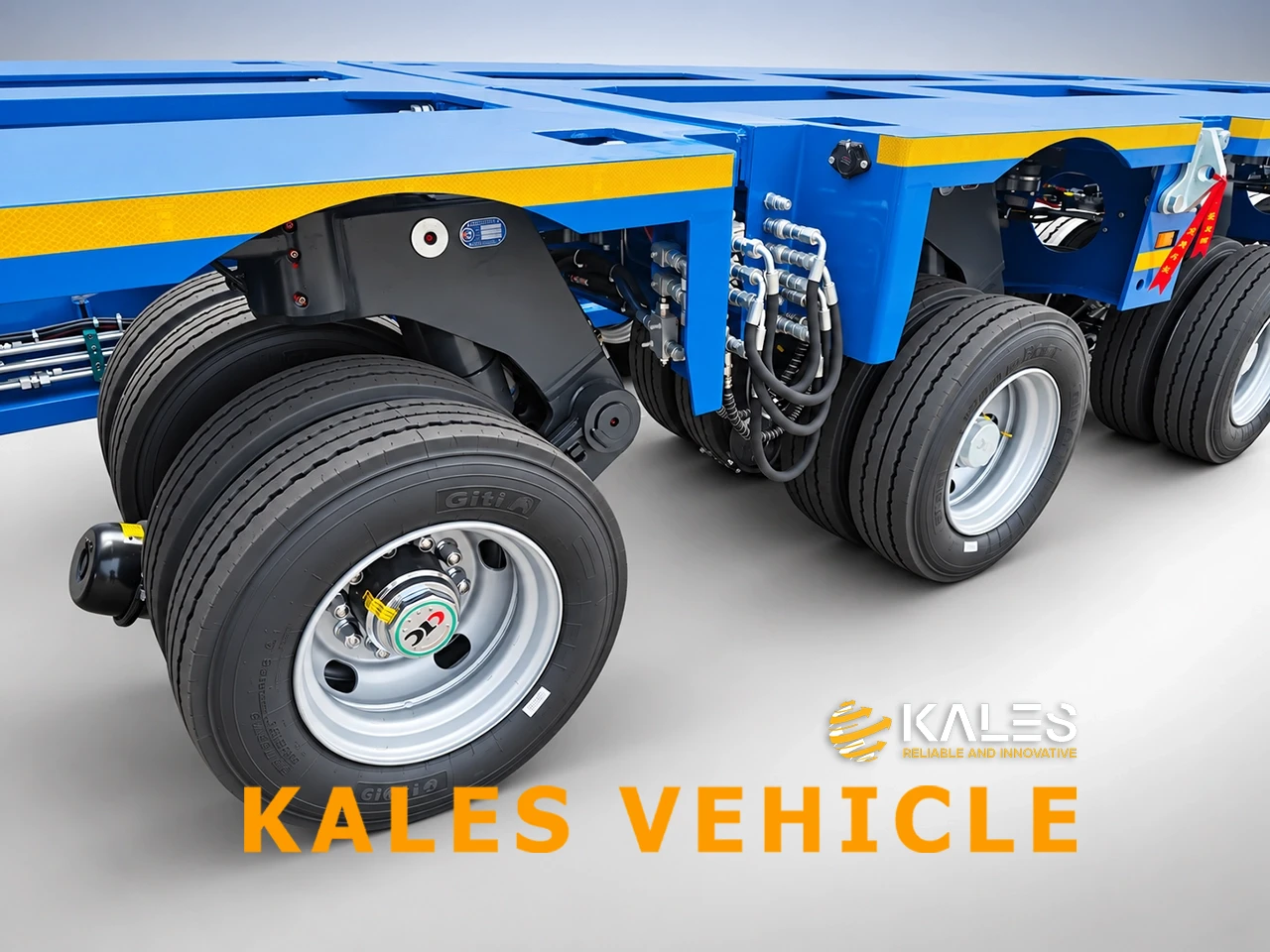

• Longitudinal Coupling: High-tensile hydraulic locking pins combined with heavy flange ears provide rapid, rigid coupling of trailer modules. Precision alignment pins ensure leak-free hydraulic and pneumatic connections.
• Transverse (Side-by-Side) Coupling: Modules connect side-by-side using intermediate spacer bars or direct tie-links, widening the platform to 6,000 mm or more to stabilize oversized structures such as precast bridge girders and offshore jackets.
• Nicolas & Goldhofer Compatibility: Fabricated to standard European coupling centerlines and matching hydraulic operating pressures (up to 350 bar), allowing seamless integration into existing fleets of Nicolas MDED/MDE or Goldhofer THP/SL modular bogies.

5. Industrial Application Profiles & Load Rigging Case Scenarios

Rigging Engineering Note

When securing tall cargo (such as a 350-ton chemical processing reactor), securing points must align directly with the main chassis crossmembers. The KALES 16-axle trailer features integrated heavy-duty lashing rings rated at 160 kN along the outer side raves, enabling multi-point chain securing that complies with international heavy-transport safety directives.

6. Operational Cost Optimization: Empty Return Stacking Strategy

For heavy haulage contractors, empty deadhead return trips erode project profit margins through unnecessary road tolls, excessive tire wear, and driver hours.

Loaded Outbound Leg:
[ Prime Mover ] ─── [ 16-Axle Trailer (34.6m Length) carrying 400t Transformer ]

Empty Return Leg (Cost-Saving Breakdown):
[ Prime Mover ] ─── [ Standard 3-Axle Flatbed / Lowbed Semi-Trailer ]
                           └── [ Stacked Module A (4 Axles) ]
                           └── [ Stacked Module B (4 Axles) ]

Return Leg Operational Benefits

1. Toll Reductions: Dismantling the 16-axle trailer into two 8-axle or four 4-axle units and stacking them onto a standard commercial flatbed reduces active axle counts, cutting highway toll fees by up to 60%.
2. Zero Return Tire Wear: Elevating 128 tires off the asphalt during deadhead legs extends tire service life by thousands of operating hours and prevents blowout risks.
3. PPU & Fuel Efficiency: Towing an unladen 80-ton empty modular combination consumes significant diesel fuel. Hauling dismantled modules on a standard flatbed cuts overall return-trip fuel consumption.

7. Quality Assurance, Factory Acceptance Testing (FAT) & Field Support

Every KALES modular trailer undergoes rigorous multi-stage quality assurance before dispatch to ensure zero-defect field reliability under mega-load conditions.

1) Non-Destructive Weld Examination (NDT)

All longitudinal and transverse butt welds on the Q690 main box beam undergo 100% Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI). Weld profiles must meet ISO 5817 Level B standards with zero tolerance for porosity or lack of fusion.

2) Pressure Endurance Testing

Prior to mounting the running gear, hydraulic circuits undergo a 24-hour static pressure holding test at 1.25× maximum operating pressure (up to 350 bar). Valve blocks from Bombey and fittings from Stucchi are verified for zero pressure drop across continuous duty cycles.

3) Surface Preparation & Marine-Grade Coating

• Abrasive Shot Blasting: Complete chassis structures are shot-blasted to SA 2.5 standard to remove all mill scale, rust, and surface oxidation.
• Corrosion Protection Coating:
  • 2× Epoxy zinc-rich primer coats (total dry film thickness ≥ 80 µm).
  • 2× Polyurethane aliphatic topcoats (total dry film thickness ≥ 60 µm).
  • Resistant to coastal salt spray, humid desert environments, acid rain, and harsh industrial washdowns.

4) Factory Acceptance Testing (FAT) Checklist

• Full-stroke hydraulic leveling and suspension oscillation verification (0 mm to 470 mm travel).
• Synchronized steering alignment and Ackermann angle validation under loaded simulation.
• Dual-line pneumatic brake timing, ABS response, and emergency park-lock verification.
• PPU engine output, pressure relief valve setting, and wireless emergency stop integration.
