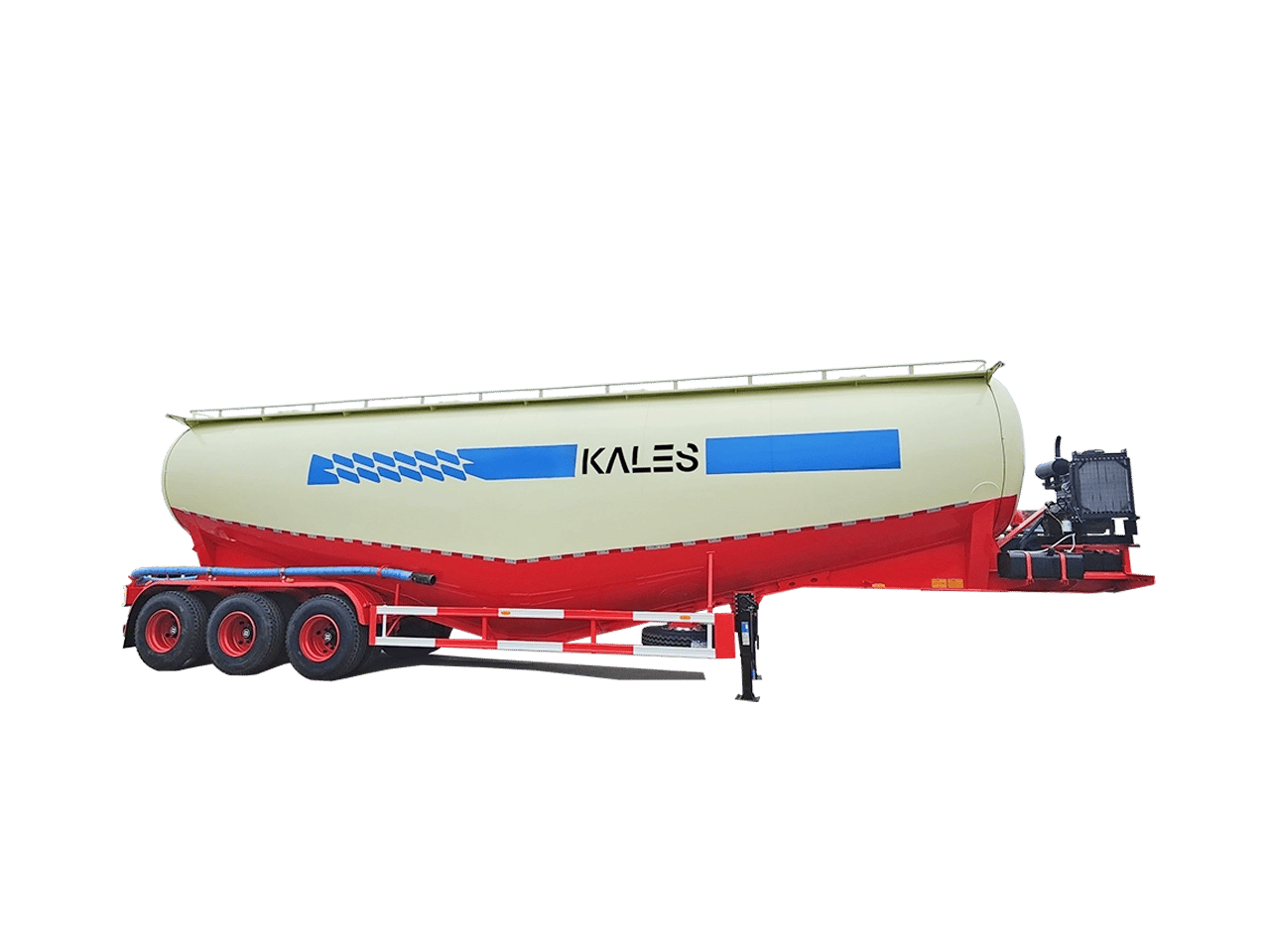

Kales 60 CBM / 63 CBM Bulk Powder Tanker Trailer for Africa
Key SpecificationsFactory Direct Spec
Trailer Type
tanker
Axles
3 axles
Payload
40
Road Matching
leaf spring
Quick answer: choose this 60 CBM bulk powder tanker trailer when your fleet needs a high-volume pneumatic dry-bulk configuration for compatible coal powder, fly ash, hydrated lime, bentonite, dry mortar, or similar light mineral powders. The represented build uses three heavy-duty axles, a 60 CBM effective / 63 m3 nominal tank class, a Weichai 4205 diesel engine, and a Bohai 14 m3/min twin-cylinder compressor reference package. For dense cement or higher-density minerals, confirm the legal payload and compare a smaller heavy-duty cement tanker before ordering.
Get Free Engineering Advice & Quote
✓ Direct technical consultation from factory engineers · Zero trader markup
🏭
Factory Direct Export
Zero trader markup
🛡️
Heavy-Duty Certified
ISO9001 / CCC / CIQ
🚢
Global Sea Freight
Container / Ro-Ro / Bulk
⚙️
Custom Engineering
Tailored configurations
Kales 60 CBM / 63 CBM bulk powder tanker trailer: this tri-axle pneumatic dry-bulk trailer is intended for fleets moving compatible low-density powders between plants, terminals, construction sites, power projects, and receiving silos. The reference configuration combines a high-tensile steel tank, mechanical leaf-spring running gear, and an independent Weichai engine with a Bohai air compressor unit.
The 60 m3-class tank is a volume choice, not a universal payload promise. The final load depends on cargo density, tank fill level, axle limits, tractor combination, route conditions, and the regulations of the destination country.
Technical Snapshot
The following values describe the represented reference configuration. Kales confirms the final specification against the cargo, tractor, route, destination, and agreed technical requirements.
| Product type | Kales KLS9400GFL tri-axle pneumatic dry bulk tanker semi-trailer |
|---|---|
| Tank capacity | 60 CBM effective volume / 63 m3 nominal volume class |
| Tank filling reference | Approximately 0.95 filling coefficient; final loading plan depends on cargo density and operating procedure |
| Gross vehicle weight | 40,000-50,000 kg configurable reference range |
| Tare weight | 11,860 kg +/- 2% reference value before final equipment confirmation |
| Payload range | Approximately 28,140-38,000 kg reference range; legal payload must be calculated from the final build, material density, and axle limits |
| Overall dimensions | Approximately 13,000 x 2,500 x 4,000 mm |
| Axles | 3 x 13-ton or 16-ton FUWA, BPW, or Kales axles according to the selected configuration |
| Suspension | Heavy-duty mechanical leaf spring suspension with reinforced equalizer components in the reference build |
| Tyres | 13R22.5 18PR tubeless tyres, with 12 road tyres plus spare-tyre provision in the reference arrangement |
| Kingpin | 2 inch (50#) or 3.5 inch (90#) JOST-type kingpin options |
| Landing gear | JOST or FUWA 28-ton two-speed manual landing gear options |
| Auxiliary engine | Weichai 4205 four-cylinder diesel engine reference package |
| Air compressor | Bohai 14 m3/min twin-cylinder compressor reference package; other compressor options can be reviewed |
| Working pressure | Approximately 0.20 MPa reference working pressure; pressure and testing requirements follow the final technical agreement |
| Fluidization layout | W-shape double-compartment fluidized-bed arrangement with approximately 19 degree incline reference |
| Discharge reference | Approximately 1.50 m3/min reference discharge rate under suitable cargo, pressure, hose, silo, and operating conditions |
| Discharge reach reference | Vertical 22-25 m and horizontal at least 5 m reference range; confirm against the receiving silo and piping layout |
| Configuration enquiry | Send the cargo, target payload, route, tractor, destination, and unloading conditions for detailed information and pricing |
Best-Fit Operating Profile
This dry bulk tanker is best suited to fleet operators, industrial logistics teams, power projects, mining suppliers, and infrastructure contractors that load compatible powders into a pneumatic tanker and unload into a receiving silo or enclosed transfer system.
Suitable cargo discussions
- Coal powder and dry fly ash where the density and cargo classification are confirmed
- Hydrated lime, bentonite, dry mortar, and light mineral powders compatible with pneumatic conveying
- Cross-border and regional dry-bulk routes where a three-axle platform is appropriate for the legal axle plan
- Plant-to-silo, terminal-to-project, and construction-material delivery programs
When to choose a different size
Dense cement and higher-density minerals can fill the legal payload before the tank volume is used. If the operation regularly handles dense cement, confirm the cargo density and compare the related 35 CBM or 40 CBM cement tanker options. The larger tank should not be treated as a reason to exceed legal axle or gross-mass limits.
Why Buyers Consider This 60 CBM Powder Tanker
- High-volume dry-bulk platform: the 60 CBM effective / 63 m3 nominal class gives fleets a larger powder-tank option than mainstream 35-40 CBM cement tankers when cargo density and route law allow it.
- Independent unloading package: the Weichai 4205 engine and Bohai compressor reference unit are intended for sites where the receiving operation cannot rely on a permanent external air source.
- Three-axle running gear: FUWA, BPW, or Kales axle options allow the final running gear to be matched to payload, route, workshop capability, and local parts planning.
- Practical service layout: the gallery shows the axle and leaf-spring area, landing gear, compressor package, gooseneck, rear lights, and underrun protection so buyers can review the represented equipment before requesting a quotation.
- Clear configuration boundaries: cargo density, legal payload, pressure, unloading height, tractor matching, and destination requirements remain explicit parts of the final specification review.
Engineering and Serviceability Details
Tank and fluidization arrangement
The reference tank uses a T700L high-tensile steel structure and a W-shape double-compartment fluidized-bed arrangement. The fluidization bed is the part that receives compressed air and helps compatible powders move toward the discharge outlet. Material moisture, particle condition, pressure, hose length, elevation, receiving-silo back pressure, and operator procedure all affect the result.
Engine and compressor package
The independent Weichai 4205 diesel engine and Bohai 14 m3/min twin-cylinder compressor are shown as a reference unloading package. A different engine, compressor capacity, or tractor-driven arrangement can be reviewed when the site has a verified air source or when the buyer has a specific maintenance and parts plan.
Axles, suspension, and tyre decisions
Three axles with mechanical leaf springs provide a conventional running-gear direction for buyers comparing durability, maintenance access, and route suitability. The final axle rating, spring pack, tyre load index, brake equipment, kingpin, and landing gear must be matched to the tractor, legal axle plan, road conditions, and replacement-part availability.
Safety and operating checks
Pressure relief, grounding, lighting, rear underrun protection, hose routing, manhole access, and operator walkways should be reviewed against the cargo classification and destination requirements. Powder properties can change the safety package, so the final operating instructions and equipment selection should be confirmed before production.
Configuration options
| System | Reference options | Buyer decision |
|---|---|---|
| Compressor | Bohai, Tiancheng, or Fuda 10-14 m3/min range | Match air delivery to cargo, hose, silo, discharge height, and maintenance plan |
| Axles | FUWA, BPW, SAF, or Kales subject to final quotation | Choose against legal axle load, workshop capability, and parts access |
| Suspension | Mechanical leaf spring or air suspension with front lift where available | Compare rough-road serviceability, cargo protection, tyre wear, and route quality |
| Manholes | Aluminium alloy quick-opening or pressure-rated steel cover options | Confirm sealing, access, material compatibility, and operating procedure |
| PTO arrangement | Tractor PTO-driven compressor in place of an auxiliary engine where suitable | Check tractor PTO capability, site workflow, and the weight/configuration effect |
How is the final quotation confirmed?
Kales confirms the detailed configuration and pricing after reviewing the powder type and density, target payload, receiving silo, unloading height and distance, tractor model, axle and suspension preference, destination, order quantity, and delivery terms.
Inspection Views and Component Details
The following images are the supplied product and component views. Their existing WordPress media alt text has been preserved for accessibility and image search context.
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
What materials can this 60 CBM powder tanker transport?+
The reference use cases include coal powder, dry fly ash, hydrated lime, bentonite, dry mortar, and light mineral powders that are compatible with pneumatic conveying. Confirm the cargo density, moisture, particle properties, and safety classification before finalizing the tank and unloading system.
Can it carry a full 60 CBM load of cement?+
Not necessarily. Dense cement can reach the legal payload limit before the tank is full. Calculate the actual load from density, tare, axle rating, tractor combination, and destination regulations. A smaller 35-40 CBM cement tanker may be the better fit for frequent dense cement routes.
Does the trailer include its own compressor?+
The represented configuration includes a Weichai 4205 diesel engine and Bohai 14 m3/min compressor reference package. A tractor PTO or site-air configuration can be reviewed when the receiving system and operating procedure have been checked.
What should be confirmed for African routes?+
Confirm legal axle and gross-mass limits, road surface and gradients, tractor fifth-wheel compatibility, tyre supply, preferred axle brand, suspension service capability, destination customs requirements, and the receiving silo connection before ordering.
How do I get detailed information and pricing?+
Send the powder type and density, target payload, unloading height and distance, silo connection, tractor model, destination, order quantity, and preferred delivery term. Kales will use those details to confirm the configuration and prepare pricing.
Request Detailed Information and Pricing
Tell Kales what you plan to carry, where the trailer will operate, how it will unload, and which tractor and axle configuration you prefer. The export team can then confirm the technical scope, available options, delivery terms, and price for your application.
- Request details: cargo type and density, target payload, unloading conditions, destination, tractor model, order quantity, and delivery term
