Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Built to Last. Priced to Win
The “King of Africa” | T700 High-Strength Steel | Multi-Purpose Cargo Transport
One Trailer. Two Uses. Maximum Profit.

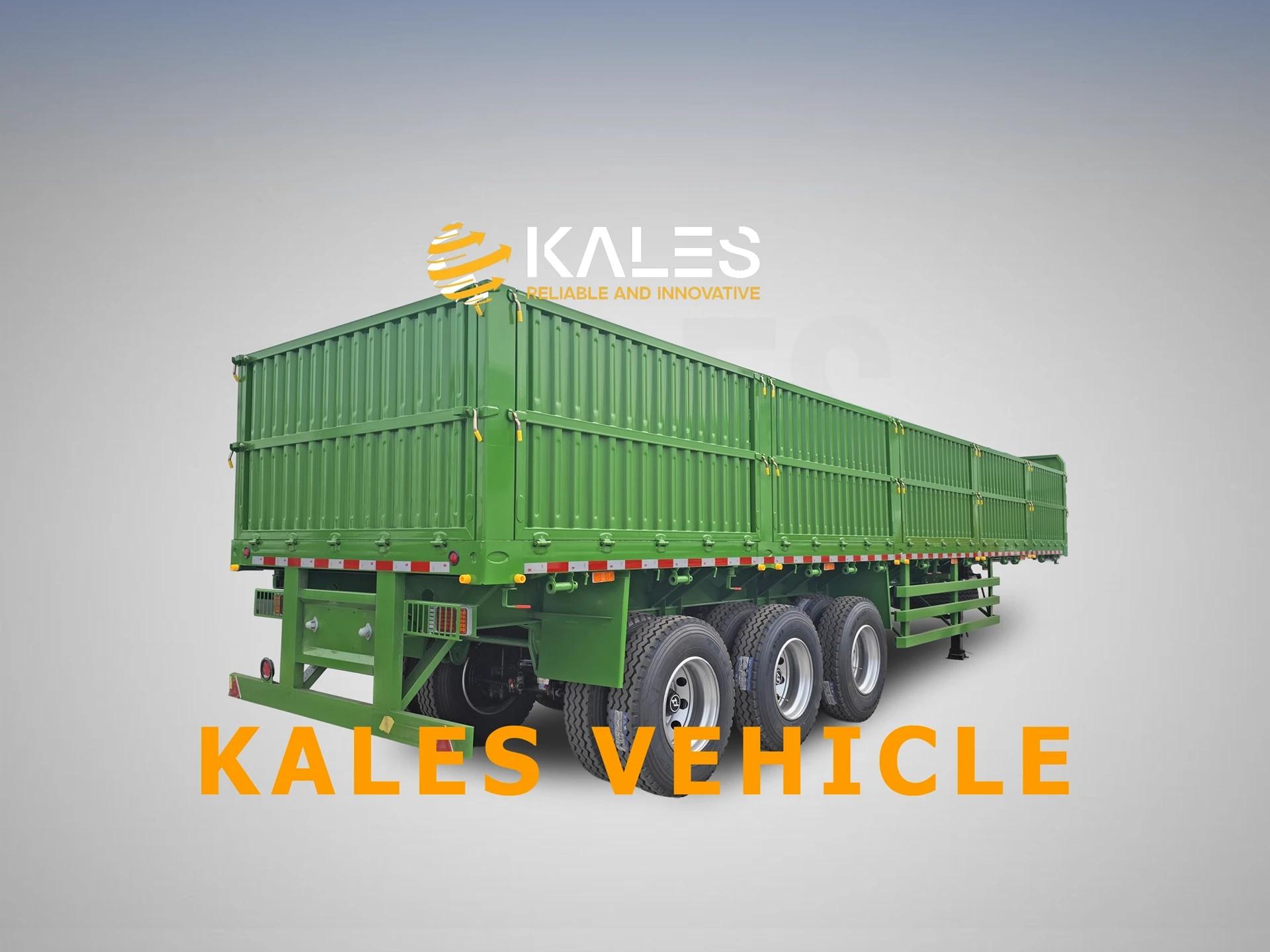

Applications: Bulk Cargo (Cement/Grain) & ISO Containers (20ft/40ft)What is a Side Wall Semi Trailer? A 3-axle side wall semi trailer (also known as a drop side trailer) is a heavy-duty, multi-purpose transport vehicle designed with a 60-ton payload capacity and removable side panels. Manufactured with T700 high-strength steel, it is engineered specifically for African road conditions to transport bulk cargo, bagged cement, and ISO containers safely.

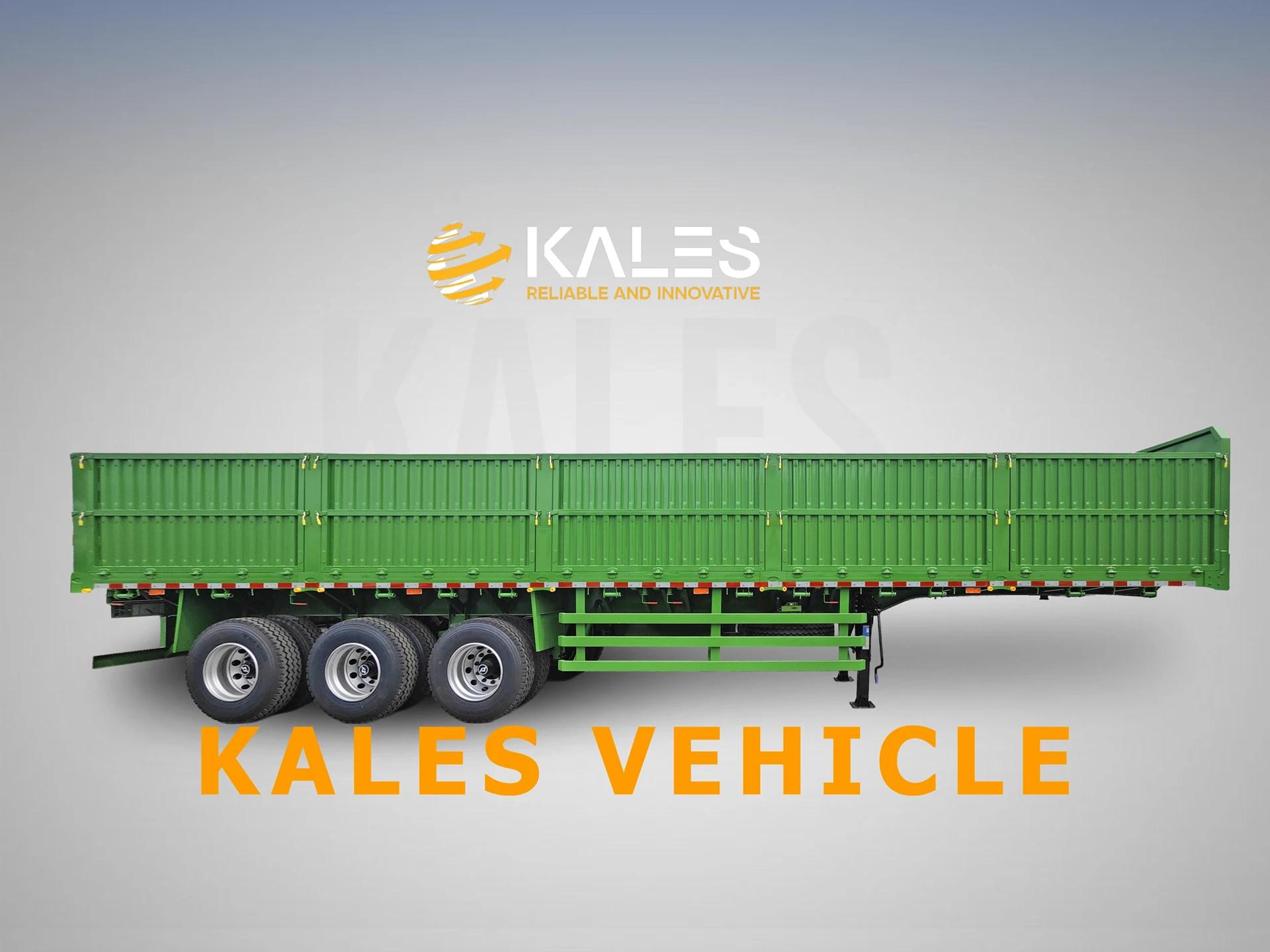

*Heavy Duty 60 Ton Side Wall Trailer – Customizable Height & Length*
🚀 Why is this the Best-Selling 3-Axle Trailer in Africa?
Kales understands that road conditions in Africa can be extremely tough. That’s why we don’t just build trailers; we build heavy-duty tanks. Our 3-Axle Side Wall Semi Trailer combines massive load capacity with incredible versatility, making it the top choice for logistics companies moving cement, grain, steel, and containers.
💎 T700 High-Strength Steel
We refuse to use common Q345 steel. Our main beams are manufactured using T700 High-Strength Steel, which offers superior yield strength and resistance to bending, ensuring the chassis lasts for decades under 60-ton loads.
🔄 2-in-1 Versatility
Equipped with 12 Container Twist Locks and removable side walls. Use it as a cargo trailer for bulk goods, or completely remove the drop sides to function as a flatbed trailer for 20ft/40ft shipping containers.
🐘 Reinforced for Overloading
The mechanical suspension is heavily thickened, and the bottom platform is reinforced with 3mm checkered steel. Even on rough off-road terrain, the chassis remains stable without deformation.
📷 Built for Heavy Duty Work
Removable Side Walls
(Easy Forklift Access)Thickened Suspension
(Designed for African Roads)Auto Submerged Arc Welding
(No rust, No cracks)🏗️ Applications: One Trailer, Many Jobs
Maximize your return on investment with a trailer that adapts to your daily cargo requirements.
- ✅ Bulk Cargo Transport: The drop-side structure is ideally suited for transporting bagged cement, agricultural grain, animal feed, and steel coils securely.
- ✅ Container Logistics: To transport ISO containers, simply remove the side panels and utilize the 12 integrated twist locks to carry one 40ft container or two 20ft containers safely.
🔧 Technical Specifications
Category Specification Details Product Name 3-Axle Side Wall Semi Trailer (Drop Side Trailer) Payload Capacity 60 Tons (Heavy Duty Rating) Overall Dimensions 12,500 x 2,500 x 2,200 mm (Customizable upon request) Main Beam Material T700 High Strength Steel
Top Plate: 14mm | Middle: 8mm | Bottom: 16mm
Process: Automatic Submerged Arc WeldingSide Beam Structure 16# Heavy Duty Channel Steel Platform Floor 3mm Reinforced Checkered/Diamond Plate Axles 3 x 13T/16T FUWA Axles (BPW / SAF Optional) Suspension System Thickened Mechanical Suspension designed for rough off-road terrain Leaf Springs Heavy Duty Specification: 90mm(W) × 13mm(T) × 10 Layers Tires & Rims Tires: 12R22.5 (12 pieces)
Rims: Steel 9.00×22.5 (12 pieces)Landing Gear Standard 28 Ton Linkage Type (JOST Optional) Braking System Dual Circuit Braking System with emergency relay valve (ABS/EBS Optional) Paint Coating Polyurethane Paint (Double Component for rust prevention) Accessories included Spare Tire Carriers (x2), Standard Tool Box (x1), 12 Twist Locks 🤝
Kales Promise: Quality or Compensation
We are a direct manufacturer, not a trading company. We protect your investment.
- ✔
10x Compensation Guarantee:
We use only brand new, original parts. If any counterfeit part is found on our trailer, we will compensate you 10 times its value. - ✔
Factory Direct Price:
There is no middleman. You get the lowest wholesale price directly from our manufacturing line, ensuring your best ROI. - ✔
Lifetime Technical Support:
We provide perfect pre-sales and after-sales service. Our 90+ patents and 12 years of export experience are at your service.
❓ Frequently Asked Questions (FAQ)
Q: What customization options do you offer for the side wall trailer?
A: Kales Vehicle offers full structural customization to suit your local transport needs.
- Side Wall Height: The standard height is 600mm/800mm, but we can customize it up to 1000mm or add upper fence extensions for bulkier cargo.
- Axles & Tires: You can select premium brands like FUWA, BPW, or SAF. Tires can be tubeless or radial, such as Triangle brand.
- Color & Logo: We provide free polyurethane painting customization and logo printing to match your corporate fleet branding.
Q: How do you ship the trailers to save on freight costs?
A: We offer two highly cost-effective shipping methods to reduce ocean freight fees:
1. Stacking Method (Bulk Ship): We bolt and stack 3 trailers together as a single bundle, which drastically reduces the shipping volume and freight fees to African ports.
2. Container Shipment: For specific models, we can design the rear chassis part to be bolted so that the entire trailer fits inside a 40ft HQ container, offering the lowest possible shipping rate.Q: Why is T700 steel better than standard Q345 steel?
A: T700 high-strength steel is vastly superior to standard Q345 because it offers a significantly higher yield strength. This allows the side wall trailer to carry extreme heavy loads (up to 60 Tons) without the main beam bending or fracturing, making the chassis far more durable for long-term use on rough roads.Q: What is the production delivery time for this trailer?
A: The standard production time for our side wall trailers is between 10 to 15 working days. For fully customized fleet orders, the manufacturing process usually takes about 20 days, ensuring fast delivery for your logistics projects.Q: What are your accepted payment terms?
A: Our standard payment term is T/T (30% deposit to start production, and the 70% balance paid after production is finished and video/photos are verified). We also accept L/C (Letter of Credit) for large volume orders.60% of Our Customers Buy Again. Find Out Why.
20 Years Experience. 90+ Patents. Premium Quality.
Factory Direct Sales = Lower Price + Better Quality
0 comments
Related Products
Frequently Asked Questions
Can you customize the trailer design according to my requirements?
Yes, absolutely. As a manufacturer, we have a professional engineering team. We can customize the dimensions, loading capacity (e.g., 60 tons, 80 tons), axle brand (FUWA/BPW), suspension type, and paint color to suit your specific road conditions and transport needs.
What material do you use for the main beam?
We use high-strength Q355 or T700 steel for the main beam. This ensures the trailer is lightweight yet strong enough to withstand heavy loads and rough road conditions in Africa and Central Asia.
What is your production time?
Standard models usually take 15-20 working days after receiving the deposit. For urgent orders, we can even shorten it to 10 days. We will keep you updated with photos and videos during production.
What are your payment terms?
Our standard term is T/T (30% deposit, 70% balance before shipping). For large orders, L/C (Letter of Credit) is also negotiable.
Do you provide a warranty?
Yes, we provide a 24-month warranty for the main beam. For spare parts (like brake pads, lights), we supply original parts at factory cost for the lifetime of the trailer.
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Container Shipping
Container loading of Kales semi trailer for export, ensuring secure fastening and space optimization.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
