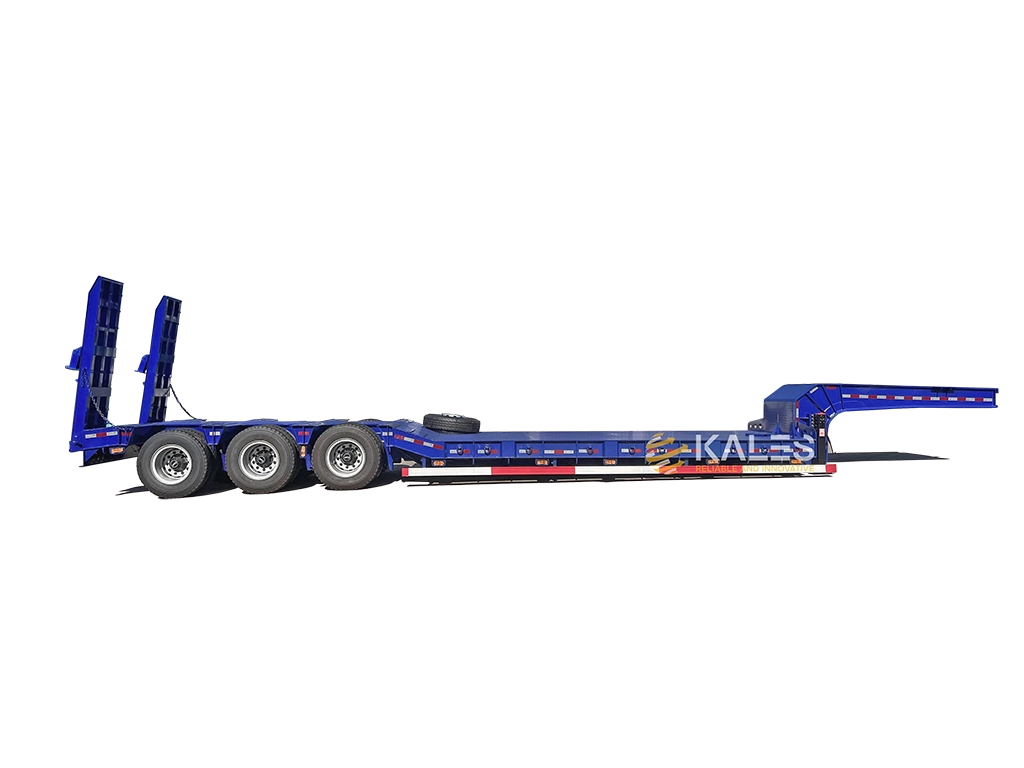

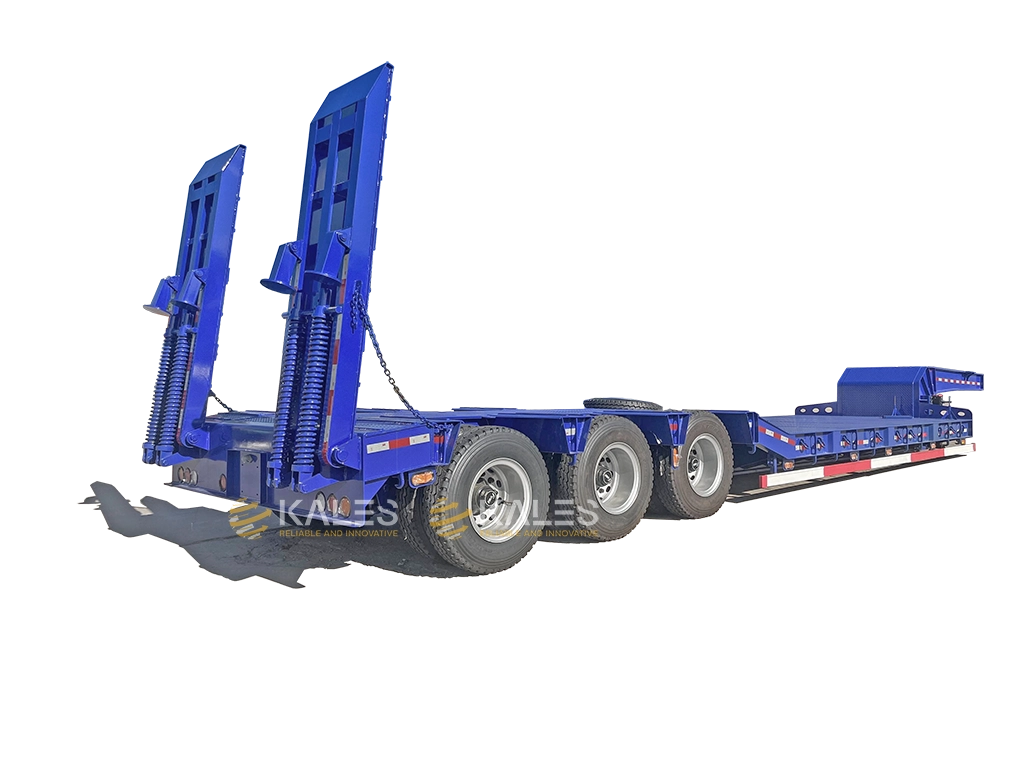

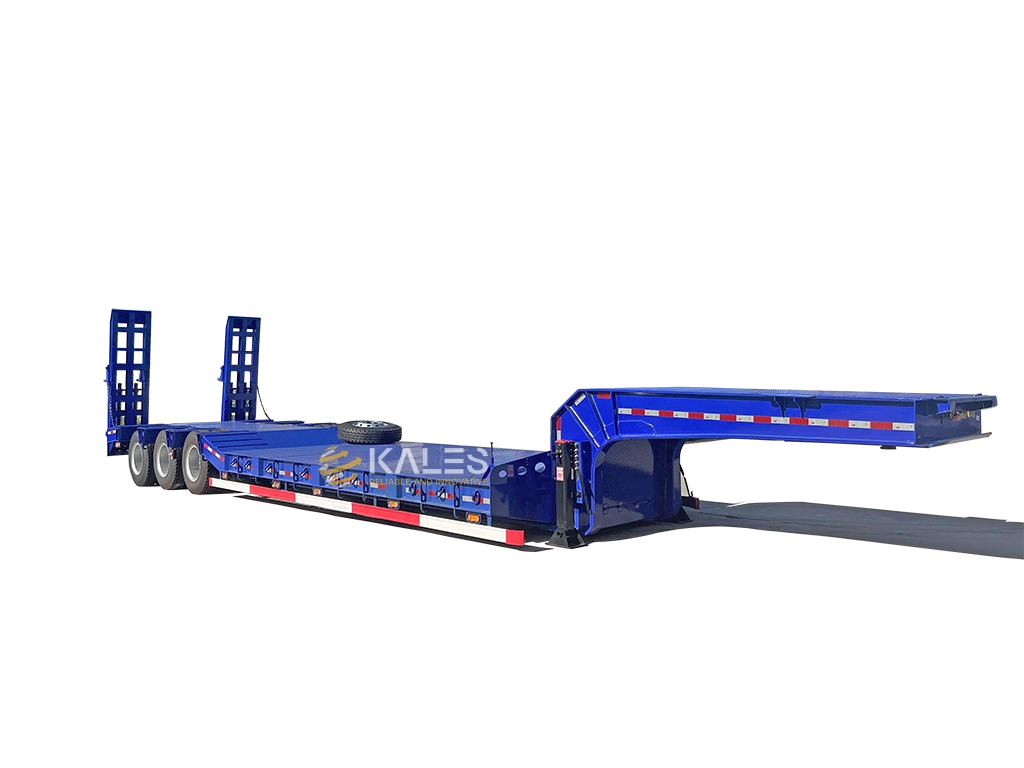

50 Ton Lowbed Trailer with Ladder Ramps
Quick answer: Choose this 50 ton lowbed trailer with ladder ramps when your daily work is loading standard machinery from the rear and you want a practical 3 axle, fixed-deck, serviceable platform with a published reference Offer price of USD 11,000. Move up to the nearby 80 ton, extendable, RGN, or 150 ton pages only when the route, cargo length, front-loading method, or gross project weight actually requires them.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
50 ton lowbed trailer with ladder ramps: this Kales fixed-deck 3 axle lowbed is built for buyers who need a straightforward machinery transporter for excavators, wheel loaders, bulldozers, and similar equipment without stepping into extendable decks, detachable goosenecks, or ultra-heavy project-haul pricing.
Technical buying guidance from the Kales Vehicle lowbed team for fleets comparing standard ladder-ramp lowbeds against 80 ton, extendable, and detachable-gooseneck alternatives.
Technical Snapshot
| Product type | Fixed-deck 3 axle lowbed semi trailer with rear ladder ramps |
|---|---|
| Payload class | Practical 50 ton class, with a published reference maximum payload of 50 tons |
| Outside dimensions | 13,000 x 3,000 x 2,950 mm, with final dimensions confirmed on approved drawings |
| Curb weight | 11.5 tons |
| Main beam | Q345B welded I-section, 520 mm beam depth, 20 mm upper flange, 20 mm lower flange, 12 mm web |
| Deck plate | 5 mm anti-slip chequer plate |

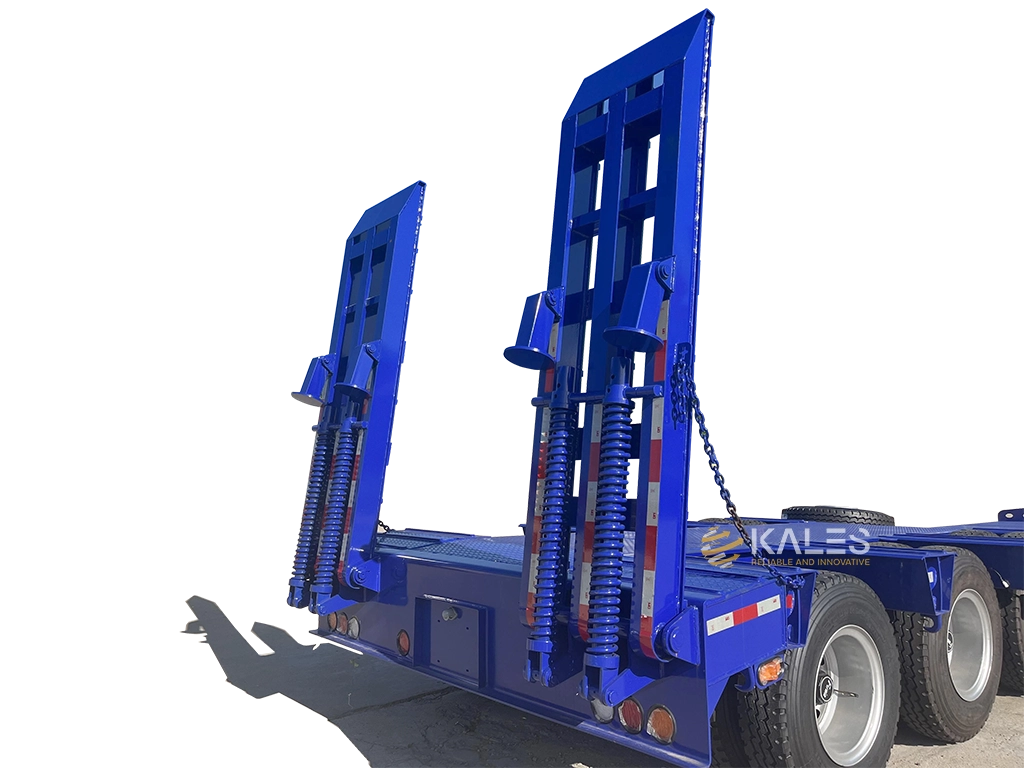

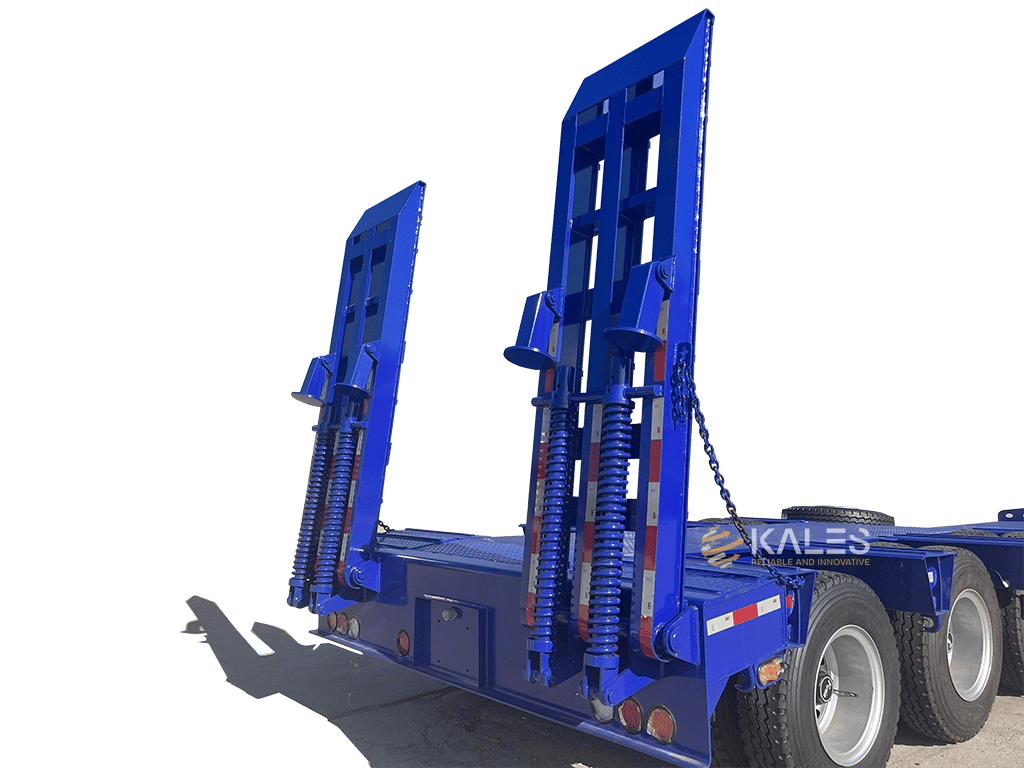

| Loading ramps | Two spring steel rear ladders in Q345B steel |

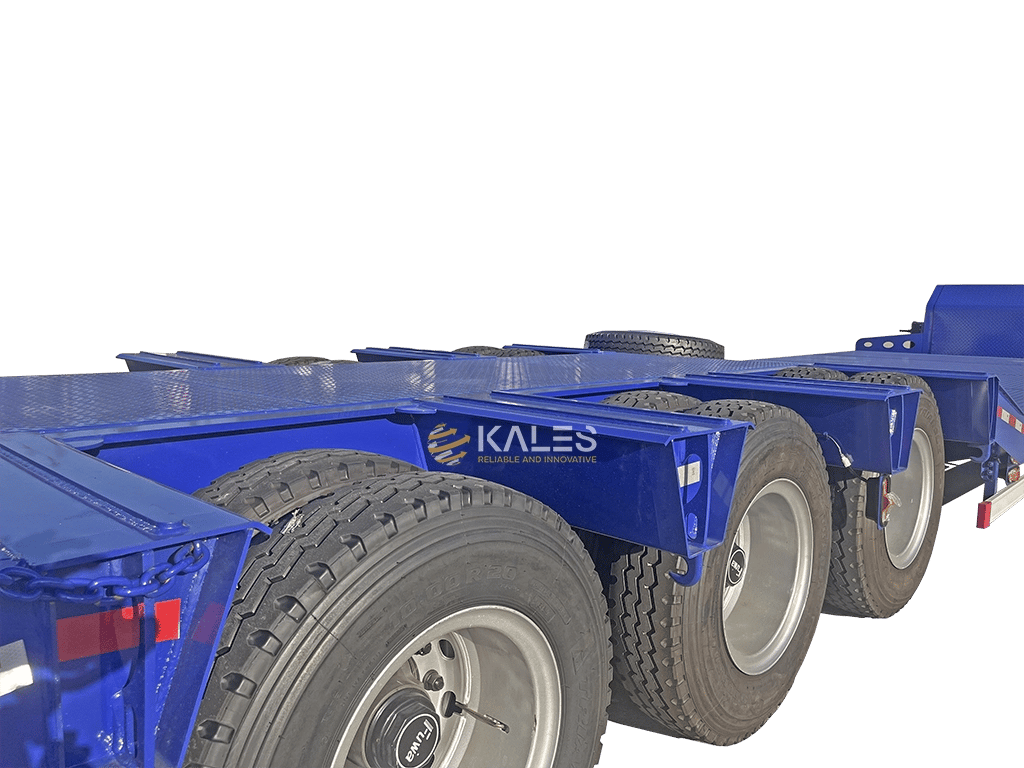

| Axles | 3 x 13T FUWA axles |

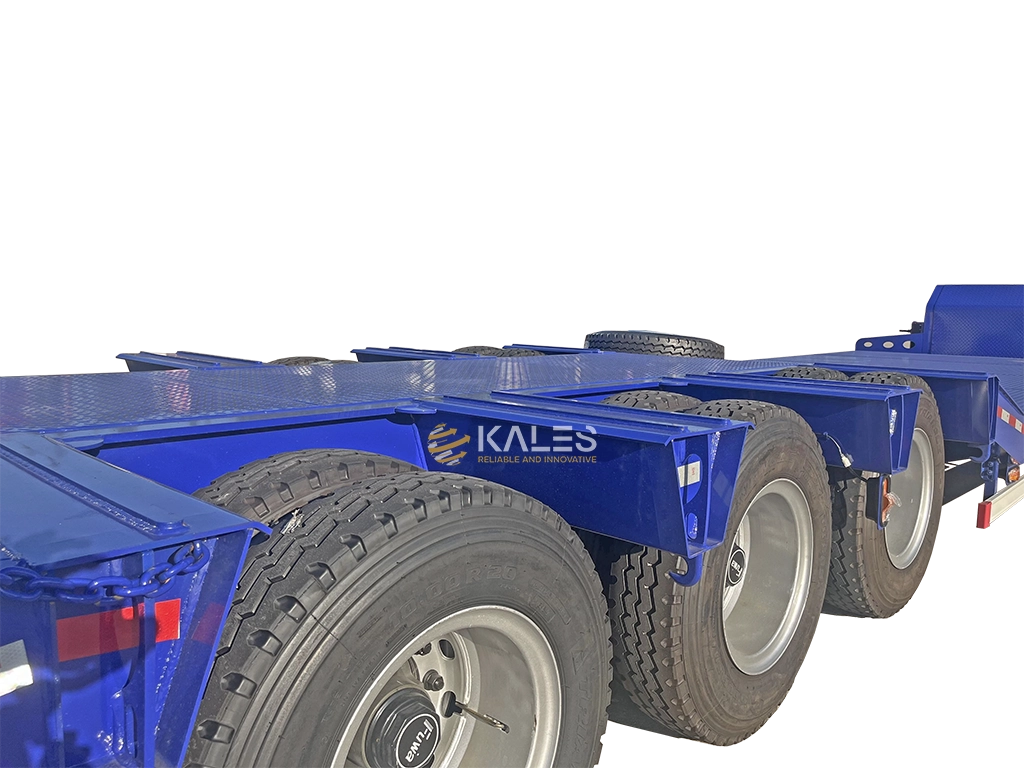

| Suspension | Heavy-duty undermount suspension with equalizers, American-style, 10-leaf high-strength pack |

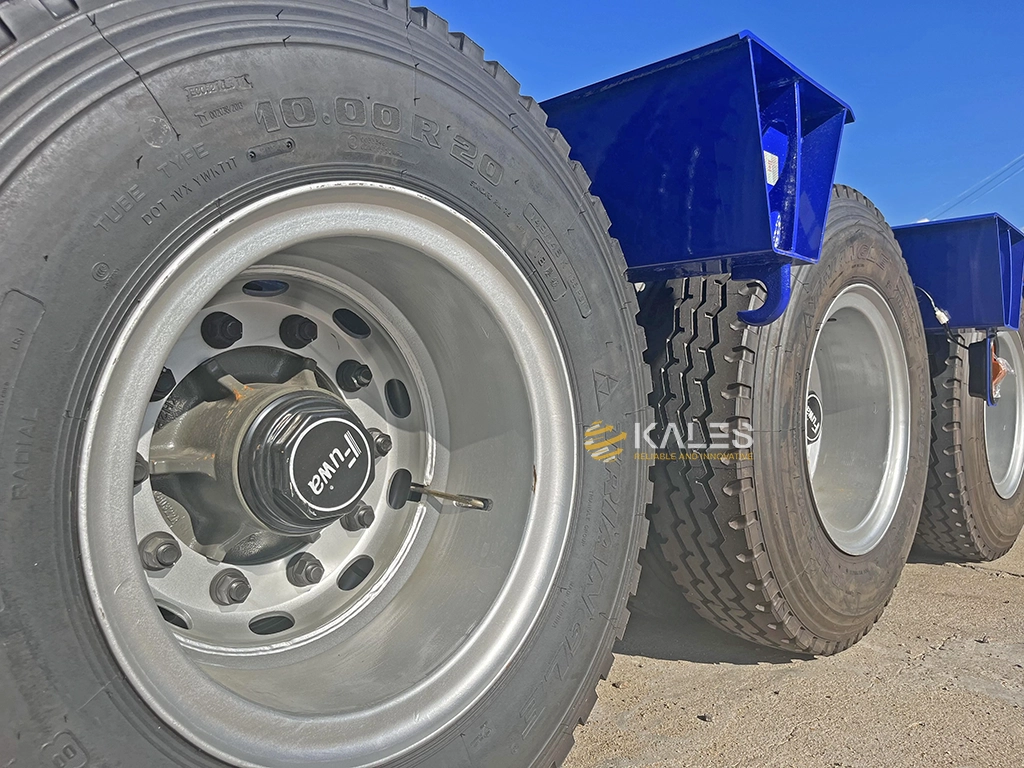

| Tires | 10R20 tires, 12 road wheels plus 1 spare |
| Brake system | WABCO relay valve, four double and two single brake chambers, ISO copper air connectors |
| Electrical | 24V system, 7-pin ISO 1185 socket, LED lights |

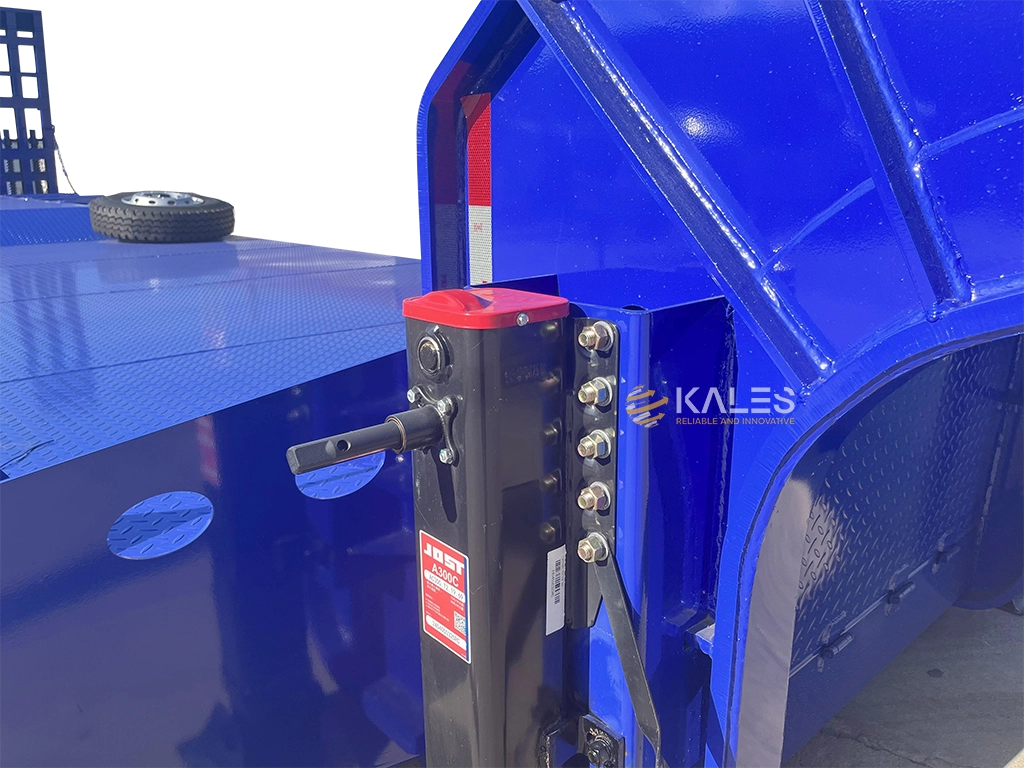

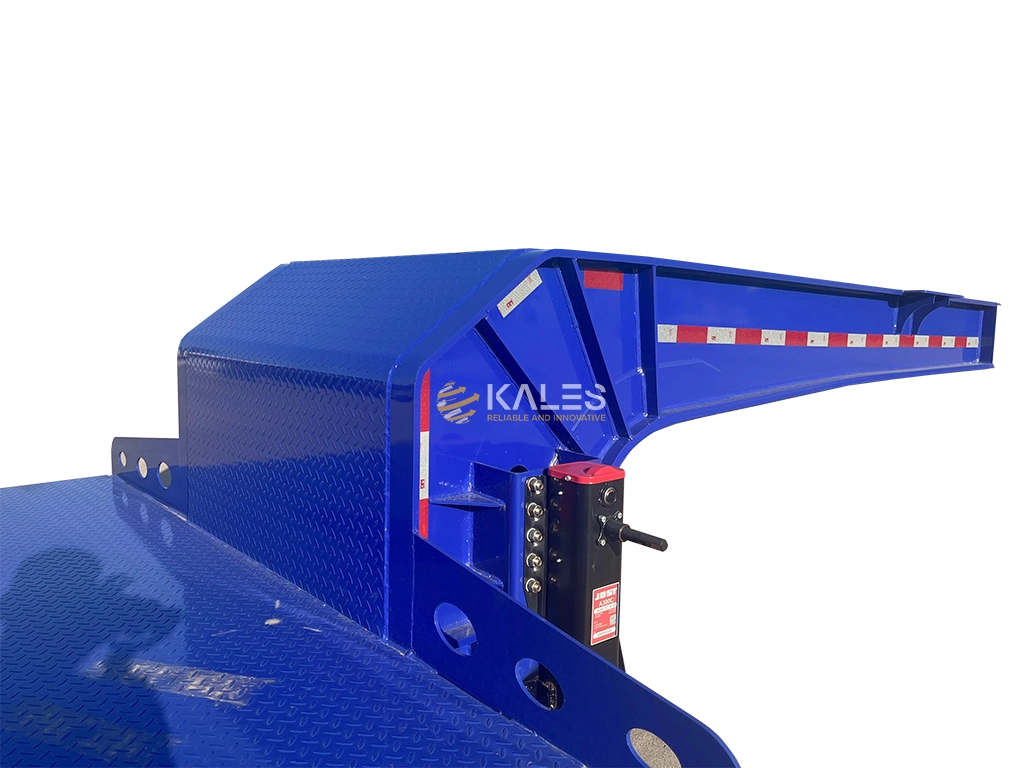

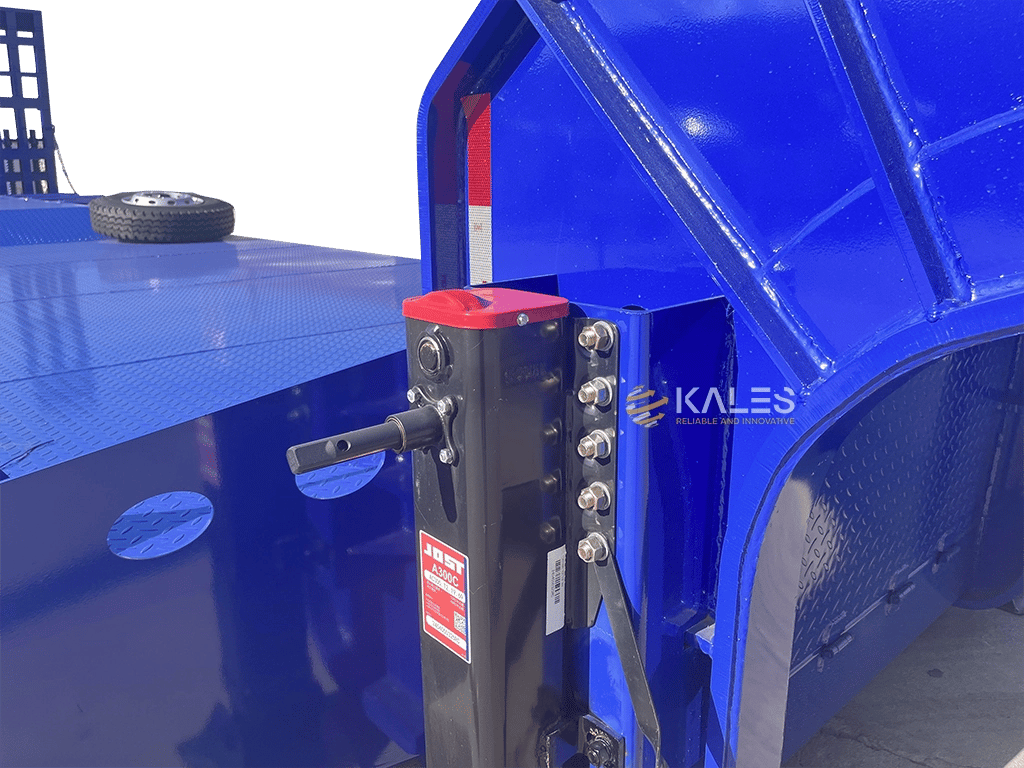

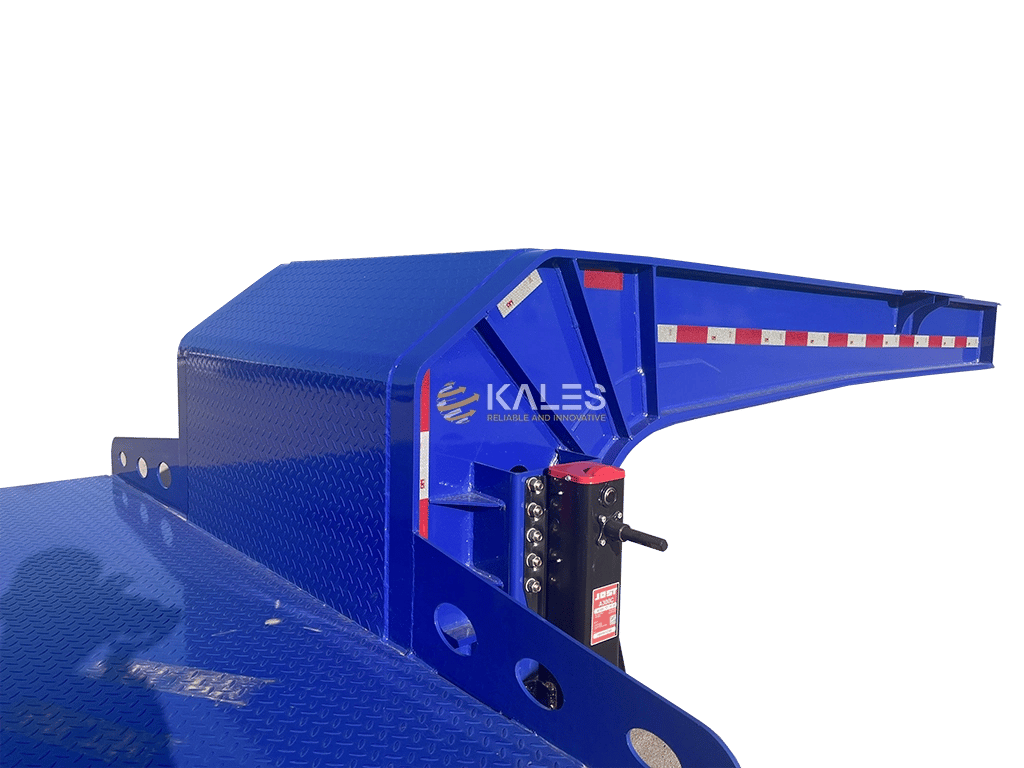

| King pin and legs | JOST bolting king pin with manual landing legs |
| Published offer structure | Fixed Offer reference at USD 11,000 for the standard ladder-ramp build |
Best Fit Operating Profile
This 50 ton lowbed trailer is the right fit when the buyer moves standard machinery regularly enough to need a dedicated lowbed, but does not need the higher payload, longer deck, front-loading method, or oversized-project structure of the heavier nearby models. It suits contractors, machinery rental fleets, quarry support teams, and public-works operators that want a dependable rear-loading lowbed with lower commercial and maintenance complexity.
Best for
- Excavators, wheel loaders, small to mid-size bulldozers, rollers, and similar machines that can load from rear ladders
- Contractor fleets moving equipment between yard, port, jobsite, and regional project corridors
- Buyers who want a published fixed-price starting point instead of a range-based special-project quotation
- Operators who value standard components, simpler service logic, and practical machine hauling over specialized heavy-haul features
Not ideal for
- Long cargo such as pipes, beams, poles, or large structures that need an extendable deck
- Tracked machines that must front-load through a detachable gooseneck workflow
- Transformers, ultra-wide cargo, or very high gross project loads that belong on 8-axle heavy-haul equipment
- Buyers whose real requirement starts above the practical 50 ton fixed-deck class
Why Buyers Choose This 50 Ton Ladder-Ramp Lowbed
- Clear use case: a fixed-deck machinery trailer for excavators, loaders, bulldozers, and compact project equipment that can load from the rear by spring ladders.
- Cost discipline: this page stays aligned with a published fixed-price Offer instead of a range-based heavy-haul quotation model.
- Serviceable layout: 3 x 13T FUWA axles, American-style heavy-duty suspension, mainstream WABCO braking, and JOST running hardware keep maintenance straightforward.
- Practical structure: Q345B welded main beam, 5 mm chequer plate deck, and spring steel ladders match standard contractor and rental-fleet work.
- Better fit than larger lowbeds: buyers do not pay for deck extension, detachable gooseneck complexity, or 8-axle project-haul structure when the machine profile does not need it.
Where This Product Sits in the Kales Lowbed Lineup
| Model path | Choose it when | Move on when |
|---|---|---|
| This 50 ton ladder-ramp lowbed | You need a fixed-deck machine trailer for standard excavators and loaders with rear ladder loading and a published fixed Offer price | You need more payload, more deck length, front loading, or ultra-heavy project structure |
| 80 Ton Lowbed Trailer for Africa | You need a heavier 3 axle Africa-oriented platform for larger machines and rougher mixed-route work | Your machine fleet still fits a simpler 50 ton ladder-ramp trailer |
| 5 Axle Extendable Lowbed Trailer | The main problem is cargo length, width flexibility, or long-wheelbase support | The work is mostly standard machinery, not long project cargo |
| 80 Ton Telescopic RGN Lowbed Trailer | You need front loading, detachable gooseneck access, or more specialized oversized haul logic | Rear ladders are enough and you want lower acquisition complexity |
| 150 Ton 8-Axle Lowbed Trailer with Detachable Gooseneck | The job is extra-heavy project cargo such as transformers or ultra-wide industrial components | The actual work remains standard machinery transport |
Why Ladder Ramps Still Matter in Real Fleet Use
Many buyers do not need a detachable neck to move machines efficiently. For daily fleet work, rear spring ladders remain the simpler answer when the machine profile can load from the back without abnormal approach issues. This keeps the trailer easier to buy, easier to maintain, and easier to deploy across contractor routes that do not justify a more specialized RGN structure.
Structure and Running Gear Buyers Should Actually Check
The published build uses a Q345B welded main beam with 520 mm depth, 20 mm top and bottom flange thickness, and a 12 mm web. That is the right place to focus, because lowbed value comes from beam section integrity, ramp usability, axle durability, and suspension support under concentrated machine loads, not from inflated brochure claims.
The running gear package also stays grounded in service reality: 3 x 13T FUWA axles, heavy-duty American-style suspension with equalizers, WABCO relay valve braking, and JOST king pin hardware. Buyers who work across construction, quarry, and rental-fleet routes usually benefit more from serviceable mainstream components than from moving into a more complex special-haul system too early.
Commercial Guidance and Fixed-Price Alignment
The current schema for this page is a fixed Offer at USD 11,000 for the standard ladder-ramp reference configuration. That is the correct commercial signal for this product cluster: a published entry point for a defined machine-hauling lowbed, not an open-ended AggregateOffer like the extendable, RGN, or 150 ton project platforms.
Custom changes such as branding, dimension adjustments, or optional ABS should still be confirmed before production, but the page should continue to read like a defined reference model with a real base offer rather than a vague special-project placeholder.

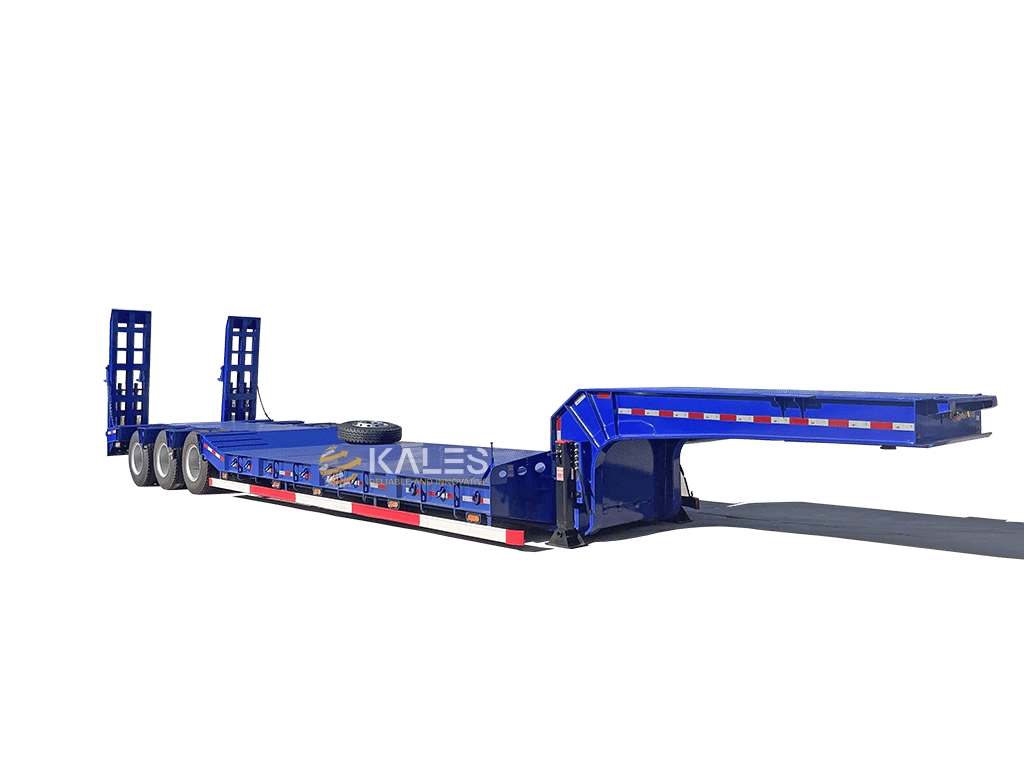

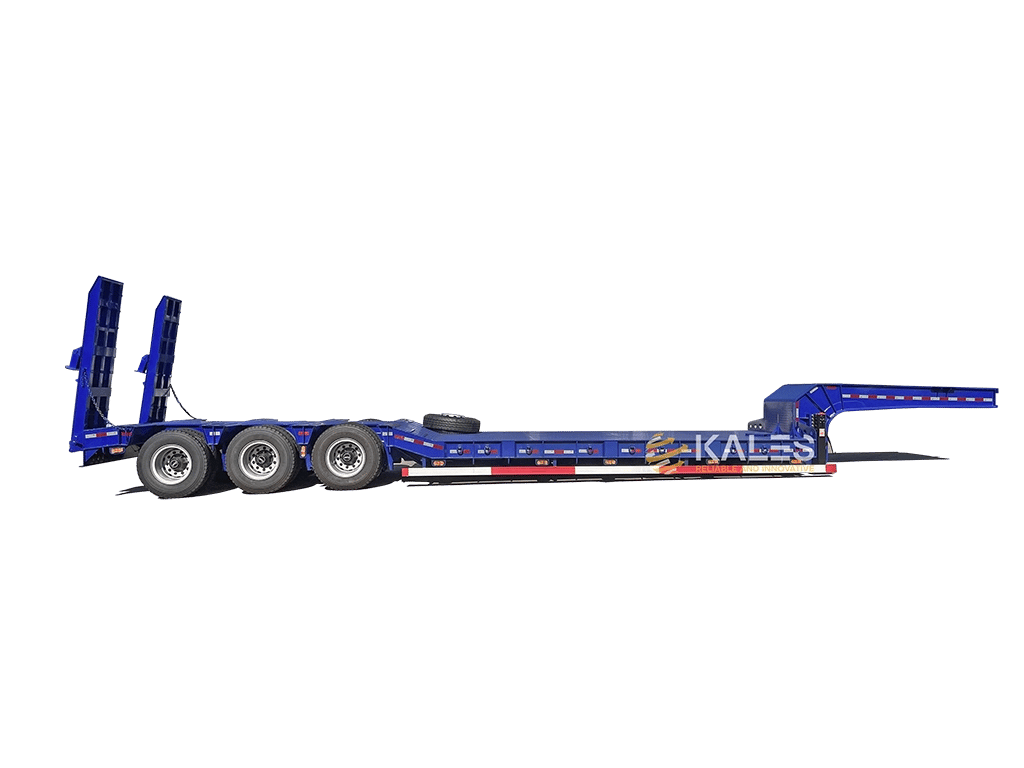

Factory Images and Inspection Views
Built for your market
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Export shipping made practical
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality checks and after-sales
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
How the order moves
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Export shipping options
At Kales Vehicle, we keep freight planning practical so your trailer or truck reaches the destination with the right balance of protection, speed, and cost.
Container Shipping, Ro-Ro (Roll-on/Roll-off), and Bulk Cargo each serve different export needs, and we choose the safest route, loading method, and packing approach for the order.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Questions before ordering
Can this trailer load excavators without a detachable gooseneck?+
Yes. That is exactly why this product is positioned around rear ladder ramps. Standard excavators, loaders, bulldozers, and similar machines can load from the rear when their operating profile does not require front-loading access.
What is the main difference between this 50 ton lowbed and the 80 ton Africa lowbed?+
This page is the smaller fixed-deck ladder-ramp option with a published fixed Offer price and a practical 50 ton class focus. The 80 ton Africa page is the step-up choice when the buyer needs a heavier 3 axle platform, stronger payload margin, and a route profile closer to larger mixed-road machinery work.
Is the published price fixed or a range?+
The current page logic is a fixed Offer at USD 11,000 for the standard ladder-ramp reference configuration. Optional ABS, branding, or dimensional changes should still be quoted before production, but the base page is not meant to behave like an AggregateOffer range page.
When should I choose the 5 axle extendable lowbed instead?+
Choose the 5 axle extendable lowbed when the real constraint is cargo length, side widening, or long-wheelbase project freight. If the work is mostly standard machinery, this fixed-deck 50 ton trailer is usually the simpler and cheaper fit.
Can the trailer be customized for my tractor height or market requirement?+
Yes. Pin height is matched to the tractor saddle, and buyers can confirm dimensions, paint, logo, optional ABS, and market-specific requirements before production starts.
Request Drawing and Quote
If you are comparing a 50 ton lowbed trailer with ladder ramps, send the machine model, operating country, machine dimensions, transport weight, tractor saddle height, and whether ABS or branding is required. Kales can then confirm whether this fixed-deck ladder-ramp trailer is the right fit or whether you should move up to one of the more specialized lowbed platforms.
