WE PROVIDE THE BEST

4.2m Flat Deck • 4-Line 8-Axle • Detachable Gooseneck for Oversized Heavy Haul

✅ True 150-ton payload capacity
✅ 4.2-meter ultra-wide deck (40% wider than standard 3m models)
✅ HG60 high-strength steel frame
✅ Exported to 15+ countries: Kazakhstan, Uzbekistan, Kyrgyzstan, Saudi Arabia, Turkey, Nigeria, Kenya, Ghana, Angola & more

When your cargo won’t fit on a standard trailer—like power transformers, bridge girders, wind turbine nacelles, or mining excavators—you need a real heavy-haul solution.

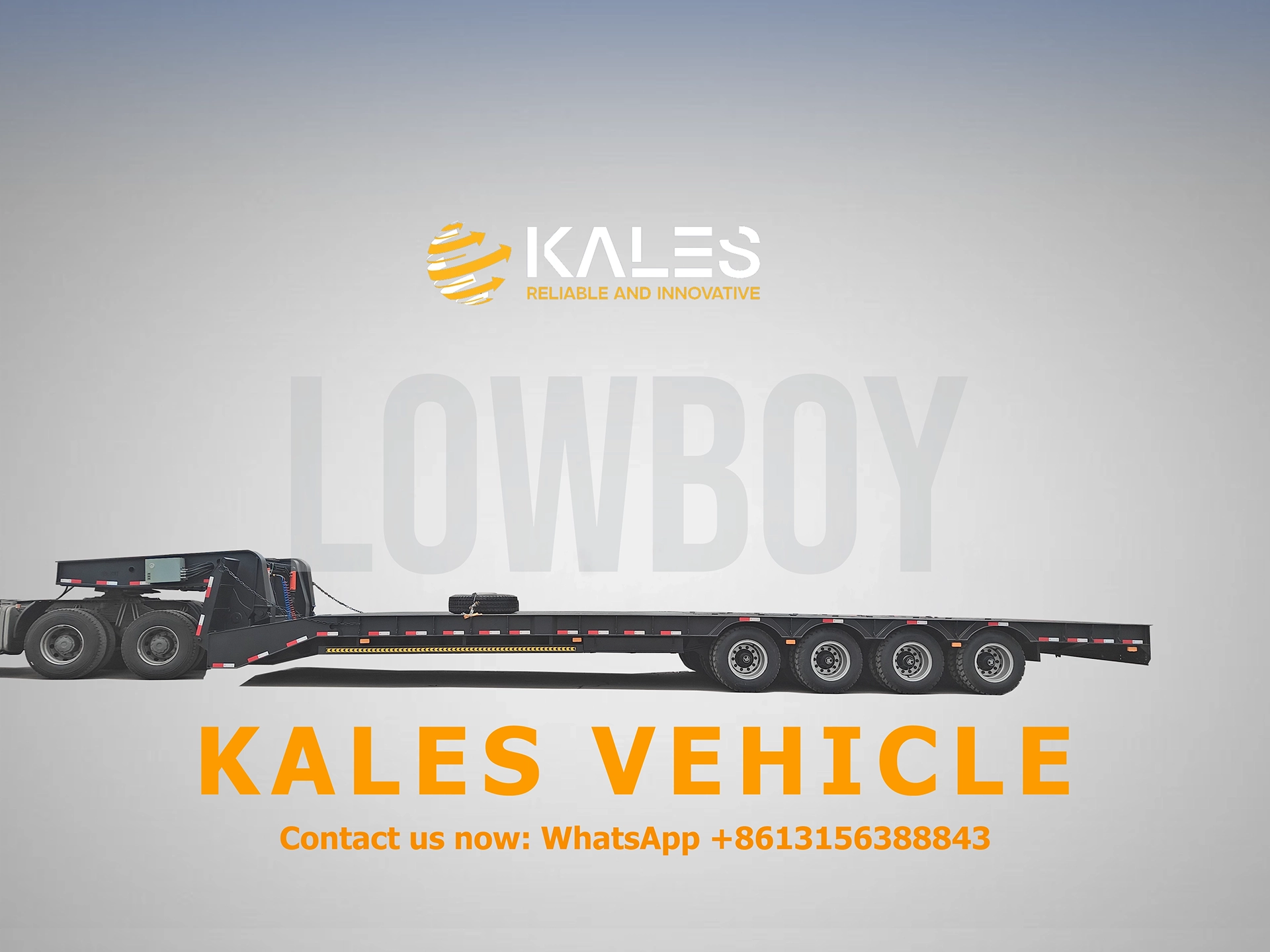

Meet the Kales 150-ton lowbed trailer (also known as a 150-ton lowboy trailer): engineered for extreme width and weight, featuring a seamless 4.2-meter flat deck, 4-line 8-axle configuration, and a fully detachable gooseneck for unmatched front- or side-loading flexibility.

Already in reliable operation across Central Asia, the Middle East, and Africa.

---

🔑 Why This Is the Ultimate Ultra-Wide Heavy Haul Trailer

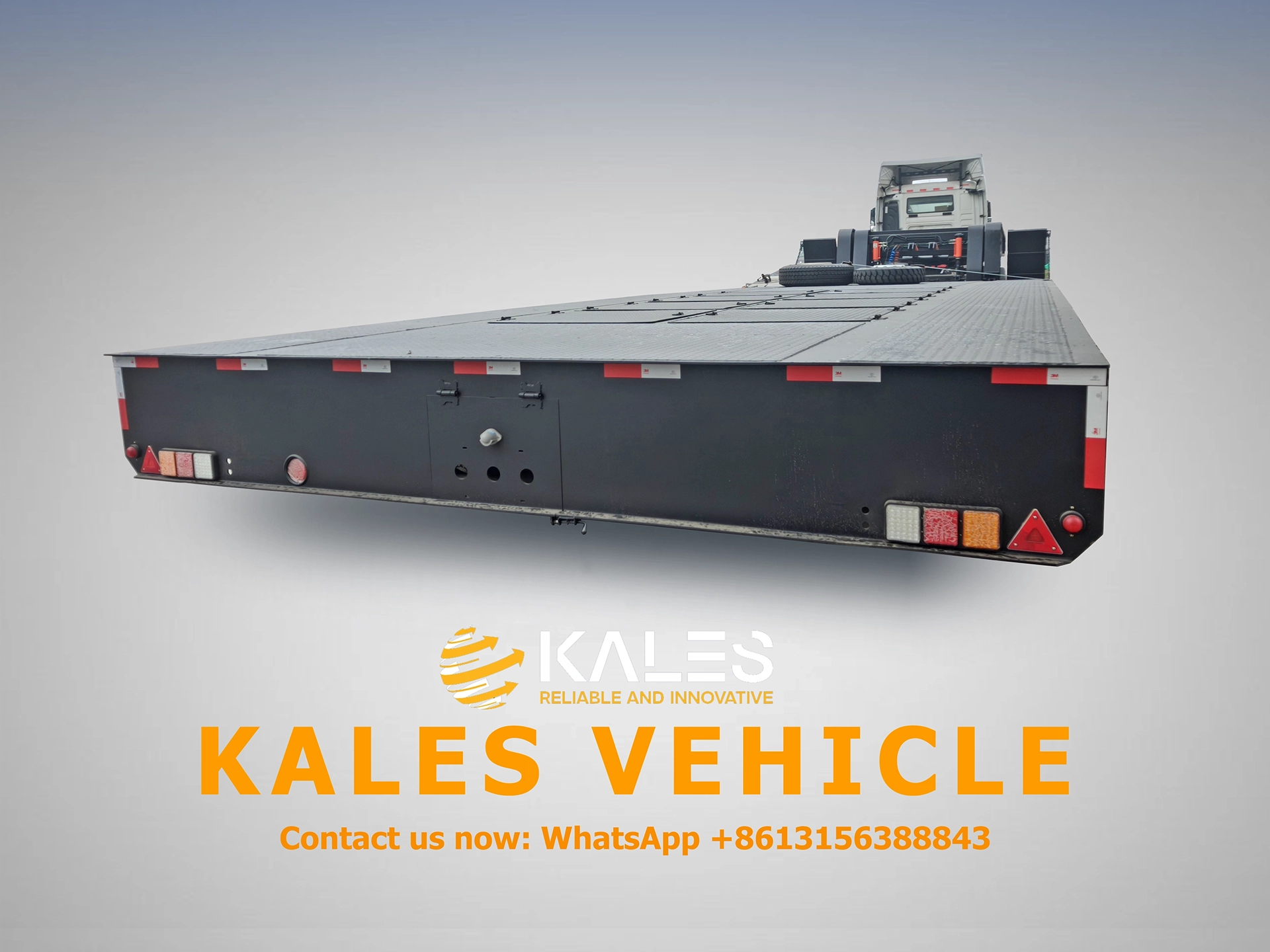

✅ 4.2-Meter Flat Deck – No Compromises

• 4,200 mm width vs. standard 3,000 mm → transports extra-wide loads in one piece
• Single-plane design (no hump or step) → ideal for transformer transport trailer stability and wind turbine logistics trailer requirements
• 8mm anti-slip checkered steel (Q345B) → corrosion-resistant and built for heavy-duty use

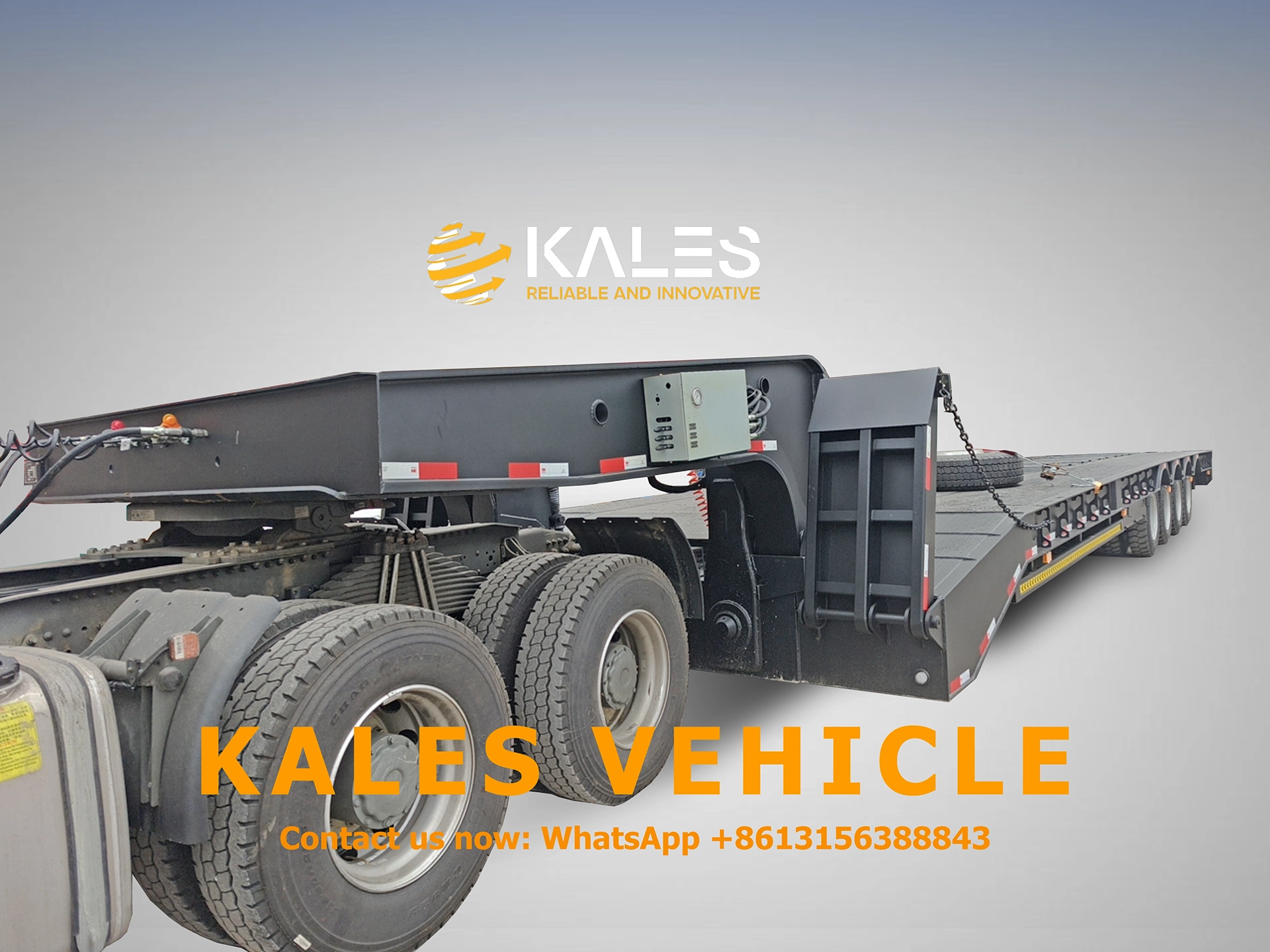

✅ Fully Detachable Gooseneck

• Remove it to load from the front or side
• Perfect for bridge girder transport, TBM modules, or skid-mounted oil & gas equipment with tight clearance

✅ Engineered for Real 150-Ton Performance

Many “150-ton” trailers cut corners. Ours doesn’t:

• HG60 steel main beam – 20% higher yield strength than Q345
• Safety factor ≥ 3 at full load
• Ultra-low deck height: only 970 mm → dramatically lowers center of gravity for safer highway and cornering stability

💡 Lower deck = higher safety + better route compliance—especially critical on height-restricted roads.

---

📏 Technical Specifications

Feature	Specification
Model	KL-150T-UW-Lowbed
Overall Dimensions (L×W×H)	16,300 × 4,200 × 970 mm
Tare Weight	26 tons
Max Payload	150 tons
GVWR	176 tons

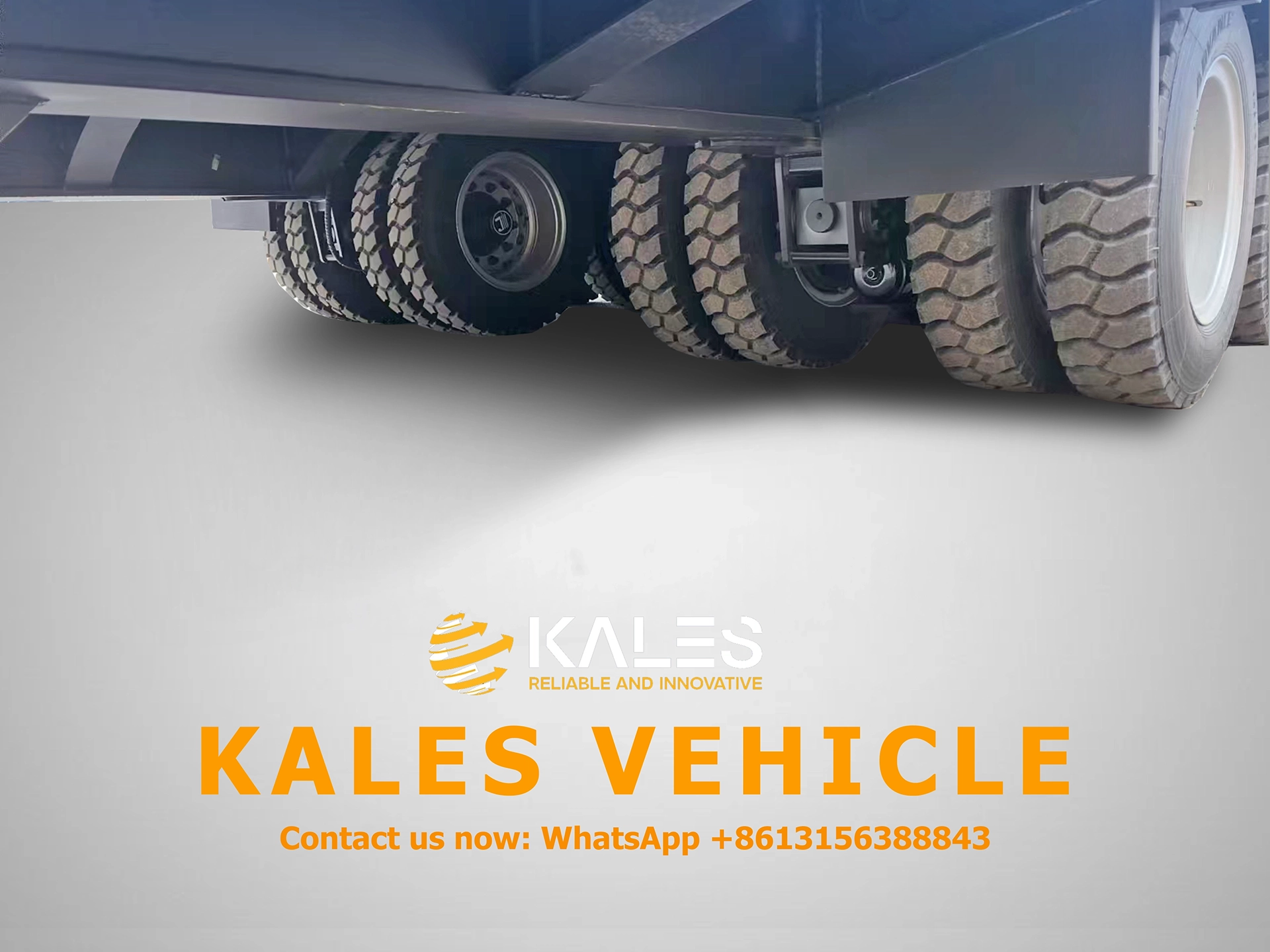

Axle Configuration	4 lines × 2 axles = 8 axles total (16 tires per line)
Axle Brands	FUWA / BPW / Kessler (16T per axle, customizable)
Tires	32 × 325/80R20 all-steel radial + 2 spare tires
Main Beam	HG60 I-beam (600mm deep, 25mm flange, 16mm web)
Suspension	Heavy-duty mechanical equalizer (standard) or hydraulic modular (optional)
Braking System	Dual-circuit air brake (WABCO valves); disc brakes available
Electrical System	24V ISO 1185 socket + ECE LED lighting

💡 This isn’t just a trailer—it’s a mobile heavy-lift platform engineered as a true 150-ton lowbed trailer.

---

🌍 Proven in Global Heavy Haul Markets

Successfully delivered and operating in:
Kazakhstan, Uzbekistan, Kyrgyzstan, Saudi Arabia, Turkey, Nigeria, Kenya, Ghana, Angola, and more.

In these regions, special permits allow 150-ton+ transports—if you have the right trailer and documentation.

As a trusted China 150-ton lowbed manufacturer, Kales provides:

• Custom axle spacing layouts
• Load distribution diagrams
• Permit support packages tailored to local regulations

Helping you secure approvals faster on approved heavy-haul routes.

---

🏗️ Key Applications by Industry

Industry	Typical Cargo	Why It Works
Power & Energy	Power transformers (3.8–4.2m wide), reactor vessels	Seamless 4.2m deck fits widest units without disassembly
Infrastructure	Bridge girders, tunnel segments, precast modules	Detachable gooseneck enables efficient front-loading
Mining & Oil & Gas	Drilling rigs, separators, compressor skids	8-axle layout ensures even weight distribution and road safety
Renewables	Wind turbine nacelles, tower bases	Meets strict width and stability demands of wind turbine logistics trailer operations
Shipbuilding & Industrial	Hull sections, boilers, pressure vessels	Transport as single unit—eliminates costly on-site assembly

---

✅ Why Global Buyers Trust Kales

• 12+ years specializing in 100–200 ton heavy-duty trailers
• ISO 9001-certified factory with robotic welding & automated painting lines
• 48-hour engineering response – get CAD drawings fast
• FOB Qingdao with full export documentation for Central Asia, Middle East, and Africa
• Global after-sales support – spare parts and technical guidance worldwide

We don’t just sell trailers.
We solve your heaviest transport challenges.

Why Global Buyers Trust Kales for 150-Ton Solutions

• ✅ 12+ Years in Heavy-Duty Trailer Manufacturing (since 2012)
• ✅ ISO 9001-Certified Factory with robotic welding & sandblasting/painting lines
• ✅ Custom Engineering Team: We deliver technical drawings within 48 hours
• ✅ Global Logistics Support: FOB Qingdao, with documentation for Russia, GCC, Africa, etc.
• ✅ After-Sales Service: Spare parts & technical guidance worldwide

We don’t just sell trailers—we solve heavy transport challenges.

Get Your Custom 150-Ton Lowbed Proposal in 48 Hours

1. Tell us: Cargo dimensions, weight, destination country, and special needs (e.g., disc brakes, camera, specific axle brand)
2. Receive: CAD drawing + quote
3. Deliver: Production in 25–35 days, with full shipment tracking

📞 WhatsApp / Call: +86 131 5638 8843
📧 Email: [email protected]
🌐 Explore More: www.kalestruck.com

Kales Truck Corp – Where Extreme Payload Meets Precision Engineering
✅ ISO 9001 Certified | ✅ Exporting to 15+ Countries | ✅ 150-Ton Lowbed Specialists
