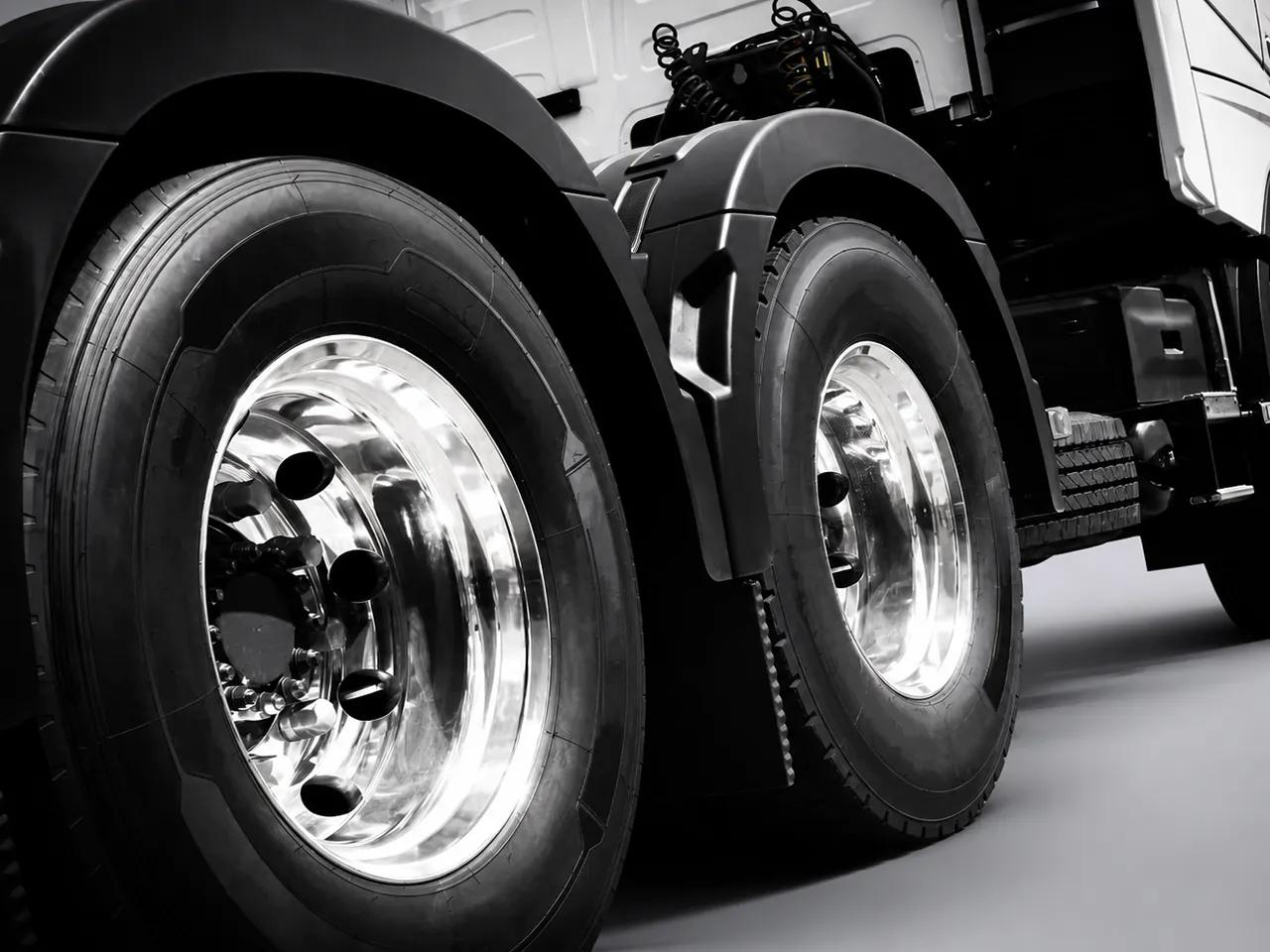

Semi-Trailer Tire & Wheel Selection Guide: 12R22.5 vs 295/80R22.5, Steel vs Aluminum
Reviewed by JasonLead Engineer, Kales Vehicle
Quick Answer for Fleets
- Choose 12R22.5 when your trailer needs more sidewall height, more ground-clearance tolerance, and better survival on rough or mixed-surface routes.
- Choose 295/80R22.5 when your trailers spend most of their time on paved, higher-speed highway work where lower ride height and more stable highway behavior matter more.
- Radial tires usually make more sense for long-haul paved work because they run cooler and more efficiently, while bias tires still earn their place in severe off-road and mining service.
- Forged aluminum wheels are a weight-and-heat decision, not just a cosmetic upgrade. They can recover useful payload, but the hub stud length and re-torque protocol must be checked first.
- If your fleet is considering super single tires, pair the change with TPMS or ATIS. On remote corridors, blowout management matters as much as fuel savings.
KALES route-first rule: spec trailer tires and wheels for the worst 10% of the route, because that is where sidewall cuts, rim damage, brake heat, and downtime usually start.
Why Tire and Wheel Spec Is a Fleet Profit Decision
On a semi-trailer axle group, tires and wheels control more than rolling. They influence deck height, trailer stability, tread wear rate, bearing and suspension load, downhill heat behavior, and how much dead weight the fleet is dragging every kilometer. That is why tire and wheel selection belongs in procurement planning, not only in the workshop after the trailer is already built.
| Decision area | What tire and wheel choice changes | What the fleet feels in practice |
|---|---|---|
| Payload | Wheel weight and tire format change rolling-package mass | Lighter highway packages can recover billable payload across every trip |
| Fuel economy | Rolling resistance changes with tire construction and contact patch | High-mileage highway fleets usually see the benefit first |
| Durability | Sidewall height, casing type, and wheel material affect damage resistance | Mixed-terrain routes punish low-profile highway specifications quickly |
| Brake heat management | Wheel material and tire construction affect heat rejection around the wheel end | Long descents and tropical heat expose weak combinations early |
| Maintenance cost | Tread wear patterns reveal inflation, alignment, suspension, and bearing issues | A tire replacement bill often starts as a chassis-management problem |
12R22.5 vs 295/80R22.5: Which Trailer Tire Profile Fits Your Route?
The heavy-duty trailer market still revolves around two common naming systems: imperial sizes such as 11R22.5 and 12R22.5, and metric sizes such as 295/80R22.5. The practical difference is not branding. It is ride height, sidewall behavior, and route fit.
A typical 12R22.5 has a section width around 305 mm and a taller sidewall than a 295/80R22.5 highway tire. That usually means more chassis clearance and a little more tolerance on broken surfaces. A typical 295/80R22.5 package sits lower overall, which helps reduce trailer ride height and center-of-gravity penalty on paved, long-haul work. Exact dimensions vary by brand, load index, and tread family, so always confirm with the actual tire data book before final spec.
| Feature | 12R22.5 | 295/80R22.5 |
|---|---|---|
| Section-width logic | Imperial-size workhorse, usually around 305 mm wide | Metric-width highway standard at 295 mm |
| Overall-diameter logic | Taller package with more sidewall and clearance tolerance | Lower package that helps reduce trailer height |
| Ground-clearance effect | Better fit for ruts, broken shoulders, and mixed-surface work | Better fit for paved-road stability and loading-height control |
| Best route match | Mixed terrain, poor roads, quarry access roads, mining support | Long-haul asphalt corridors, line-haul reefer, van, tanker, and highway flatbed work |
| Main caution | Can give away some highway-efficiency advantage versus a lower-profile road tire | Less forgiving when the route includes sharp rock, potholes, and repeated edge impacts |
Radial vs Bias Ply Tires: Efficiency vs Severe-Service Toughness
The tire profile answers only one part of the question. The other part is construction. Radial tires and bias-ply tires behave differently under heat, load, and sidewall abuse.
| Tire construction | Where it usually wins | Main strengths | Main trade-offs |
|---|---|---|---|
| Radial | Paved, higher-speed, long-haul service | Lower rolling resistance, cooler running, more even tread wear, better highway economics | Less forgiving in severe rock-cut and low-speed abuse when compared with a true severe-service bias setup |
| Bias ply | Mining, rough haul roads, severe off-road support | Strong sidewall toughness, good resistance to impacts and cuts, stable in harsh low-speed abuse | More heat buildup and poorer efficiency on sustained highway duty |
The rule is simple: radial is usually the default answer for modern highway trailers, but it is not automatically the best answer for every route. When fleets in Africa or South America spend real time on broken haul roads, a tougher bias package can still protect total tire cost better than a highway-optimized radial that keeps failing at the sidewall.
Workshop Diagnostic: What Trailer Tread Wear Is Trying to Tell You
A semi-trailer tire should not be treated as an isolated wear part. Many tire failures are actually alignment, inflation, suspension, or bearing faults that first show up in the tread.
| Wear pattern | Most likely root cause | Workshop action |
|---|---|---|
| Center wear | Over-inflation | Reset cold inflation pressure to the real load-and-speed requirement, not a generic maximum-sidewall habit |
| Shoulder wear on both edges | Under-inflation or chronic overloading | Verify axle load, inflation practice, and whether the trailer is regularly leaving the yard overloaded |
| Cupping or scalloping | Worn dampers, loose wheel bearings, or suspension instability | Inspect suspension hardware, wheel-end play, and axle-end stability before fitting new tires |
| Feathered edge | Toe misalignment or axle-tracking error | Run a proper axle-alignment check and inspect suspension hanger condition |
| Repeated damage on one axle position | Localized route strike, brake drag, or chassis issue | Compare wheel-end heat, brake release, and axle geometry instead of blaming the tire alone |

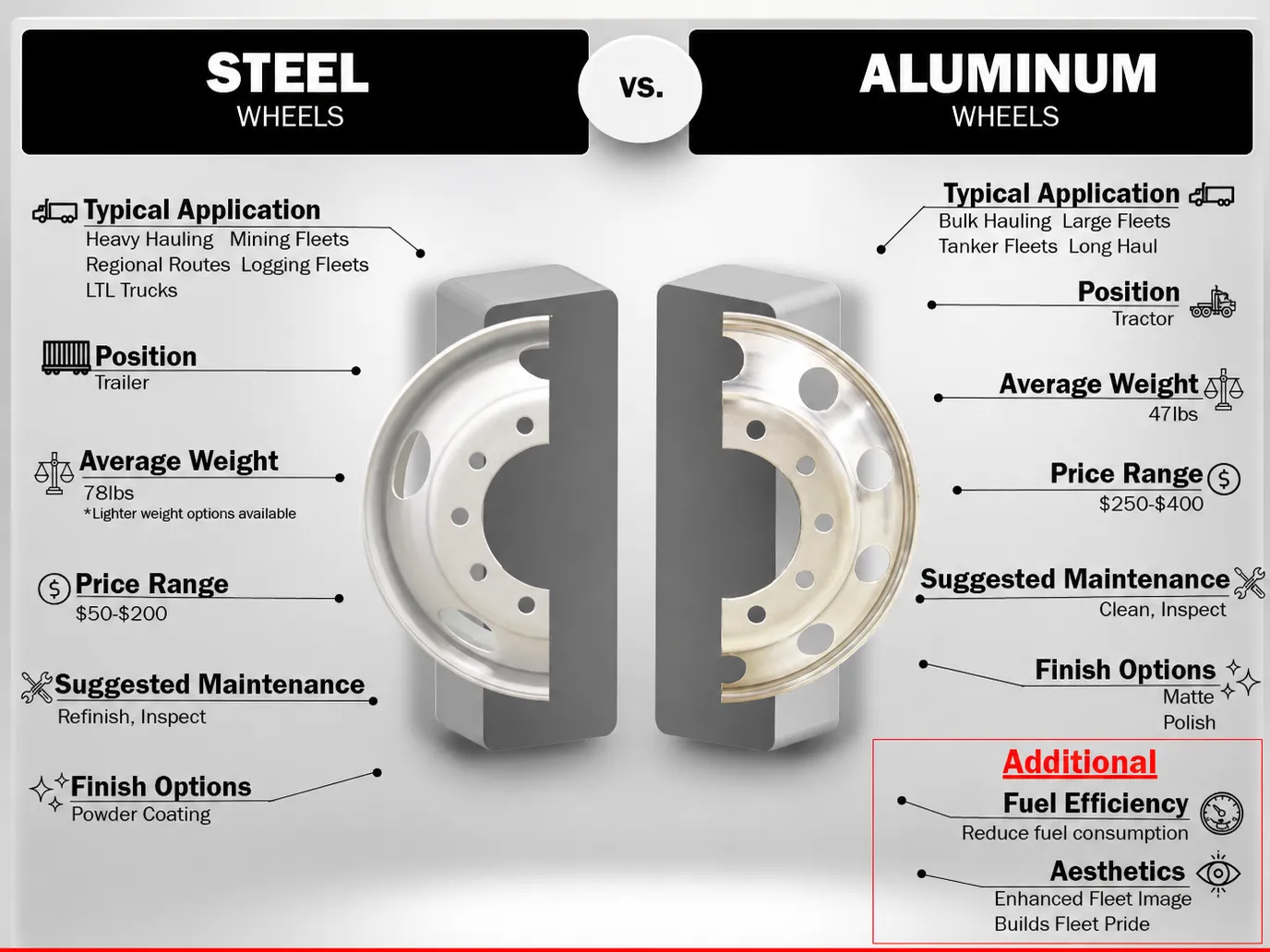

Forged Aluminum vs Steel Trailer Wheels
For fleets comparing wheel materials, the real questions are payload, heat behavior, and service discipline.
| Factor | Steel wheel | Forged aluminum wheel |
|---|---|---|
| Upfront cost | Lower | Higher |
| Weight | Heavier, often around 45 to 50 kg for a 22.5-inch wheel | Much lighter, often in the mid-20 kg range depending on width and design |
| Heat behavior | Acceptable but slower to move heat away from the wheel end | Better heat rejection around the brake and bead area on road-focused service |
| Workshop repair culture | Easier for basic-field repair logic in remote workshops | Demands cleaner handling, correct torque, and better fitment discipline |
| Best fit | Rough service, mining support, budget-led standardization | Highway fleets chasing payload, fuel, and thermal control |
On a 3-axle trailer and 6×4 tractor combination, switching from full steel to full aluminum wheels can often recover several hundred kilograms of dead weight, depending on the wheel count and exact spec. That recovered weight can be turned into payload where axle law and cargo density allow it. The operational value is strongest on highway fleets that run enough kilometers for the lighter package to pay for itself.
Critical Conversion Warning
Do not treat an aluminum-wheel conversion as a simple wheel swap.
- Check stud length: aluminum-wheel flange thickness often requires longer hub studs for correct thread engagement.
- Use the right nuts and surfaces: match hardware to the wheel-seat design and keep the mounting faces clean.
- Enforce re-torque discipline: after initial service, wheels should be re-torqued according to the fleet’s wheel policy and supplier guidance. Do not skip the first follow-up inspection.
Single, Dual, and Super Single Trailer Tire Layouts
Wide-base single tires, often called super singles, are now part of many fleet-efficiency discussions because they remove one tire from each wheel end and simplify the contact patch.
| Layout | Main advantage | Main risk | Best-use logic |
|---|---|---|---|
| Dual tires | Redundancy and familiar service practice | More weight and more rolling complexity | Best for mixed fleets, remote corridors, and operators who value limp-home tolerance |
| Super single | Lower weight and cleaner rolling package | No backup tire if the casing fails on that wheel end | Best for disciplined highway fleets that can support TPMS/ATIS and proactive tire management |
On paper, a super-single package can improve payload and rolling efficiency. In practice, the failure mode is harsher. A blowout removes the entire wheel-end support, which is a very different operational problem from losing one tire in a dual set. That risk matters far more in the Australian Outback, cross-border African lanes, or remote mining corridors than it does in dense service networks.
Mitigation strategy: if your fleet wants wide-base singles, pair the decision with TPMS or ATIS. Early leak detection is what turns a high-risk configuration into a manageable one.Recommended Tire and Wheel Combinations by Route Type
Based on field-use logic and export fleet realities, the best spec is usually the one that matches the route, workshop capability, and business model together.
| Region or route pattern | Recommended direction | Why it usually works |
|---|---|---|
| Southeast Asia highway work with high heat and humidity | 295/80R22.5 radial + forged aluminum wheel package | Highway efficiency and better wheel-end heat behavior matter more than rough-road sidewall protection |
| Central Asia and Australia long-haul paved corridors | 295/80R22.5 radial, with aluminum wheels where payload math justifies it | Lower ride height, payload discipline, and long-distance highway economics usually lead the decision |
| Africa and South America mixed terrain, quarry access, or mining support | 12R22.5 or severe-service bias package + heavy-duty steel wheels | Higher sidewall tolerance and easier field-service logic often protect total operating cost better than a pure highway setup |
| Remote fleets with weak roadside support | Stay conservative: dual tires and steel wheels unless the business case for change is strong | Serviceability and failure tolerance can outweigh theoretical efficiency gains |
Do Not Ignore the Brake and Suspension Connection
Wheel and tire changes affect the rest of the running gear. Lighter wheels reduce unsprung mass, while different tire profiles change ride height and suspension behavior. That means brake response, alignment condition, and suspension health all matter more after a spec change, not less.
If your fleet is pairing wheel upgrades with highway-brake upgrades, also review the Semi-Trailer Braking Systems Guide: ABS, EBS, RSS and AEBS and the long-downgrade brake-fade guide. The rolling package and the braking package should be treated as one operating system.
Fleet Workshop Checklist Before You Approve a Tire or Wheel Change
| Check item | Why it matters | Workshop note |
|---|---|---|
| Actual route profile | Spec must match the worst road section, not only the average highway section | Break the route into paved, broken, quarry, and mountain segments before ordering |
| Axle load and inflation practice | Wrong pressure strategy destroys even good tires quickly | Use real load data and a cold-pressure policy, not rule-of-thumb inflation |
| Hub, stud, and wheel-seat compatibility | Essential when moving from steel to aluminum | Confirm stud length, nut type, and mounting-face condition before conversion |
| Alignment and suspension condition | New tires cannot compensate for a bent or unstable chassis | Check toe, axle tracking, hanger condition, dampers, and bushings |
| Brake-release and wheel-end heat behavior | Dragging brakes create tire and heat complaints that look like tire faults | Inspect brake balance, chamber release, and wheel-end temperature after road test |
Frequently Asked Questions
Which is better for rough roads: 12R22.5 or 295/80R22.5?
Usually 12R22.5. Its taller sidewall and higher overall package make it a safer choice for mixed terrain, broken shoulders, mining access roads, and routes where rim protection and chassis clearance matter more than low ride height.
Are radial trailer tires always better than bias tires?
No. Radials are usually better for paved, higher-speed, long-haul service because they run cooler and more efficiently. Bias tires still make sense where sidewall toughness, cut resistance, and harsh low-speed abuse matter more than highway fuel economy.
Do forged aluminum wheels really increase payload?
They can. A full set of aluminum wheels can remove several hundred kilograms of dead weight from a tractor-trailer combination, depending on wheel count and exact spec. But the value only holds if the route is road-focused enough and the fleet manages fitment and re-torque correctly.
When should a fleet avoid super singles?
Avoid them when roadside support is weak, routes are remote, and the fleet cannot support TPMS or ATIS. On those routes, the redundancy of dual tires is often more valuable than the theoretical efficiency gain of a wide-base single.
What tread wear pattern points to alignment instead of inflation?
Feathering and repeated one-edge wear are stronger alignment warnings. Center wear usually points to over-inflation, while both-shoulder wear usually points to under-inflation or overload.
Final Recommendation
If your fleet runs mostly paved, higher-speed routes, start from a 295/80R22.5 radial highway package and evaluate whether aluminum wheels improve the payload and heat equation enough to justify the conversion. If the route includes severe broken surfaces, quarry access, or mining support, move toward a 12R22.5 or severe-service bias direction on steel wheels. The correct semi-trailer tire and wheel choice is the one that survives the real route while still protecting fuel, payload, and maintenance cost.
